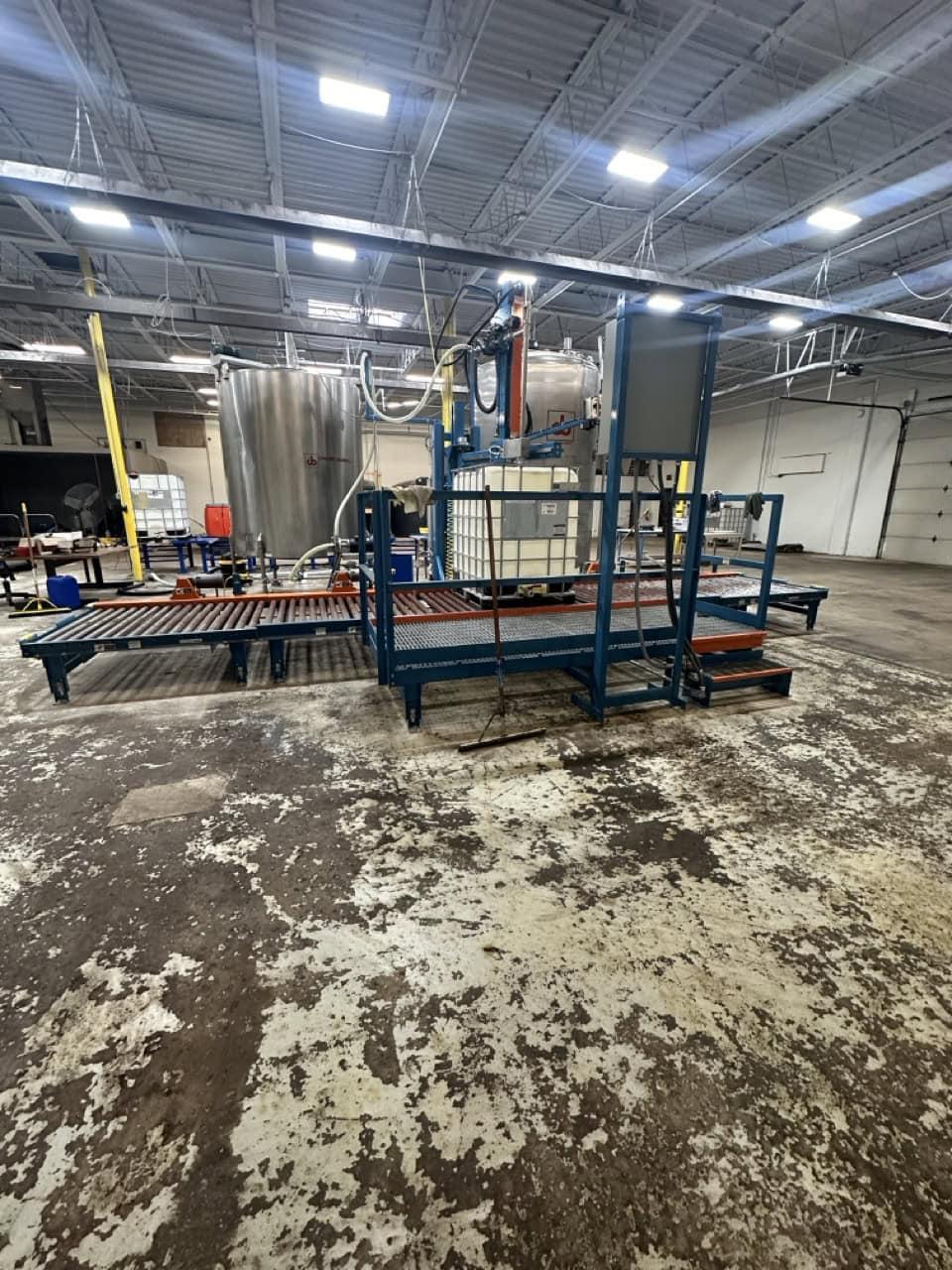

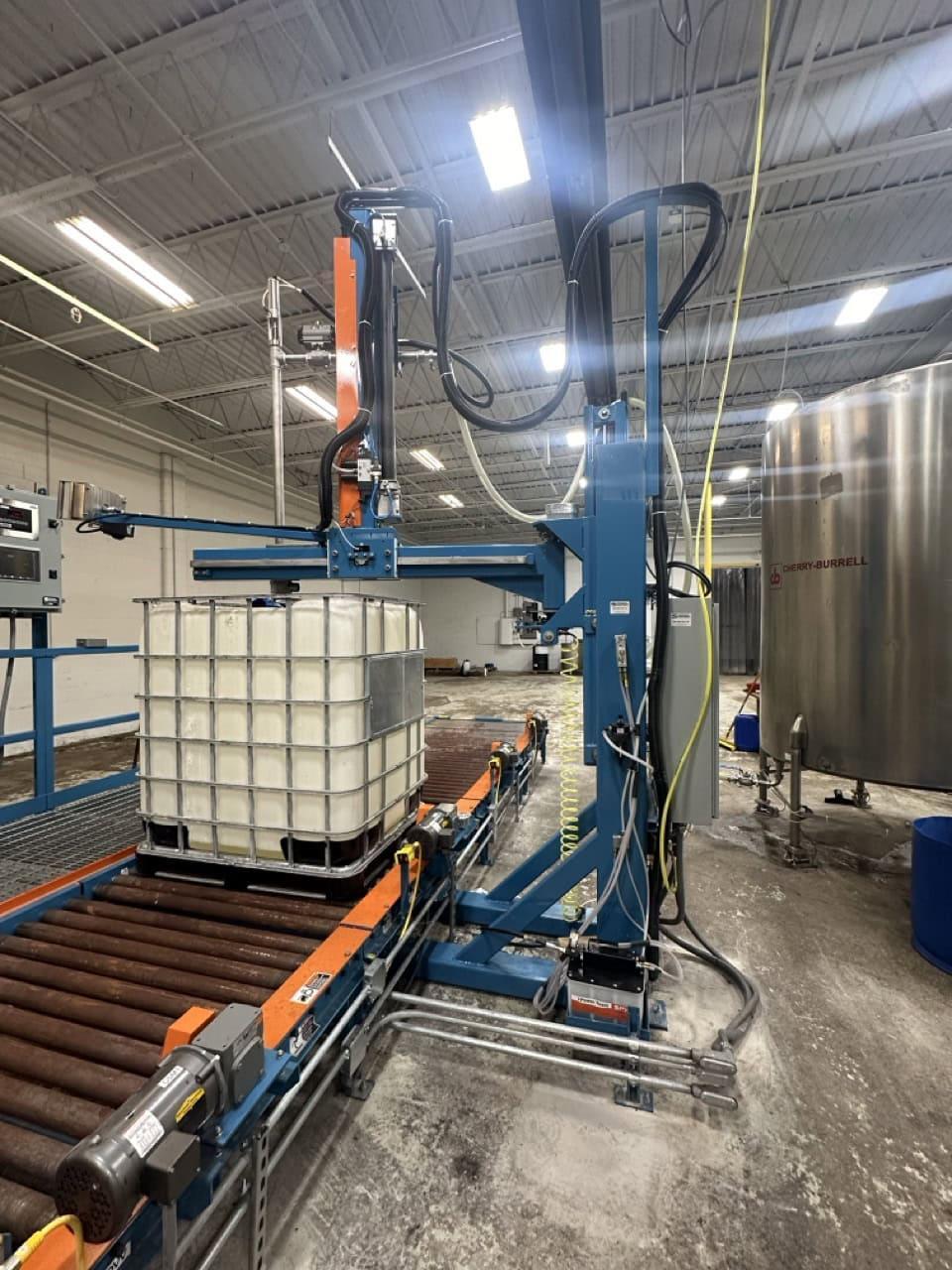

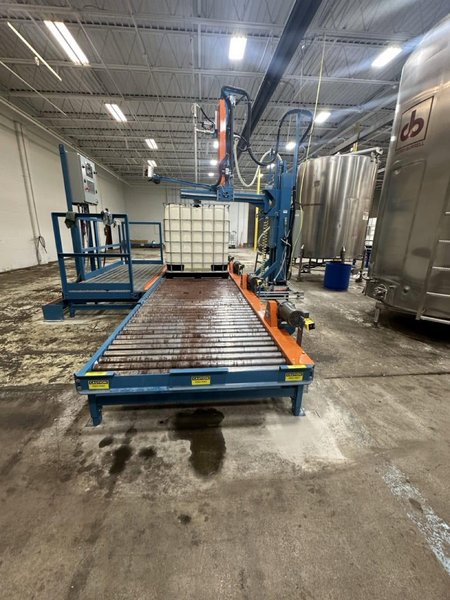

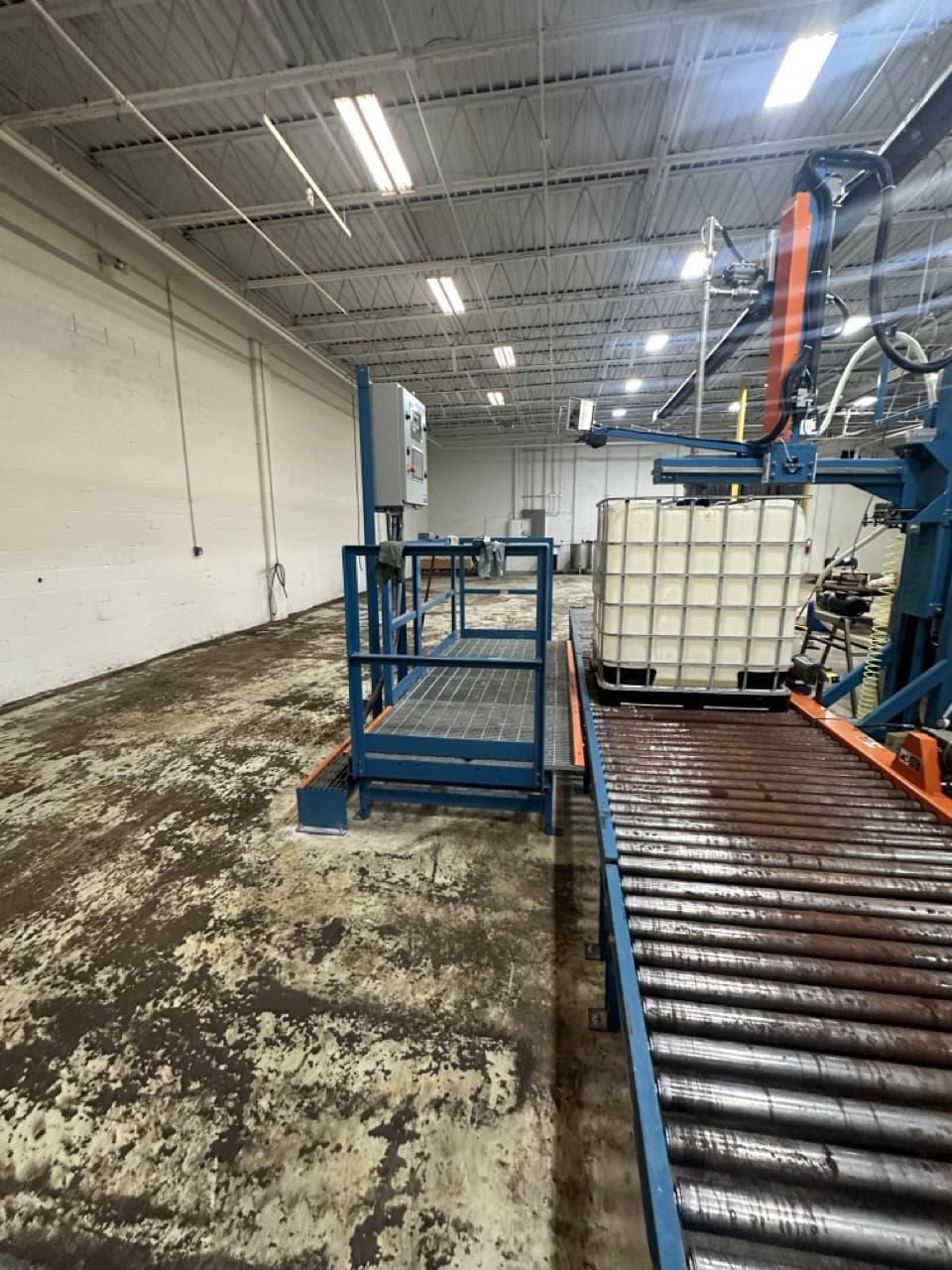

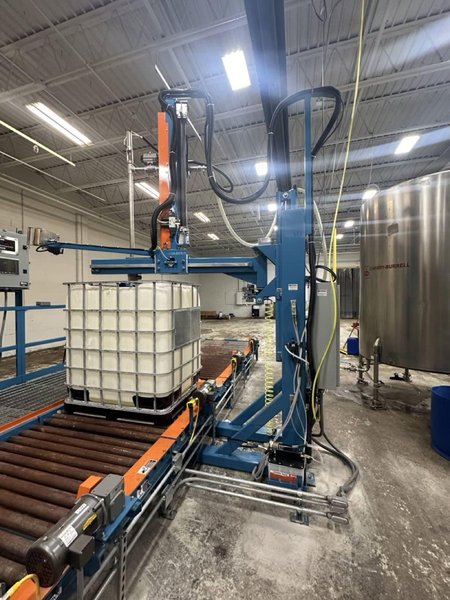

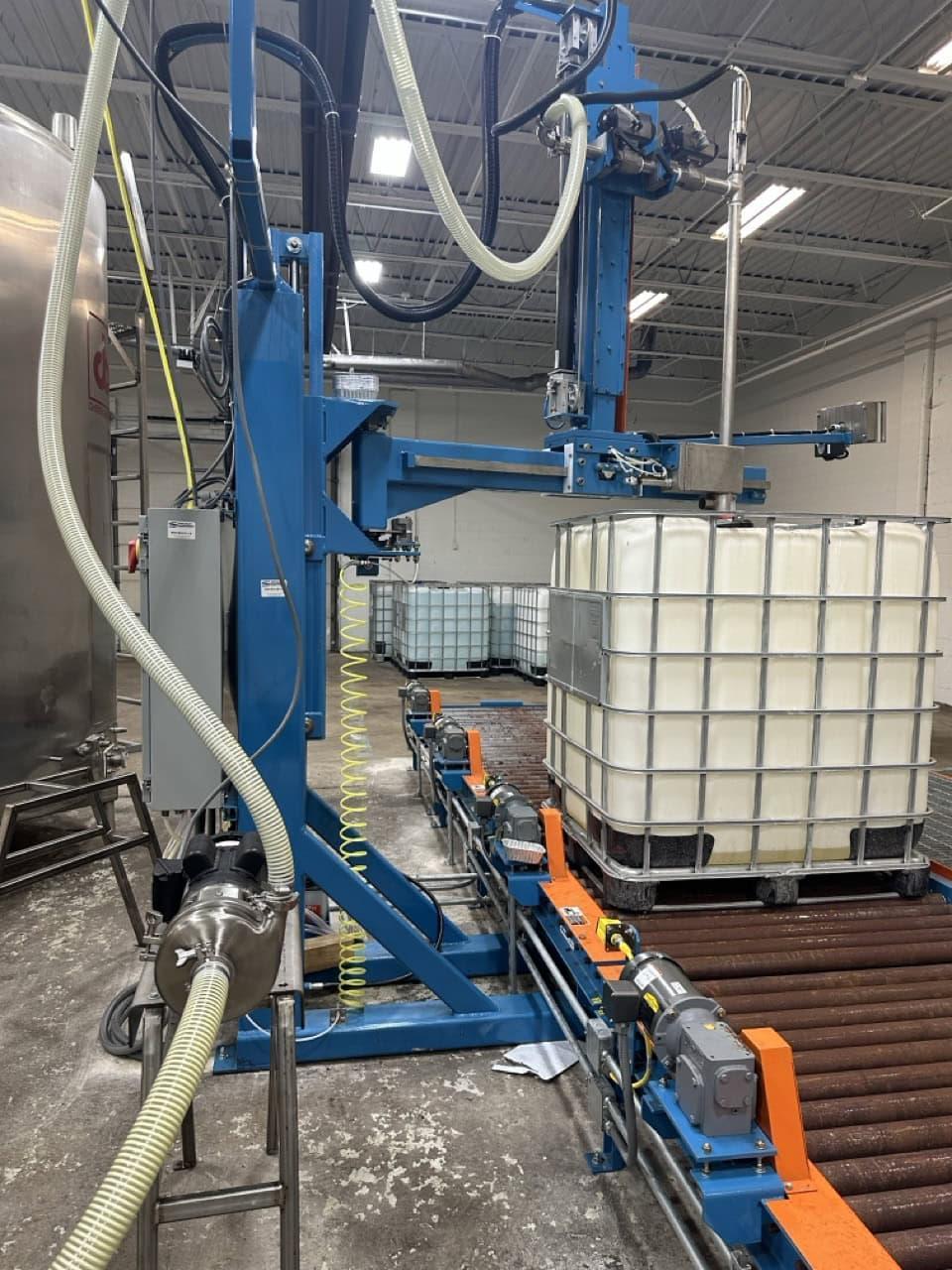

Specialty Equipment DF-5540U Automatic Liquid Filling Machine

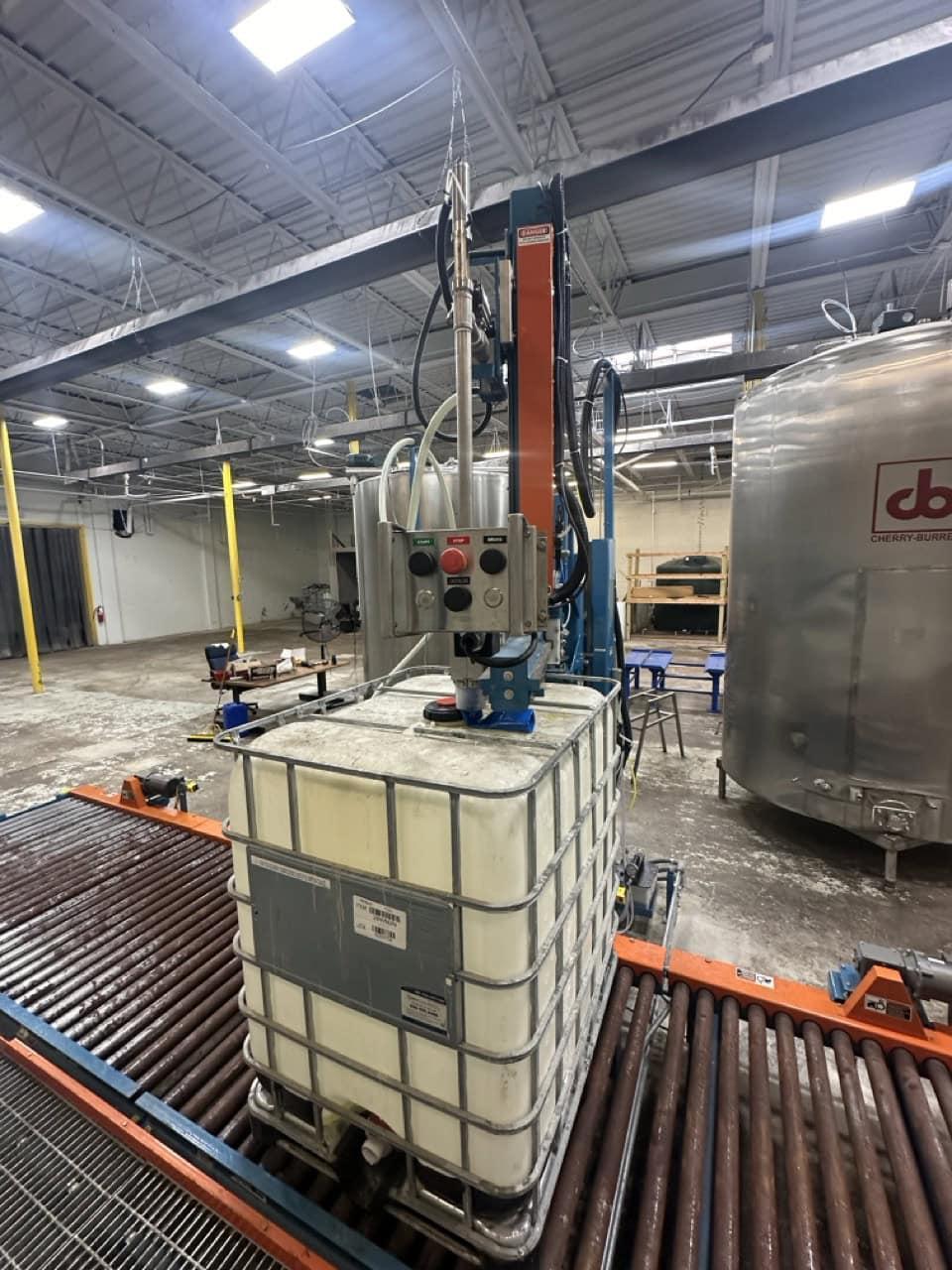

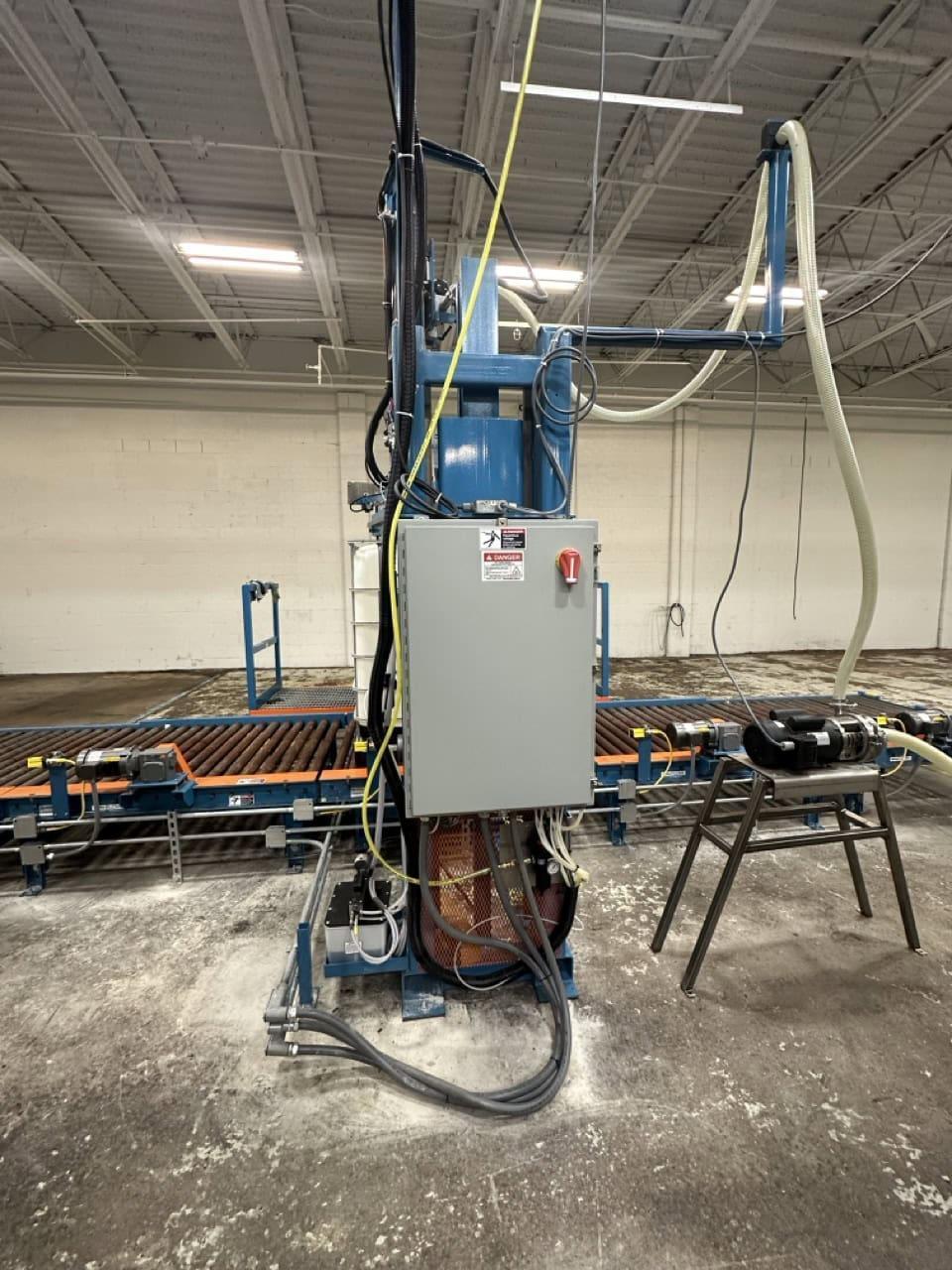

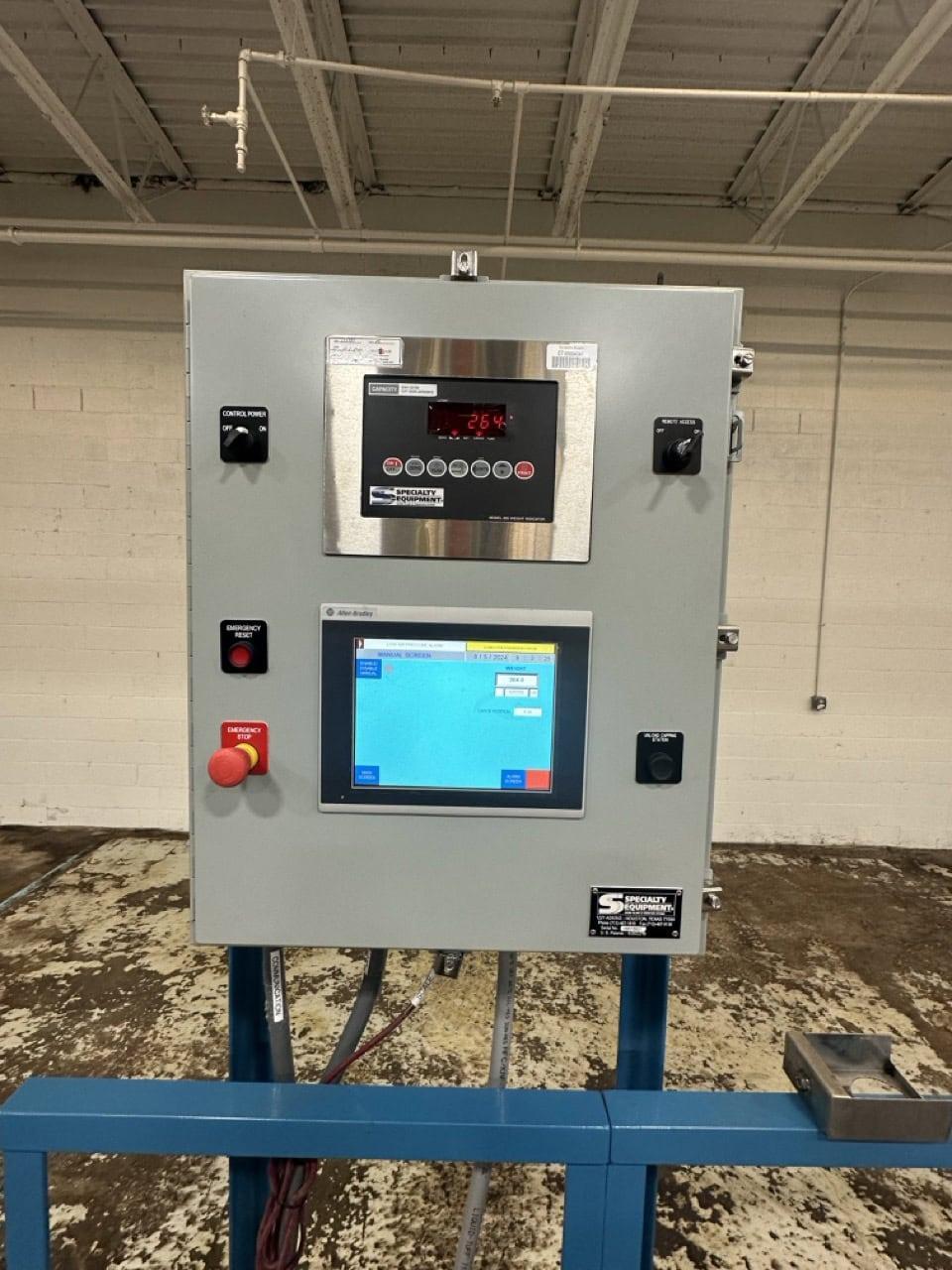

– Lance and all other wetted parts are 316 stainless steel – Two infeed full-port ball valves control product hammering – Scale is 5,000 lb capacity platform type – NTEP approved scale and weight meter – Controller is an Allen Bradley PLC with 250 product menu – Touch screen is an Allen Bradley color Panel View – NEMA 4 standard control panel enclosure, others optional – Communications port for interface with Drum Filler in the Cloud – Air cylinder raises and lowers the lance carriage – Operator troubleshooting interface with prompts – Air operated drip pan and UHMW wiper ring – Built in fume hood at the lance for vapor collection – Will automatically zero the tare weight before filling – Automatic abort if lance is not aligned with bung opening – Operator troubleshoot interface with prompts – Heavy duty brakes for boom position locking – Rugged structural steel stanchion and lance carriage – Fills a 55 gallon drum with water in 45 seconds at 80 gallons per minute product flow

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
