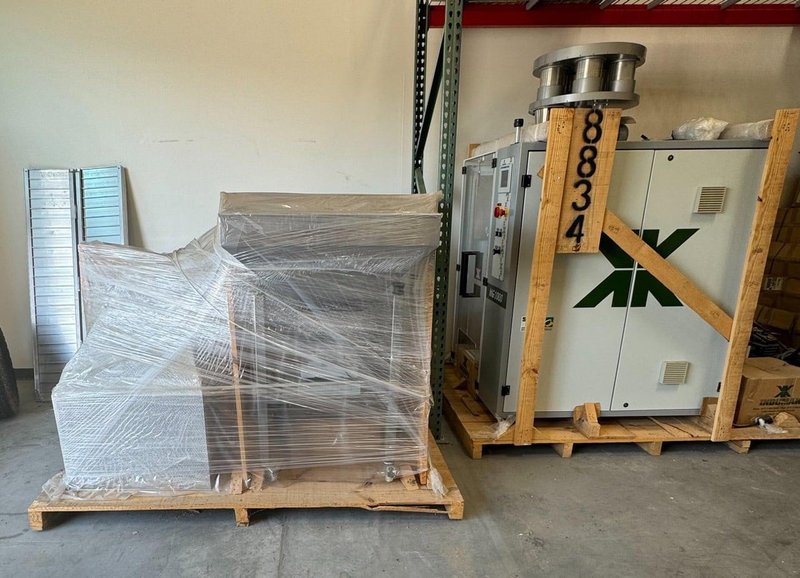

Indumak MG1000 Form-Fill-Seal with CGS Doser – 2016 Unused, Verified Under Power

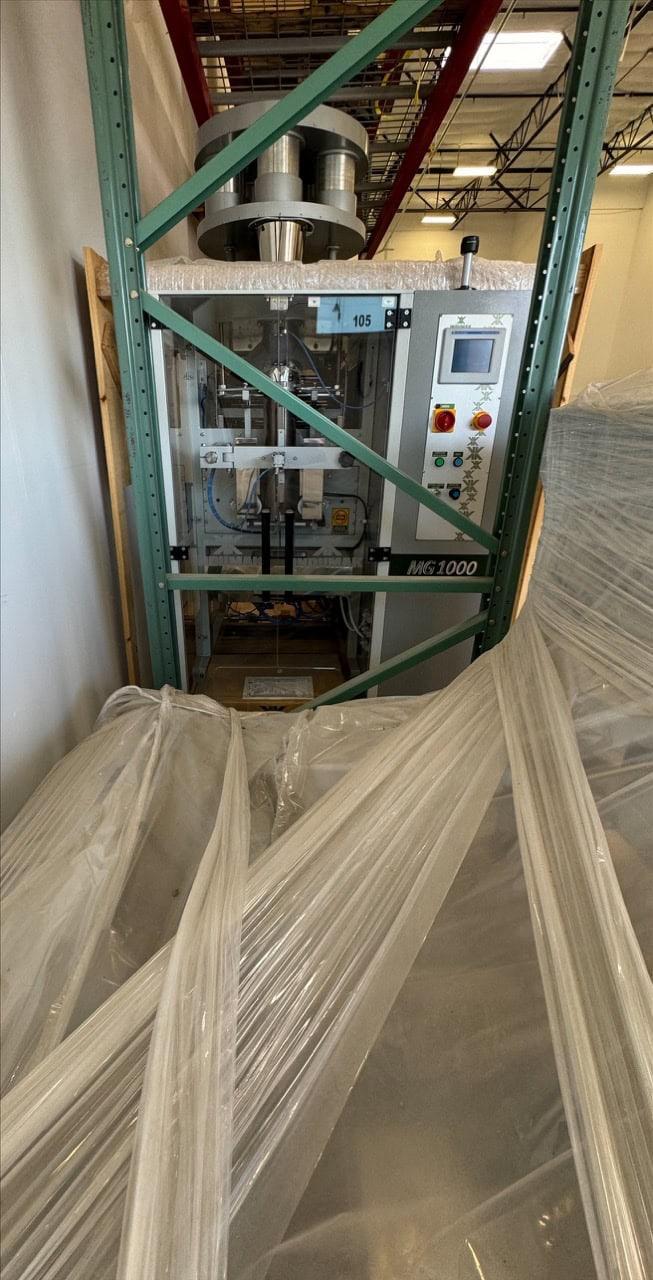

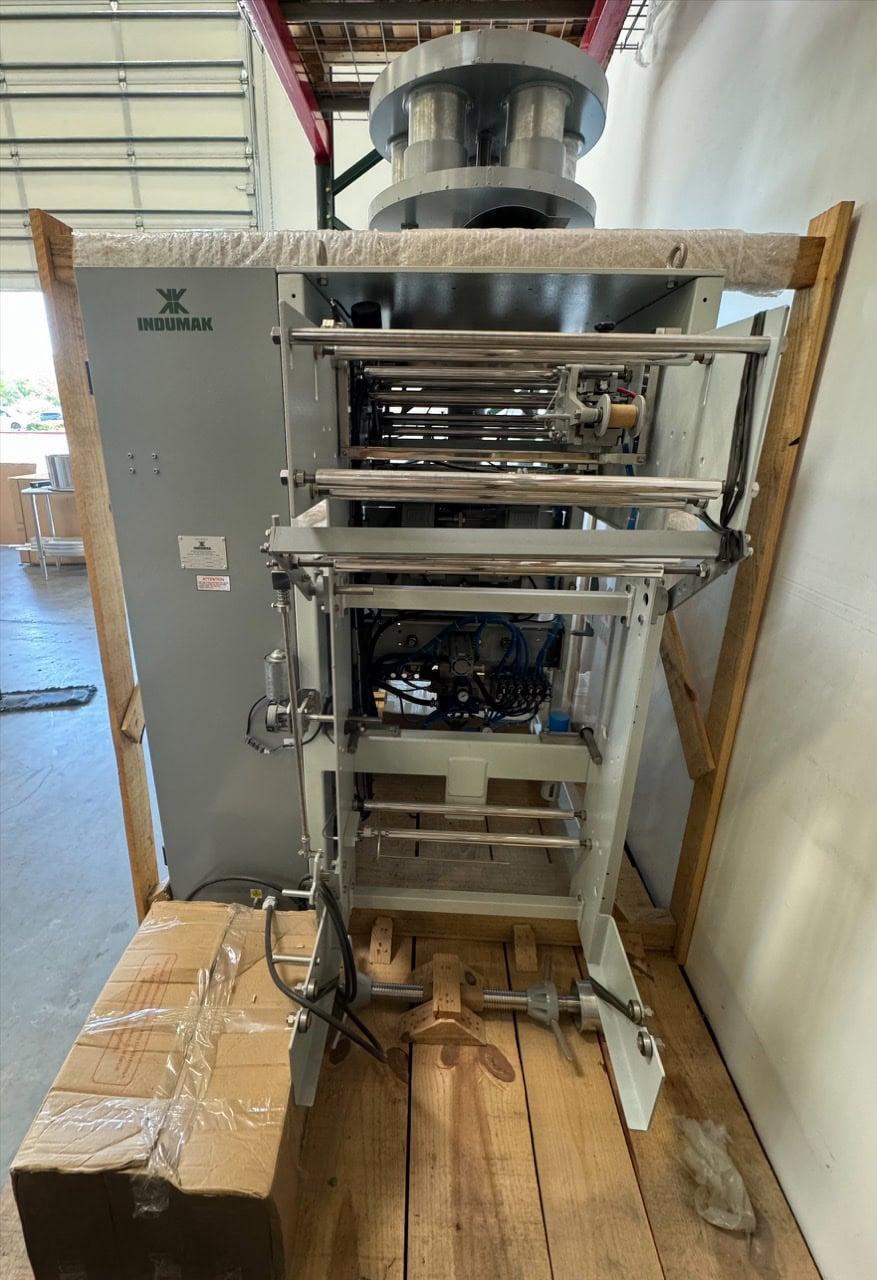

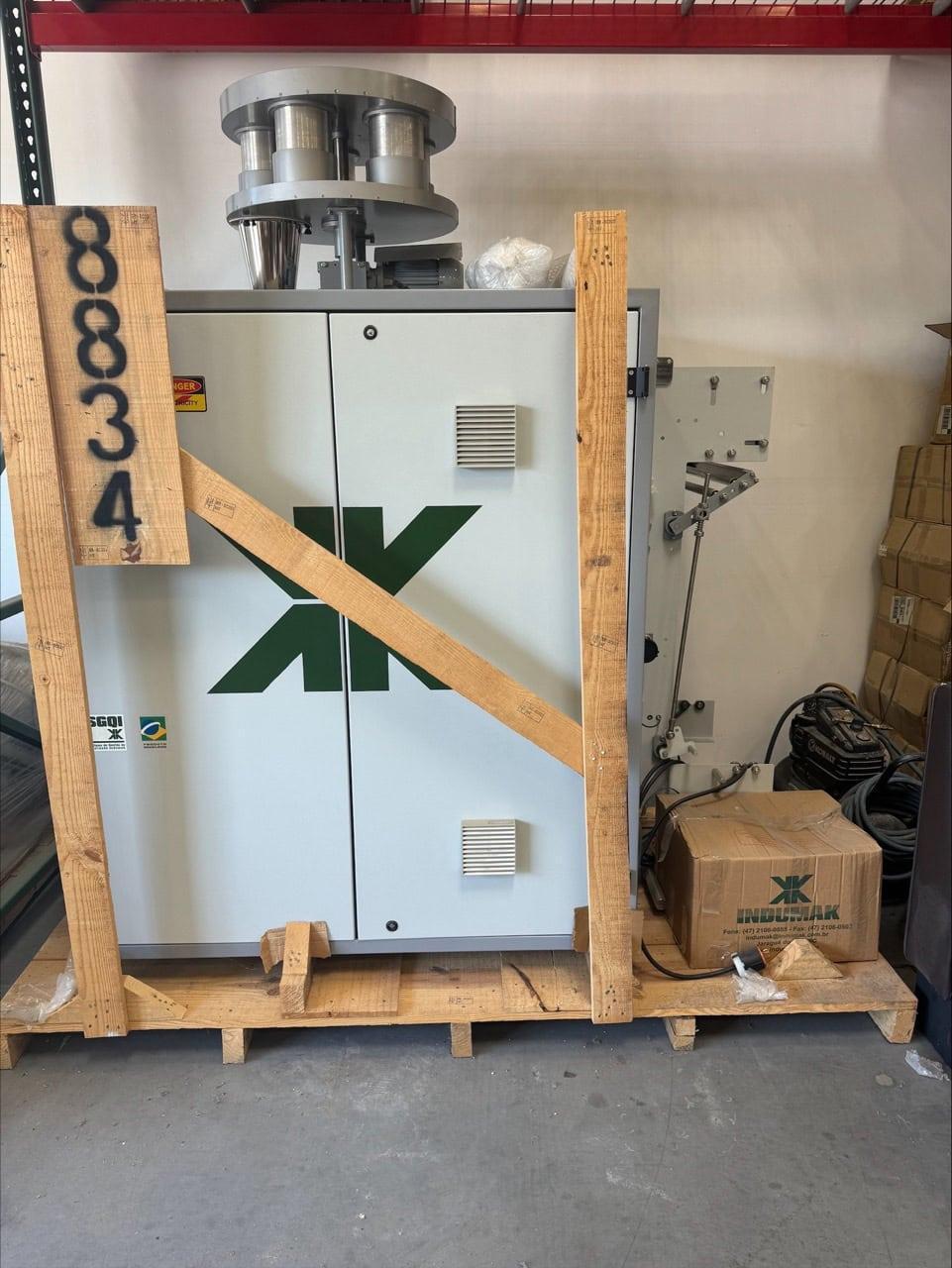

Equipment Overview This Indumak MG1000 vertical form-fill-seal machine with integrated CGS carousel doser is confirmed unused and operational. Built in 2016, the unit has never been in production. It is electrically powered, HMI responsive, and the doser is fully functional. The machine is crated and stored professionally, with sealing bars, touchscreen, wiring, and doser in visually flawless condition. Ideal for snack, popped, or granular product lines.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System Configuration: Type: Vertical Form-Fill-Seal (VFFS) Integrated Doser: CGS Carousel Gravity System Operator Panel: Rockwell PV600 touchscreen PLC: Rockwell Automation Structure: SAE 1020 steel frame + AISI 304 stainless interfaces Construction Year: 2016 HMI Verified: Yes, confirmed via video review Doser Rotation: Smooth, confirmed via 82s video

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Packaging Specs: Bag Width: 70 – 285 mm Bag Length: 65 – 350 mm Bag Styles: Pillow, Gusseted, Flat Bottom Max Output: Up to 65 cycles/min Film Roll Width: Max 620 mm Film Core Size: 76 mm Film Types: Heat-sealable BOPP, laminated film Reel Handling: Motorized film centering and brake Photocell: Registered, confirmed present

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Doser (CGS Unit): Type: Gravity multi-head carousel system Speed Control: Independent motor indexing Output Verified: Yes – rotation observed under power Height: 1850 mm Forming Tube: Present and aligned

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical & Pneumatics: Voltage: 220V Frequency: 60 Hz Power: 1 kVA Compressed Air: 150 L/min @ 6–7 bar

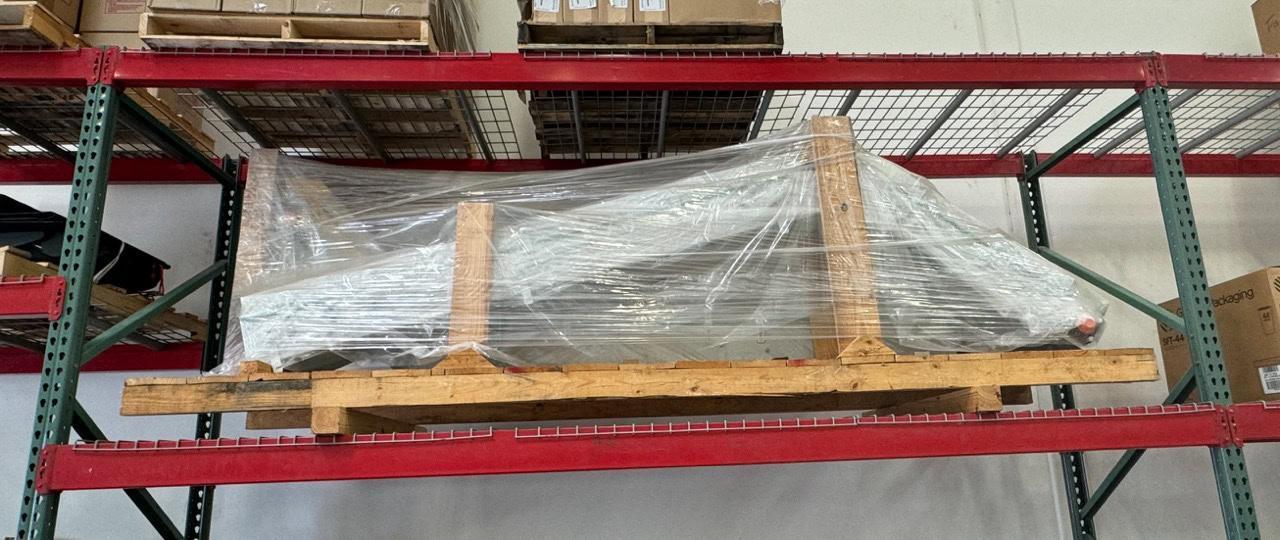

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: Weight: 950 kg Total Height: 1850 mm Footprint: ~1.5m x 1.2m Crating: Palletized and wrapped (3 major units)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
