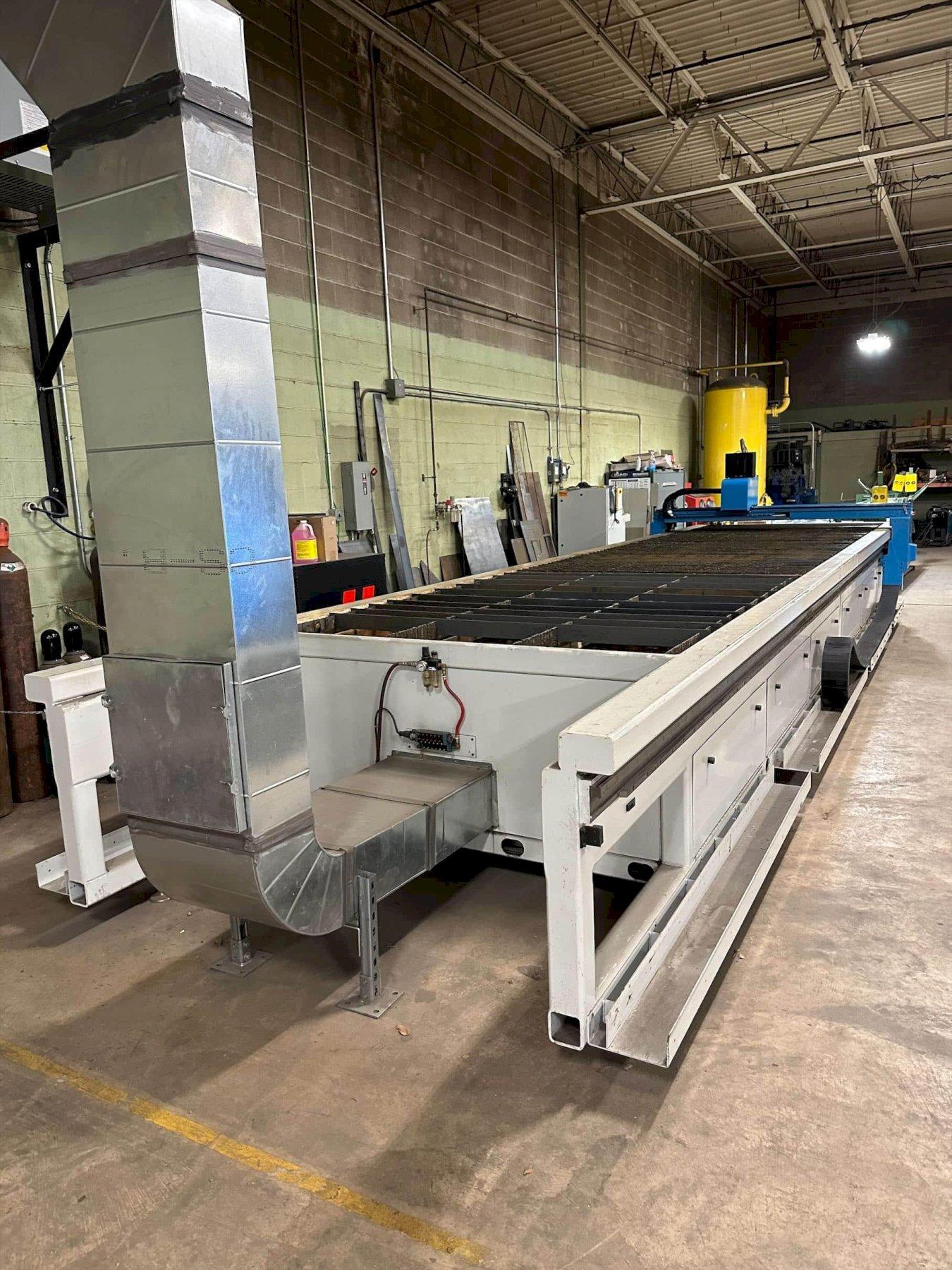

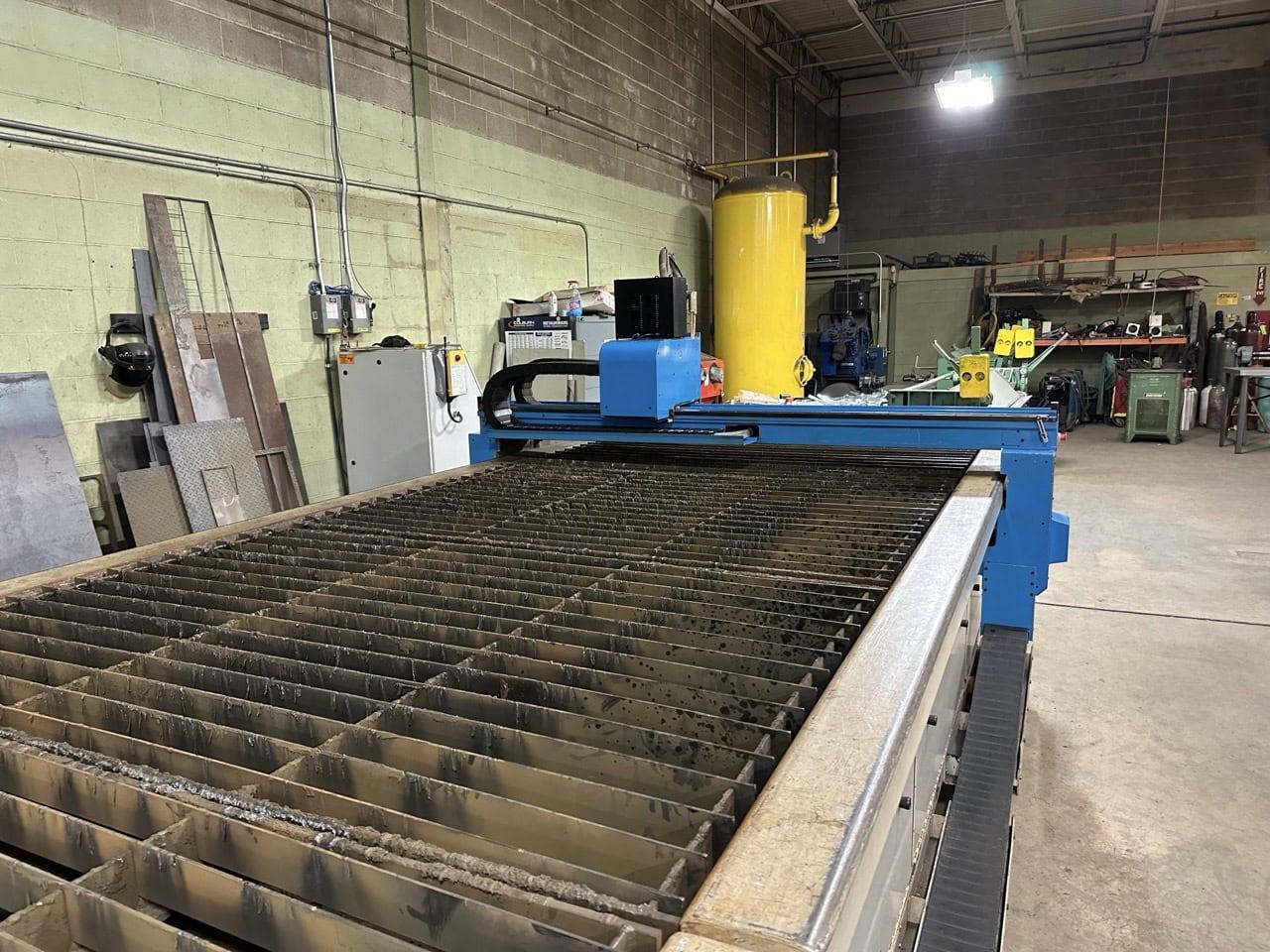

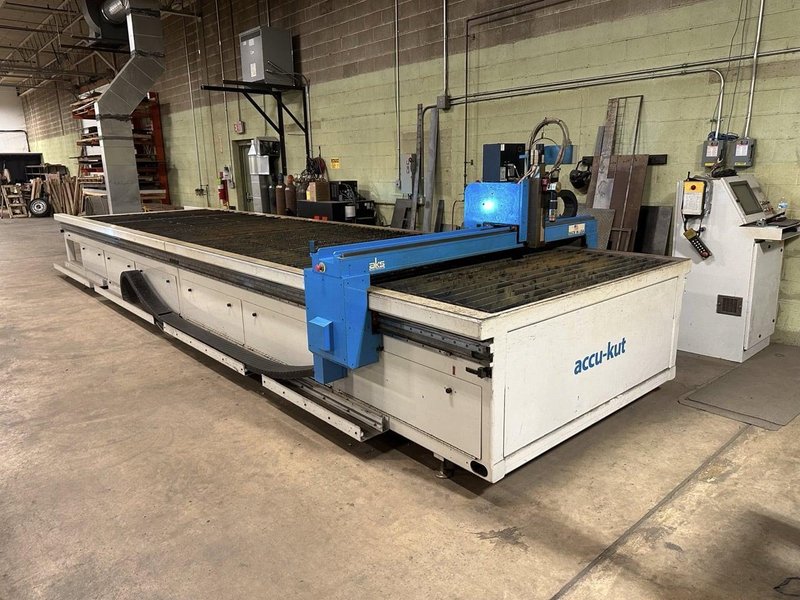

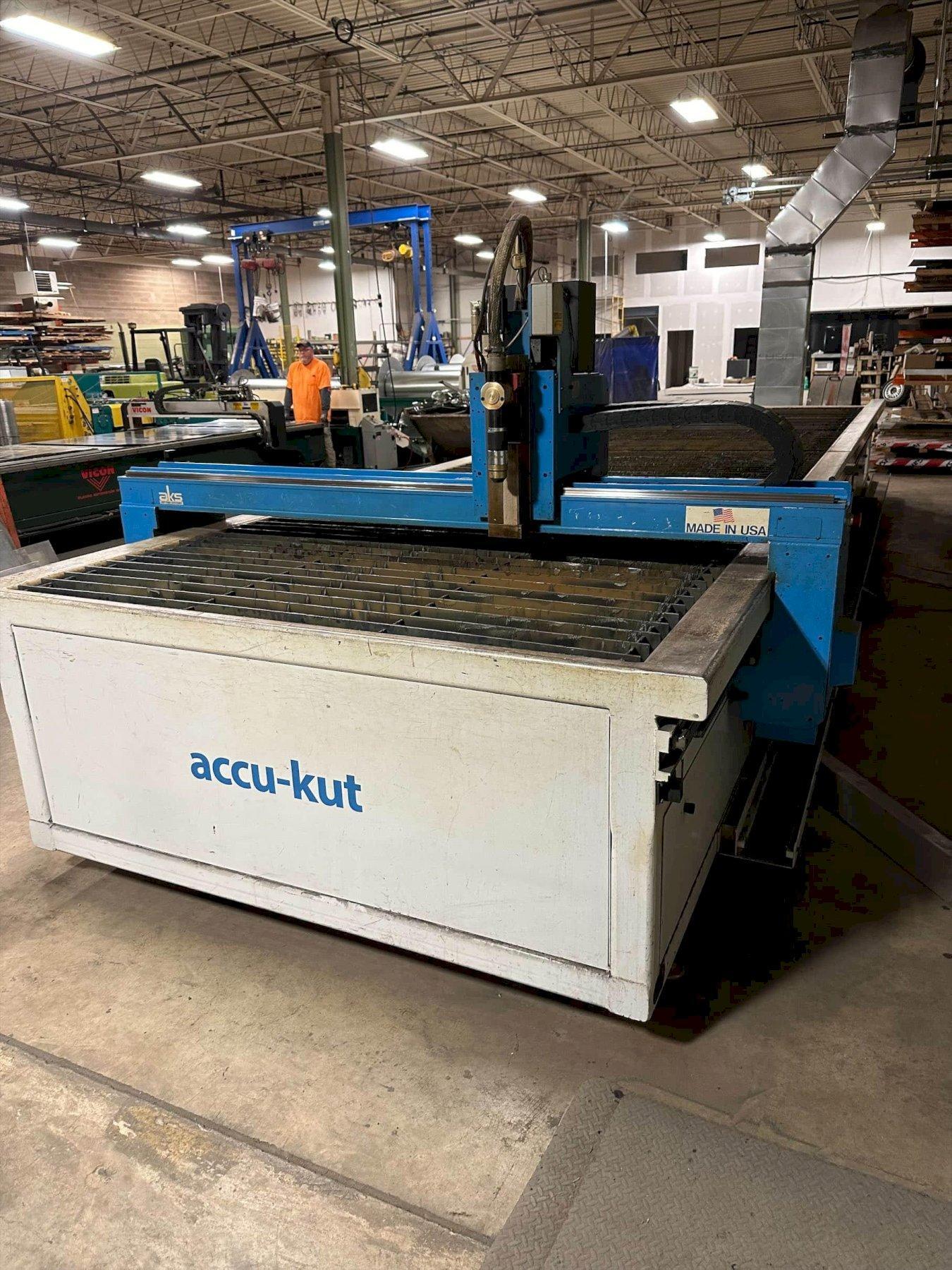

6’ x 24’ With Extension Rails AKS P0624-585 Accu-Kut CNC Plasma Table – HPR260XD, 2016

Controller voltage: 208-230vac, 3-phase

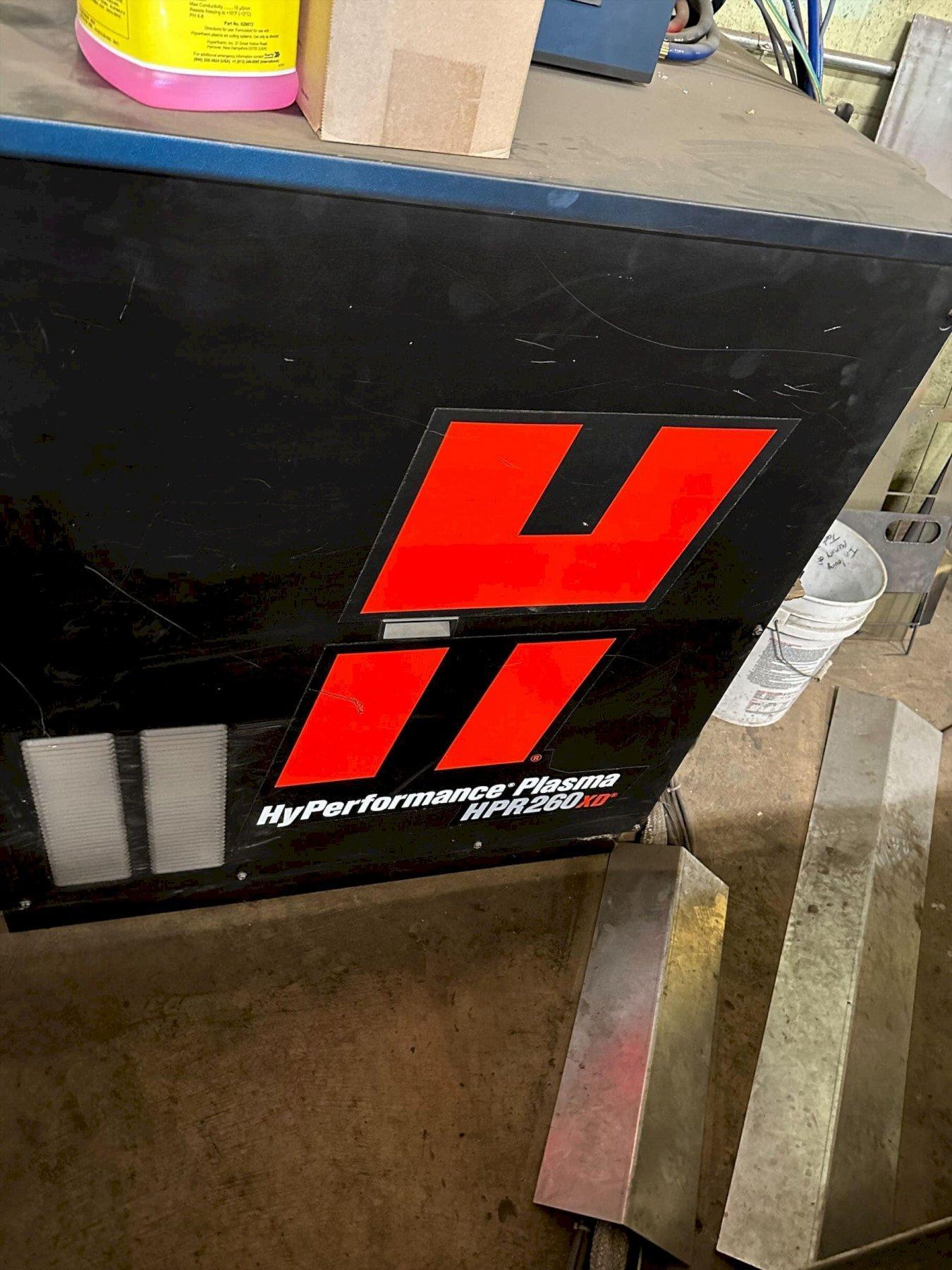

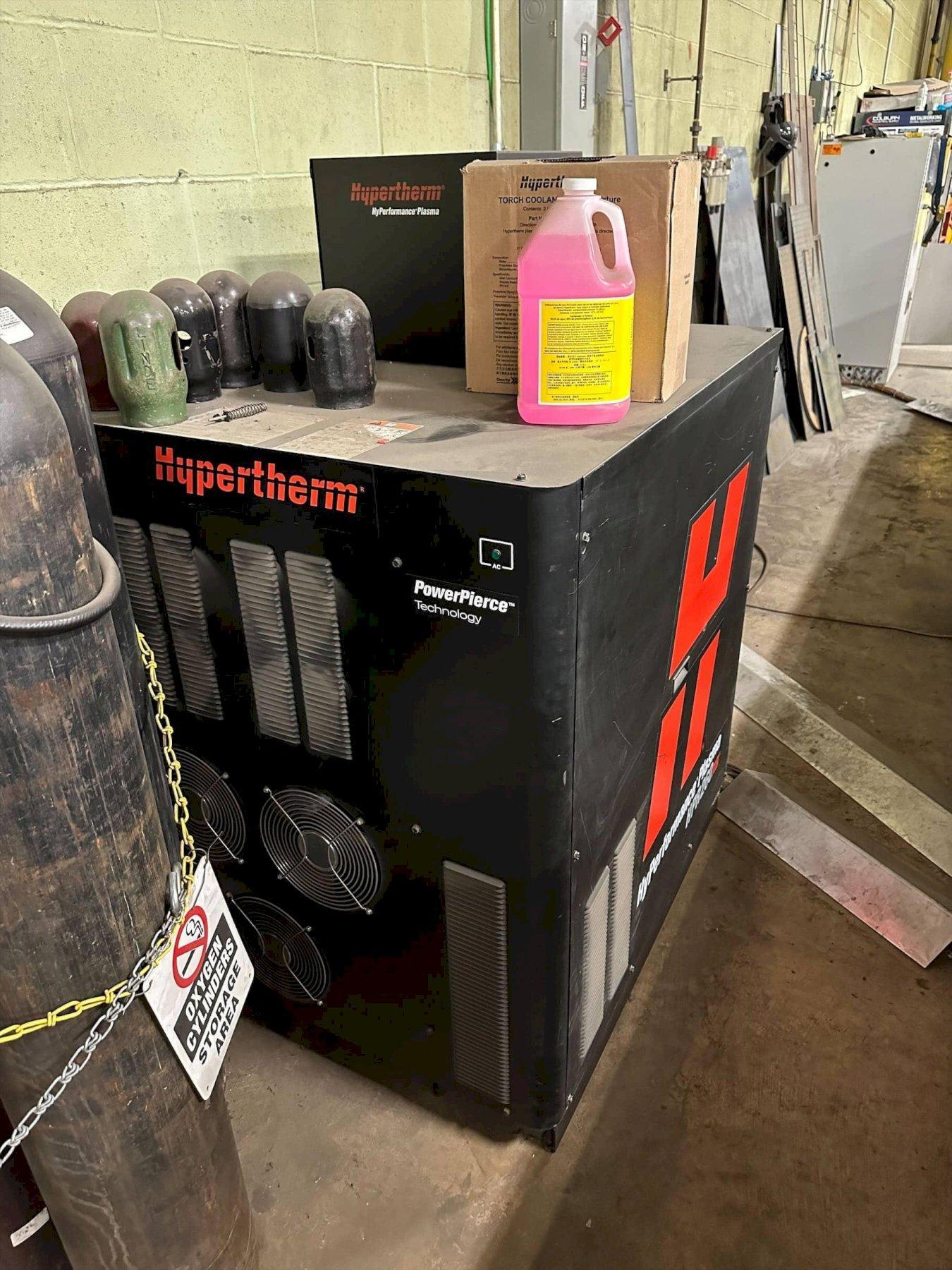

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,HPR260xd voltage: 480 vac, 3-phase Electrical drawing AK2000 Controller: MicroEdgepro, 090174, 4-axis Servos 3 X, Y, and DG EL000536

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mild steel cut capacity: Dross free 32 mm (1-1/4″) Production pierce: 38 mm (1-1/2″) Maximum cutting capacity: 64 mm (2-1/2″) Stainless steel cut capacity: Production pierce 32 mm (1-1/4″) Maximum cutting capacity: 50 mm (2″) Aluminum cut capacity: Production pierce: 25 mm (1″) Maximum cutting capacity: 50 mm (2″) Speed: (Mild steel) Book specification at highest output current 12 mm (1/2″) 3850 mm/m (145 ipm) Cut angle: ISO 9013 range* 2-4 Weldability: Ready to weld

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gas regulators and hoses (N2,O2, Air, H35) Sensor THC, Magnetic Break Away Sercos 3 Controller, AKD servo drives

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Laser Pointer

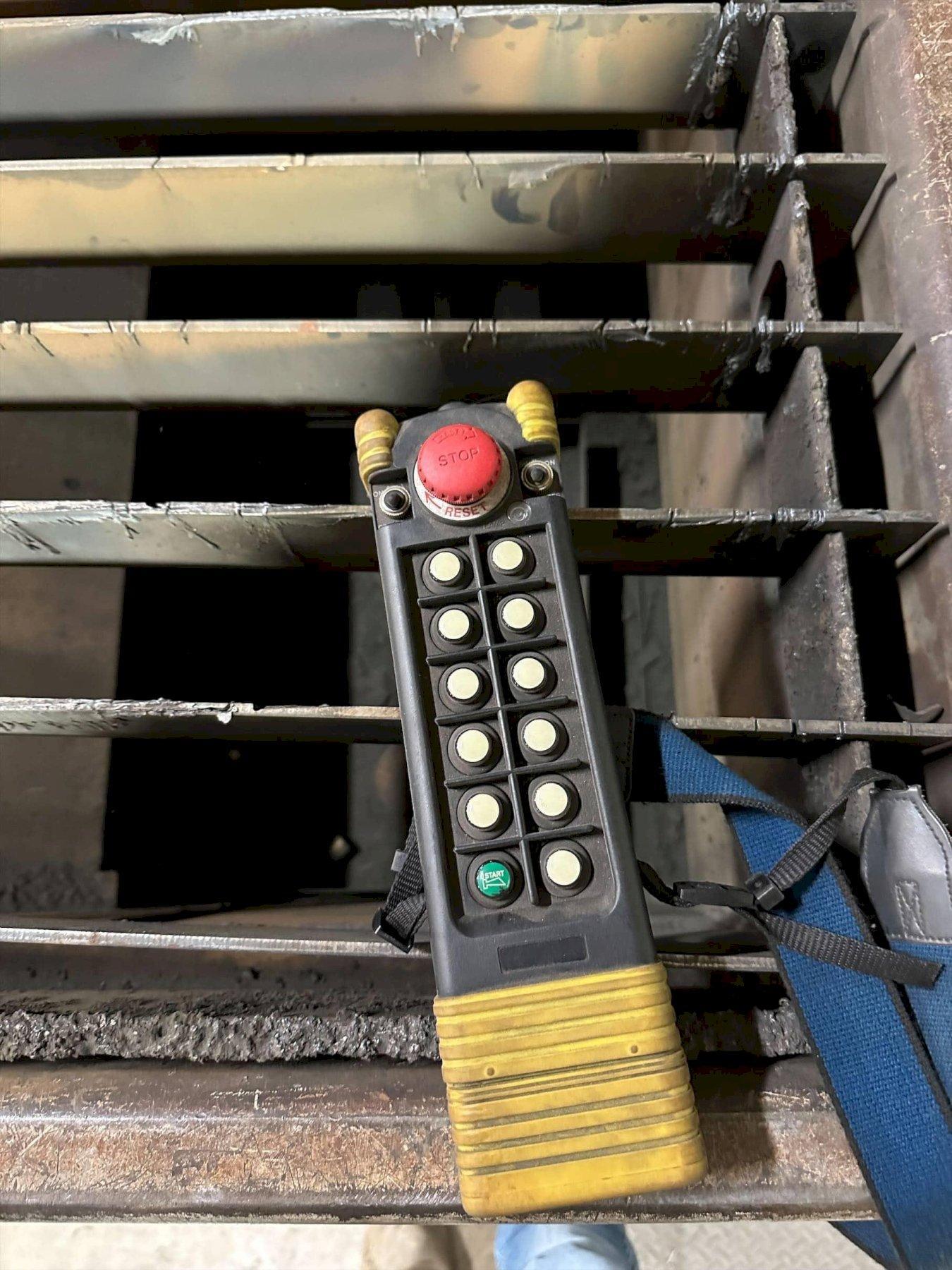

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Remote Control Pronest 2017 Software

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
