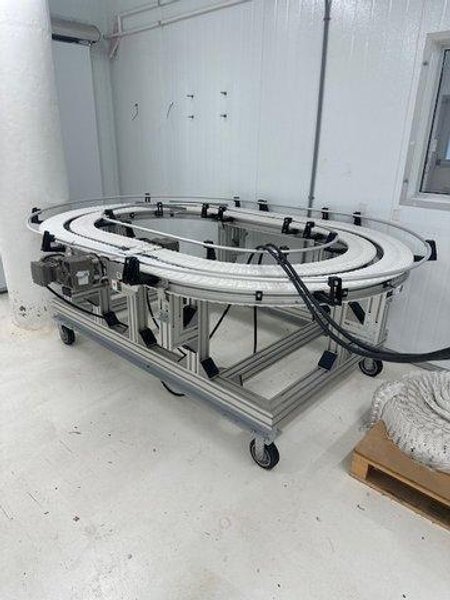

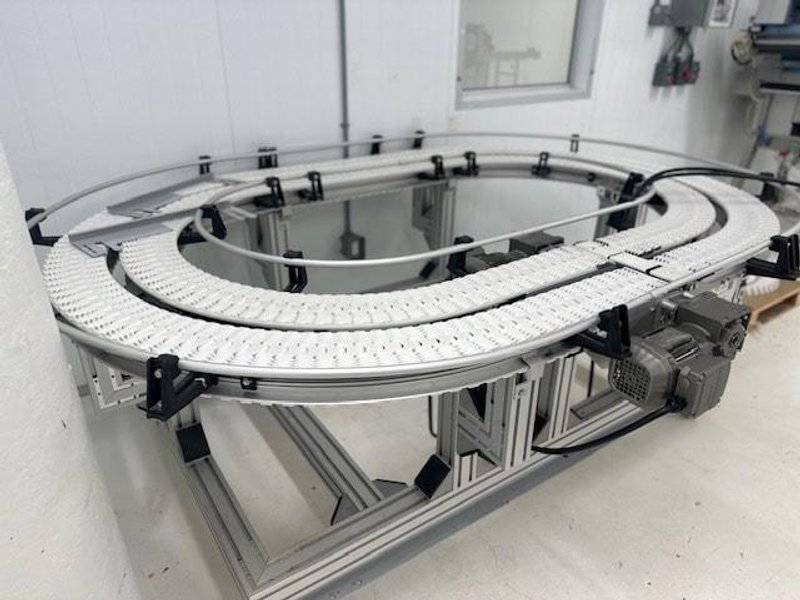

Hytrol COMPCNX Conveyor, Connex Double (Continuous) Loop with 5.75″ Wide Conveyor, 2020

Hytrol COMPCNX Conveyor, Connex Double (Continuous) Loop with 5.75″ Wide Conveyor, 2020:

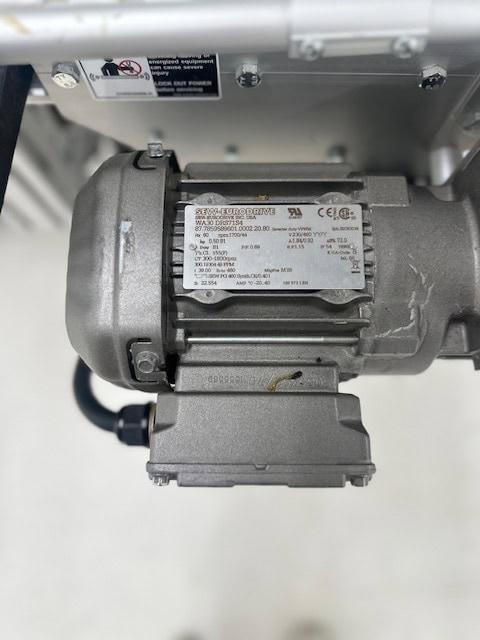

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– 6 Foot x 8 Foot footprint – 1/2 HP drive motors, 230V/3ph/60hz – ALT1000 connect double loop

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Conveyor consists of: (1) S140 conveyor outside loop, starting at infeed – Idler section cut to 275mm, with roller transition assembly and mounting bracketed and hardware located at infeed end – 180 degree LH curve section, less tangents, 750mm centerline radius – 750mm long line – 180 degree LH curve section, less tangents, 750mm centerline radius – Drive section, RH, cut to 425mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(1) S140 conveyor inside loop, starting at infeed – Idler section cut to 275mm, with roller transition assembly and mounting brackets and hardware located at infeed end – 180 degree LH curve section, less tangents, 575mm centerline radius – 750mm long line – 180 degree LH curve section, less tangents, 575mm – 180 degree LH curve section, less tangents, 575mm centerline radius – Drive section, LH, cut to 425mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year is approximate
