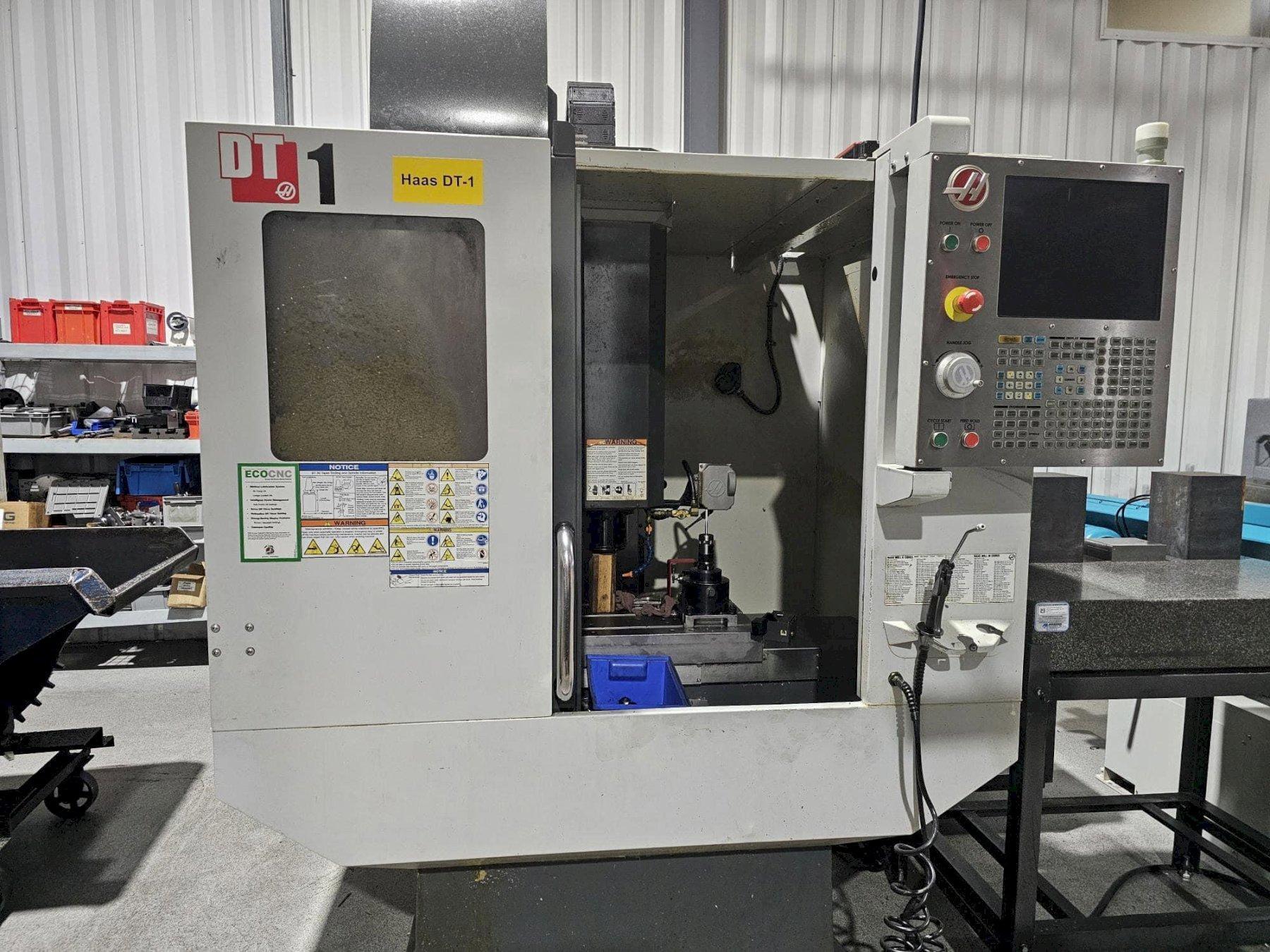

Haas DT-1 VMC, 2011 – TSC, WIPS, Rigid Tapping

X Axis Travel: 20″ Y Axis Travel: 16″ Z Axis Travel: 15.5″ Rapid Rate X Axis: 2,400 IPM Rapid Rate Y Axis: 2,400 IPM Rapid Rate Z Axis: 2,400 IPM Table Size: 26″ x 15″ Max Table Load: 250 LBS Spindle Motor: 15 HP Spindle Speed: 15,000 RPM Spindle Taper: BT 30 Tool Changer: 20 ATC Max Torque 46 ft-lbf Max Cutting 1200 ipm Max Thrust X 2550 lbf Max Thrust Y 2550 lbf Max Thrust Z 4200 lbf Max Tool Diameter 2″ Max Tool Length 7″ Chip-to-Chip (avg) 2.4 s Tapping Speed 5000 rpm Coolant Capacity 55 gal Dimensions: 80 in x 100 in x 98 in Weight: 5,150 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: -WIPS Probing -Rigid Tapping -TSC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
