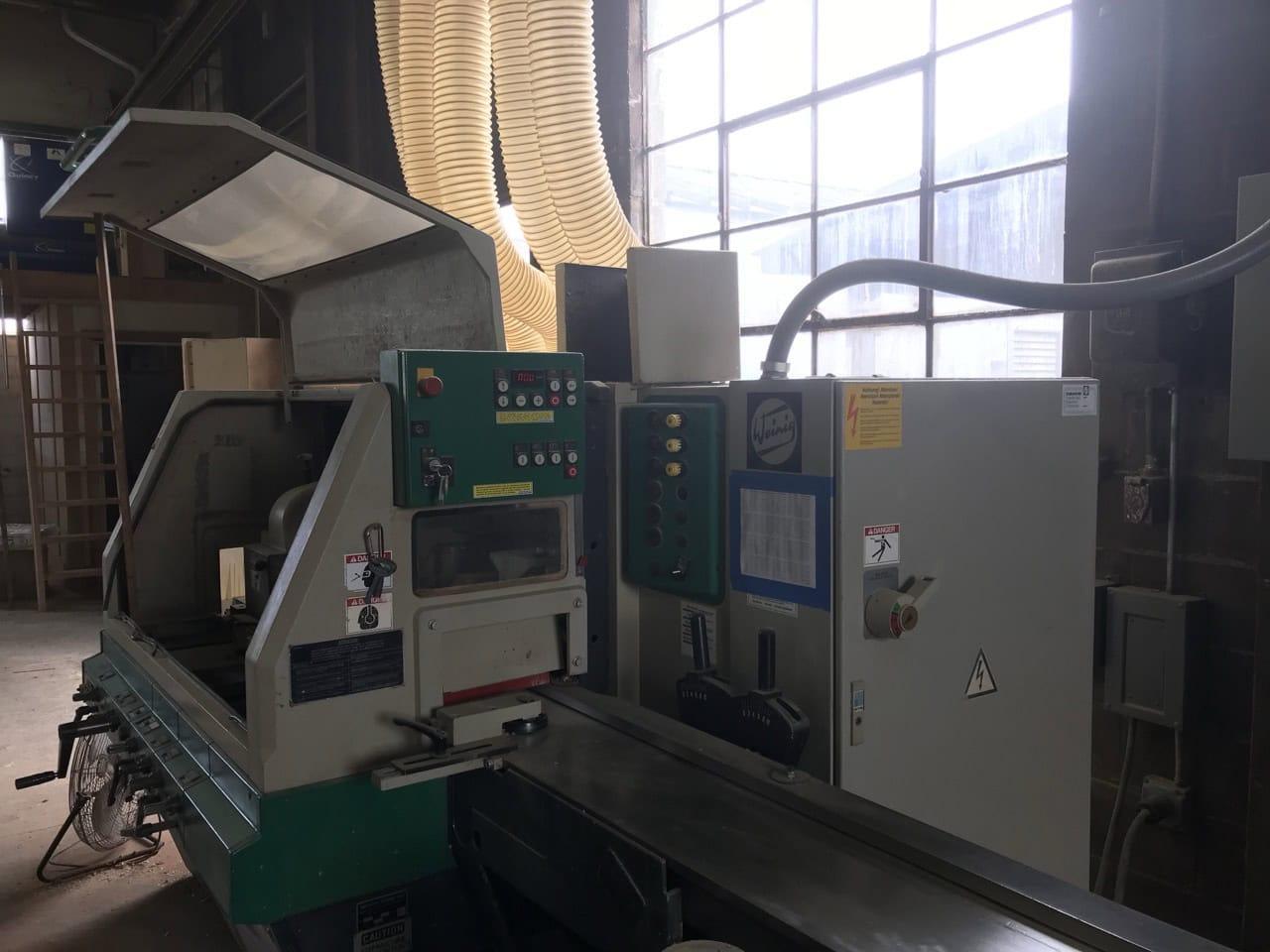

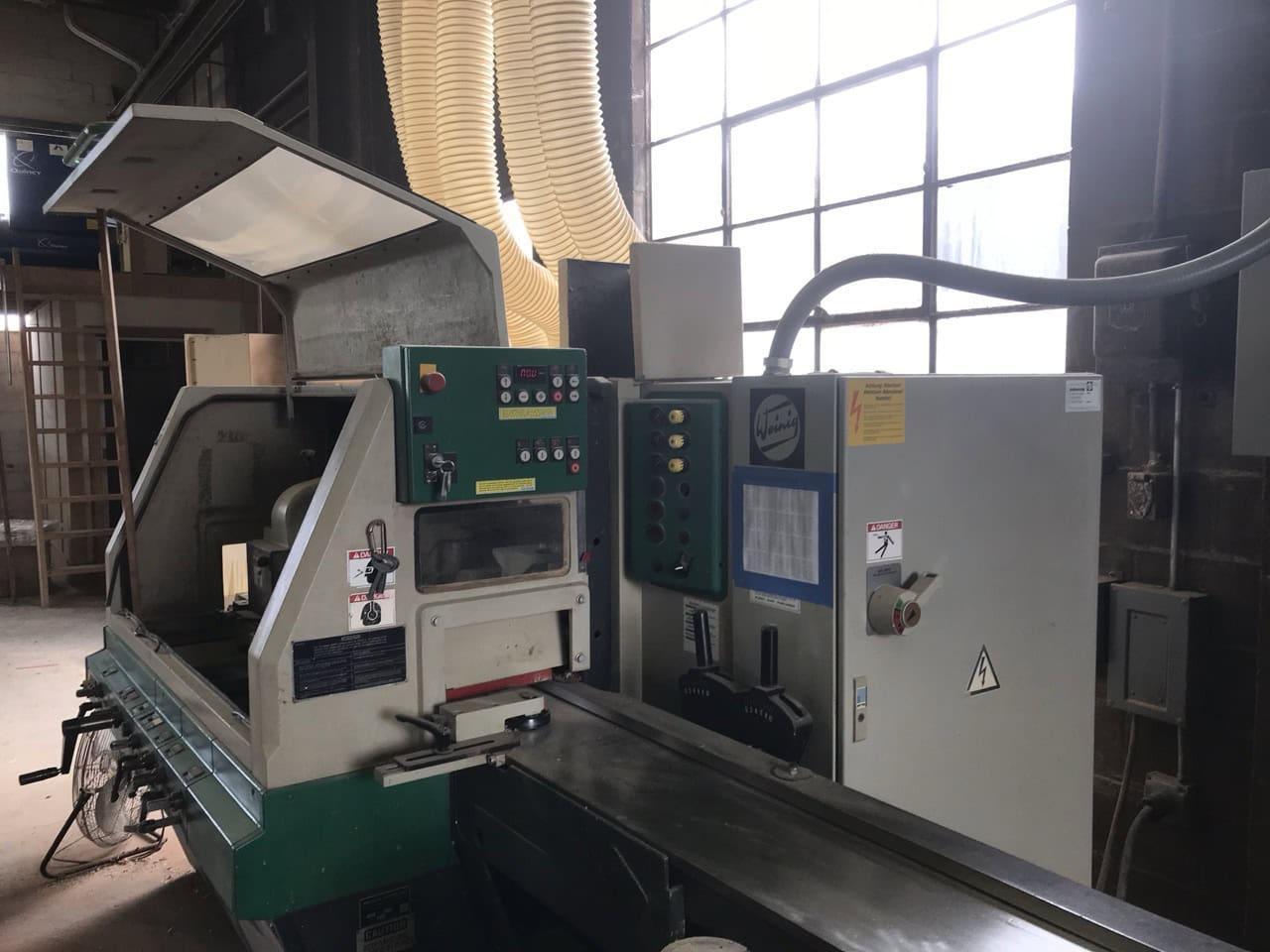

Weinig Profimat 23 Feed Through Moulder

40mm bore

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,4 heads: Bottom (10HP), Right/left (10HP), Top (15HP)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed (3HP)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working width: 3/4″ – 3 1/16″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working height: 5/16″ – 4 3/4″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle speed: 6000 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool cutting circle, 1st bottom spindle: 5″ – 5 11/16″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool cutting circle, vertical spindles: 4″-7 7/8″/7 1/8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool cutting circle, horizontal spindles: 4″ – 7 7/8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool cutting circle, universal spindle: 4″ – 7 7/8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed speed, infinitely variable: 16/78 ft/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed roller diameter: 5 1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pneumatic pressure for feed roller, max: 87 PSI

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Range of adjustment of straightening table and edge-jointing fence: 3/8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motorized “up and down” feed adjustment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motorized left head width adjustment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Shipping Footprint: 10 (length) x 6 (width) x 6 (height) Weight: 6000 lbs
