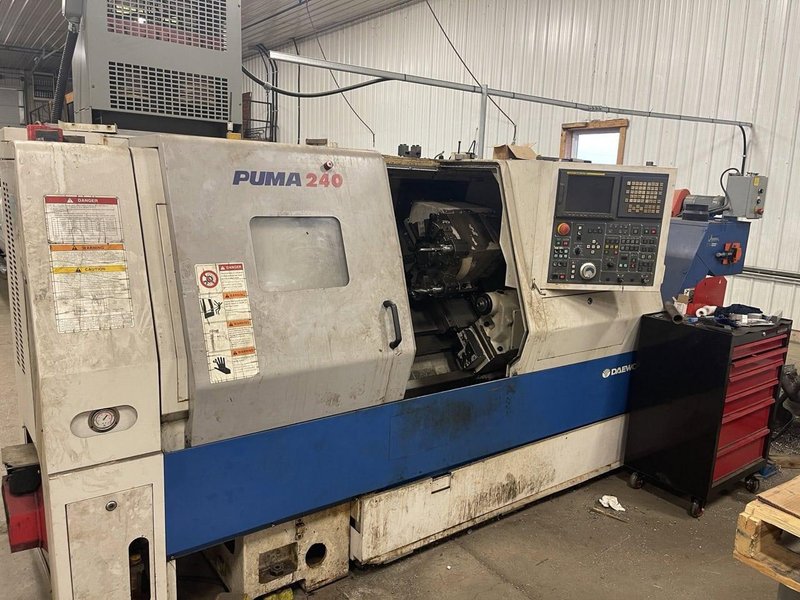

Daewoo Puma 240 CNC Lathe, 2005 – Fanuc, Tailstock
Brand
Category
Type
Model
Puma 240
Stock #
128134
Year
2005
Condition
Not specified
Location
Not specified
|
Chuck Size: 10″
Spindle Speed: 4,500 RPM
Spindle Motor: 25 / 20 HP
Through bore: 2.6″
X Axis Travel: 9.5″
Z Axis Travel: 22.8″
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 13.8″ / 8.3″
Max Turning Length: 22.1″
Max Swing: 21.7″ / 15.4″
Dimensions: 126″ x 63″ x 69″
Weight: 9,470 LBS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Chip Conveyor Tailstock All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
