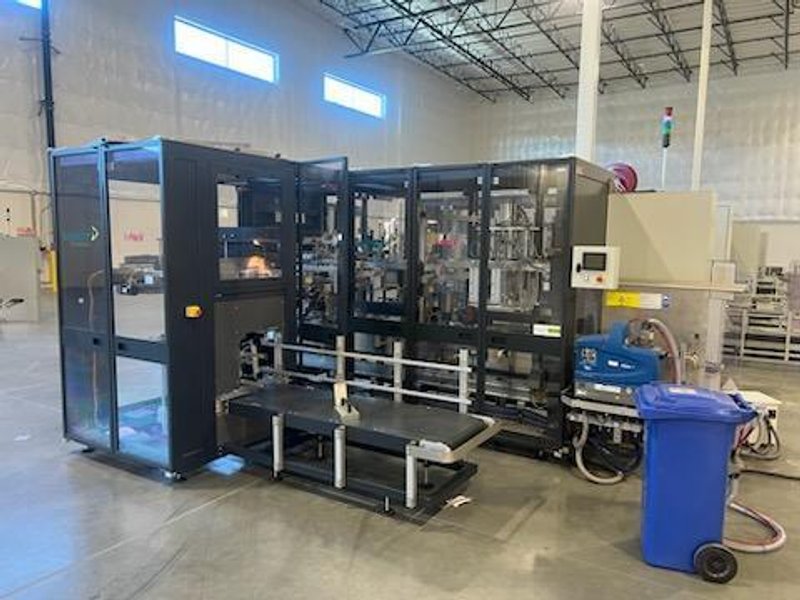

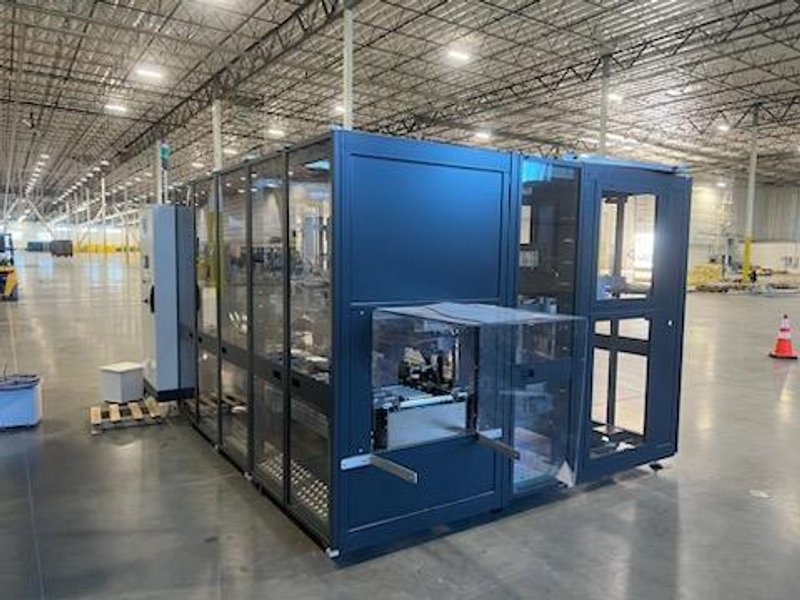

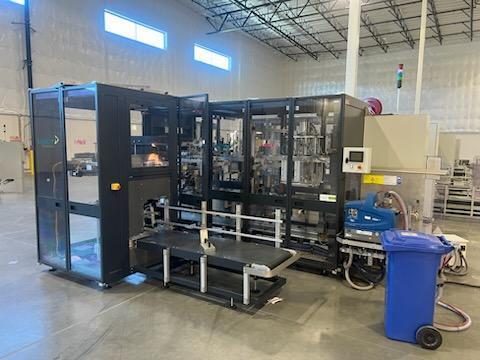

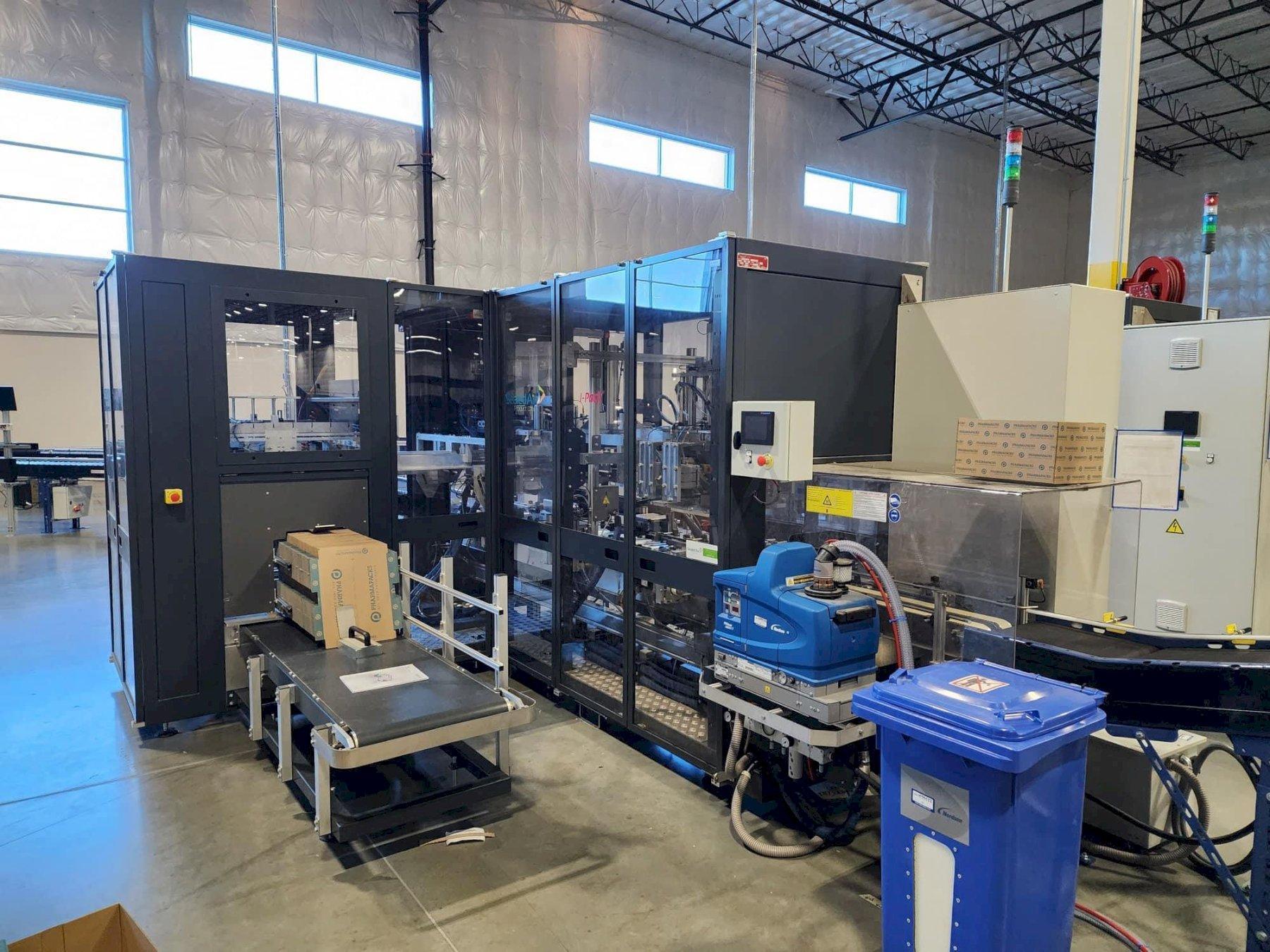

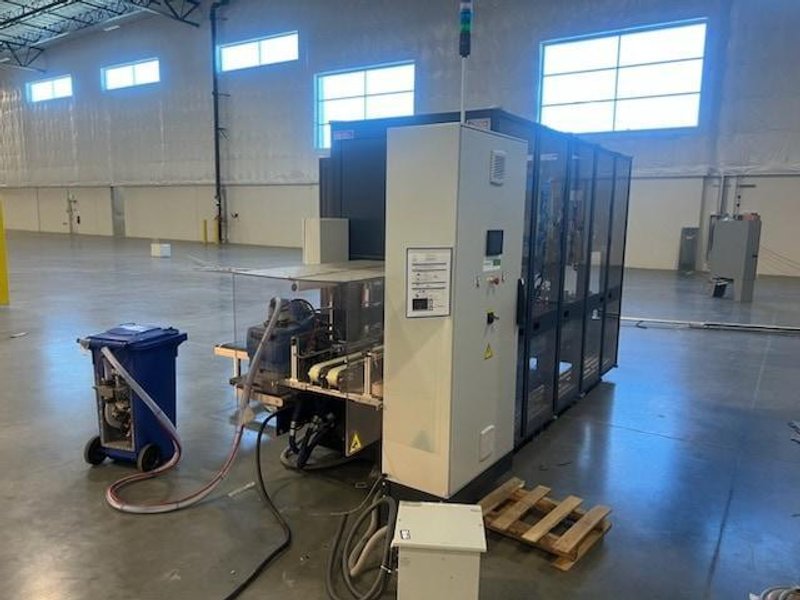

Sealed Air I-Pack Packaging System – Never Used – Includes Tray Erector, Lidder & Nordson Glue Unit

Sealed Air I-Pack Packaging System – Never Used

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The Sealed Air I-Pack Void Reduction System is designed to automate void reduction for retail or e-commerce order fulfillment. It erects a tray, product is placed into the tray, the height of the tray is automatically reduced, folding to meet the height of the product, then the lid is automatically formed and glued to the bottom tray to close the case.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– High Speed: from 400-900 boxes per hour (depending on box size) – Box Size Range: from 180 x 140 x 20 mm to 900 x 600 x 600 mm (7.0866″ x 5.5118″ x 0.7874″ to 35.4331″ x 23.622″ x 23.622″) – Corrugated flute: from E-Flute (1.5 mm) to BC-Flute (7 mm), Test of Kraft

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Presently set up for lid for I-Pack Tray: – External dimensions: Length: 368mm (14.4882″) Width: 311mm (12.2441″) Flap width: 40mm (1.5748″) – Top located tear tape – B Flute (3mm corrugated thickness)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Presently set up for I-Pack Tray with 42mm minimum height of folded tray (without lid) – Internal dimensions Length: 356mm (14.0157″) Width: 305mm (12.0079″) Height: 203mm (7.9921″) – External dimensions Length: 368mm (14.4882″) Width: 311mm (12.2441″) Height: 206mm (8.1102″) – Length of the flap: 153.5mm (6.0433″) – Height of the outer wall: 206mm (8.1102″) – Lugs and notch: NON – Flute: B (3mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Automatic Tray Folding – Placing Product/Items – Automatic Void Measurement and Folding – Automatic Lid Placement and Pack Closure – Can Process Multiple Depth Trays with Common Footprint

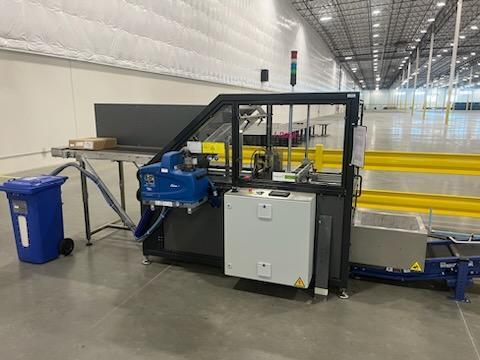

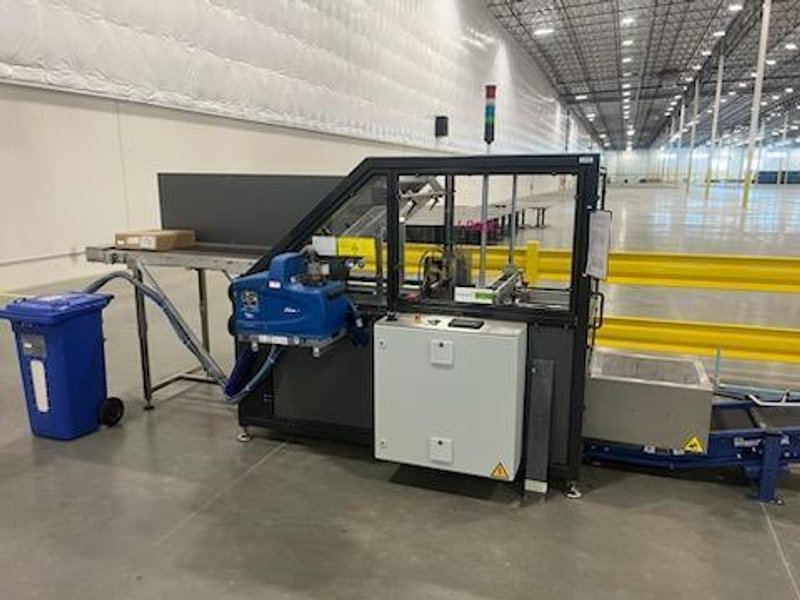

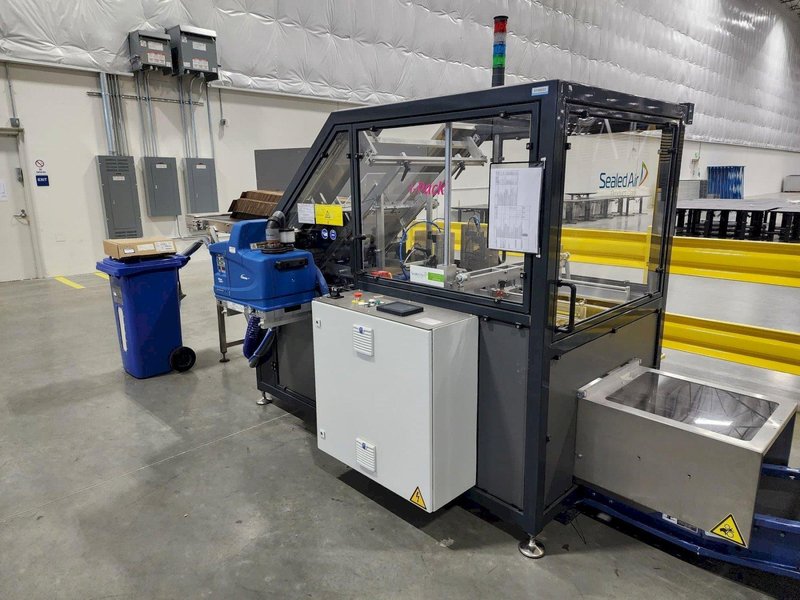

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Sealed Air Tray Erector – Model# BA24B-1 XL -Nordson Glue System and Volume Reducing Lidder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Drawing of tray and lid this is presently set up to run available upon request*
