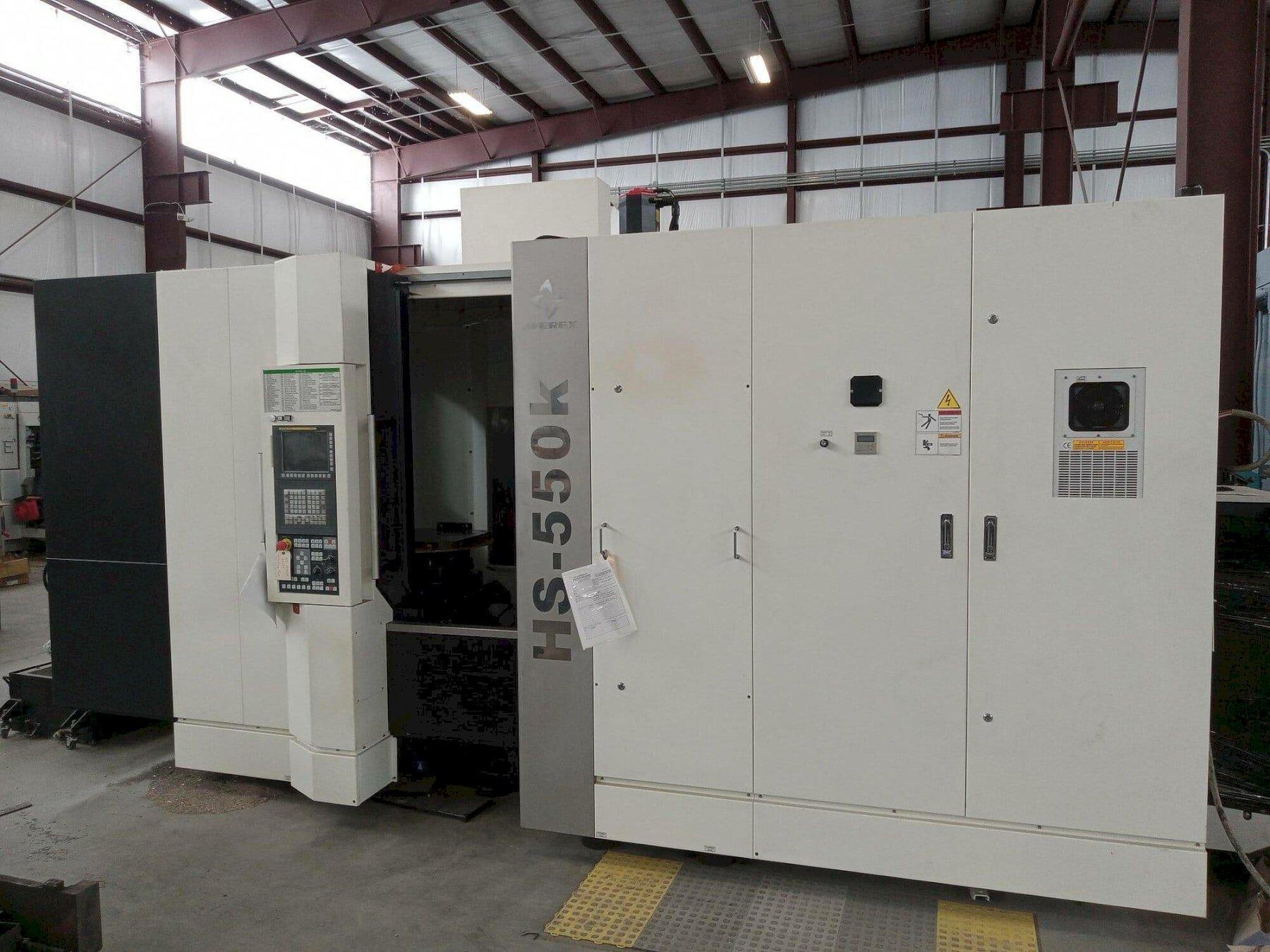

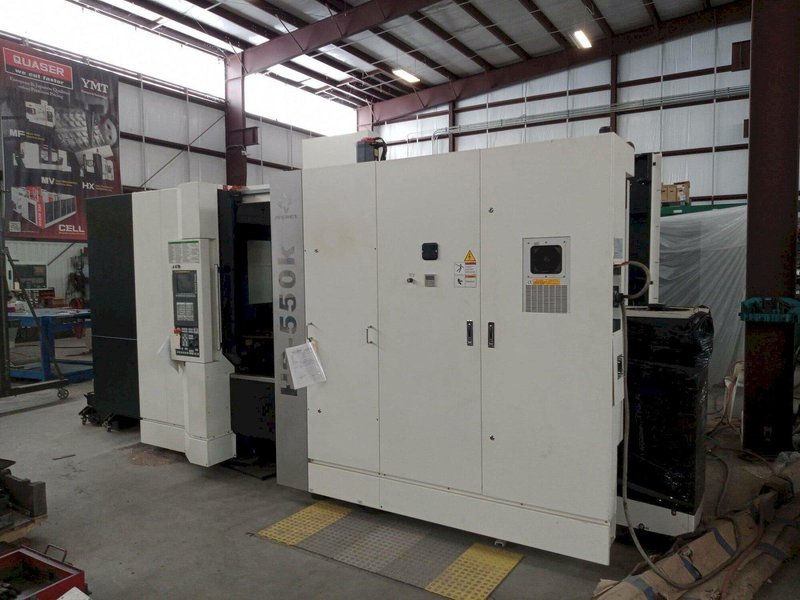

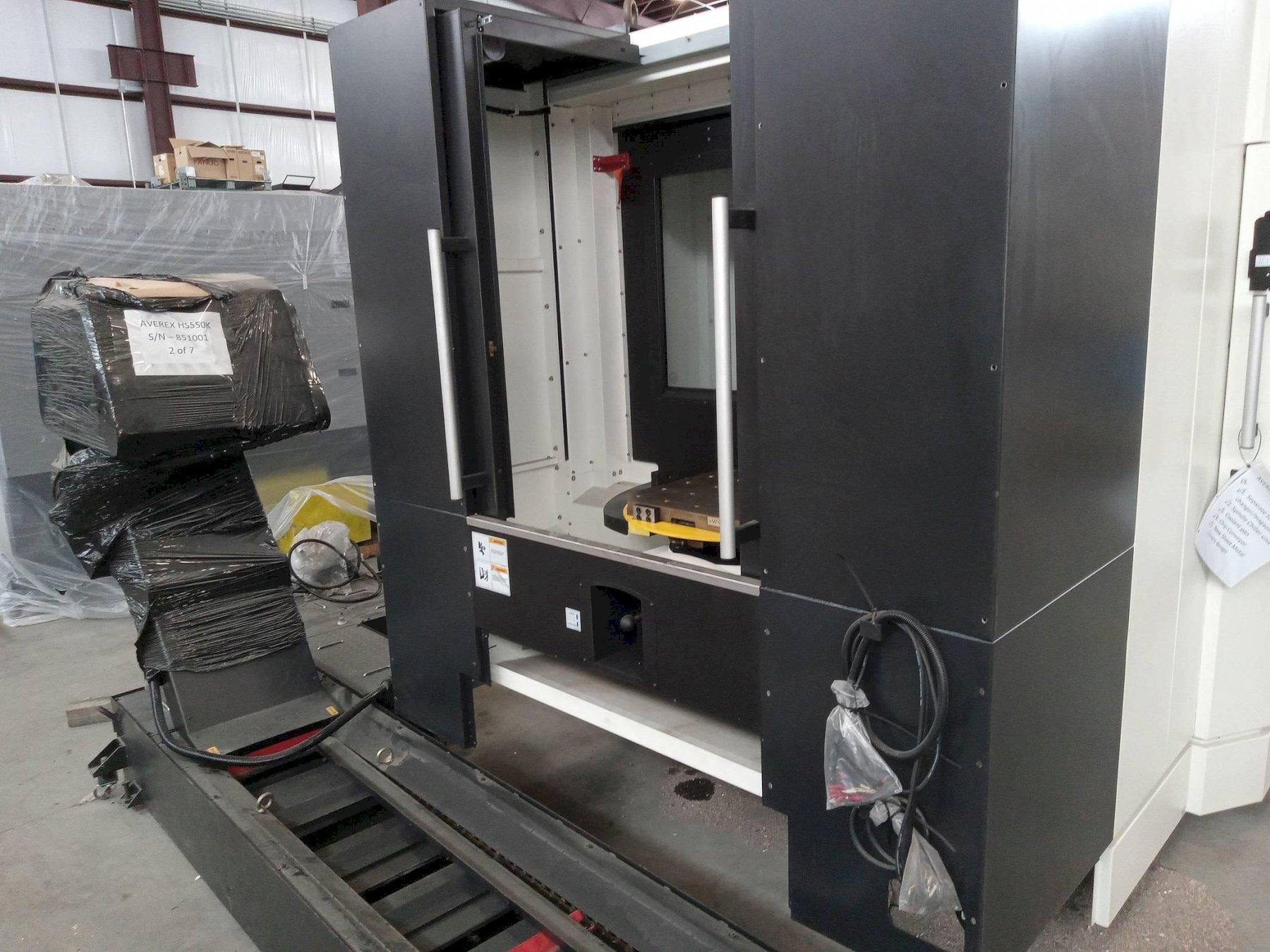

Averex HS550K, Dual Pallet HMC, 2018 Showroom Machine, Never Cut A Chip, Parts Warranty and Factory Install Apply.

Brand
Model
HS550K
Stock #
294678
Year
2018
Condition
Not specified

Location

Not specified

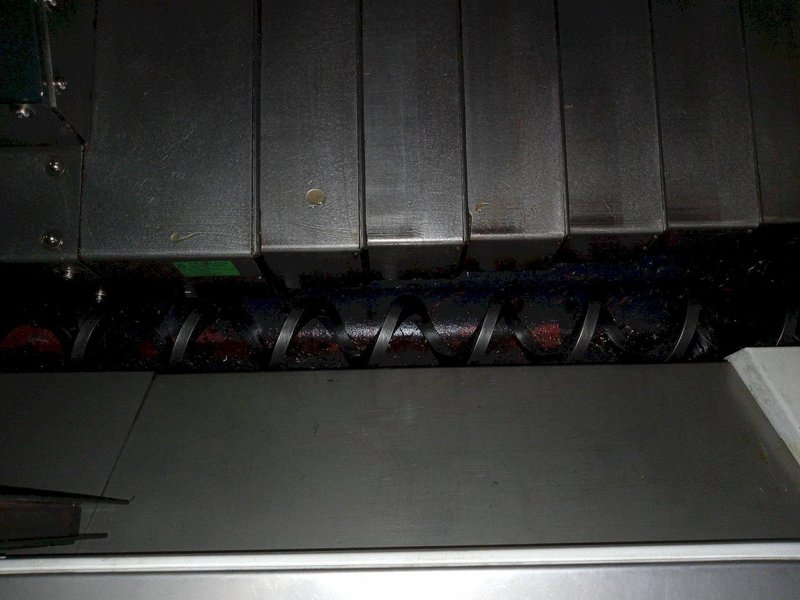

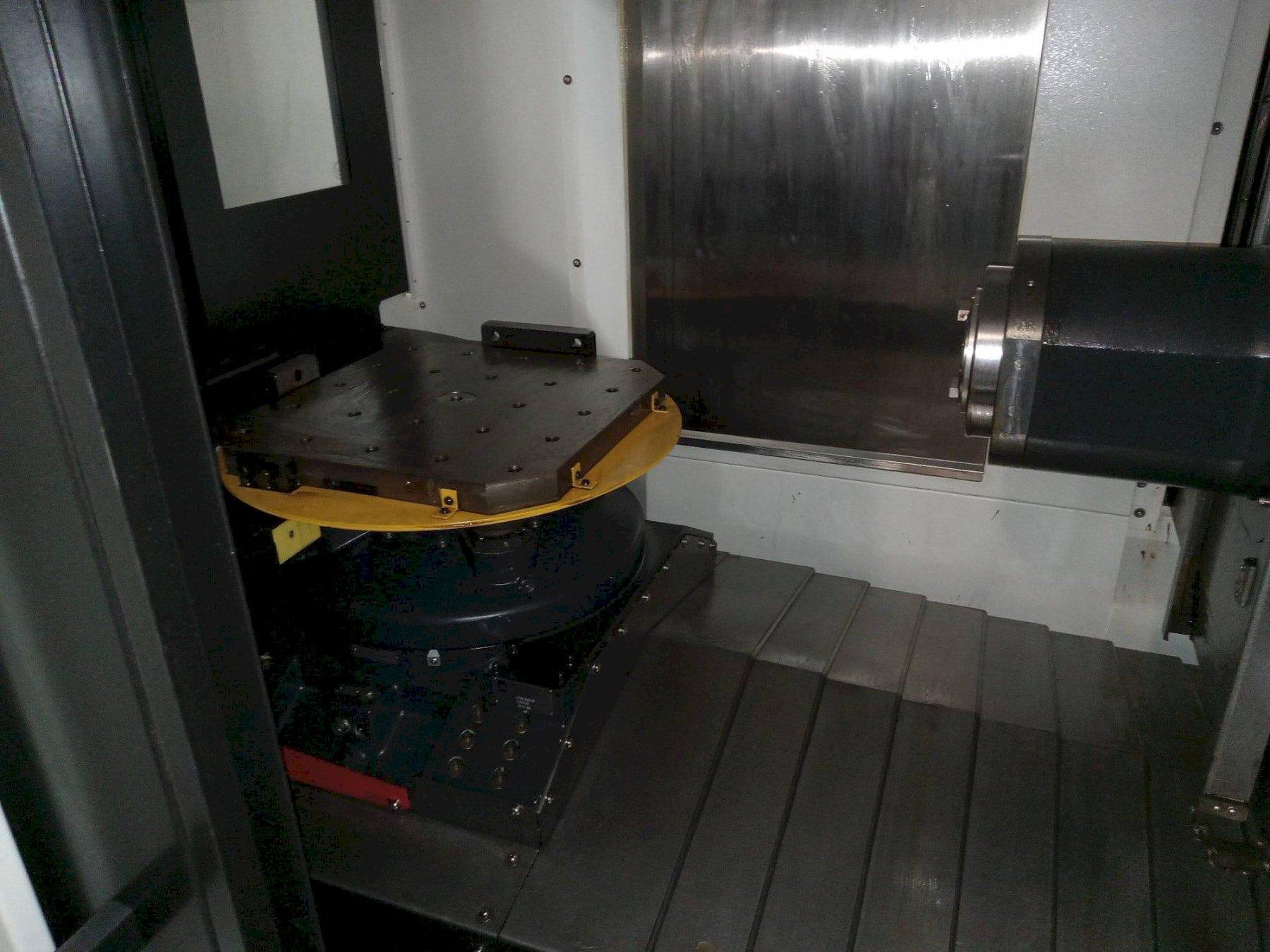

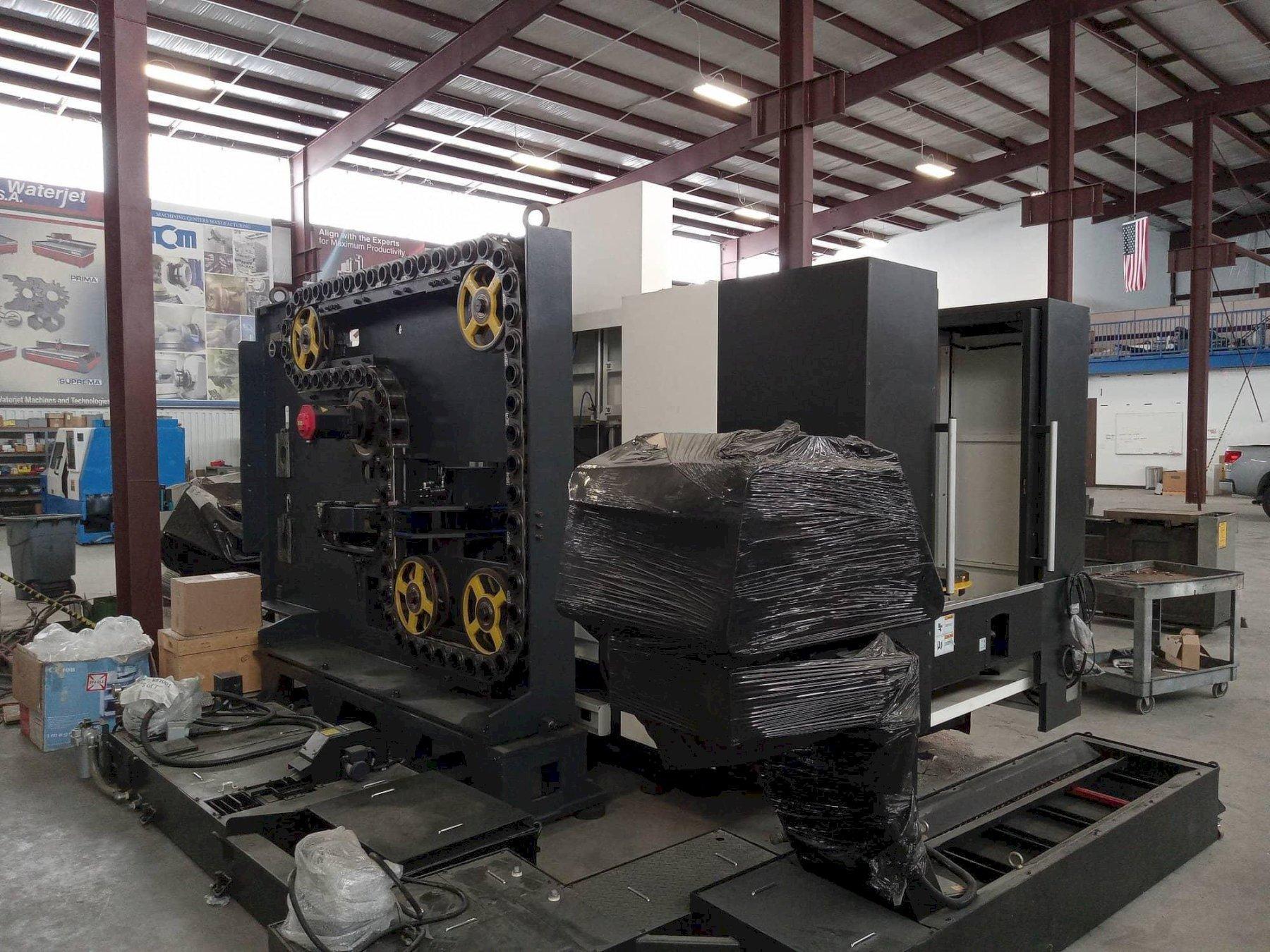

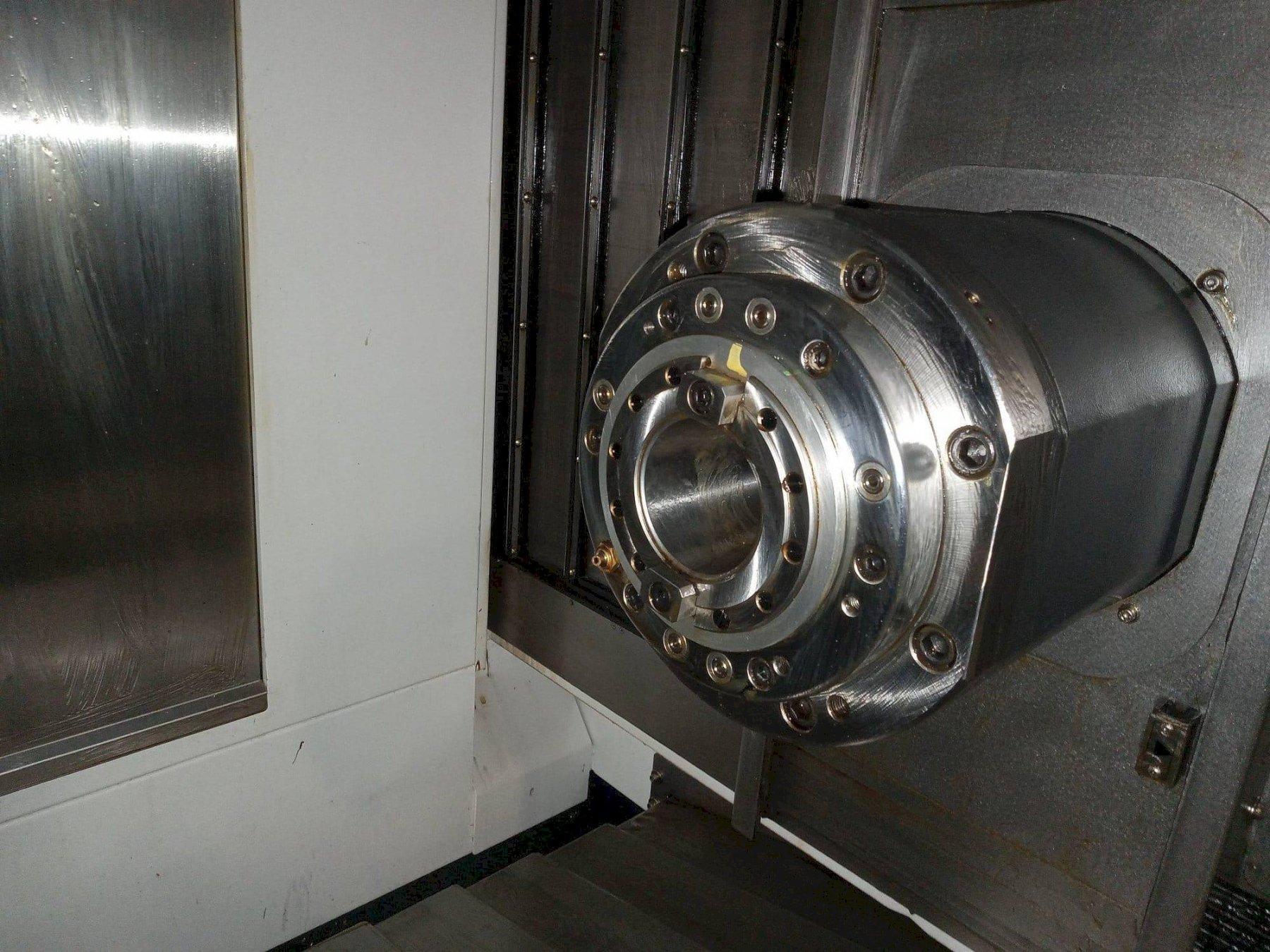

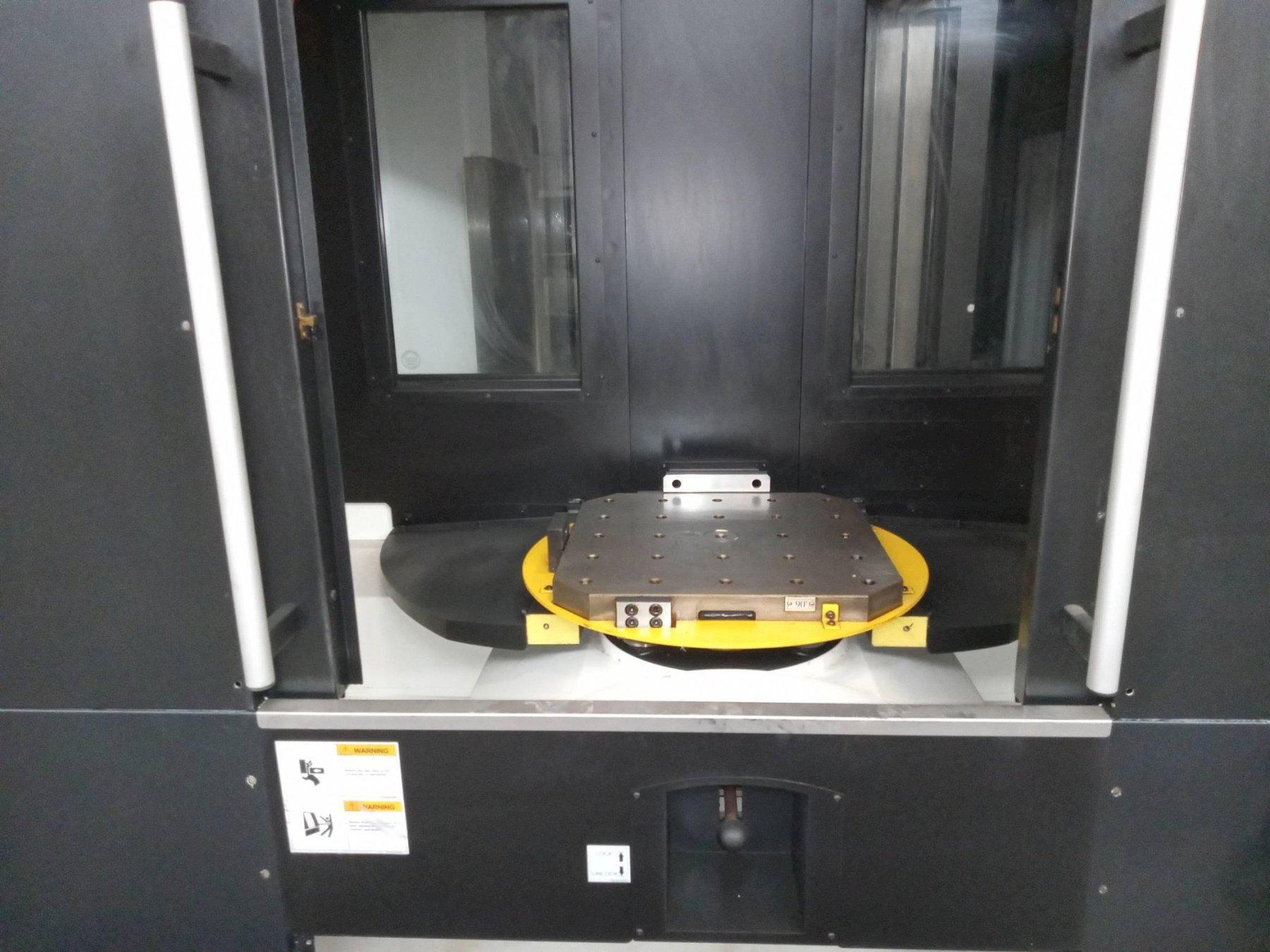

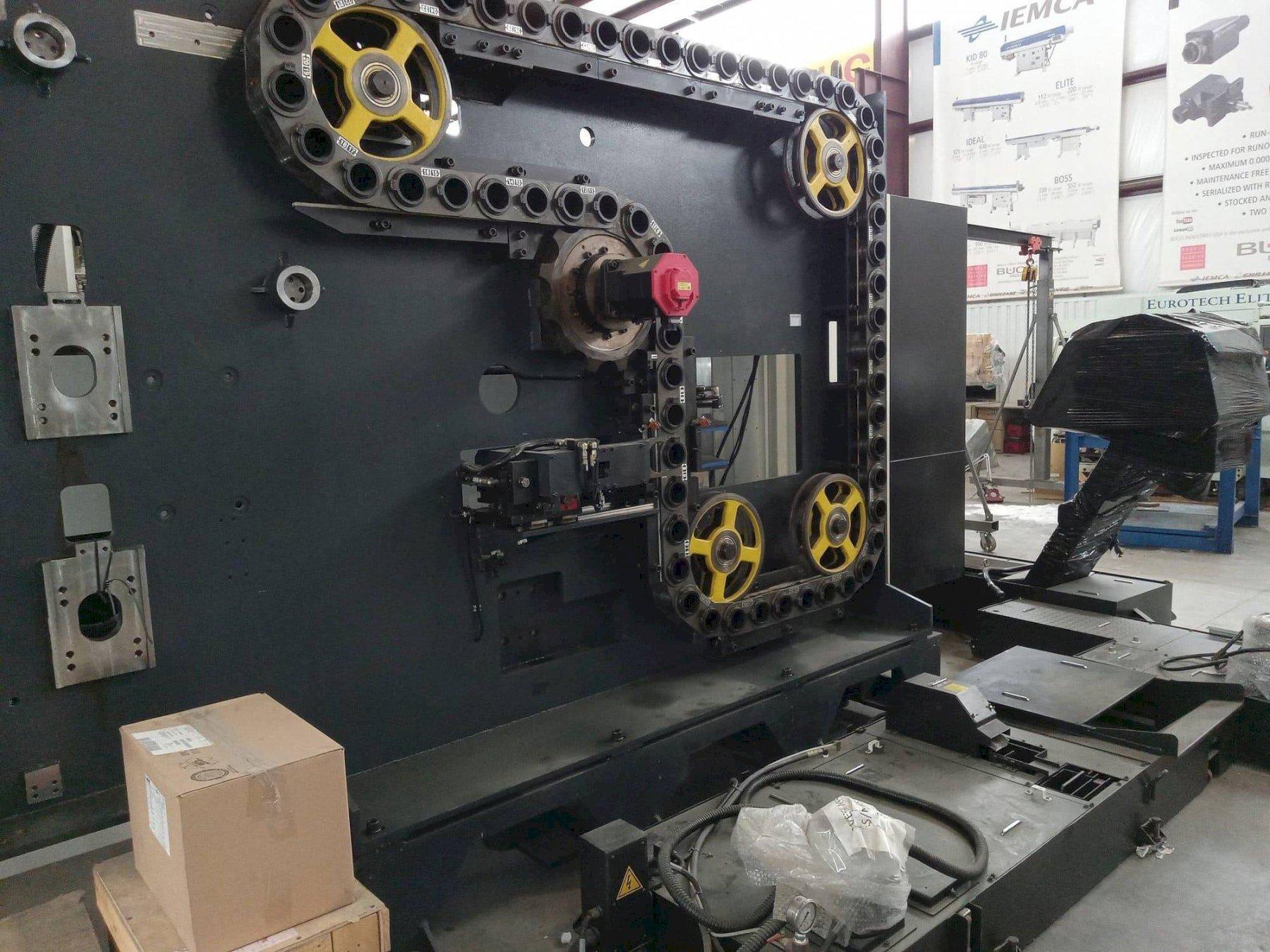

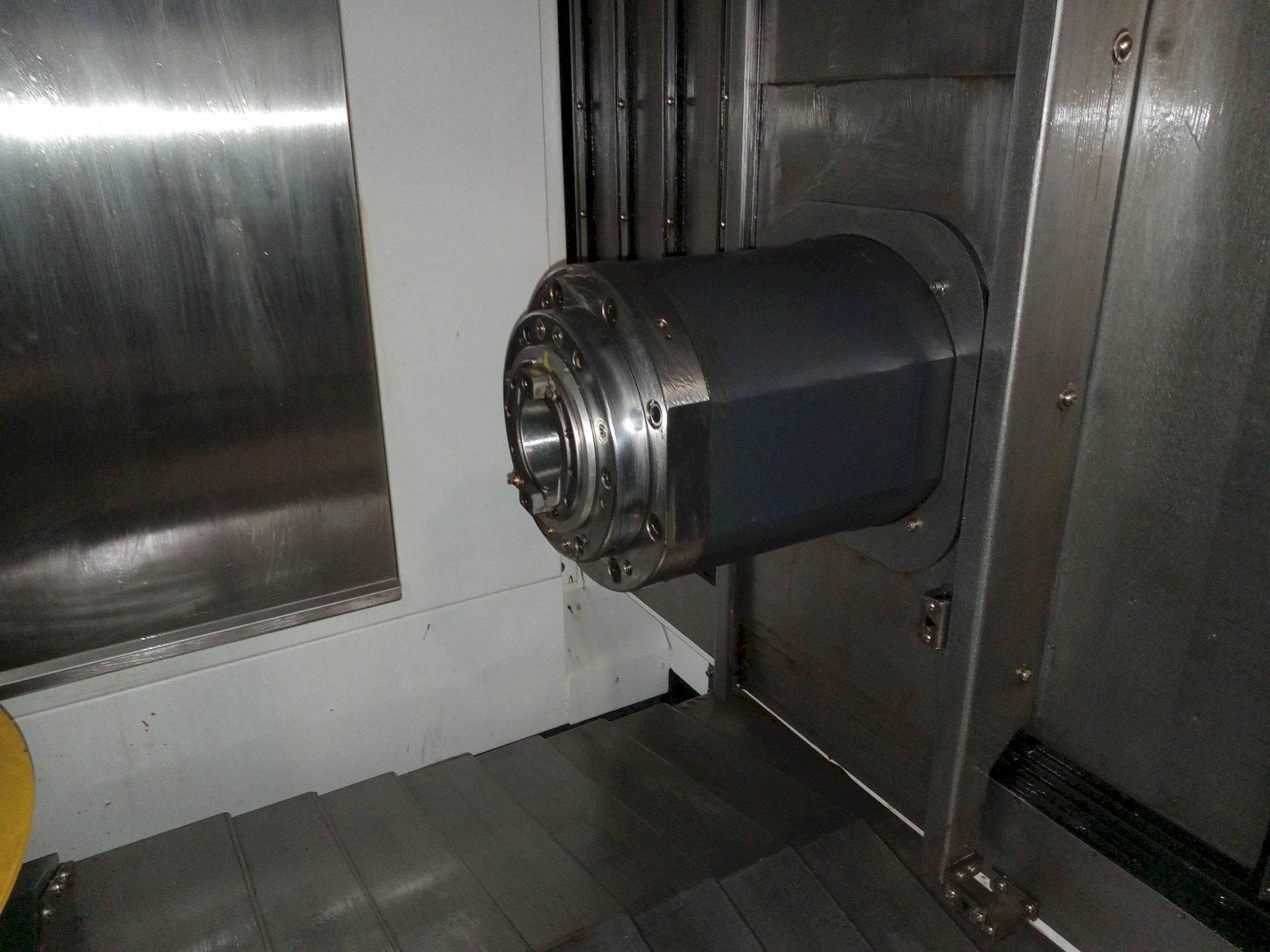

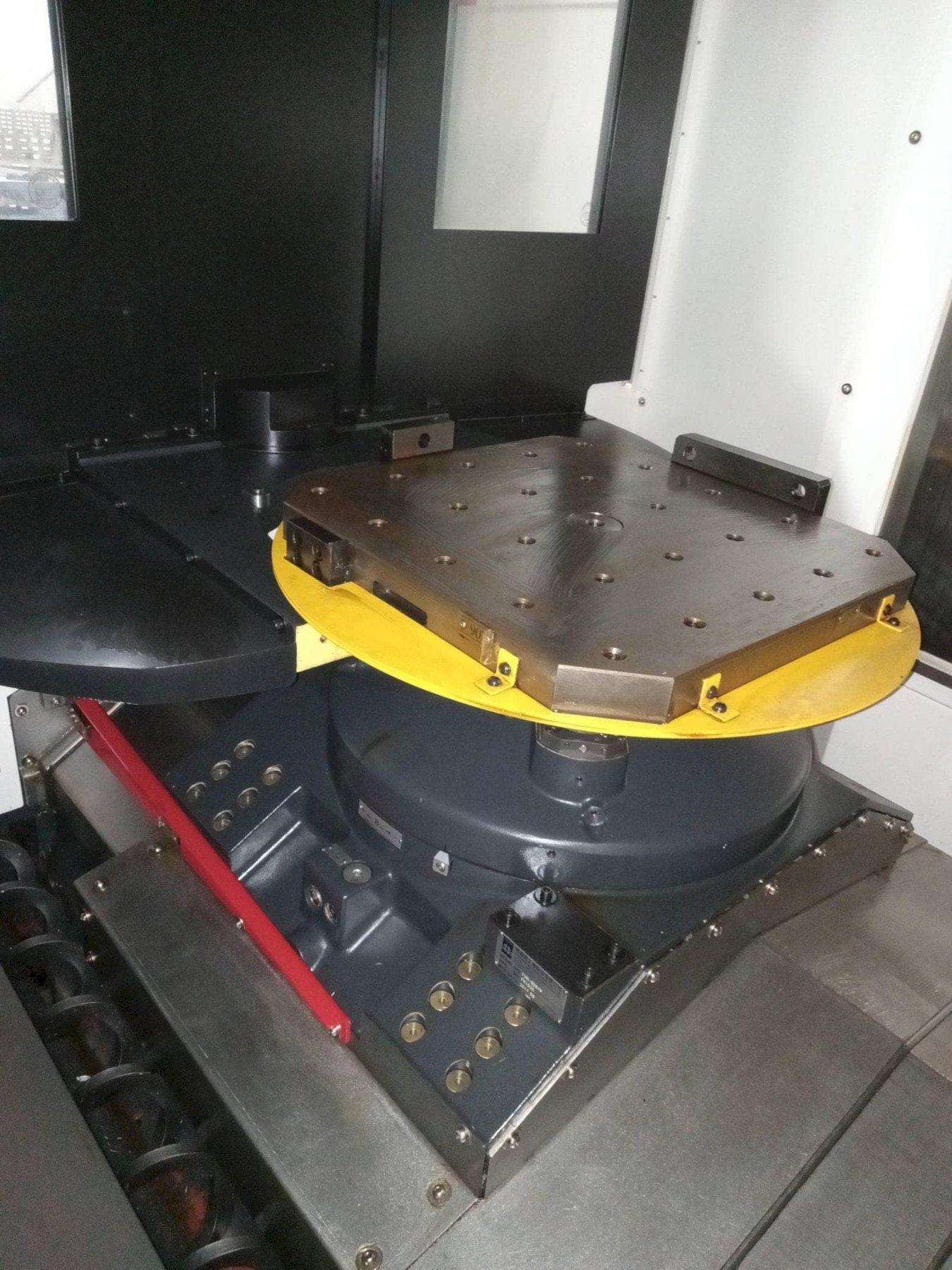

Fanuc 0iMF 10.000 RPM 40HP Main Spindle Motor CT-50 (2) 500mm Pallet APC with Full 4th Rotary Table (Parkson Wu) 60 ATC 435 psi Coolant Through Spindle Chip Conveyor-Scraper Type (W/ 810L Coolant Tank) Large 31.5 Inch X, Y and Z Axis Travels, With 31.5 x 40” Part Capacities Thermal Controlled System with Temperature Controlled Spindle Cartridge and Spindle Motor Separator Housing. Programmable Spindle Tool Load Monitoring 2,362 IPM Rapids, 787 IPM Feed Rates with 1.25G+ ACC and DEC rates 33.3 RPM Full Fourth Axis Contouring Table with 4 Axis Simultaneous Pressurized Oil and Air Lubrication for the Spindle, Roller Ways and Ball Screws 4-Kosmek Ball Lock Mechanical Pallet Clamping System 7 Day Timer for Machine Auto Power Start Up and Shut Down Thru-Spindle Air Cutting (M-code) 14 Nozzle Over Head Pallet Wash, Dual Chip Augers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
