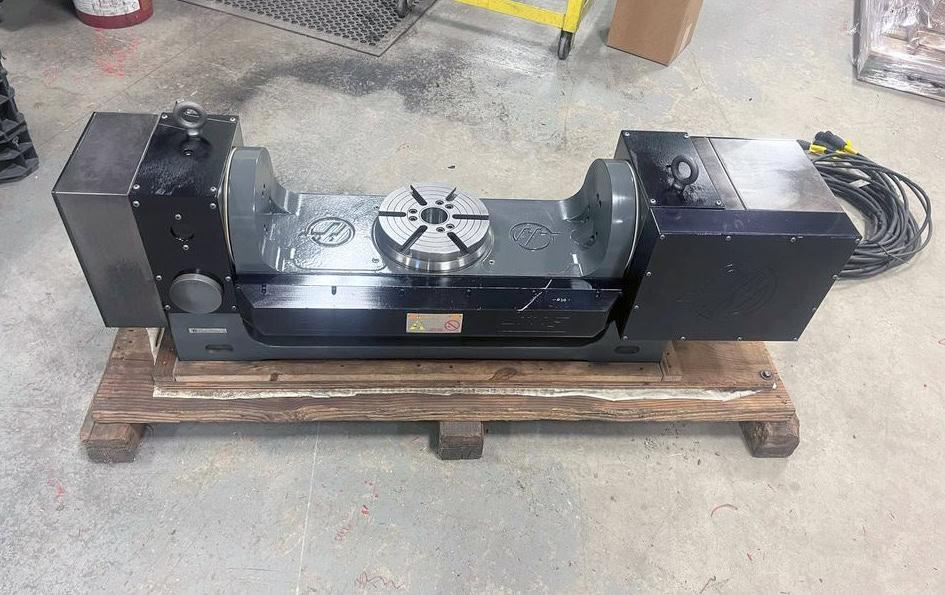

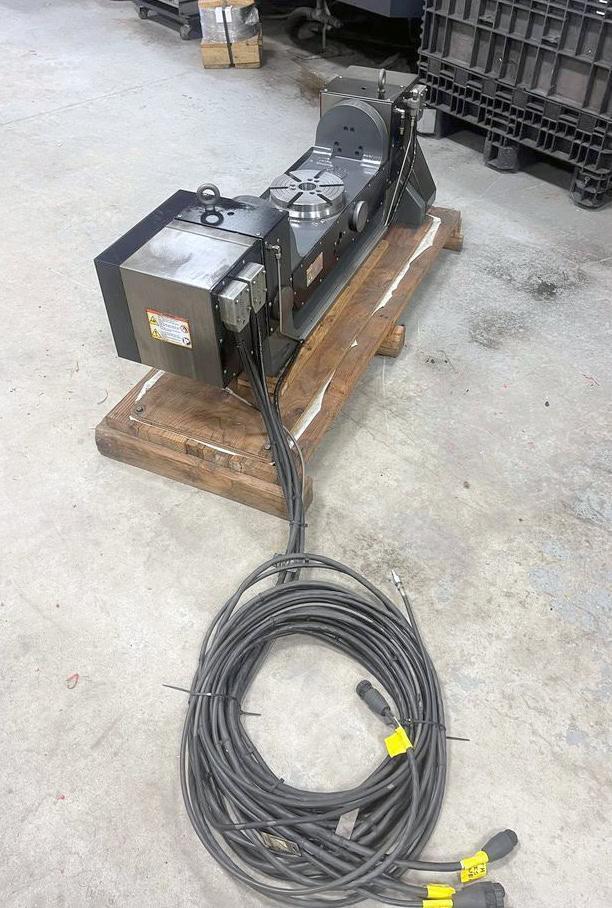

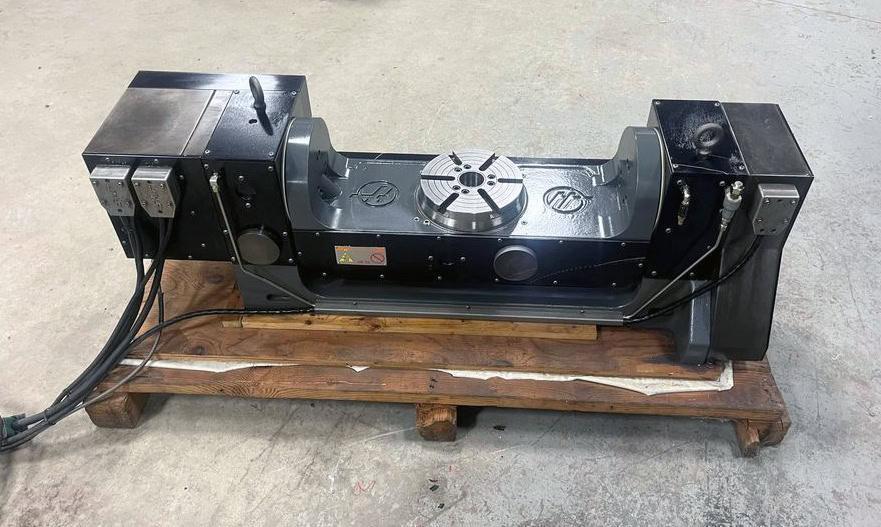

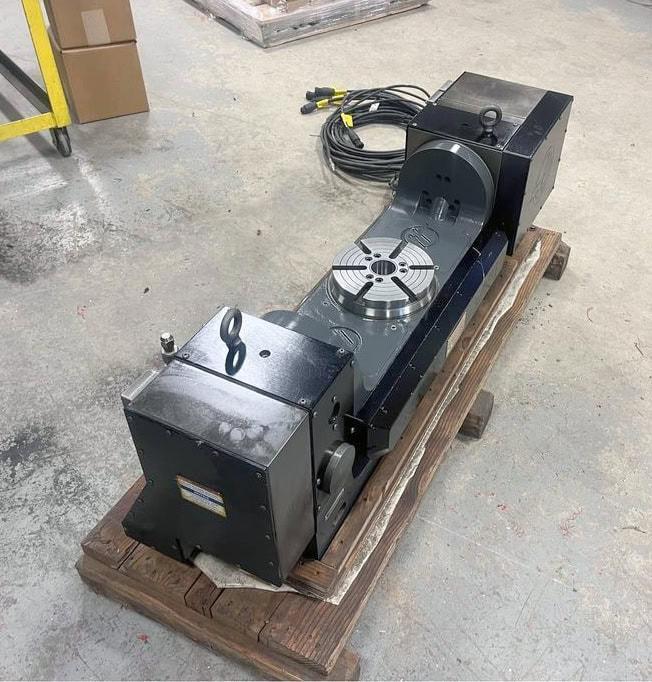

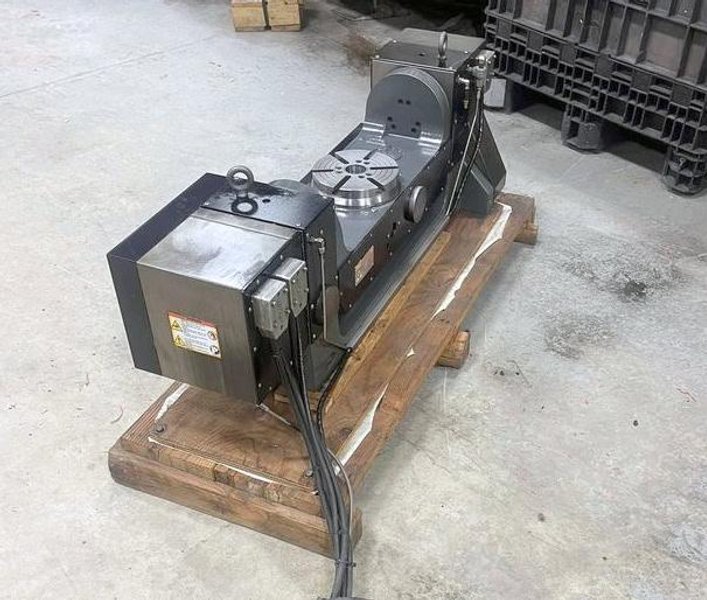

Haas TR-210 5th Axis Trunnion Rotary Table, 2017 – 8.3″ Platter

Platter Diameter: 8.30″ Max Weight On Platter: 200 LBS Part Swing Max: 23.5″ Number of Std T-Slots: 6 @ 60° Haas Version: P2

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SPINDLE – A-Axis (TILT) Max Speed: 60 °/sec Max Torque: 300 FT-LBF Backlash: 30 ARC-SEC Gear Ratio: 90:1 Timing: 2:1 Brake Torque @ 100 PSI: 400 FT-LBF

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SPINDLE – B-Axis (ROTARY) Max Speed: 60 °/sec Max Torque: 210 FT-LBF Runout Max: 0.0005″ Backlash: 30 ARC-SEC Gear Ratio: 90:1 Timing: 2:1 Brake Torque @ 100 PSI: 200 FT-LBF

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,INDEXING – A (TILT) Max Rotation/Step: +-120° Resolution: 0.001 ° Accuracy: 15 ARC-SEC Repeatability: 10 ARC-SEC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,INDEXING – B (ROTARY) Max Rotation/Step: 999.999 ° Resolution: 0.001° Repeatability: 10 ARC-SEC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air Pressure Max: 150 PSI Weight: 810 LBS Dimensions: 58″ x 23″ x 27″ (Crate)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
