X -Axis Travel: 35.4” (900mm) Z -Axis Travel: 47.2” (1,250mm) Max Swing Diameter: 49.2″ (1,250mm) Max Turning Diameter: 47.2” (1,200mm) Max Workpiece Height & Chuck: 31.5″ (800mm) Hydraulic Chuck Diameter: 47.42” Table load capacity: 8,800 lbs (4,000 kgs)

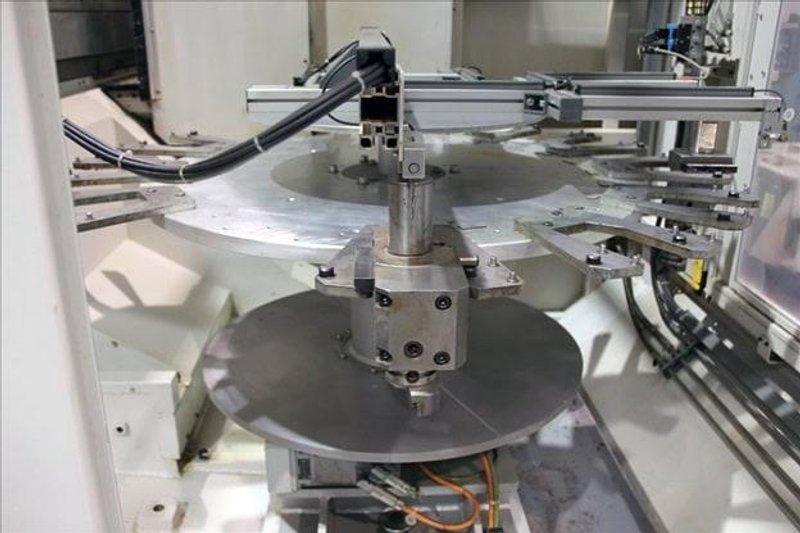

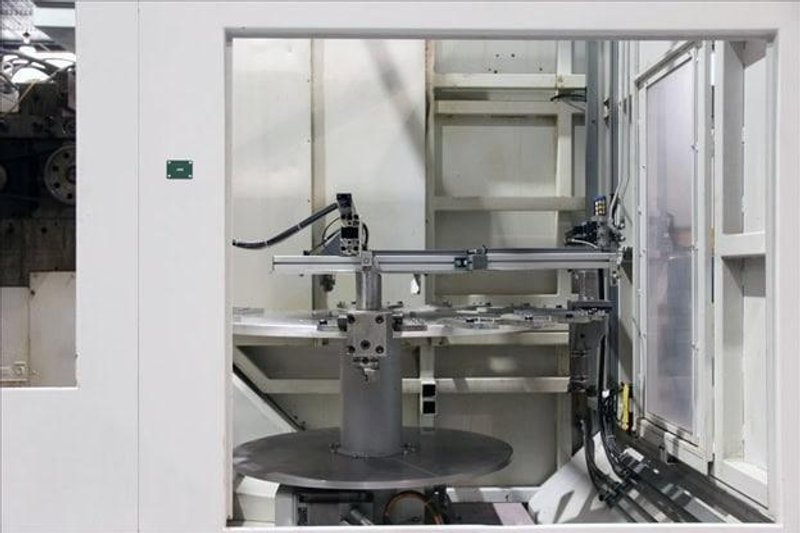

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle (Table) Speed Range: 4.5 – 630 RPM Main Spindle (Table) Motor: 95 HP at 100% (141 HP at 40%) Spindle Bearings ID: 19.69″ (500mm) X/Z Axis Rapid Traverse: 787 IPM Automatic Tool Changer: 24 Position Tooling: VDI 60

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Requirements: 480 V; 3 Ph; 60 Hz

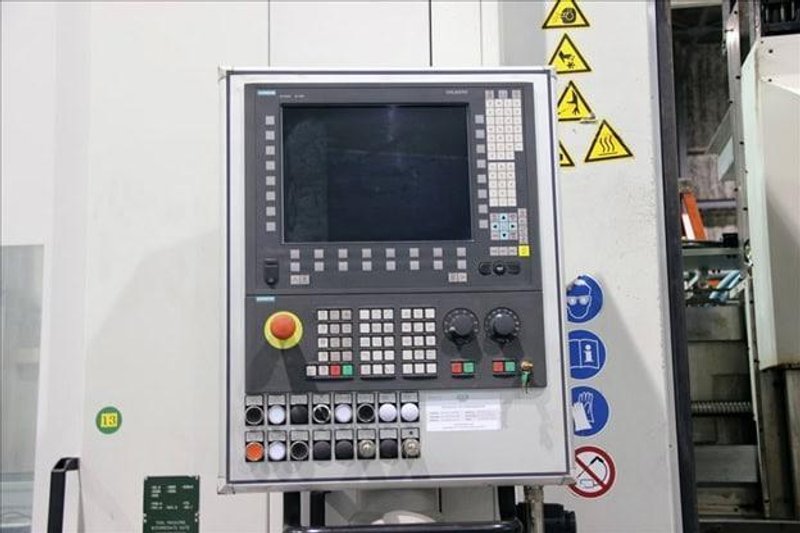

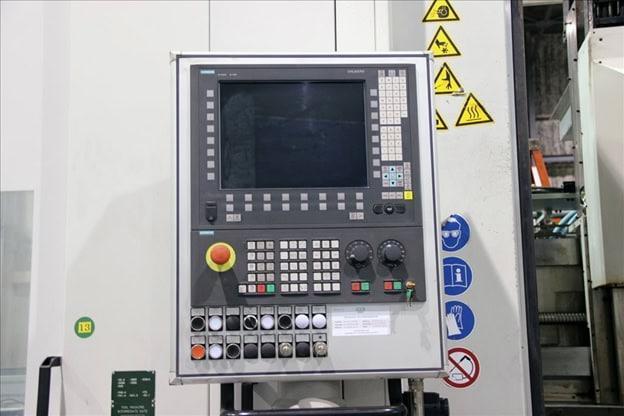

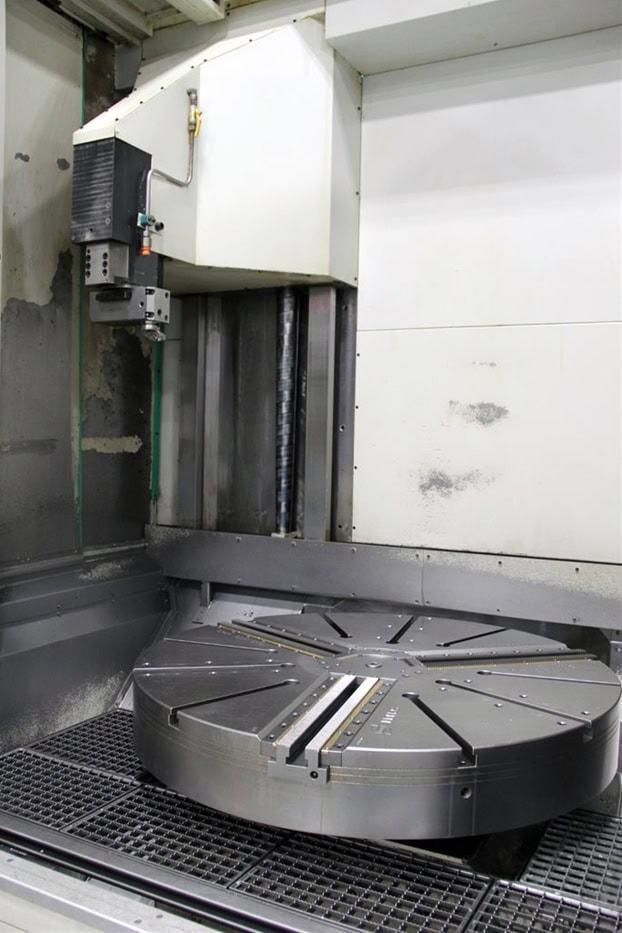

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Siemens Sinumerik 840D CNC Control Designed for Hard Steel Machining 47.42” Schunk 3-Jaw Hydraulic Chuck Hard Square Block Rail Ways Linear Scale Measuring Knoll KF 400/950 Recirculating Coolant Filtration System/Mist Exhaust EMMA Air Filtration System Coolant Chiller Coolant Spray Gun Full Enclosure with Interlock Door/Splash Guarding Work Area Lighting Separate Electric Control Panel Separate Hydraulic Unit DGS Hinged Belt Chip Conveyor Leveling Pads/Jacks All Available Manuals New Spare Siemens Servo Motor VDI 60 Tooling (6 Turning Holders with Machine)
