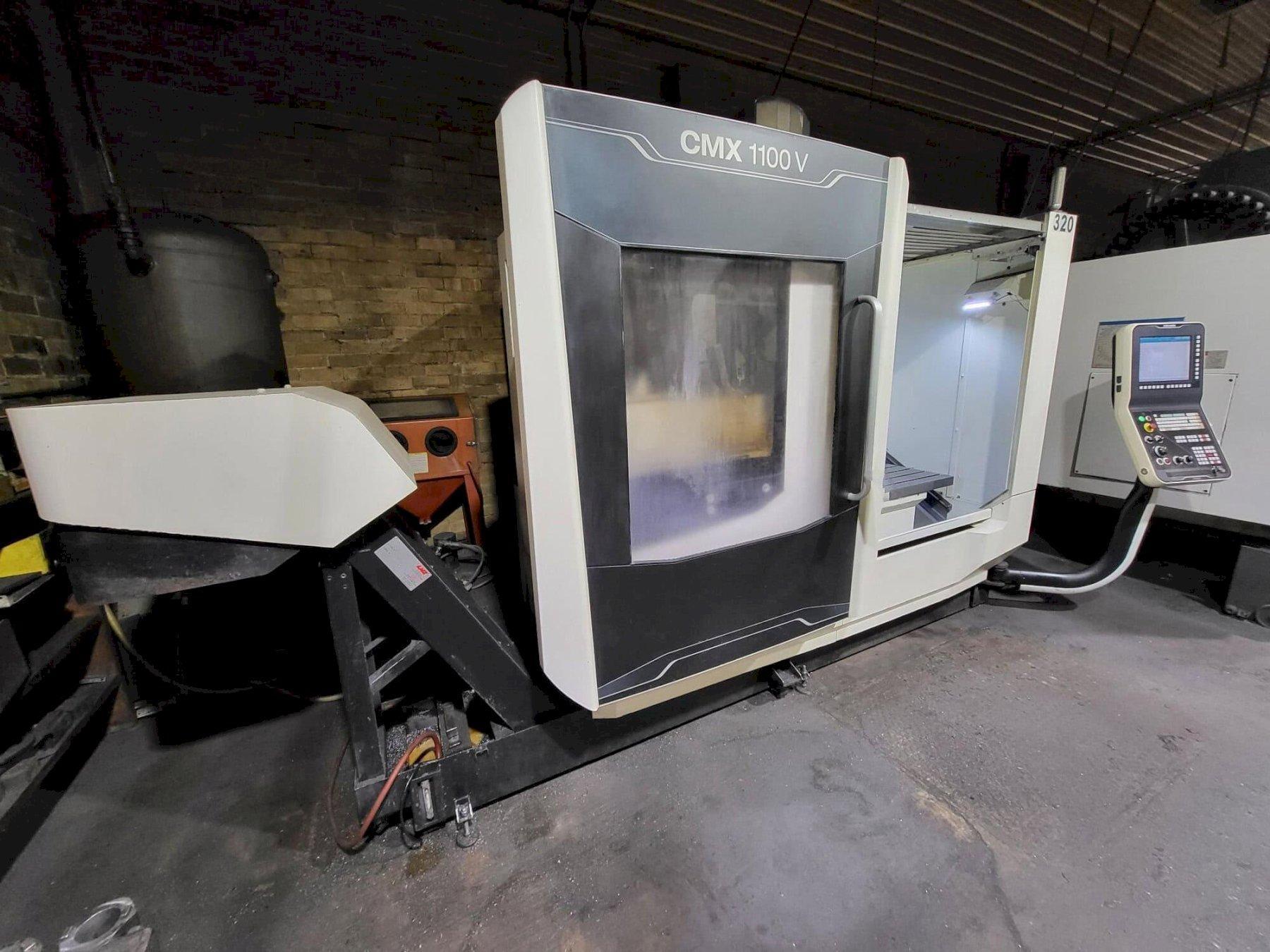

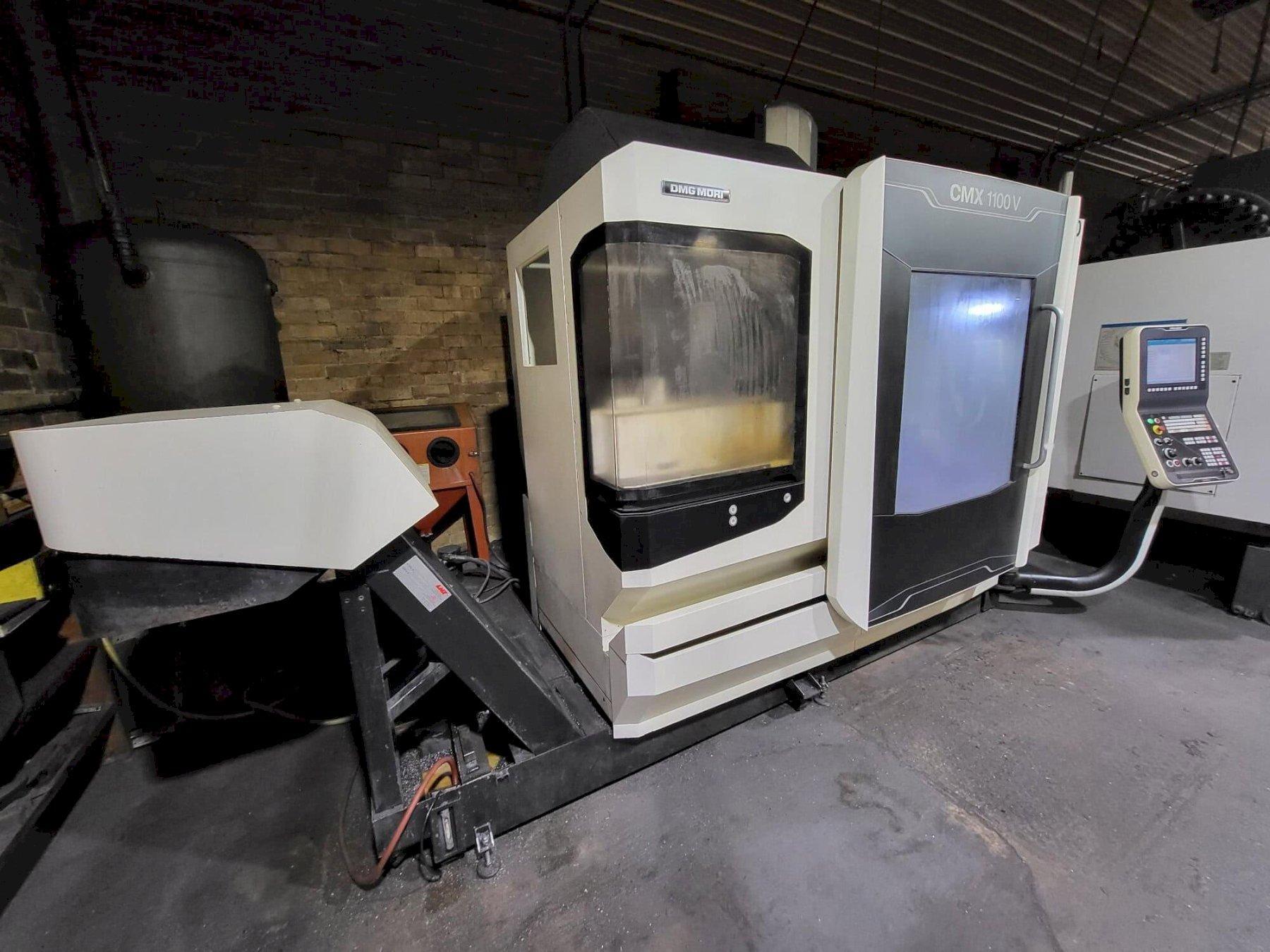

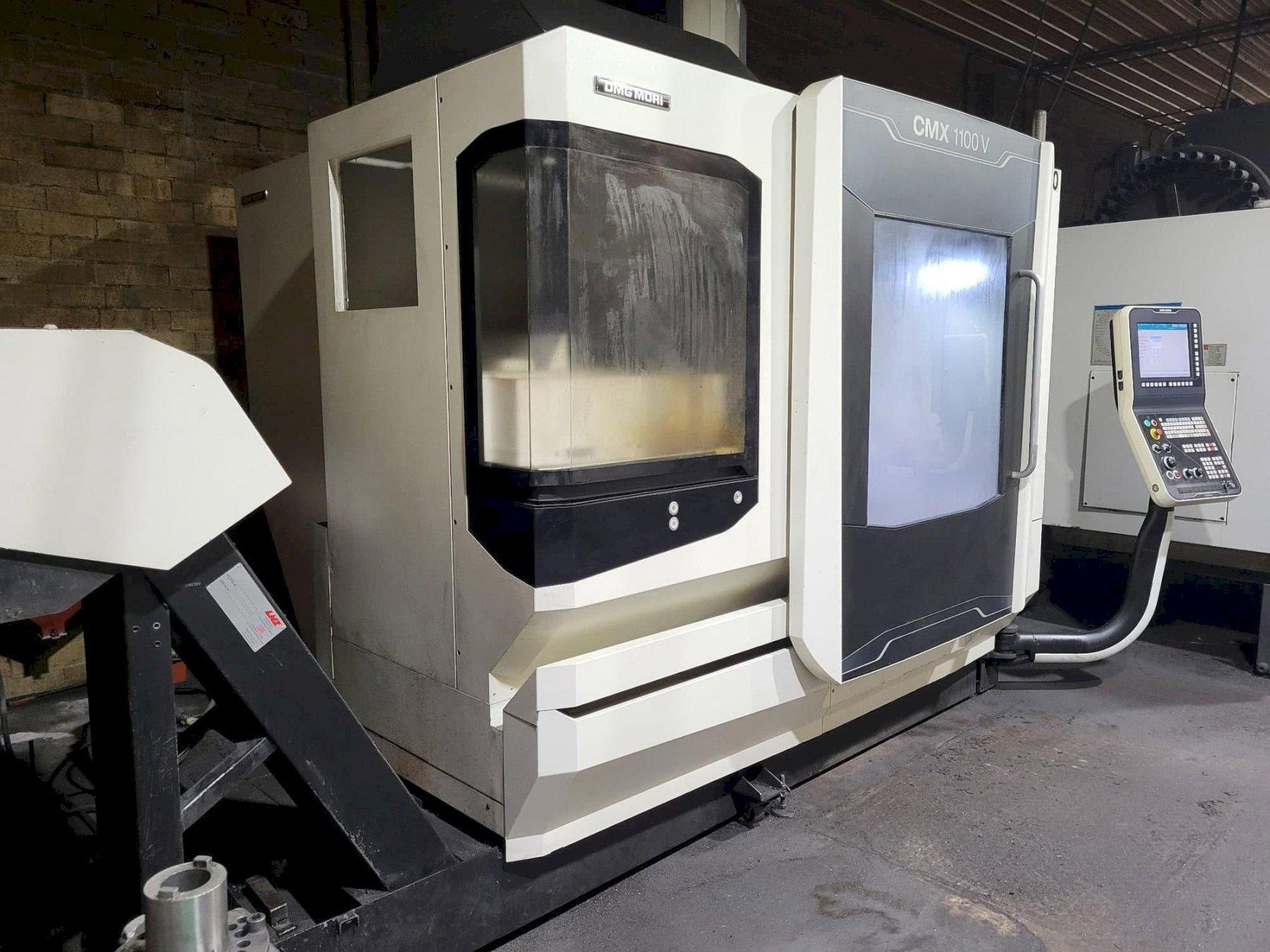

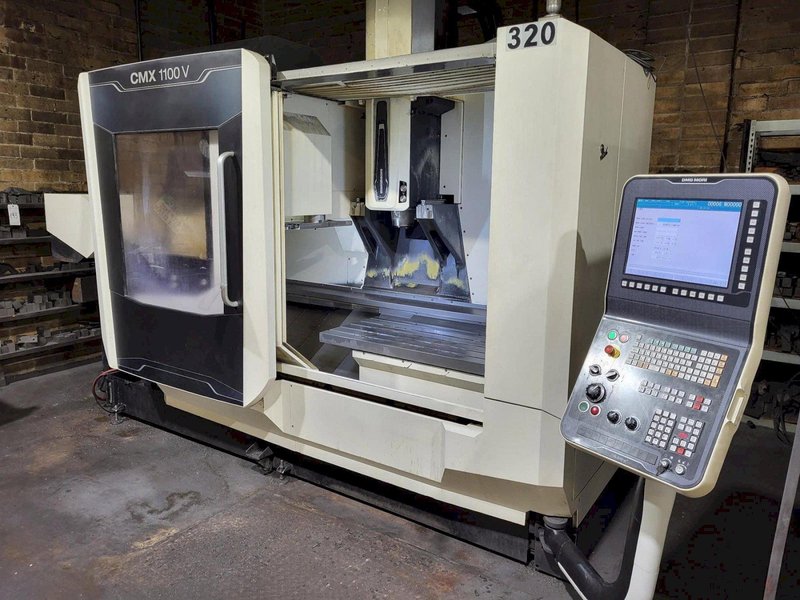

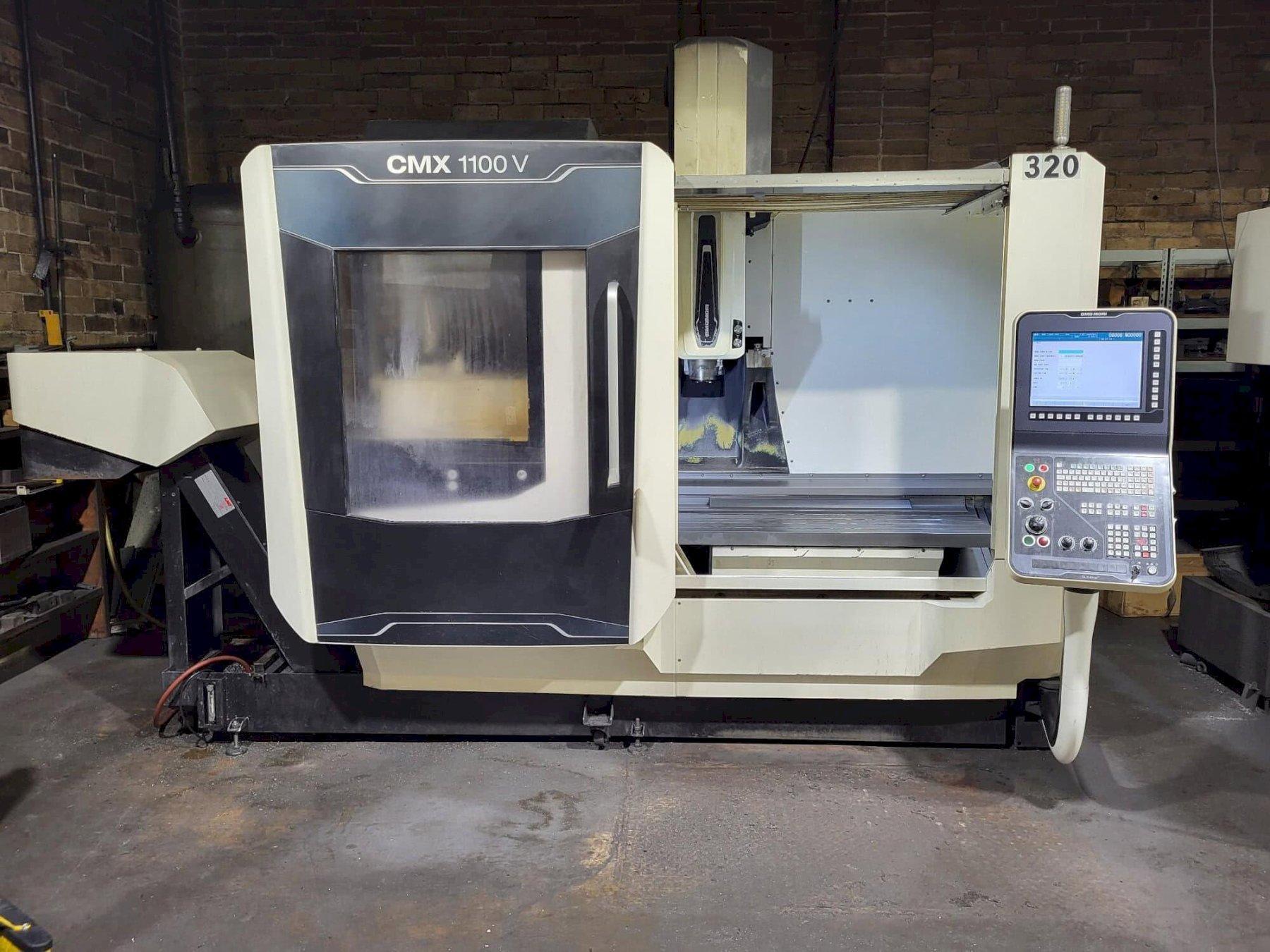

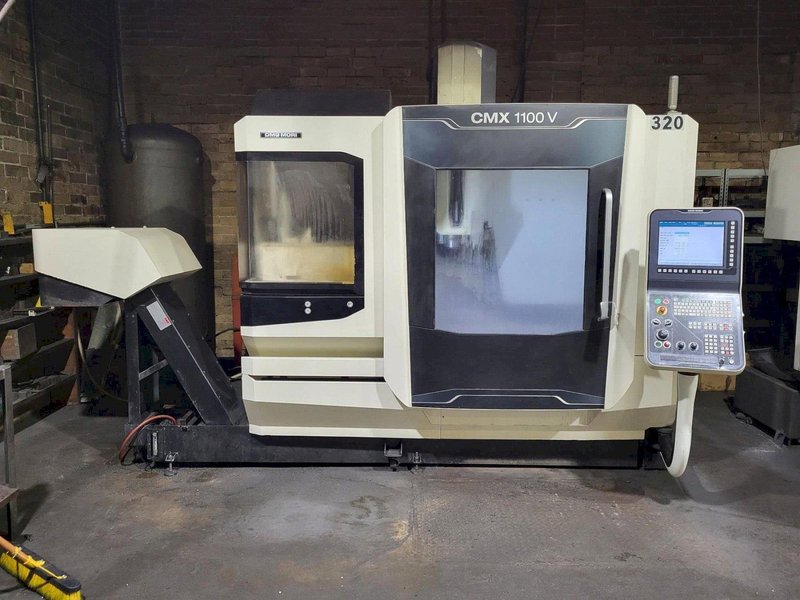

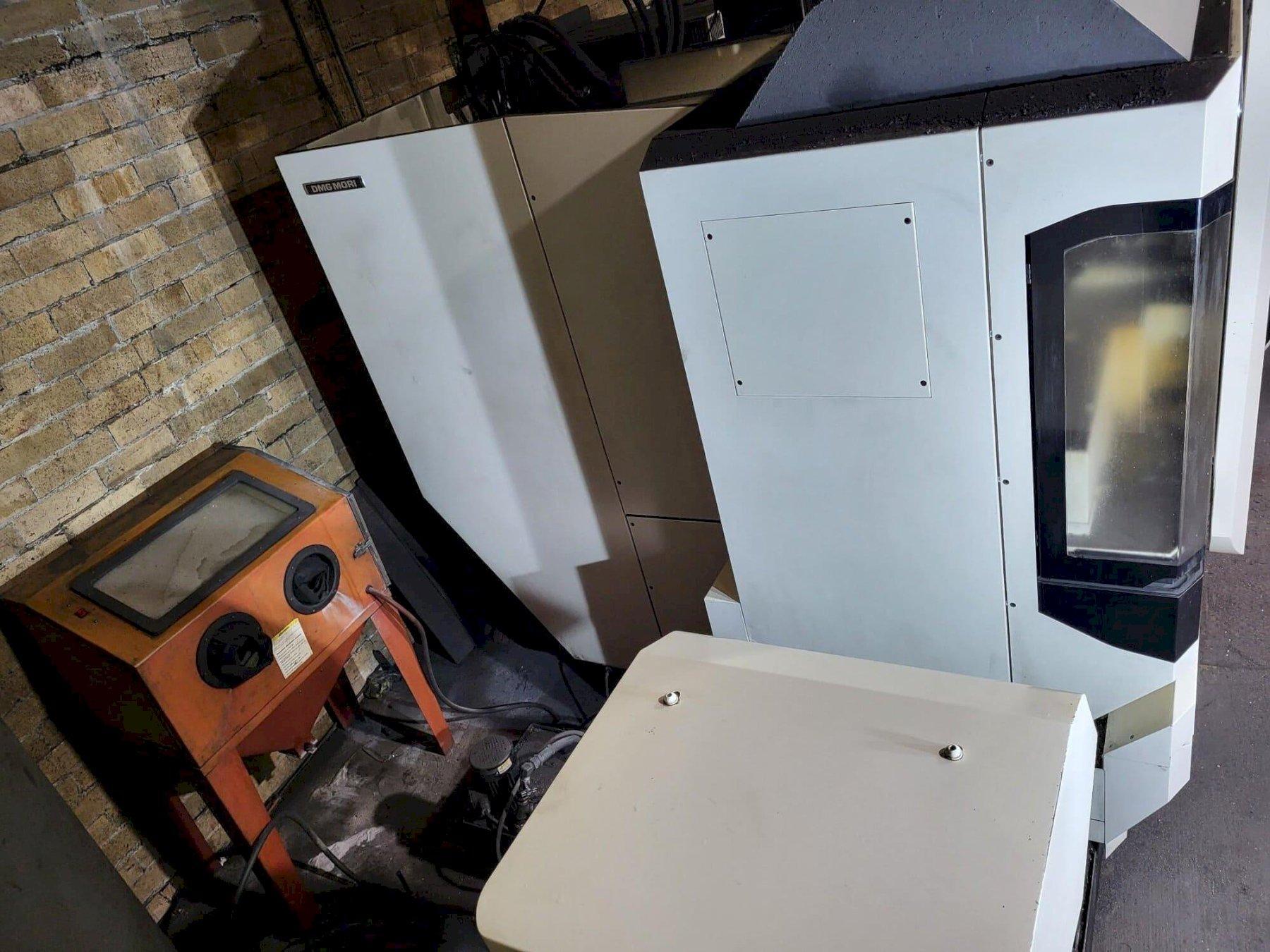

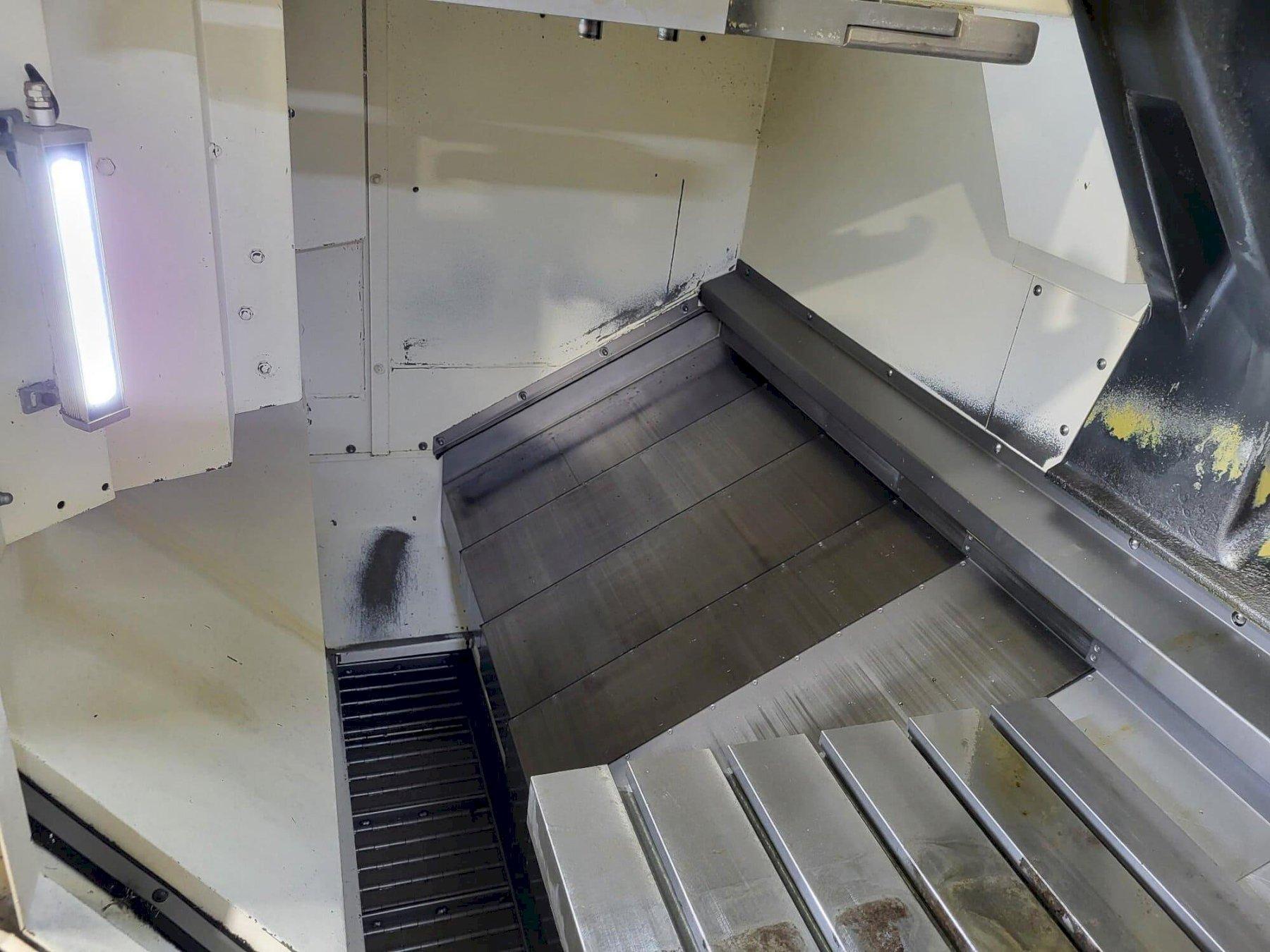

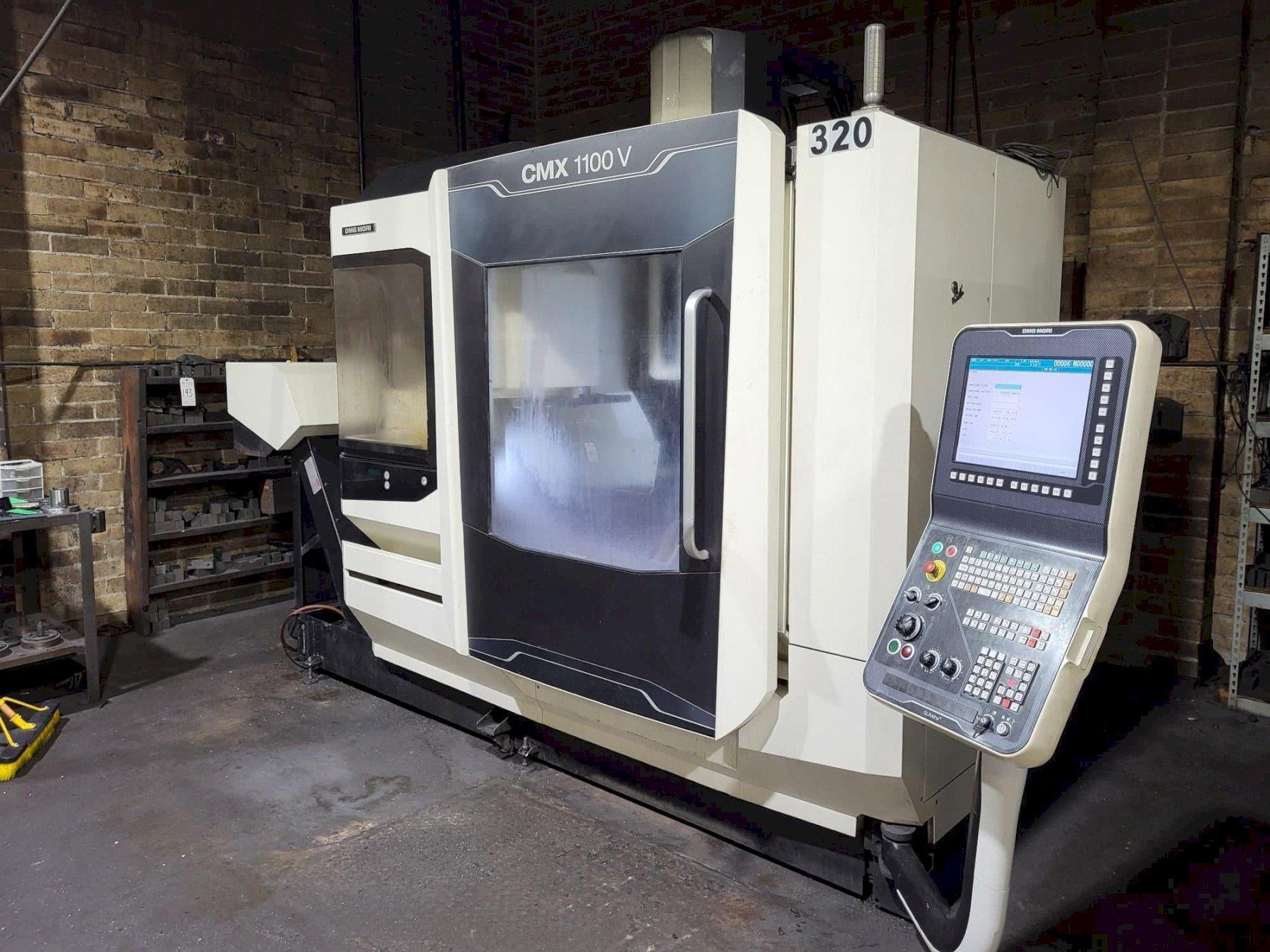

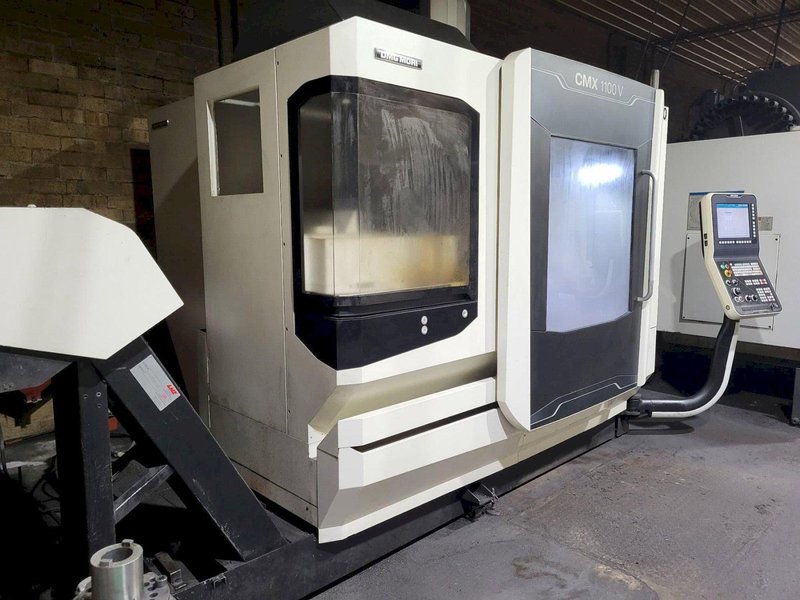

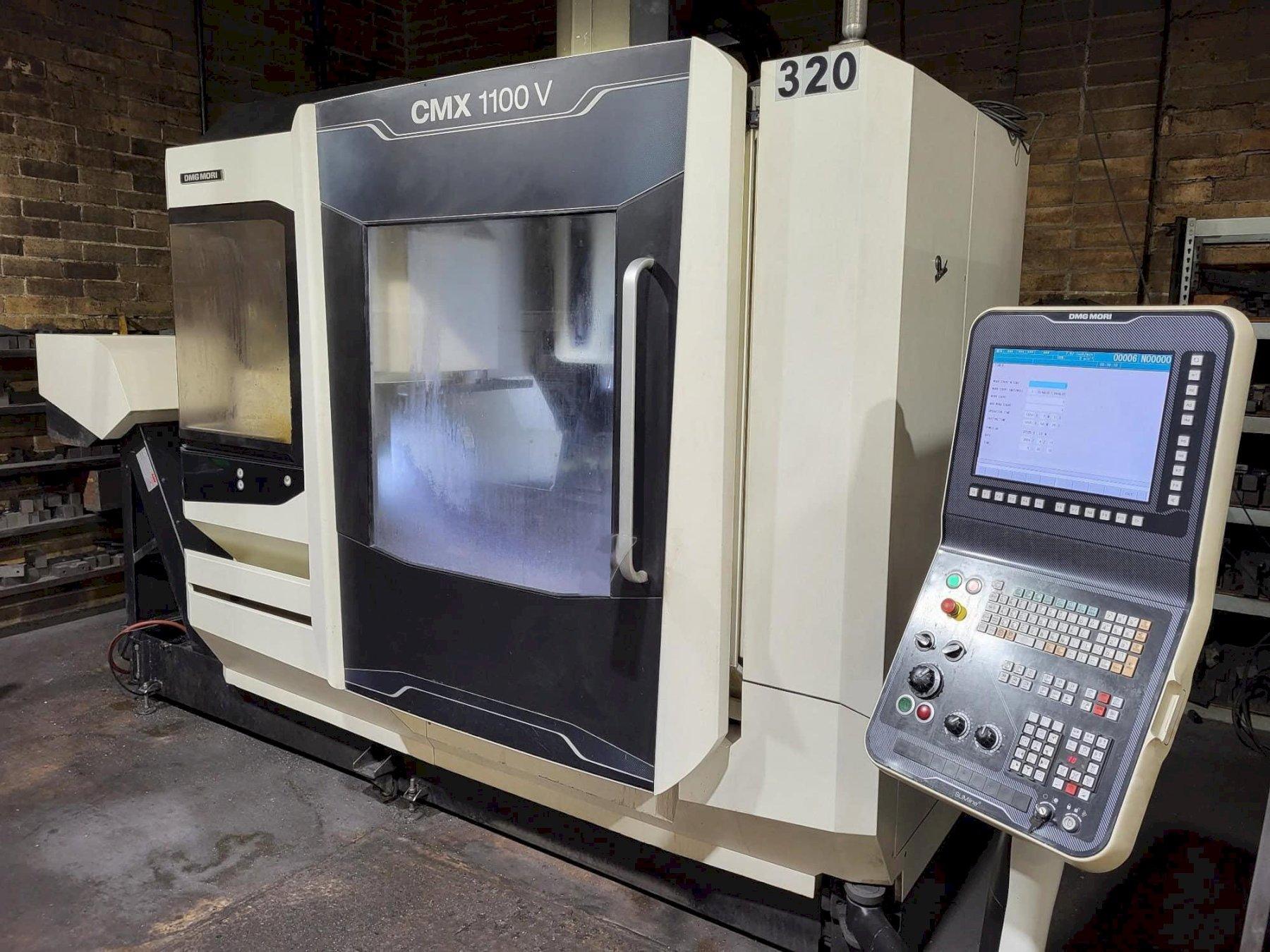

DMG MORI CMX 1100V VMC, 2017 – 12k RPM Spindle, TSC

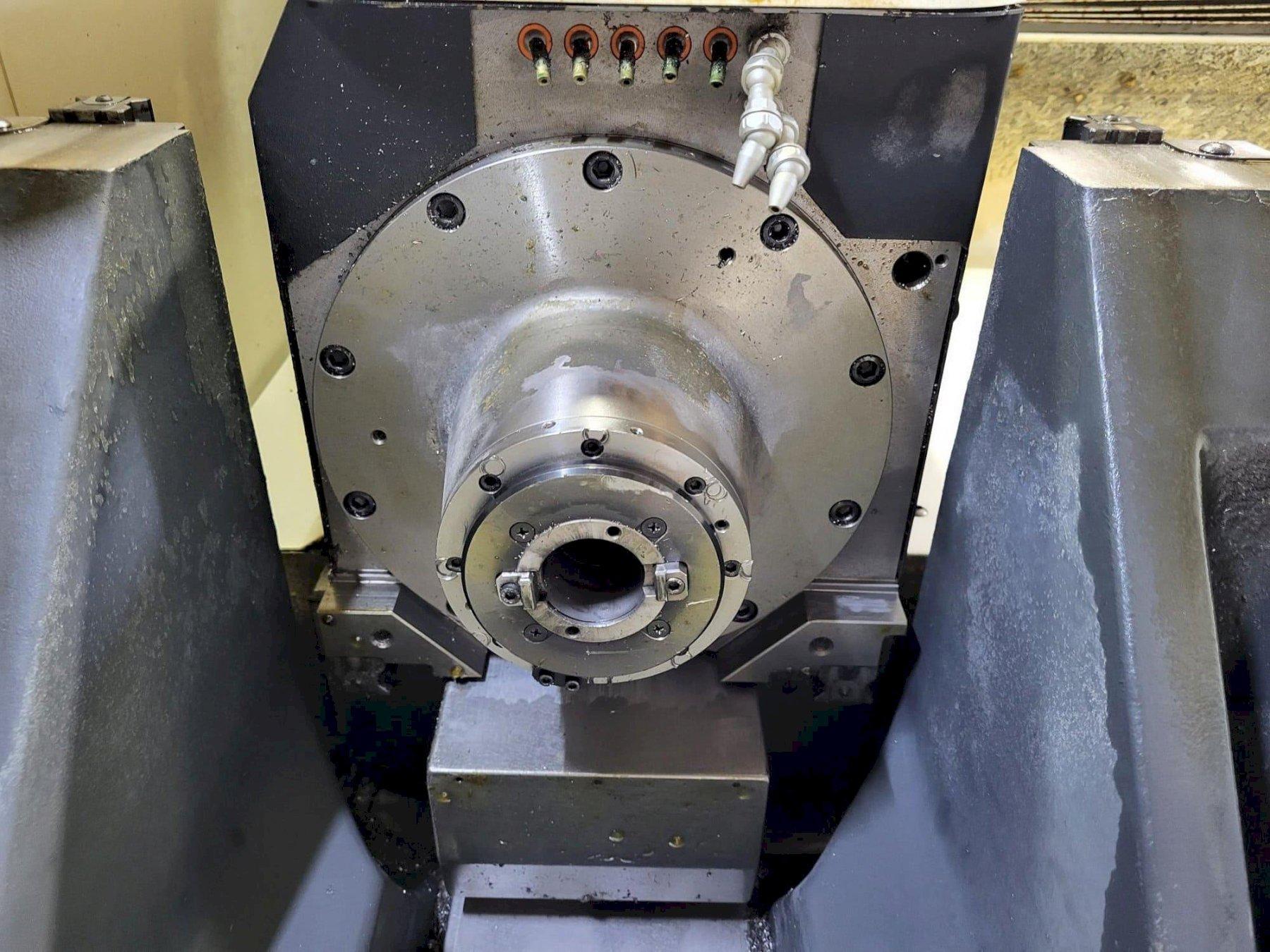

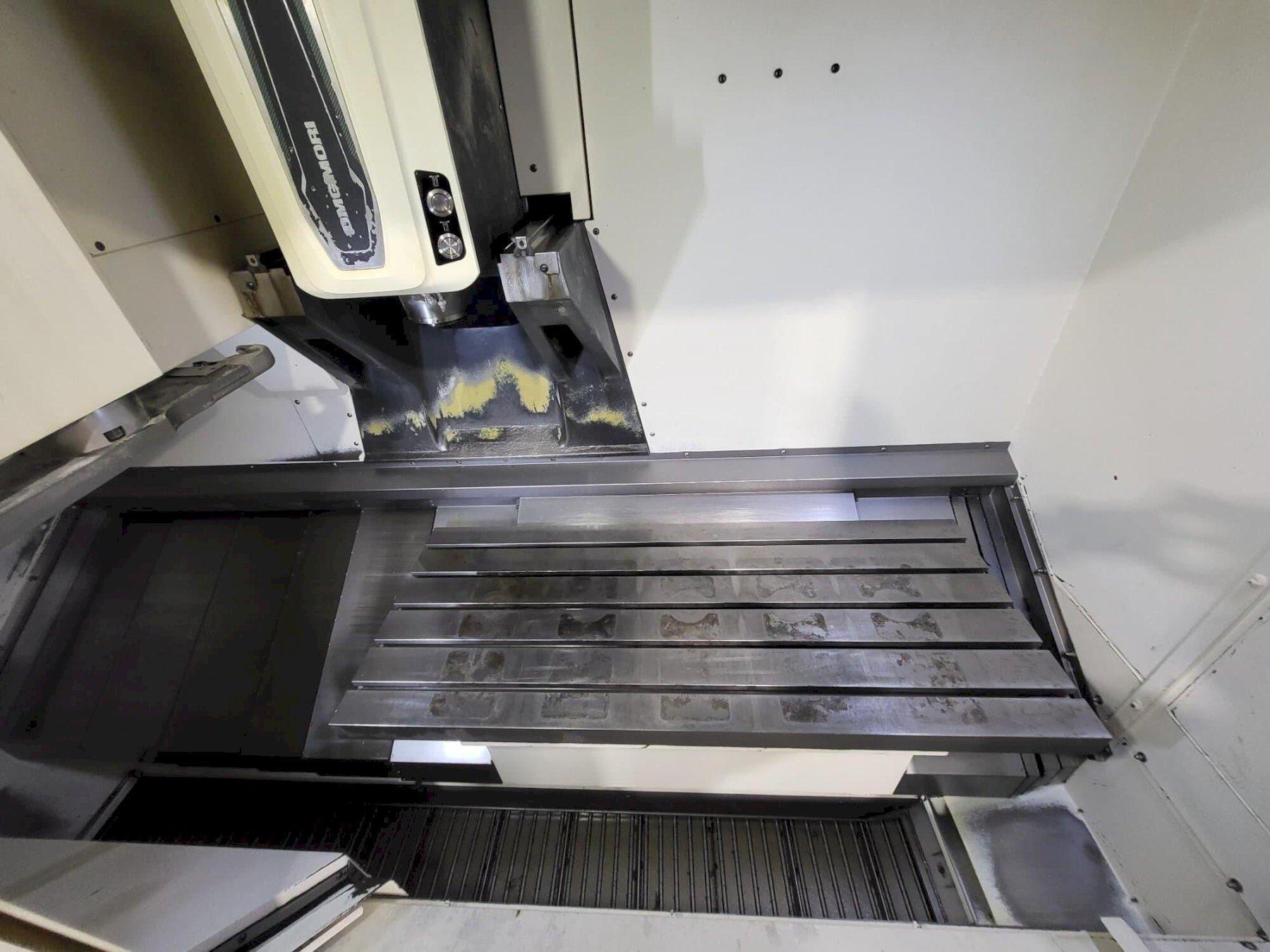

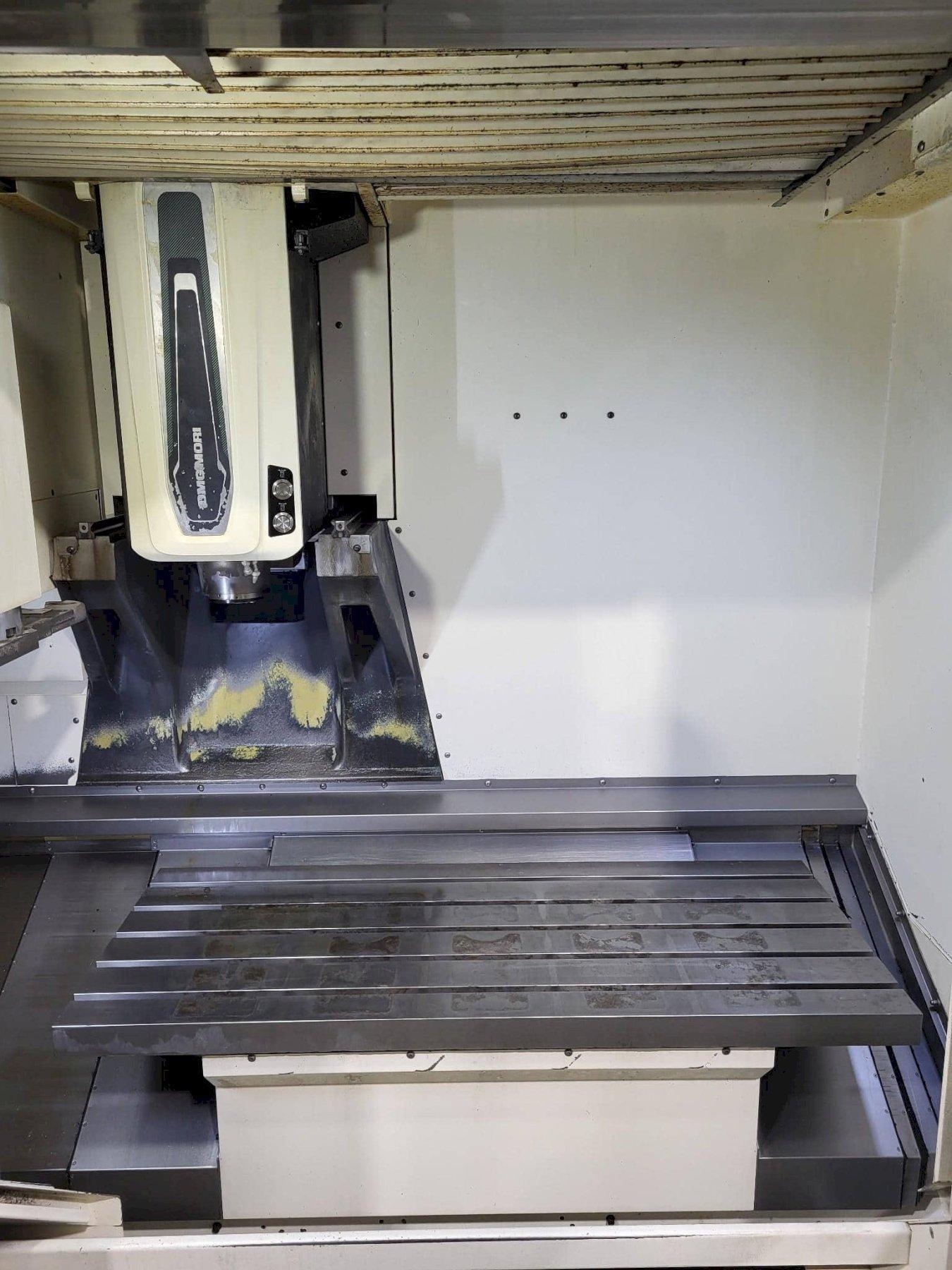

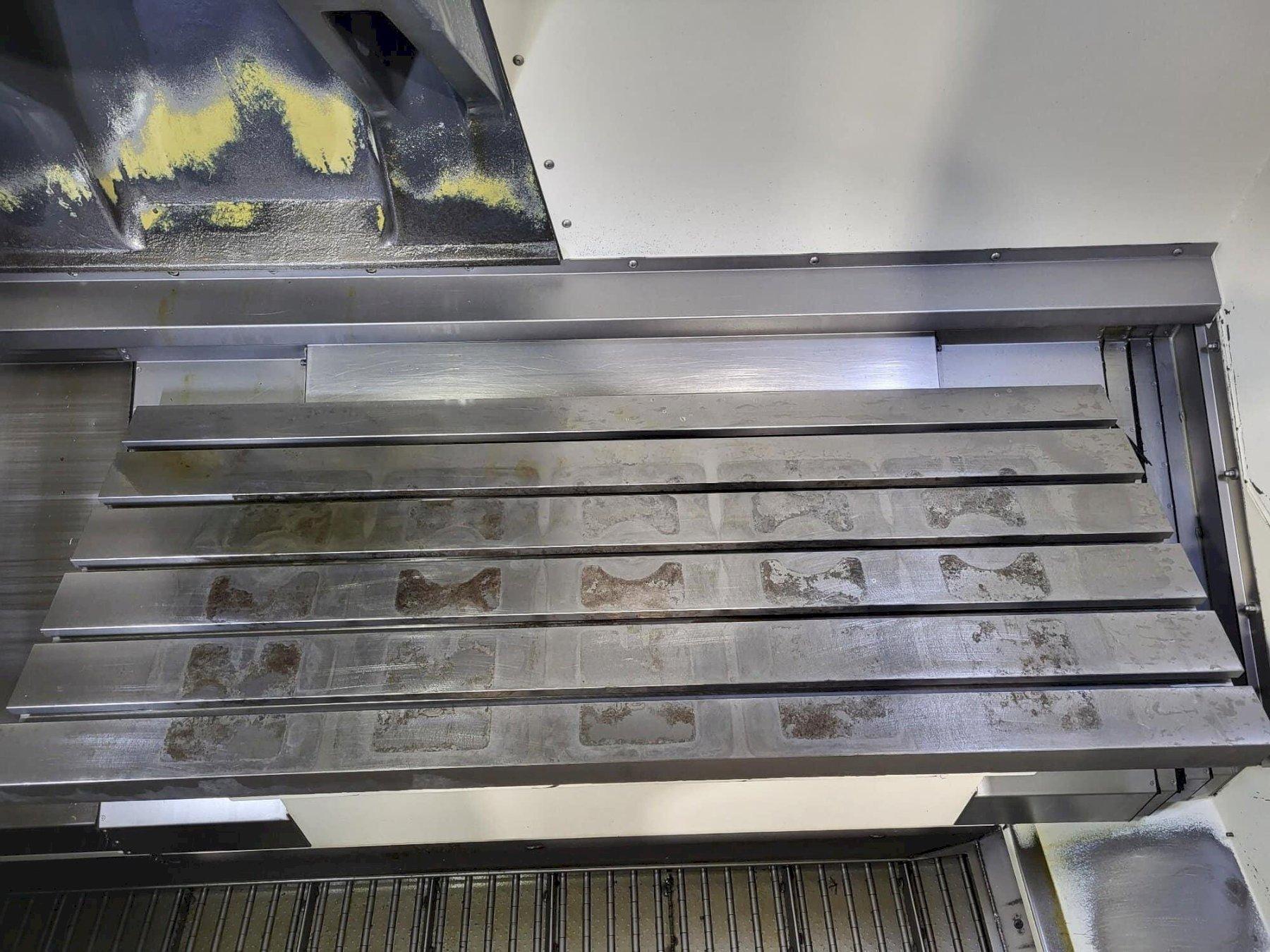

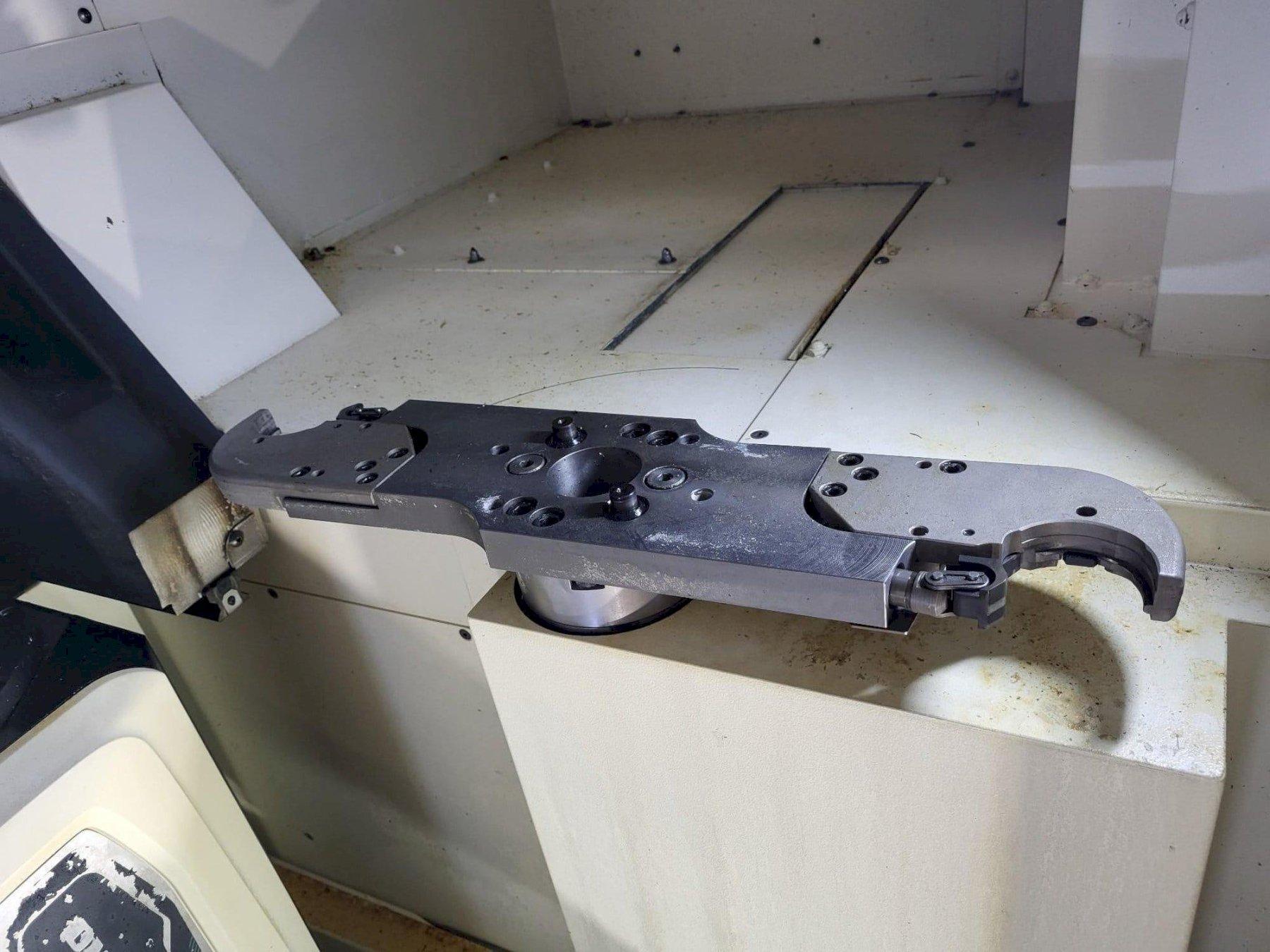

“2017 DMG Mori 1100V Vertical Machining Center LNS CC Table Working surface 55.12” x 22.05” Loading capacity 2205 lbs Travel X-axis travel 43.31” Y-axis travel 22.05” Z-axis travel 20.08” Distance from table surface to spindle nose 4.72–24.80” Spindle Max. spindle speed: 12,000 RPM Feedrate Rapid traverse X/Y/Z 1417 / 1417 / 1181 IPM Cutting Feedrate .04 – 787 IPM ATC Tool interface: CAT40 Tool storage capacity: 30 Max. tool diameter with adjacent tools 3.15” without adj. tools 4.9” Max. tool length 11.81” Max. tool weight 17.6 lbs Tool changing time Tool-to-tool s 1.32 /1.46 chip-to-chip s 3.70 Motor Spindle Motor 20/15 HP Machine size Floor space width×depthxHeight 150×108.54 x 115 Machine weight (net) 13,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,one owner machine”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

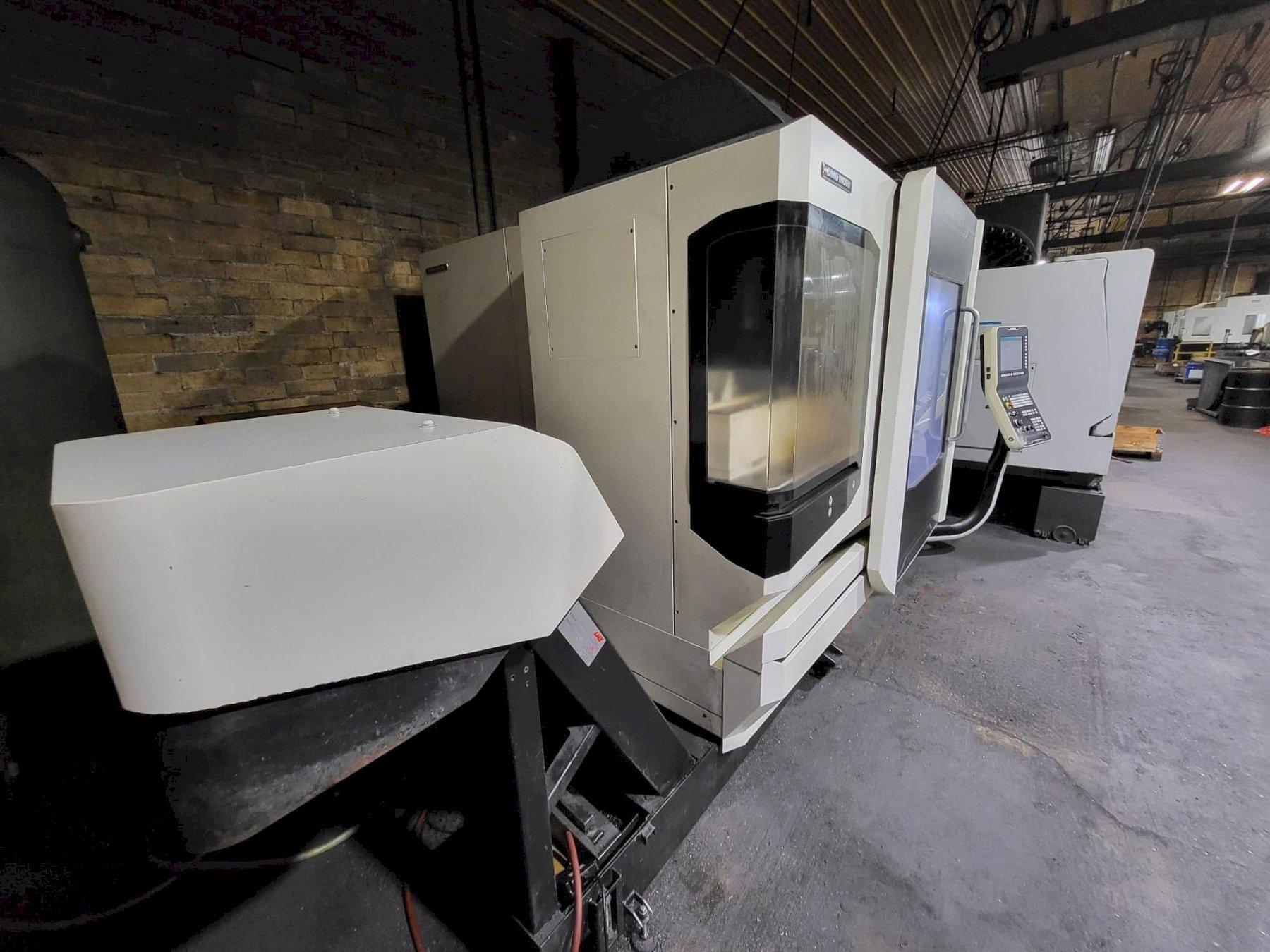

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DMG Mori Slim Line Control 12,000 RPM Spindle Chip Conveyor Through Spindle Coolant Coordinate System Rotation Scaling Cylindrical Interpolation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
