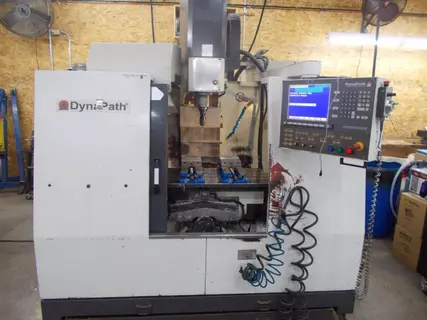

DynaPath DMC 500 VMC, 2005 – DynaPath Delta 2000 Control
Brand
Category
Model
DMC 500
Stock #
217182
Year
2005
Condition
Not specified
Location
Not specified
|
Table Size: 35″ x 14″
Max. Load on Table: 660 lbs
X-Axis Travel: 26″
Y-Axis Travel: 16″
Z-Axis Travel: 16″
Spindle Nose to Table: 3.5″ – 21.5″
Spindle Center to Colulm: 16.9″
Spindle Motor: 7.5 HP
Max. Spindle RPM: 6000 RPM
Spindle Taper: CAT 40
X & Y Axis Rapids: 390 IPM
Z Axis Rapids: 200 IPM
Machine Weight: 4850 lbs
Dimensions (LxWxH): 79″ x 65″ x 90″
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: DynaPath Delta 2000 CNC Control 10 Tool ATC Flood Coolant System Auto Lubrication System Work Lights Telescoping Way Covers All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
