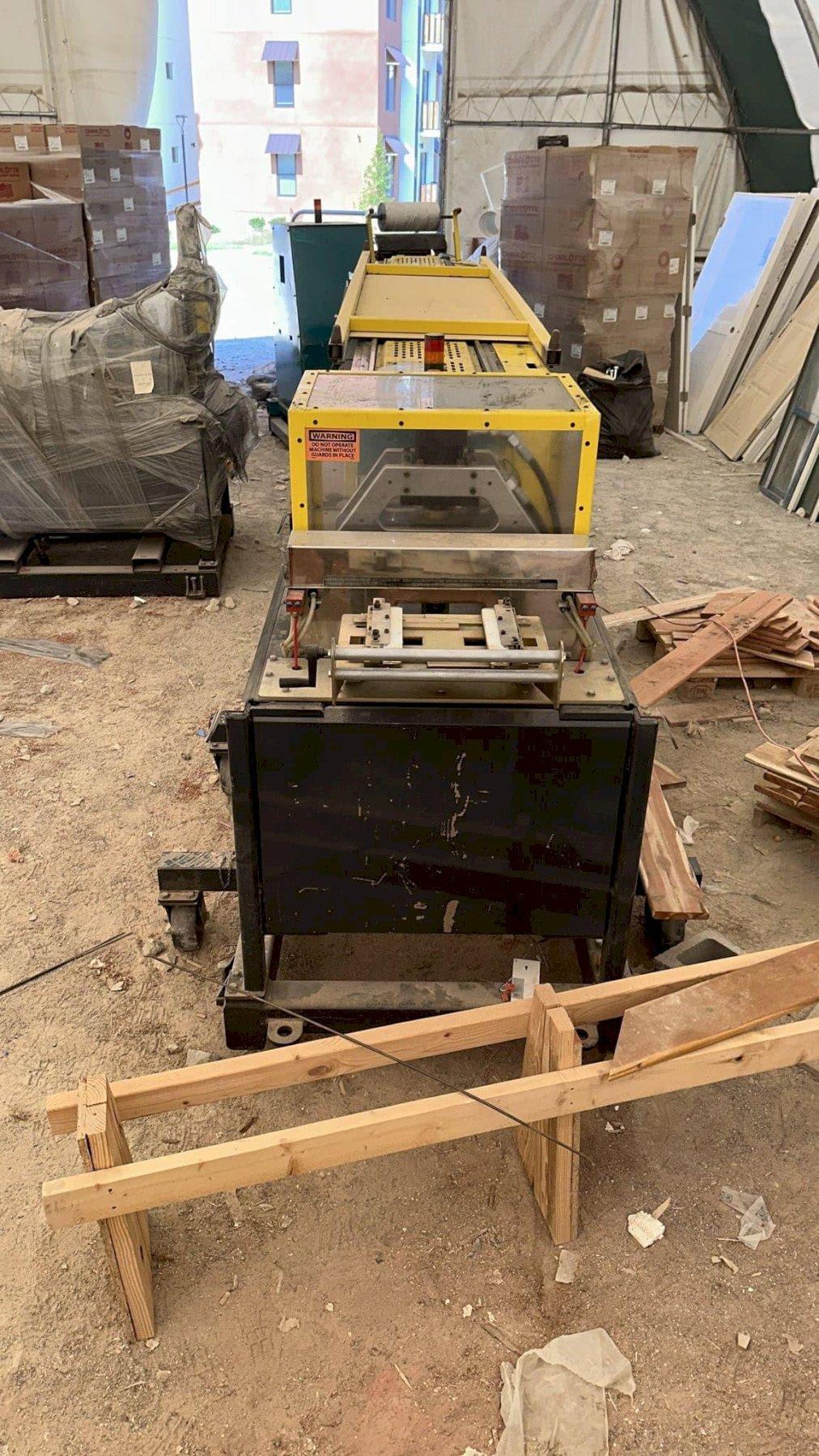

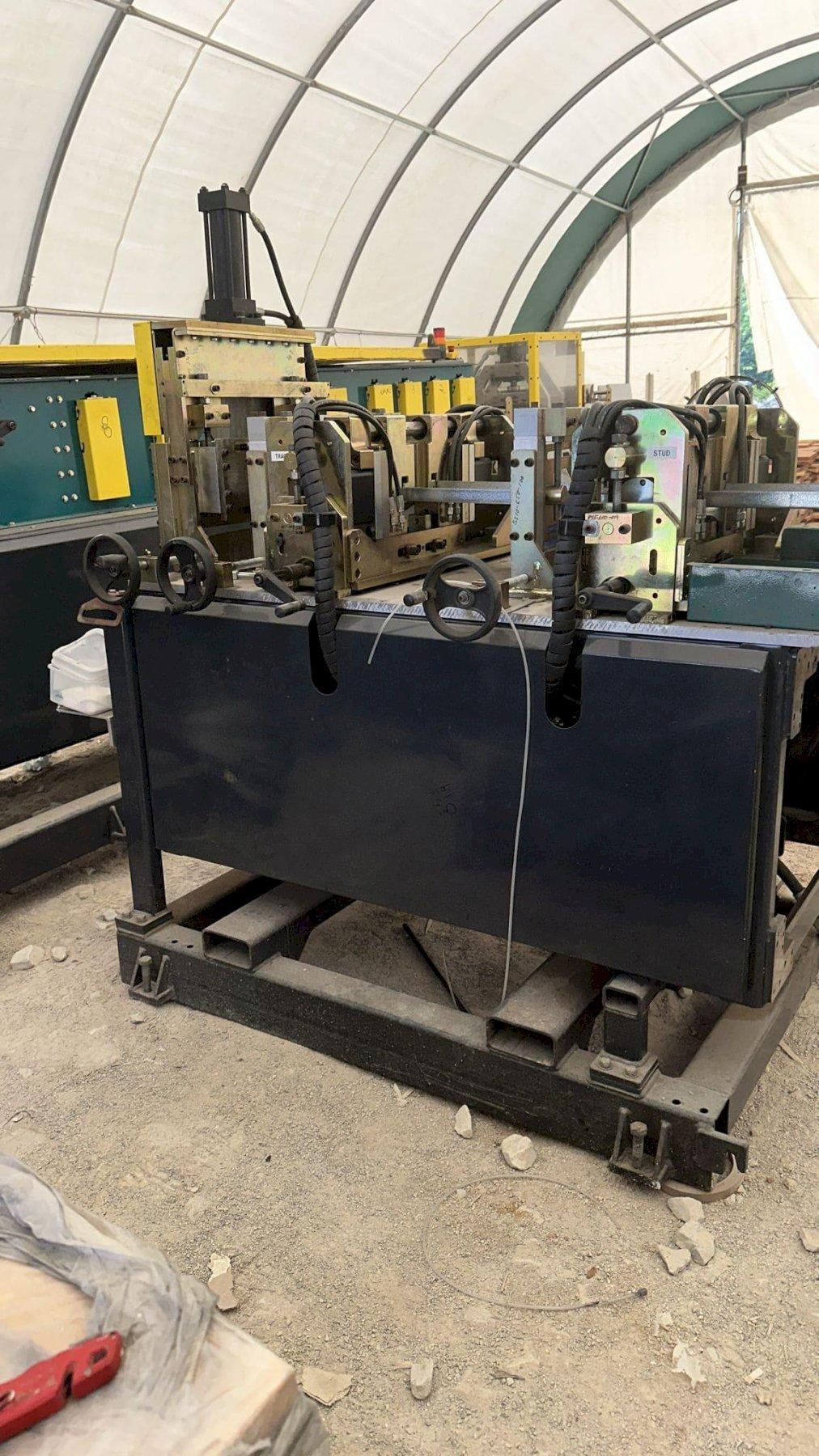

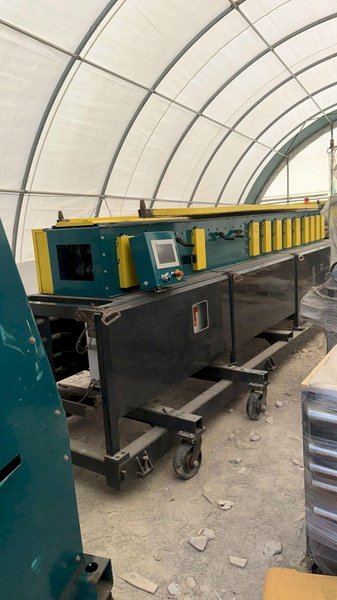

Jobsite PS 800 STEEL STUD Rollformer, 2019 – Dimpling, De-Coiler, Crane

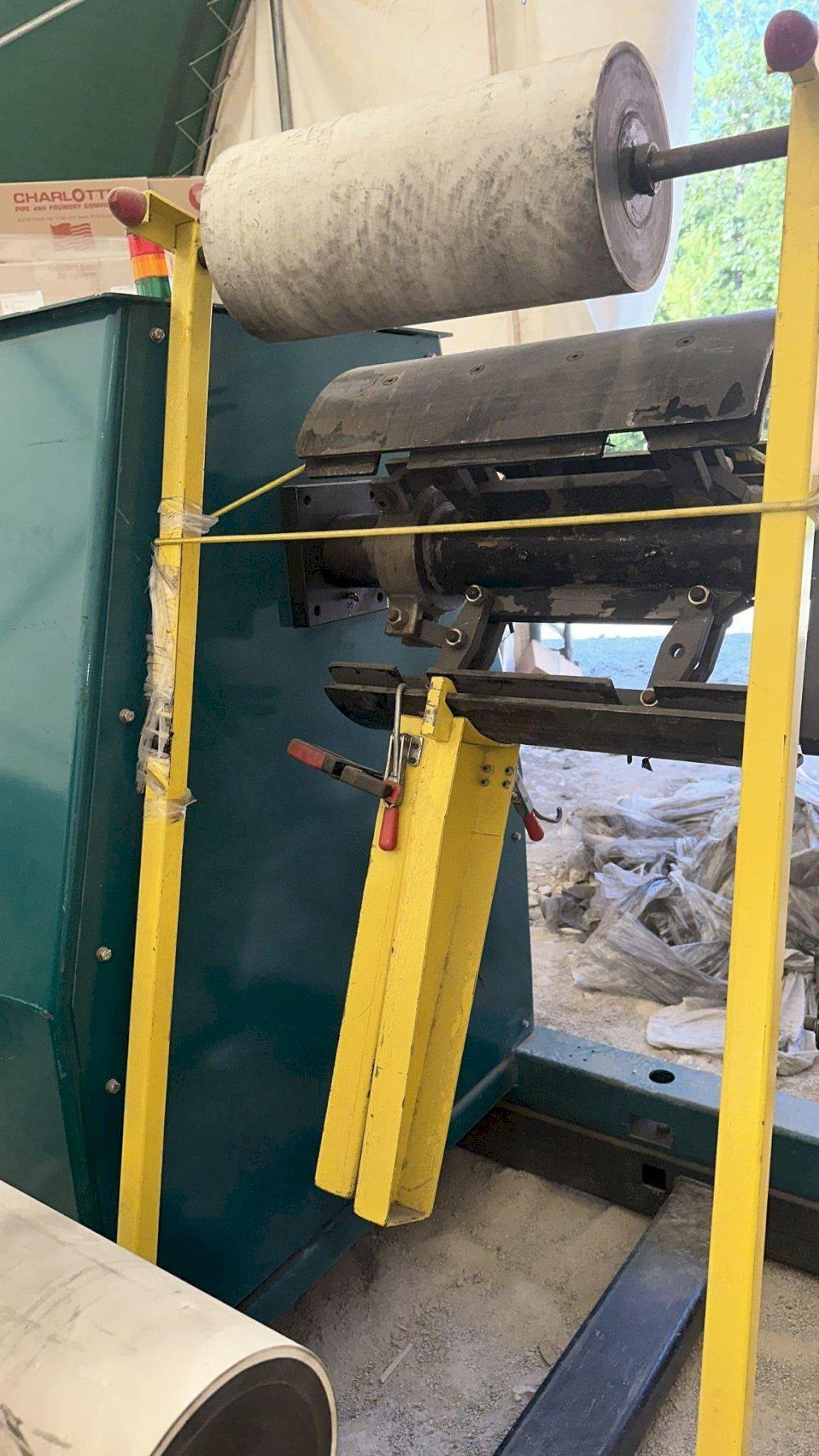

Maximum Hold Size: 1-1/2″ x 3-1/2″ obround Stud and Track Kit Sizes: 3-5/8″, 6″, 8″ Gauge: 26-14 steel Shear Type: Hydraulic Length: 245″ Width: 44″ Height” 65″ Weight: 5900 lbs Power Requirements: 380/460V, 3ph/50/60Hz, 30 Amp Main Servo Drive: 203.5 in lbs/23.0 NM continuous torque (x3 peak) Punch Servo Drive: 70:8 in lbs/8.0 NM continuous torque (x3 peak) De-Coiler Capacity: 17″ – 24″, 6000 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – Bosch Rex Roth Touch Screen Control – Bosch Rex Roth servo motor main drive – Sliding Safety Covers – Emergency Stop Switches – Ion Nitrided 4130 Hardened Rollers – Material oiler/mister

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
