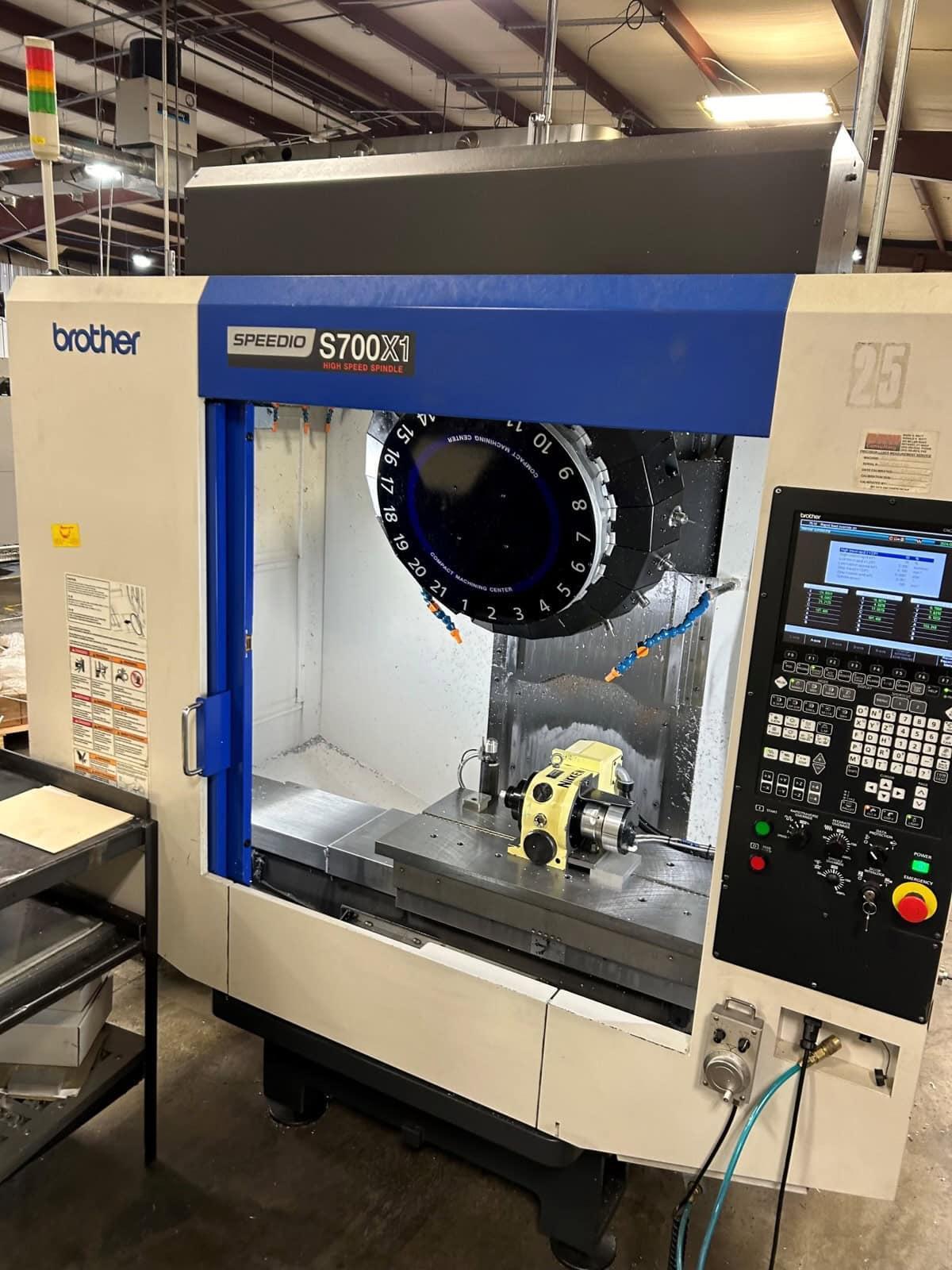

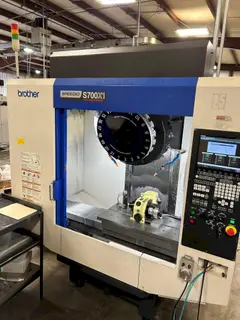

Brother Speedio S700X1 CNC VMC, 2018 – Low Hours, 4th Axis, Tooling Included

Travels: X: 27.6 Y: 15.7 Z: 11.8

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Distance Tabletop to Spindle Nose: 7.1″-18.9″ Table Work Area Size: 31.4 x 15.7″ Max Load Capacity: 661 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 27,000 rpm Tapping Speed: 8000 rpm Spindle Taper: BT30

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse X & Y Axis: 1969 ipm Rapid Traverse Z Axis: 2204 ipm Tool Pull Stud: MAS P30T-2 Tool Storage: 21 Tool Change Time tool to tool in seconds: .8

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Change Time chip to chip: 1.4 Motor (10 min/cont.): 11.8/8.4 hp For Axis Feed X&Y: 1.34 hp For Axis Feed Z: 2.68 hp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Weight: 5291 lbs Floor Space Required: 80.7″ x 87.4 x 98.3h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes: Spindle Taper Air blast Manual Pulse Generator 12.1 Color LCP Heat Expansion Compensation System 27000 rpm Spindle Nikken CNCZ105 Full 4th Axis Rotary Table w Tailstock Part and Tool Probes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,TOTAL OPERATION TIME: 1384 HOURS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
