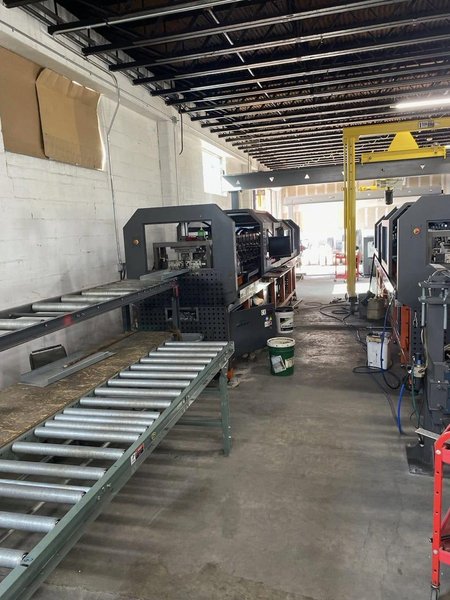

Pinnacle LGS X3 Framing System, 2017 – De-Coiler

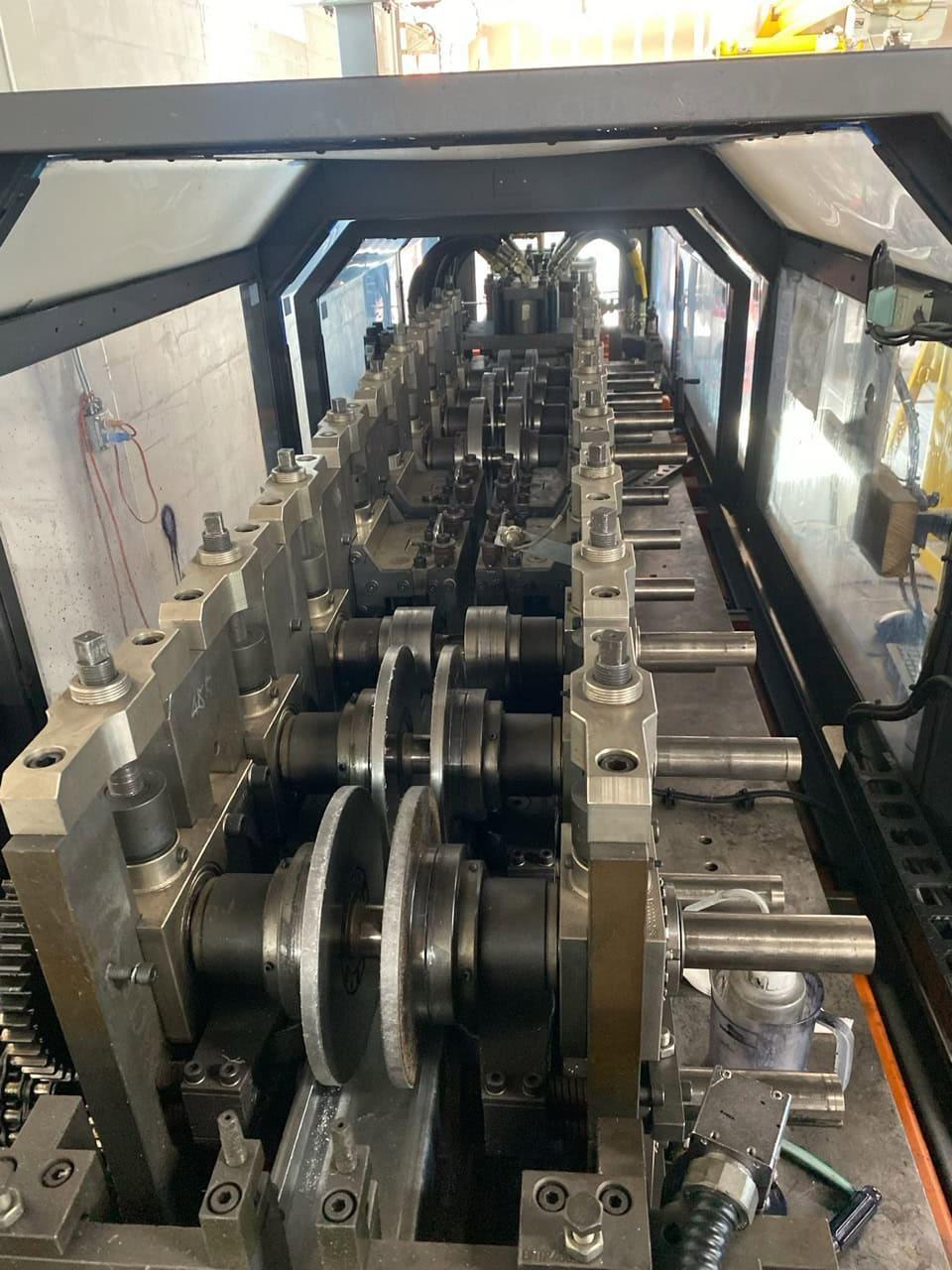

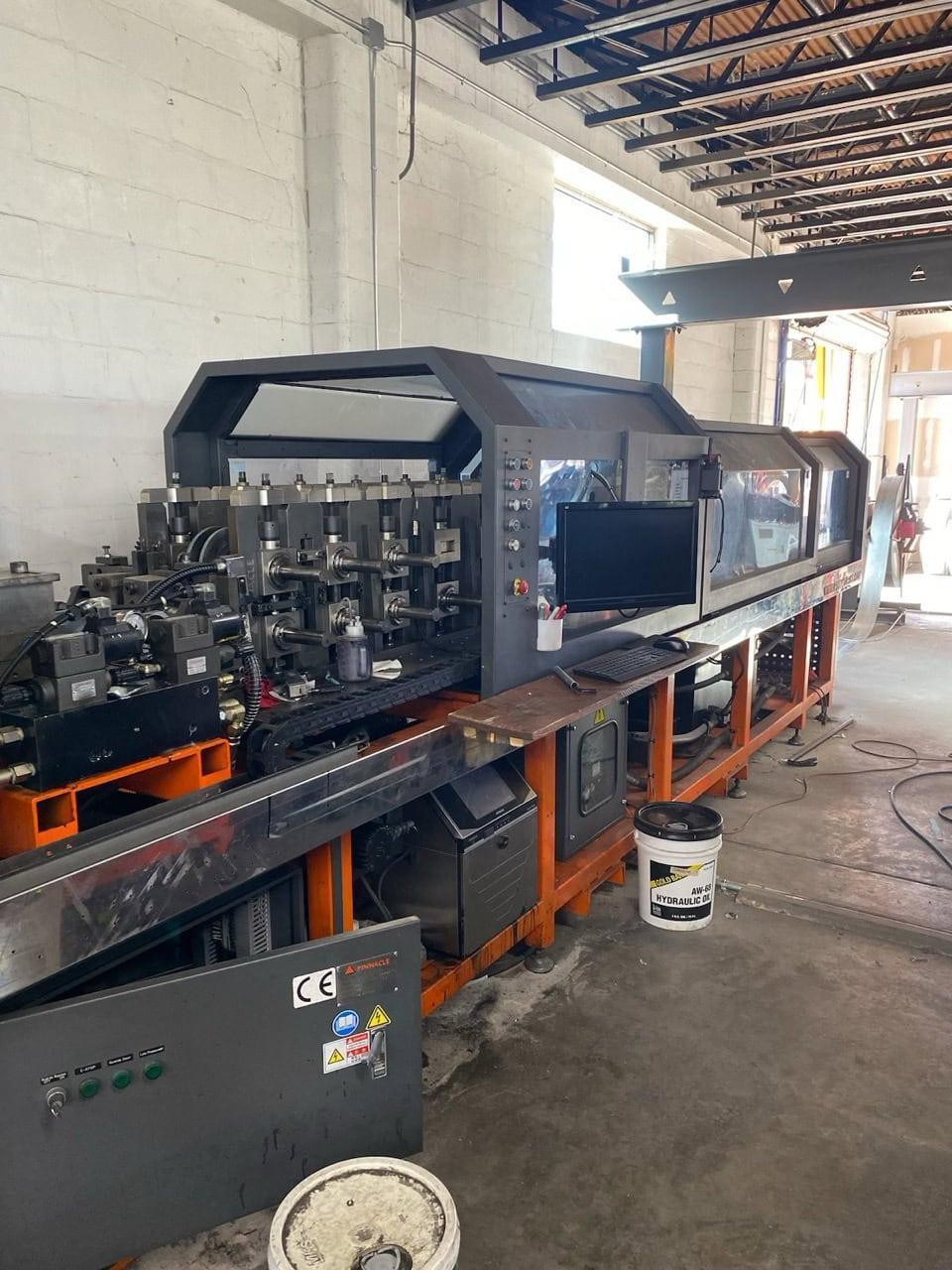

The 2017 Pinnacle LGS X3 is a CNC light gauge steel framing machine designed for high-efficiency, automated LGS framing and truss production. Capable of roll forming six programmable profiles across a gauge range of 26–16 gauge (0.024″–0.063″), this used light gauge steel framing system is a strong fit for modular construction, prefab framing, and cold-formed steel manufacturing operations looking to bring production in-house. Featuring a fully integrated inkjet printer, 9 roll forming stations, and a powered de-coiler rated at over 6,600 lbs, the Pinnacle X3 delivers labeled, precision-cut framing members with minimal operator input. Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Make: Pinnacle Model: LGS X3 Year: 2017 Number of Profiles: 6 Profile Size (Web): 2.48″, 3.50″, 5.91″ Profile Size (Flange): 1.61″ Profile Size (Lip): 0.39″ Gauge Range: 0.024″ – 0.063″ (26–16 Gauge) Gauge Adjustment: Semi-Automatic Dial Roll Forming Stations: 9 Frame & Truss Tool Punches: 6 Length: 143.3″ Width: 29.8″ Height: 61.9″ Weight: 5,949 lbs Power: 380 VAC / 30 KVA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

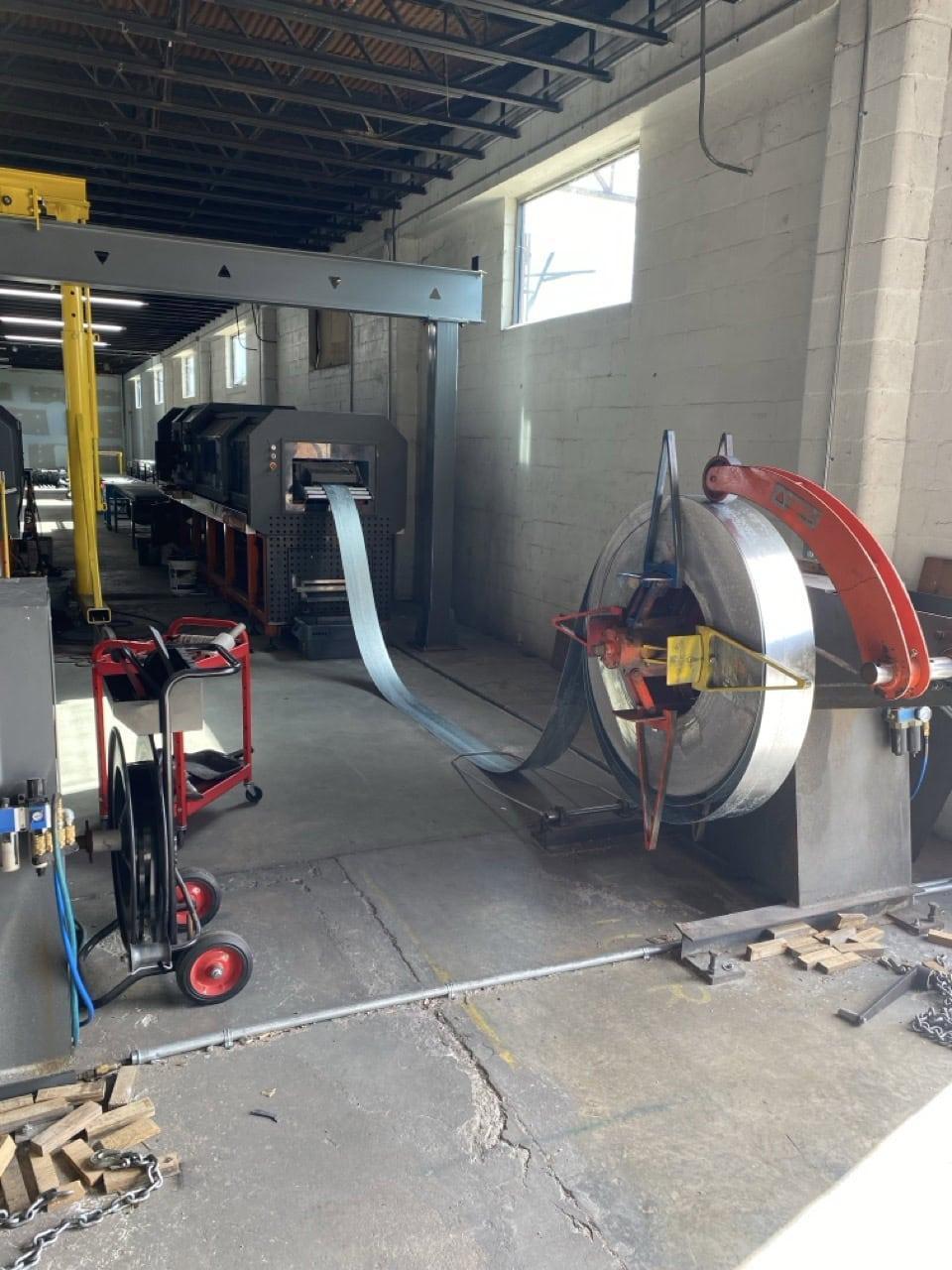

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fully Integrated Inkjet Printer Powered De-Coiler (6,614 lb Capacity)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All specifications are assumed to be correct but must be verified by the purchasing entity. All machinery is sold as-is, where-is, with no warranties expressed or implied. Buyers are encouraged to inspect prior to purchase.
