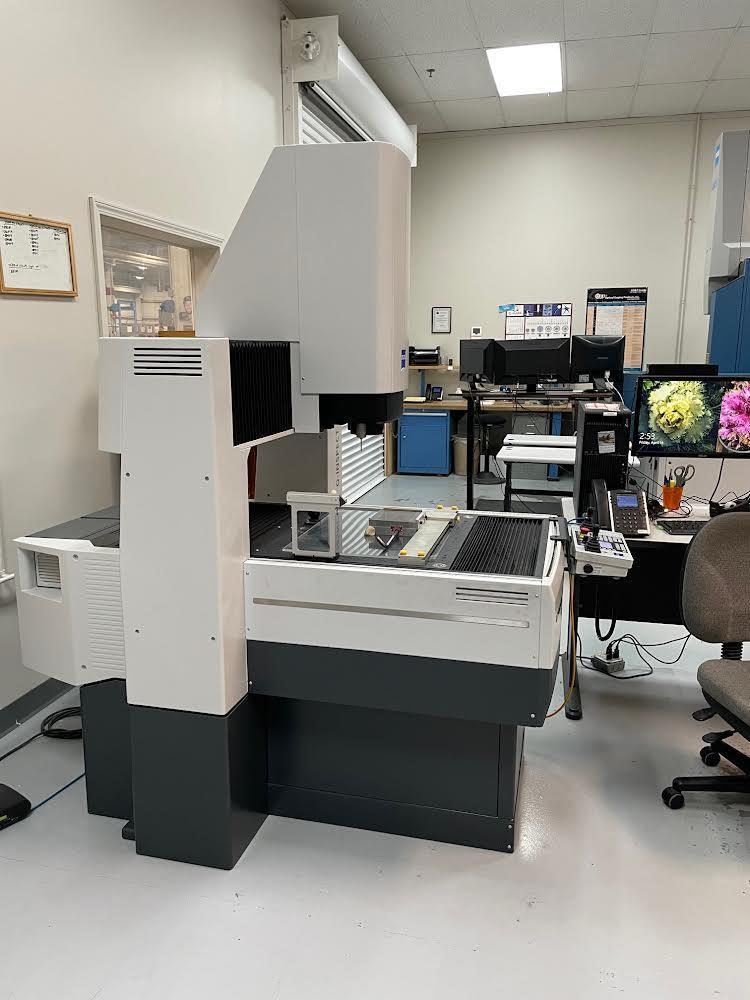

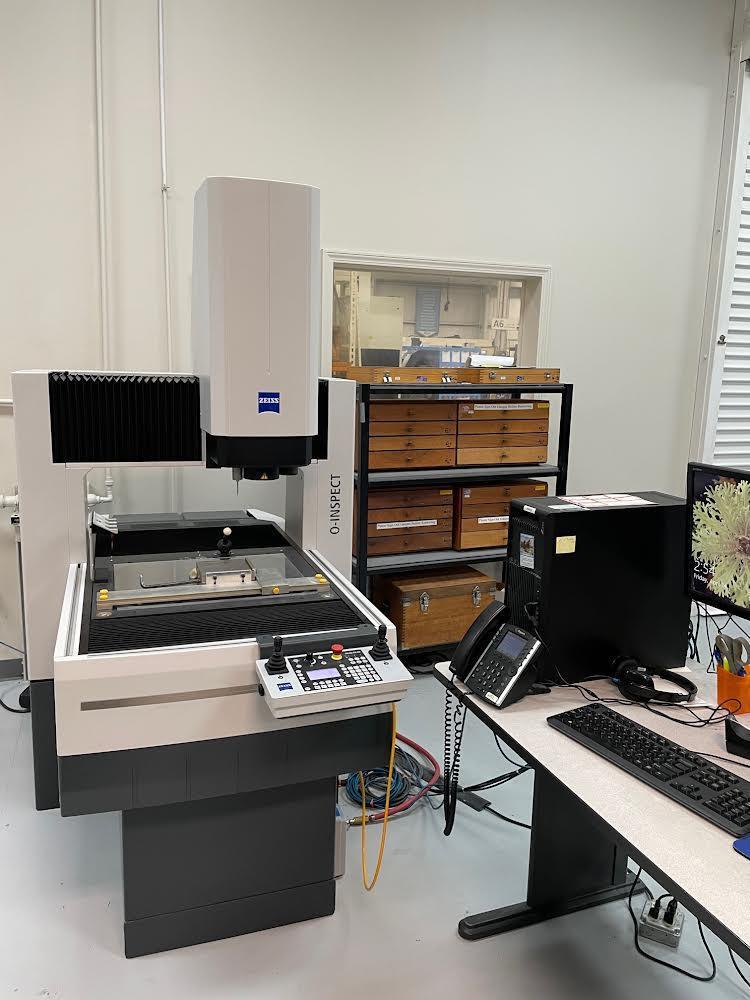

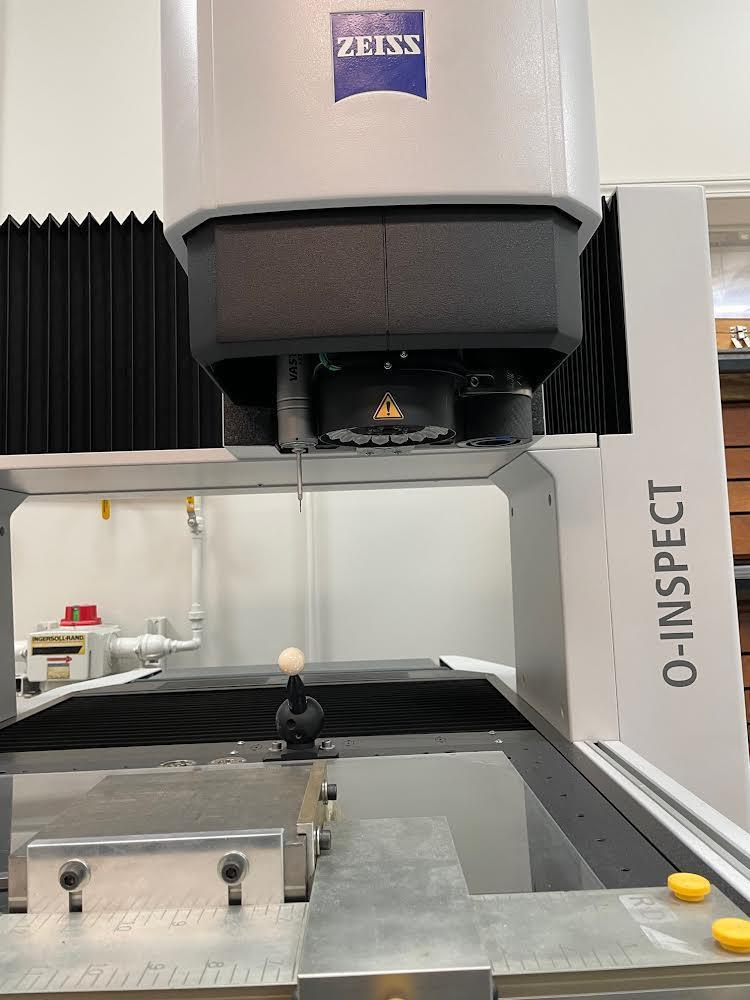

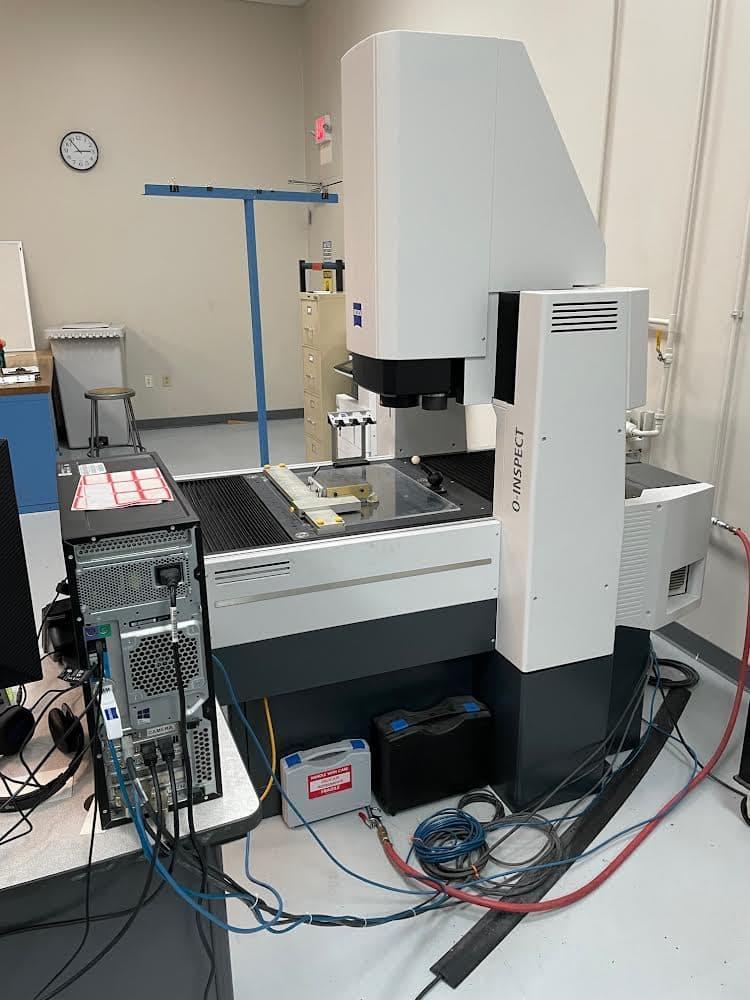

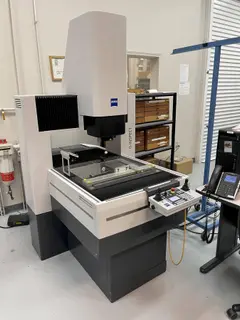

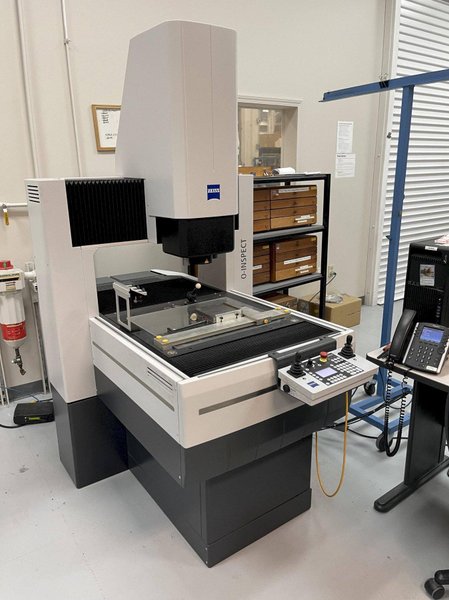

5.4.3 Zeiss O-Inspect Multisensor CMM, 2016

Measuring range: X-axis: 19.68″ Y-axis: 15.74″ Z-axis: 11.81″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accuracy: E1XY: 1.9 + L/250 µm E1Z: 2.4 + L/200 µm Maximum workpiece weight: 44lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Software: CALYPSO software for 3D measurement and analysis VAST XXT scanning probe for measuring complex surfaces O-Inspect sensor system for optical measurement Other features: Granite base and air bearing technology for stability and precision Motorized zoom lens for optical measurement LED ring light and coaxial illumination for better visibility Automatic sensor changer for seamless multi-sensor measurements.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
