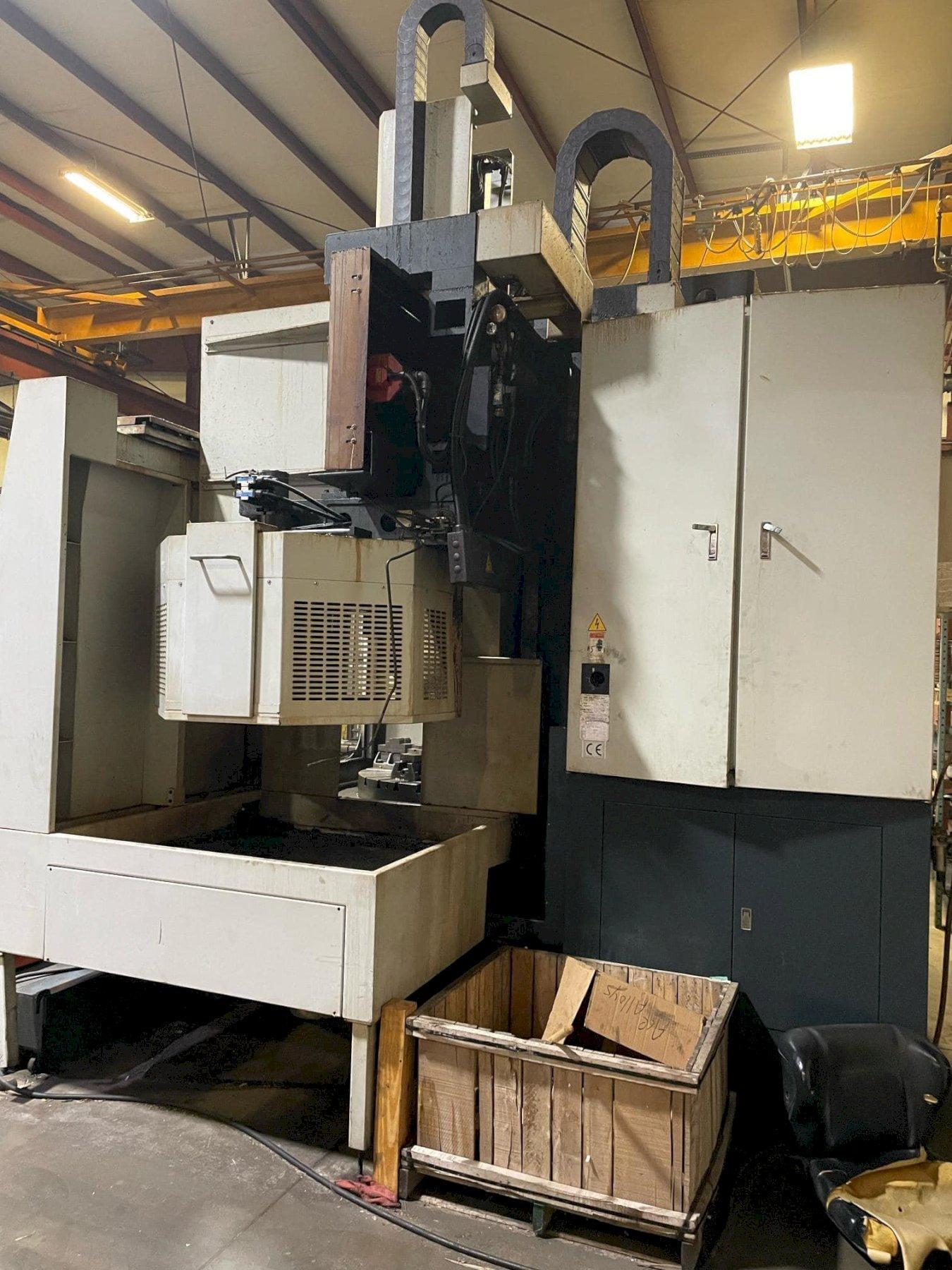

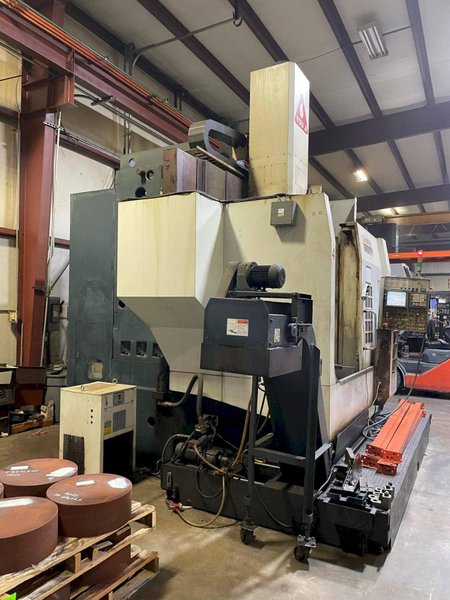

You-JI 1000ATC CNC VTL, 2009 – Under Power
Brand
Category
Model
1000ATC
Stock #
972262
Year
2009
Condition
Not specified
Location
Not specified
|

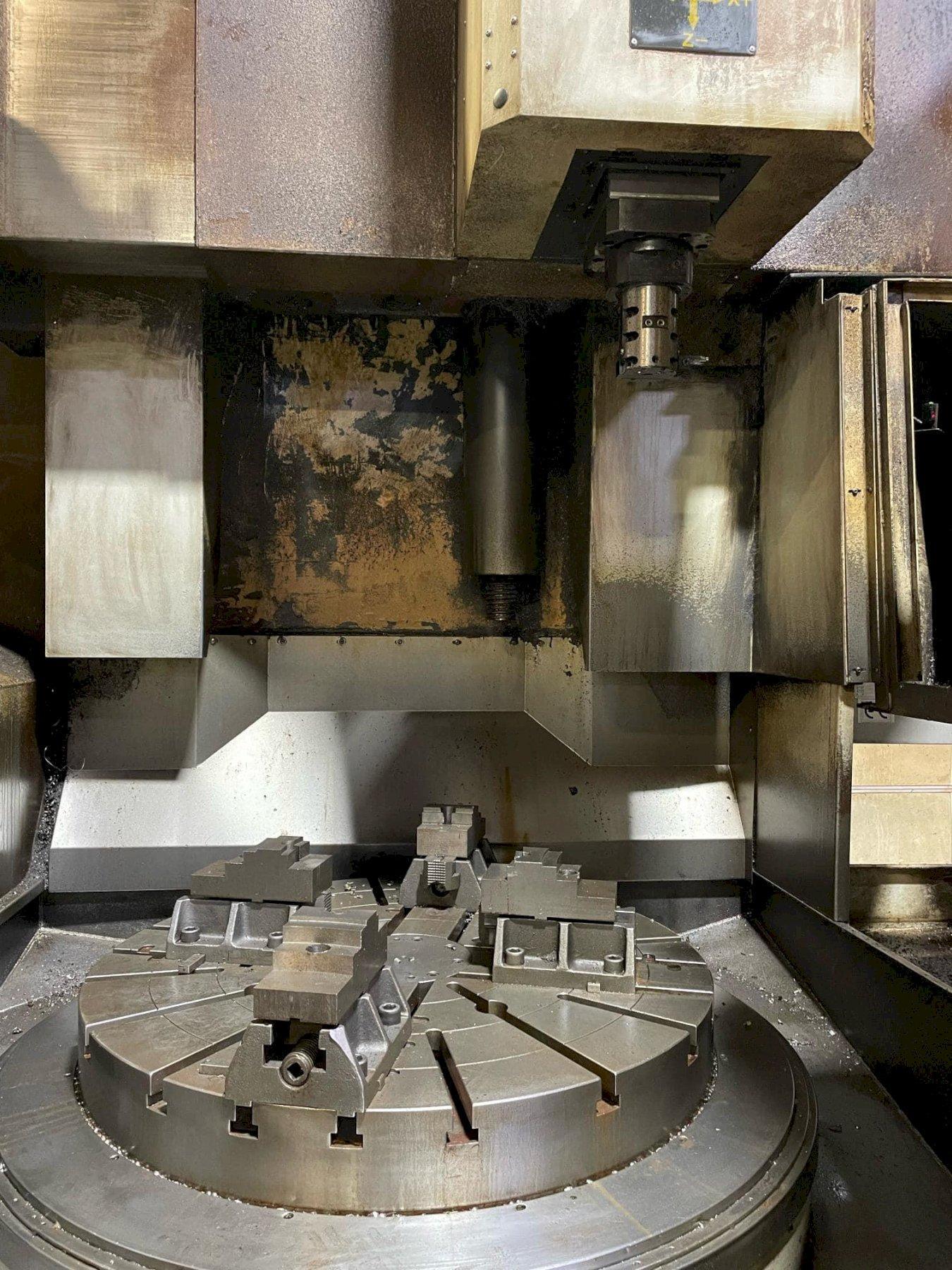

Table Diameter 39.37″
Maximum Swing 53.14″
Maximum Cutting Diameter 43.30″
Maximum Cutting Height 35.43″
Rail Travel 20″
Ram Stroke, Z-Axis 31.49″
Table Weight Capacity 8,800 Lbs
Table Speed, 2-Ranges 1-600 RPM
Cutting Feed Rate 0.39-78.7 IPM
Automatic Tool Changer 12 ATC
Tool Shank BT-50 7/24
Main Table Motor (220 Volt) 49 HP/60 HP
Machine Weight 64,200 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Fanuc Oi-TD CNC Control 12-Station Automatic Tool Changer 39.37″ 4-Jaw Hydraulic Independent Chuck Ram w/ 12-Position Automatic Tool Changer Chip Conveyor 60 HP Table Drive Motor All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
