Chuck Size: 8″
Bar Capacity: 2.57″
Swing: 10.62″
Turning Diameter: 9.8″
Spindle Speed: 4,000 RPM

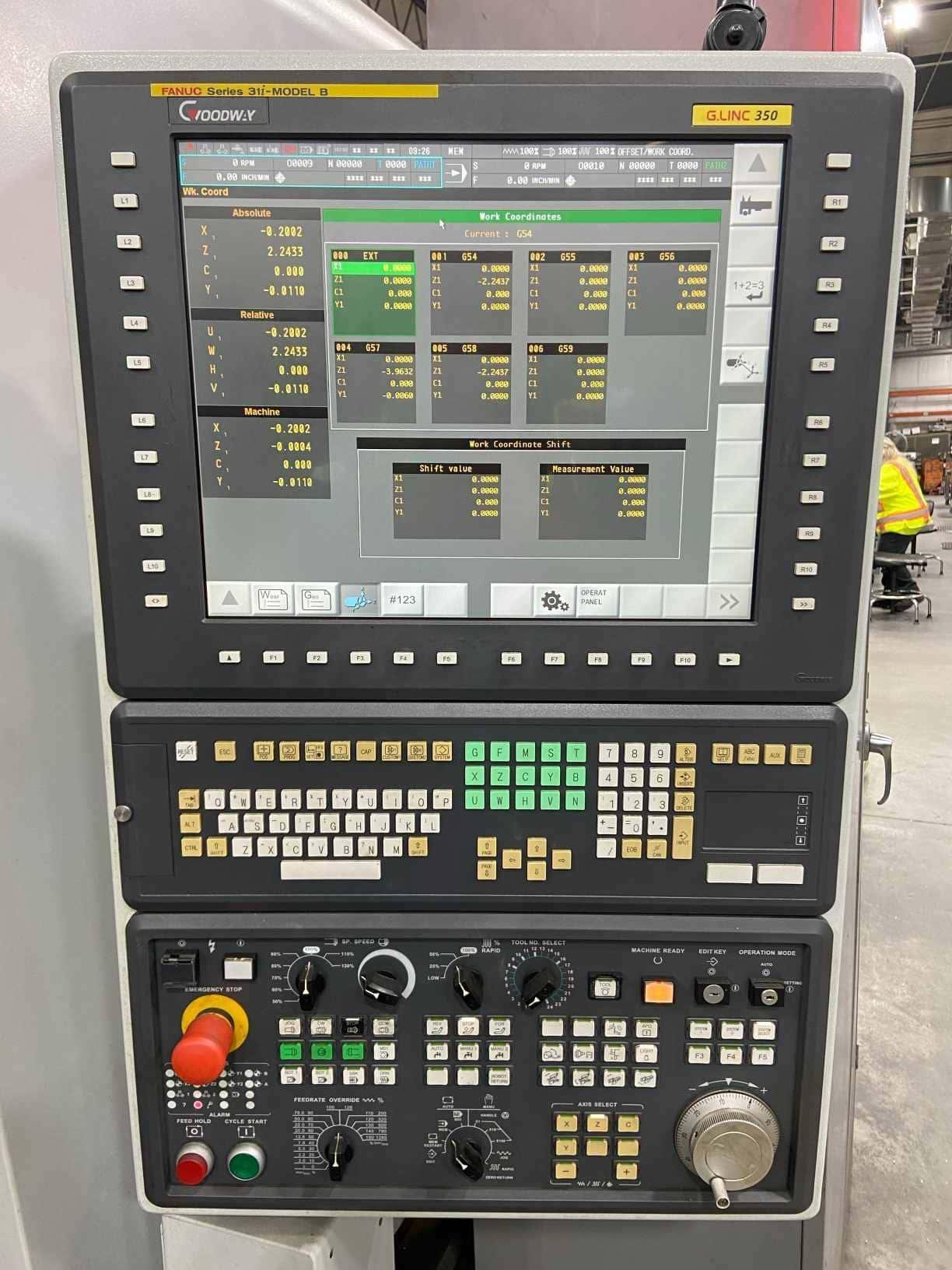

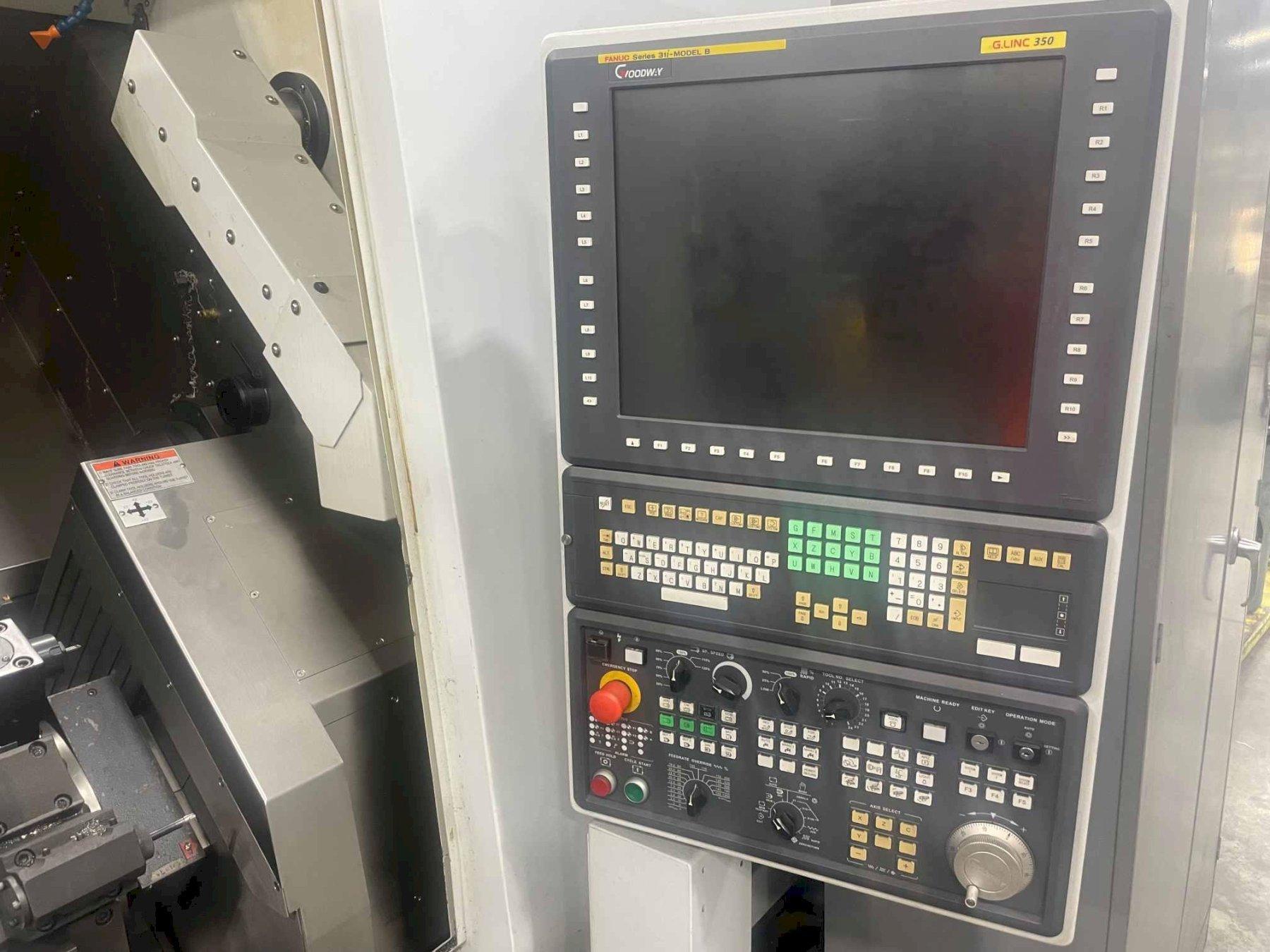

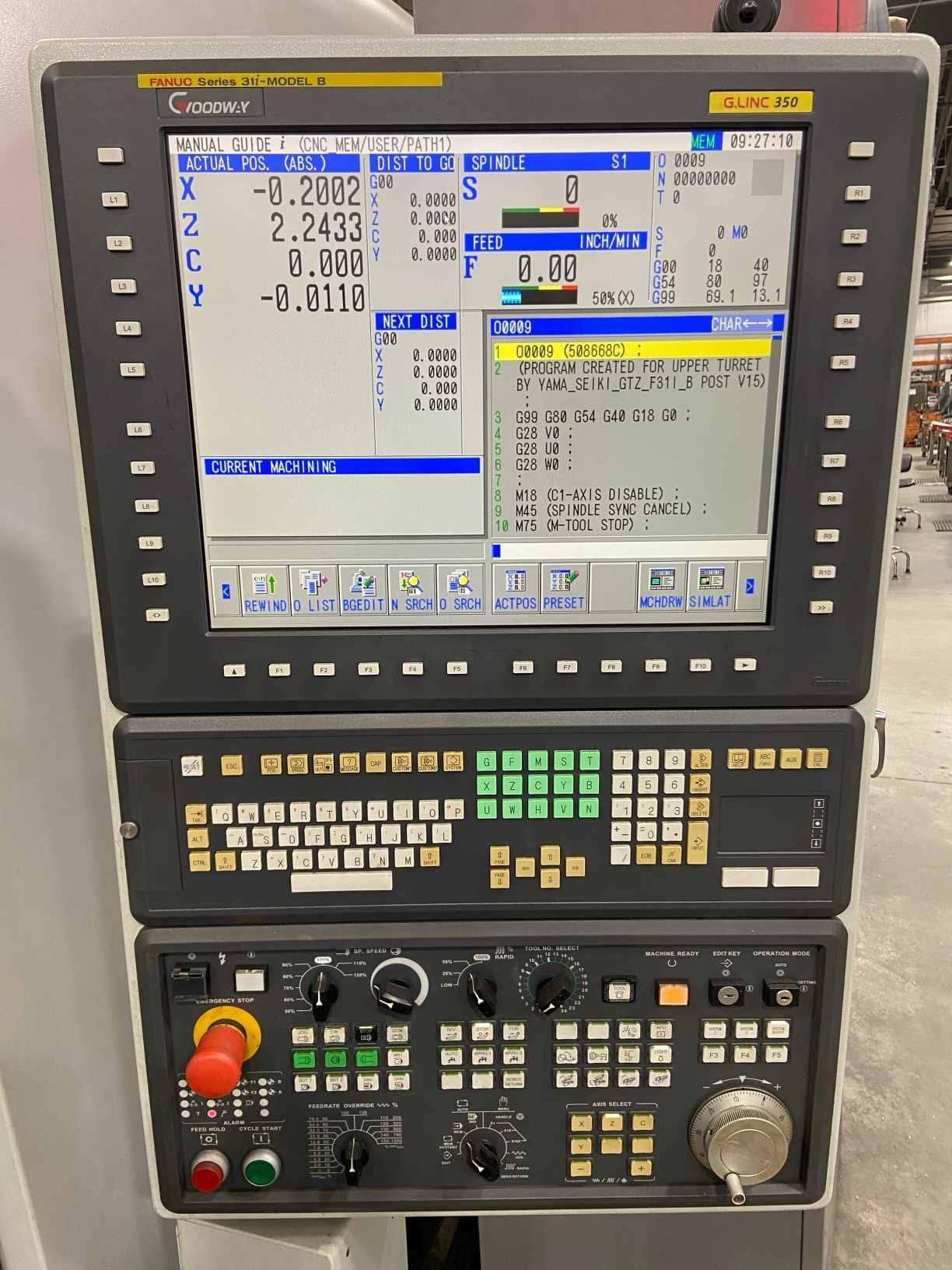

Control: Fanuc 31IB GLINC 350 CNC
Distance Between Centers: 23.3″

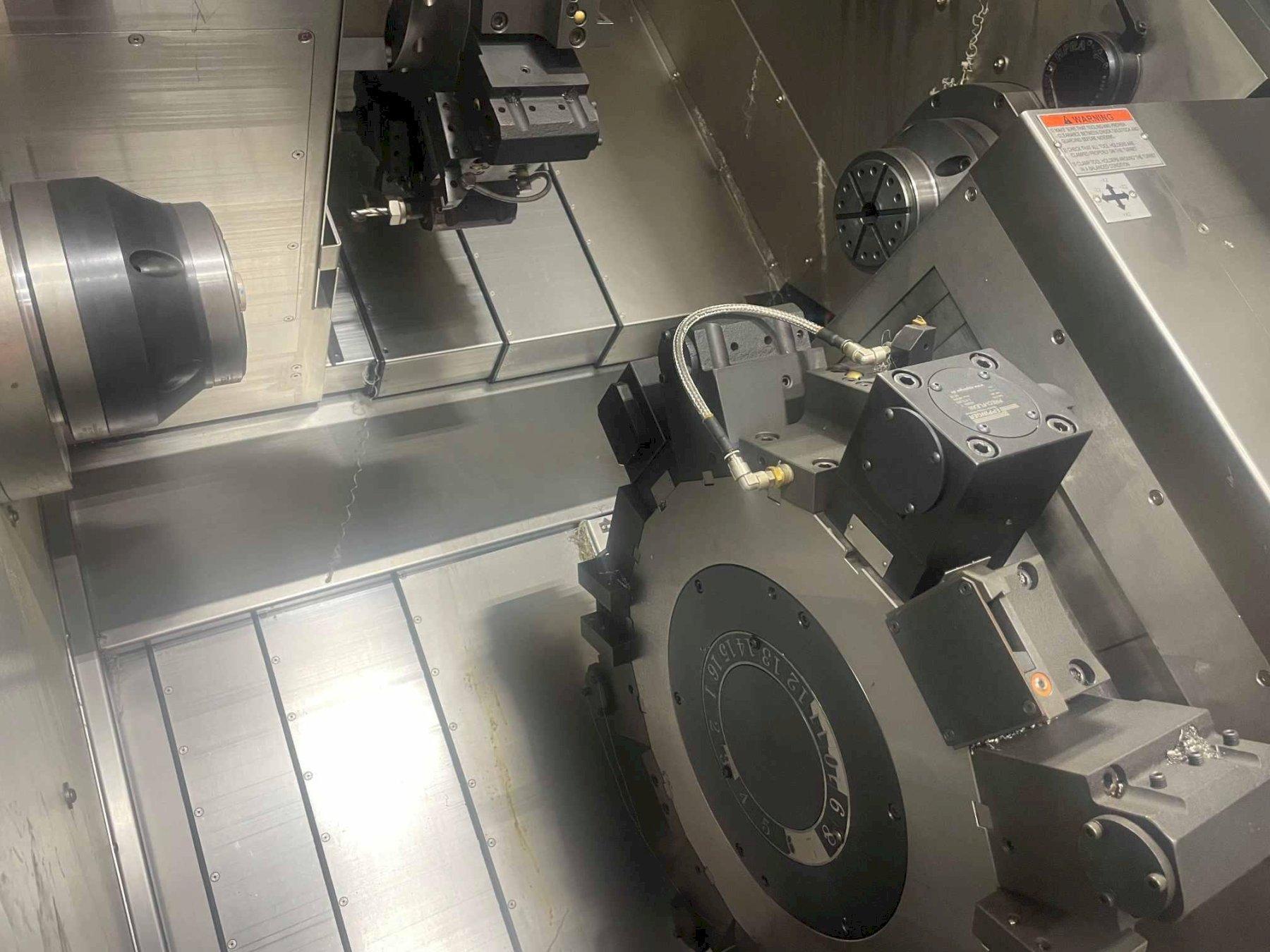

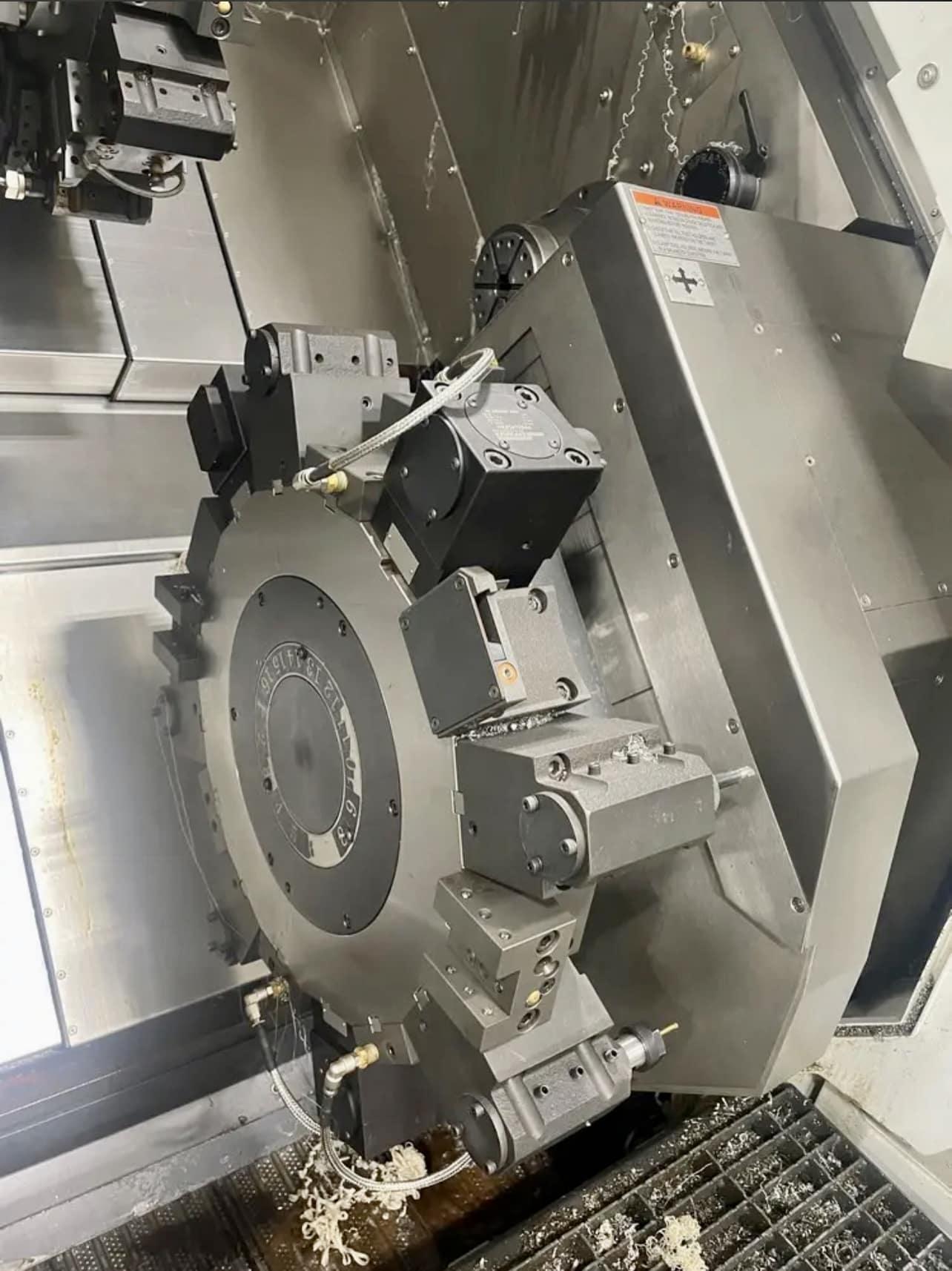

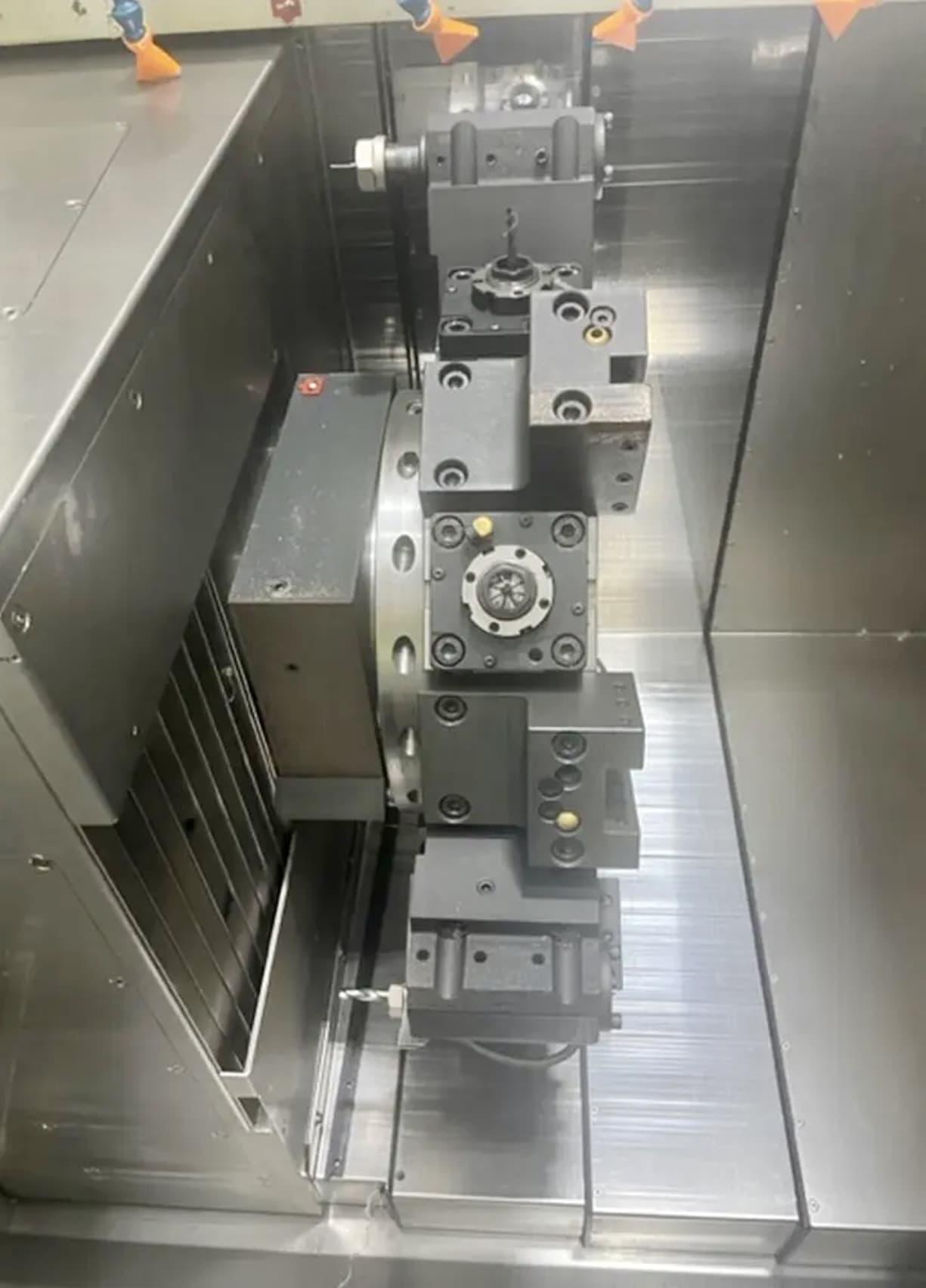

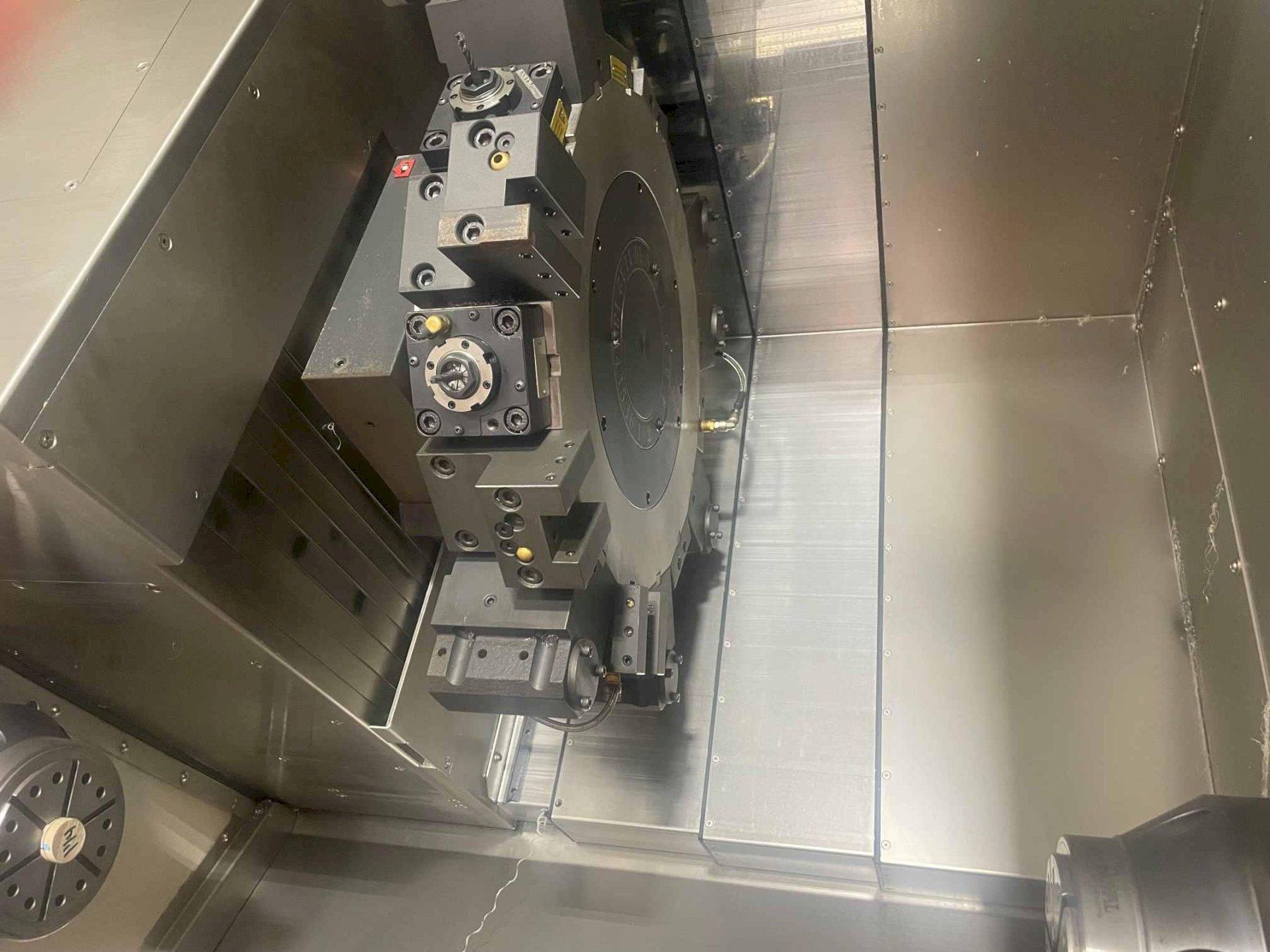

Turret: 16 Station
Live Tooling: C-Axis Live Tooling, Y-Axis

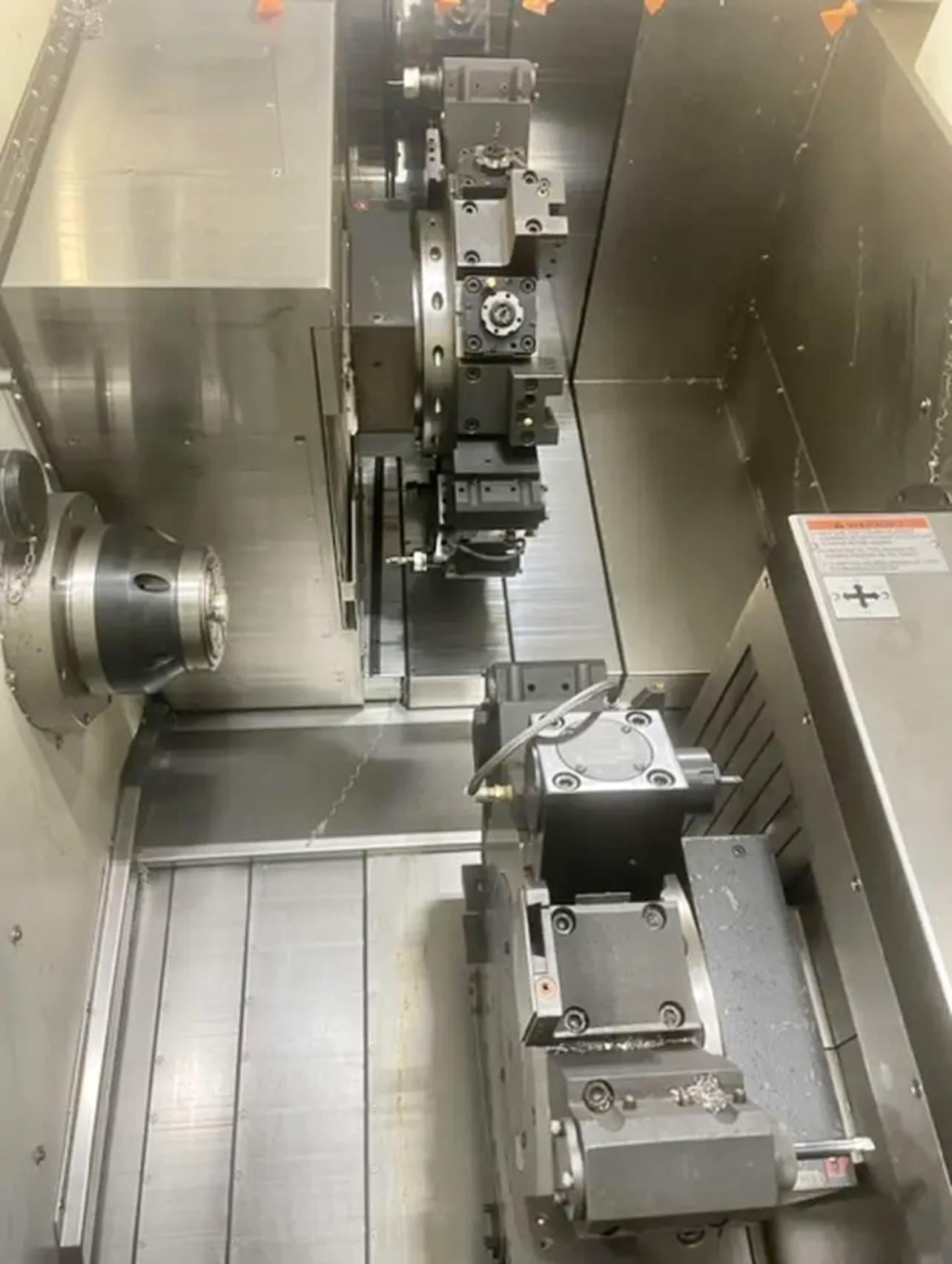

Sub-Spindle: 8″ Chuck
X1 Travel: 7.67″
X2 Travel: 8.26″
Z1/Z2 Travel: 24.39″
Maximum Z Travel: 27.16″
Y-Axis Travel: 3.93″ +/- 1.96″
Y-Axis Rapid: 393.69 IPM
Y-Axis Feed Rates: 1 – 189 IPM
X/Z Axis Rapids: 945 IPM
X/Z Axis Feed Rates: 1- 1,890 IPM
Live Tooling Speed: 6,000 RPM
Electrical Requirements: 220V, 50/60Hz, 3Ph

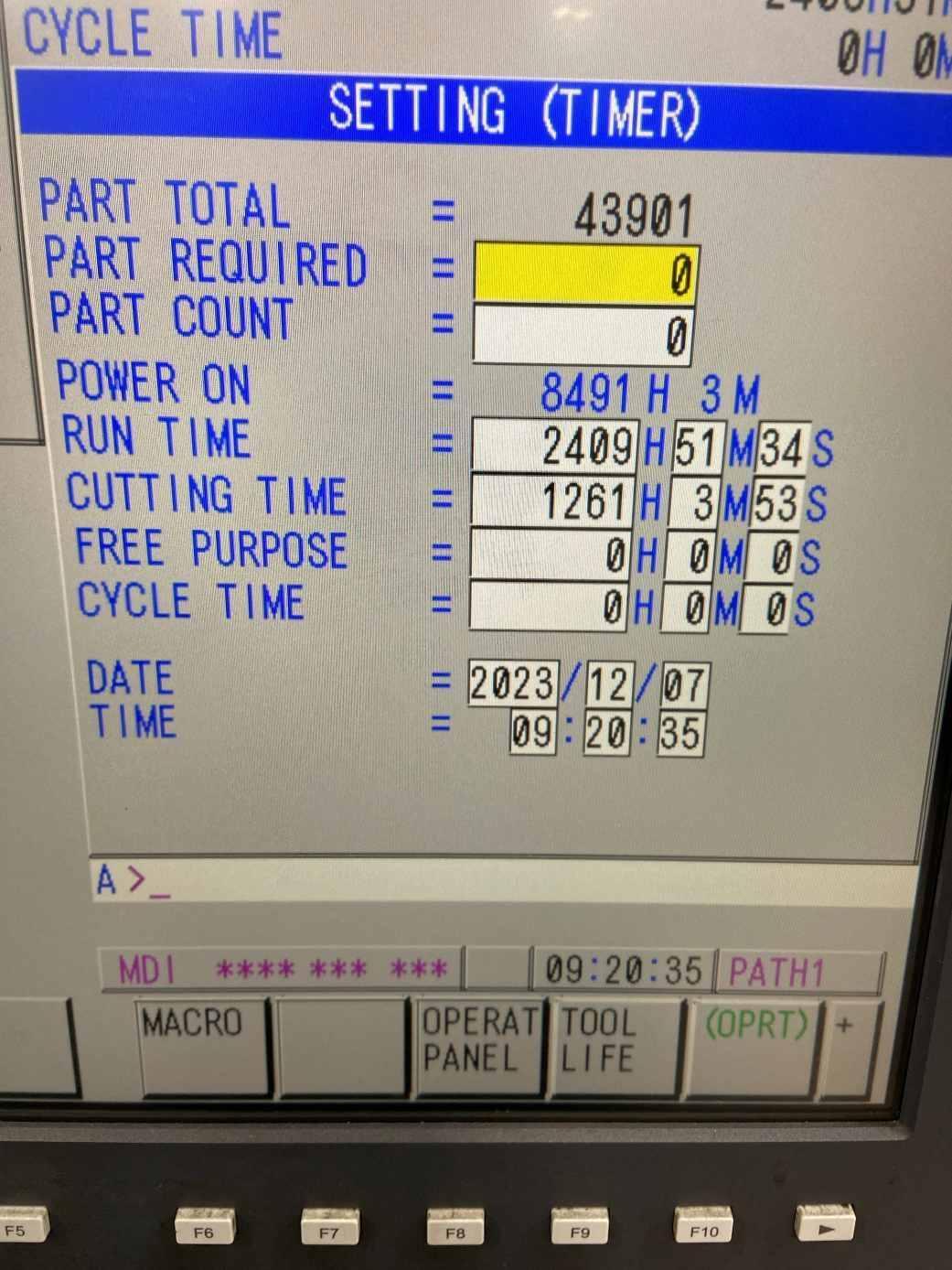

Run Time: 2,410 Hours
Cutting Hours: 1,261
Approx. Machine Weight: 19,800 Lbs.

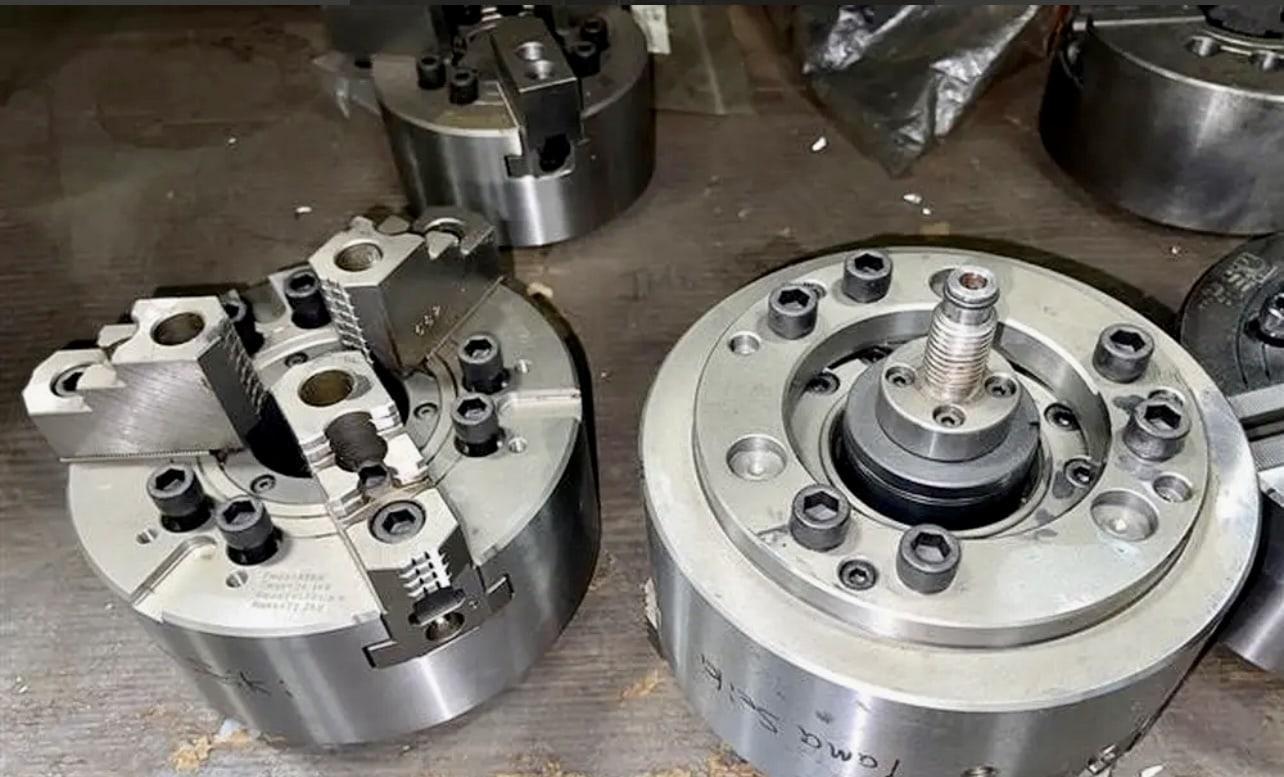

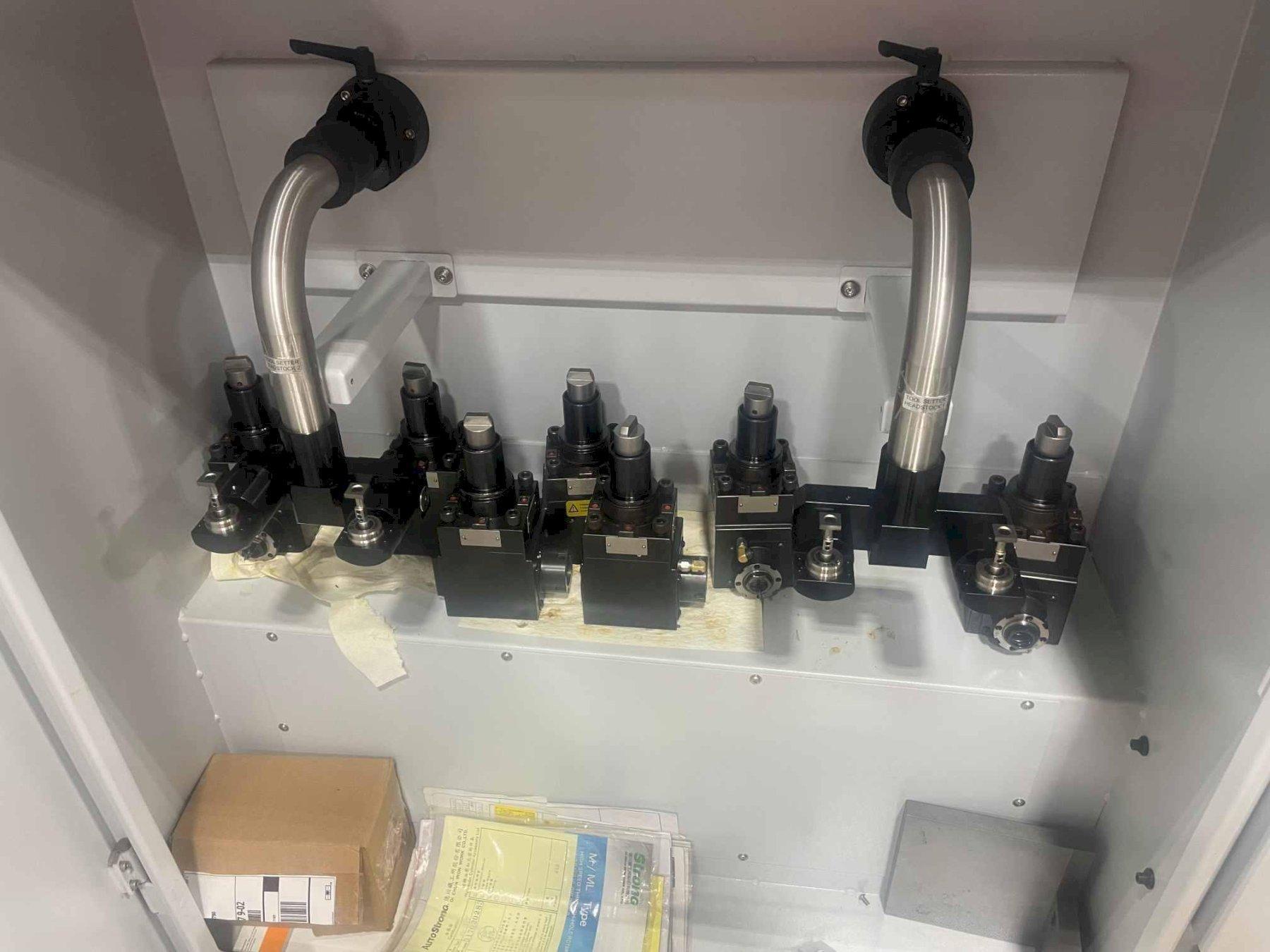

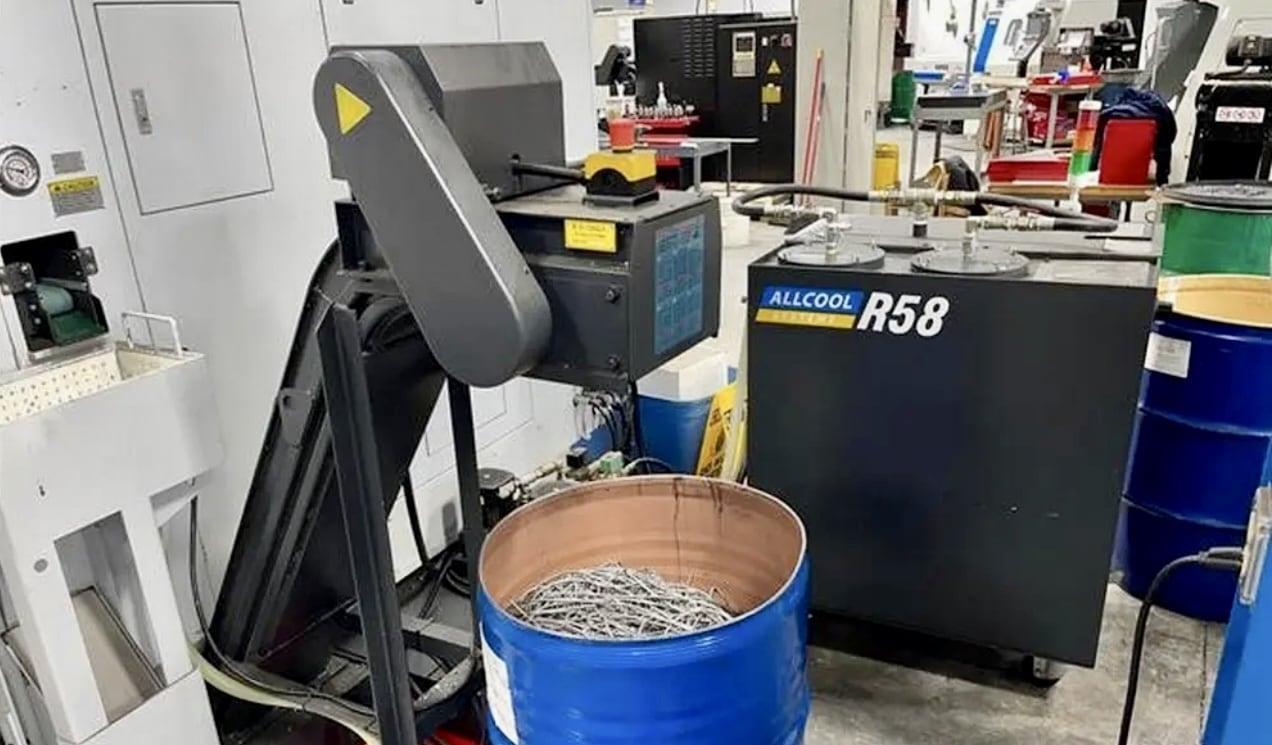

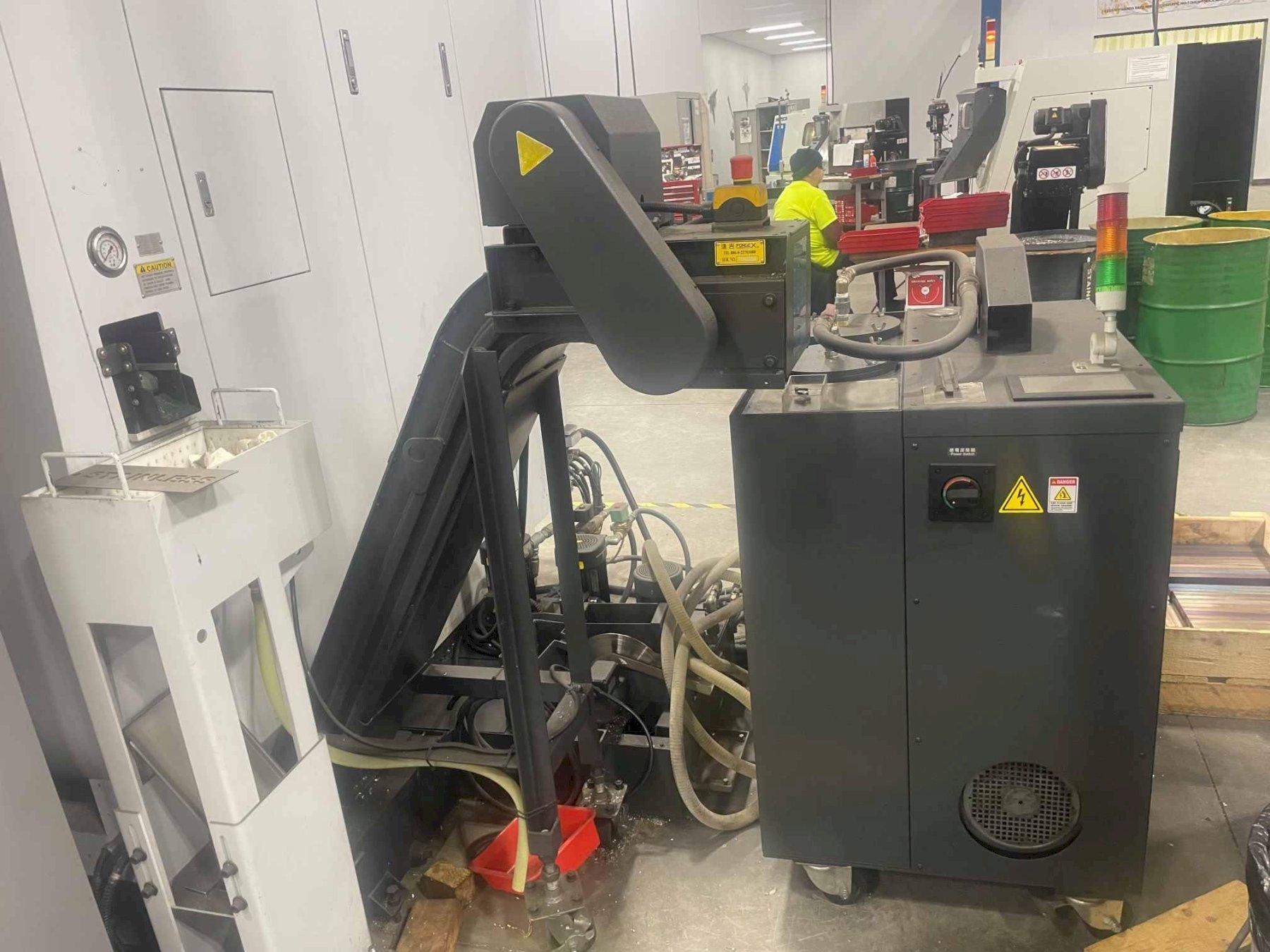

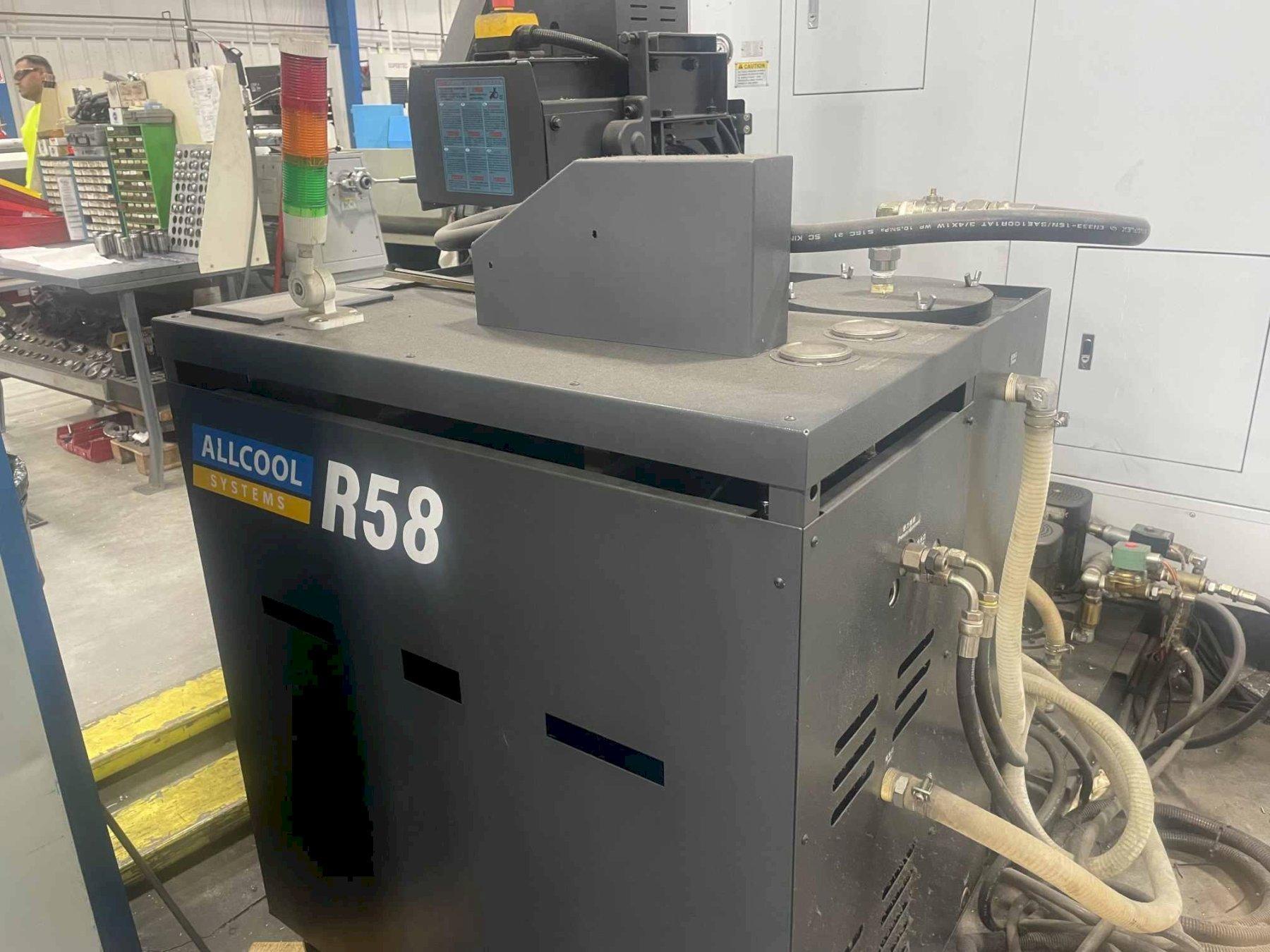

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: 30 Degree Slant Bed, All Cool R58 1000 PSI High Pressure Coolant System, Royal Collet Quick Grip Chucks (Main and Sub Spindle), Coolant Thru Sub-Spindle, Renishaw Tool Pre-Setter for Main and Sub Spindle, Auto Tool Pre-Setter, Bar Feed Interface, Dual Turret, Parts Catcher with Parts Conveyor, Tool Holder Package (4) 0 Degree Live Tool Holders- Radial, (4) 90 Degree Live Tool Holders- Axial, (6) 90 Degree Live Tool- Eppinger 7.073.280 External Coolant, (6) 90 Degree Live Tool- Eppinger 7.073.362 Internal Coolant, (2) QG-80 Collet Chuck A2-6 Spindle Nose, (1) QG-80 Collet Installation Tool, (1) 2.5″ ID QG-80 Collet Smooth Bore, (1) 2.25″ ID QG-80 Collet Smooth Bore, (1) 2.0″ ID QG-80 Collet Smooth Bore, (1) 1.5″ ID QG-80 Collet Smooth Bore, (1) QG-80 Emergency Collet (.79 ID) All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
