Working Field:

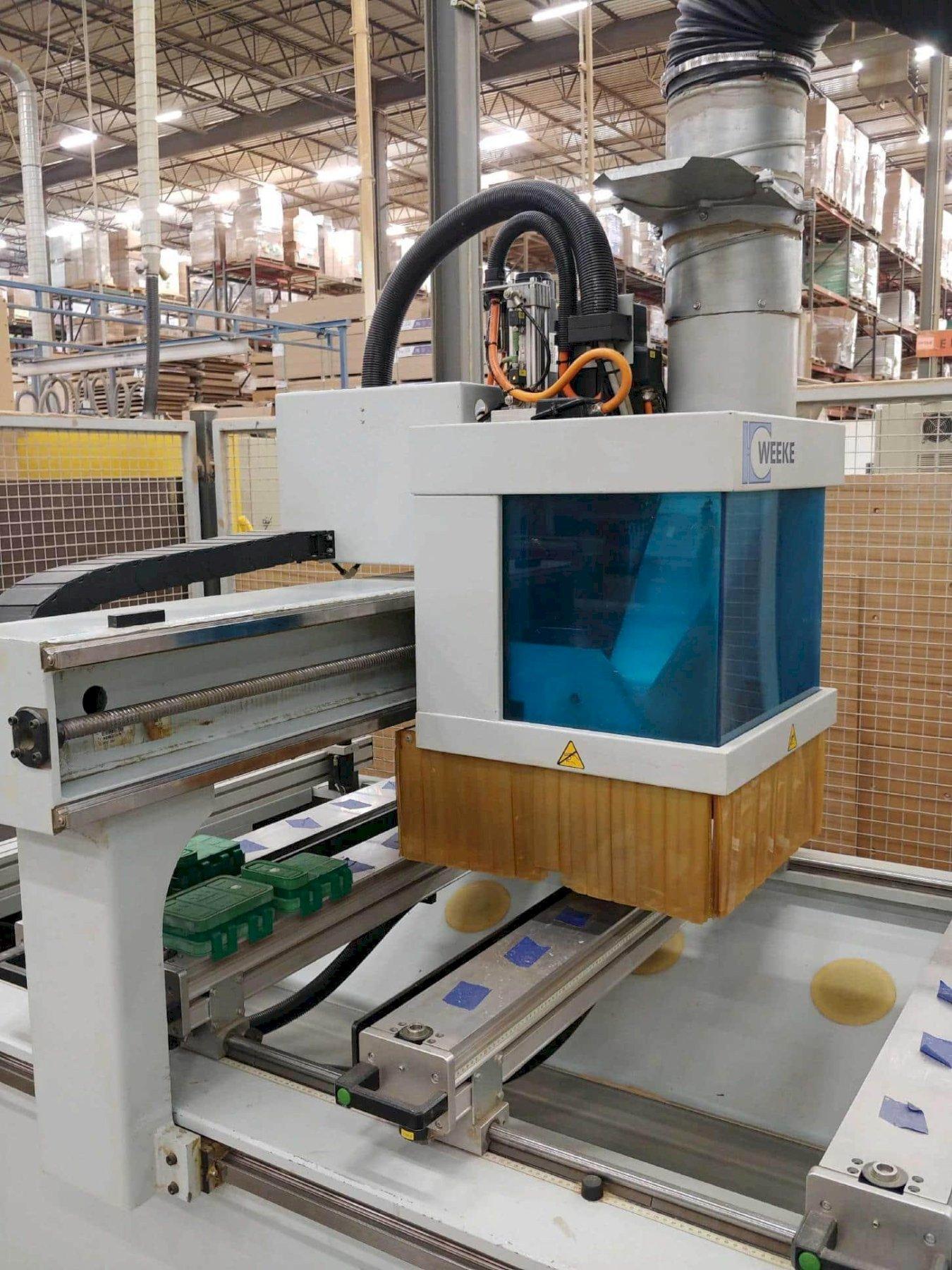

“X” Axis is 2,510 mm (98.8″), “Y” axis is 1,250 mm (49.2″), “Z” axis stroke is 125 mm (4.9″); max. material thickness 85 mm (3.3″).

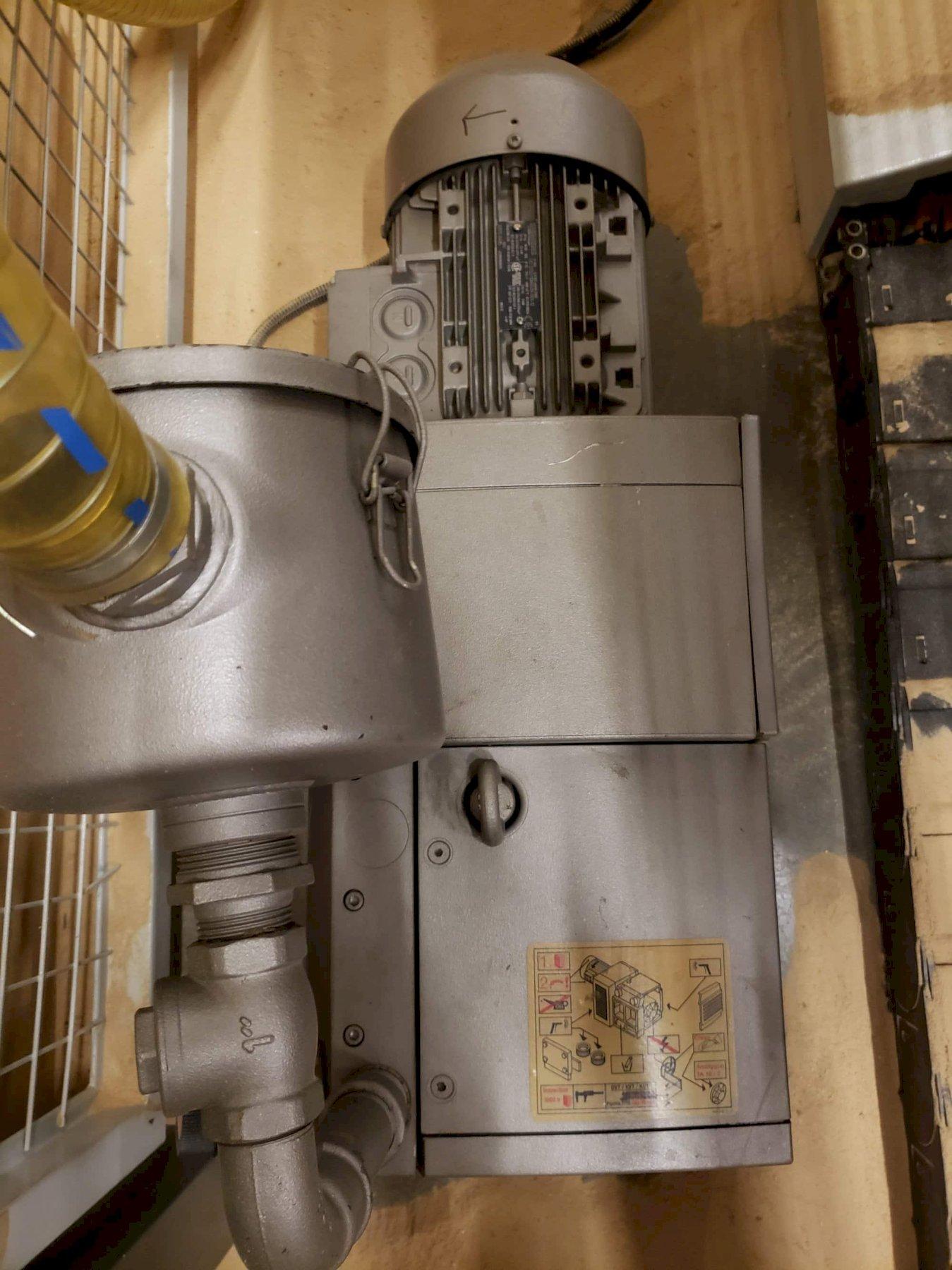

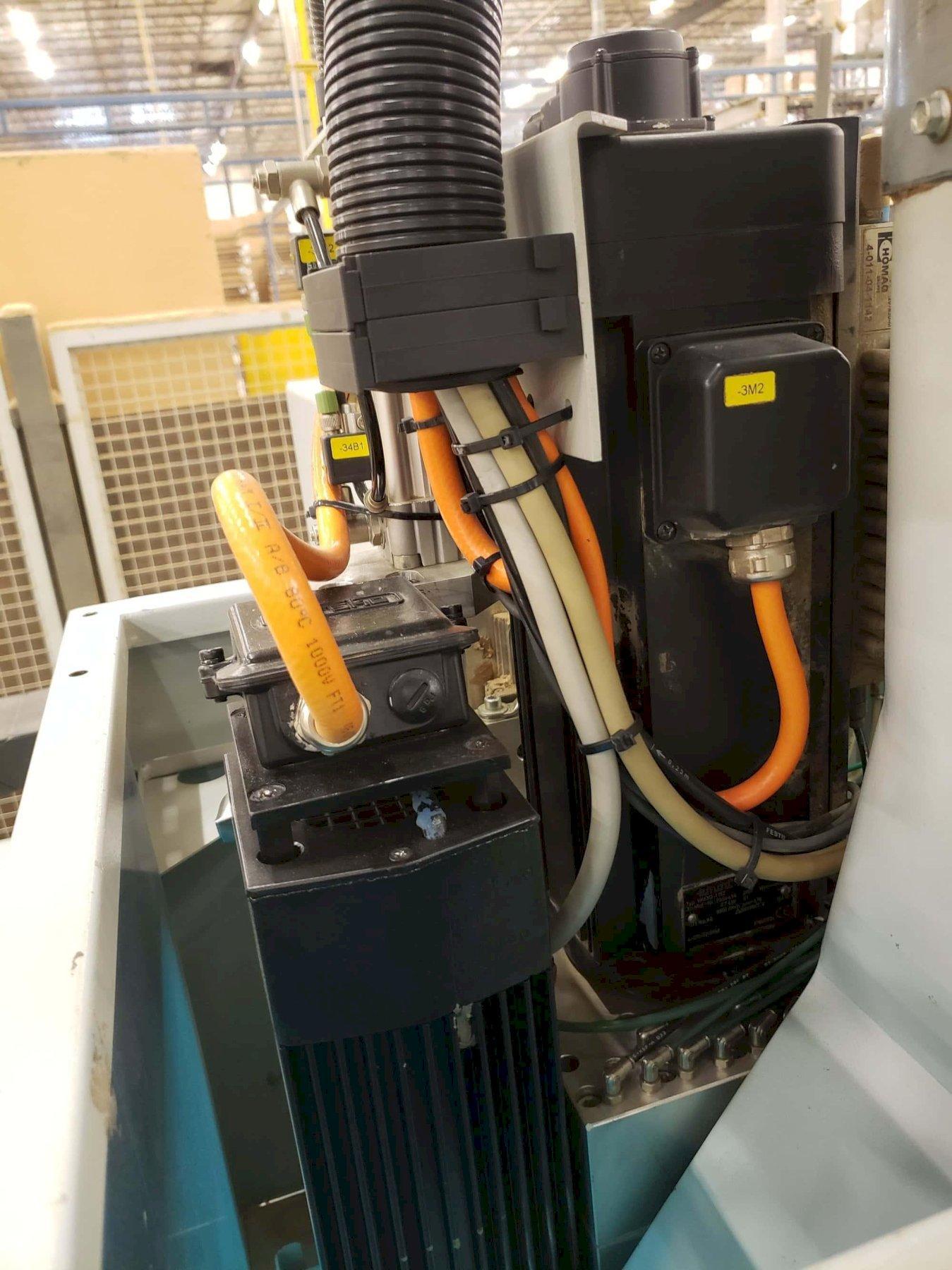

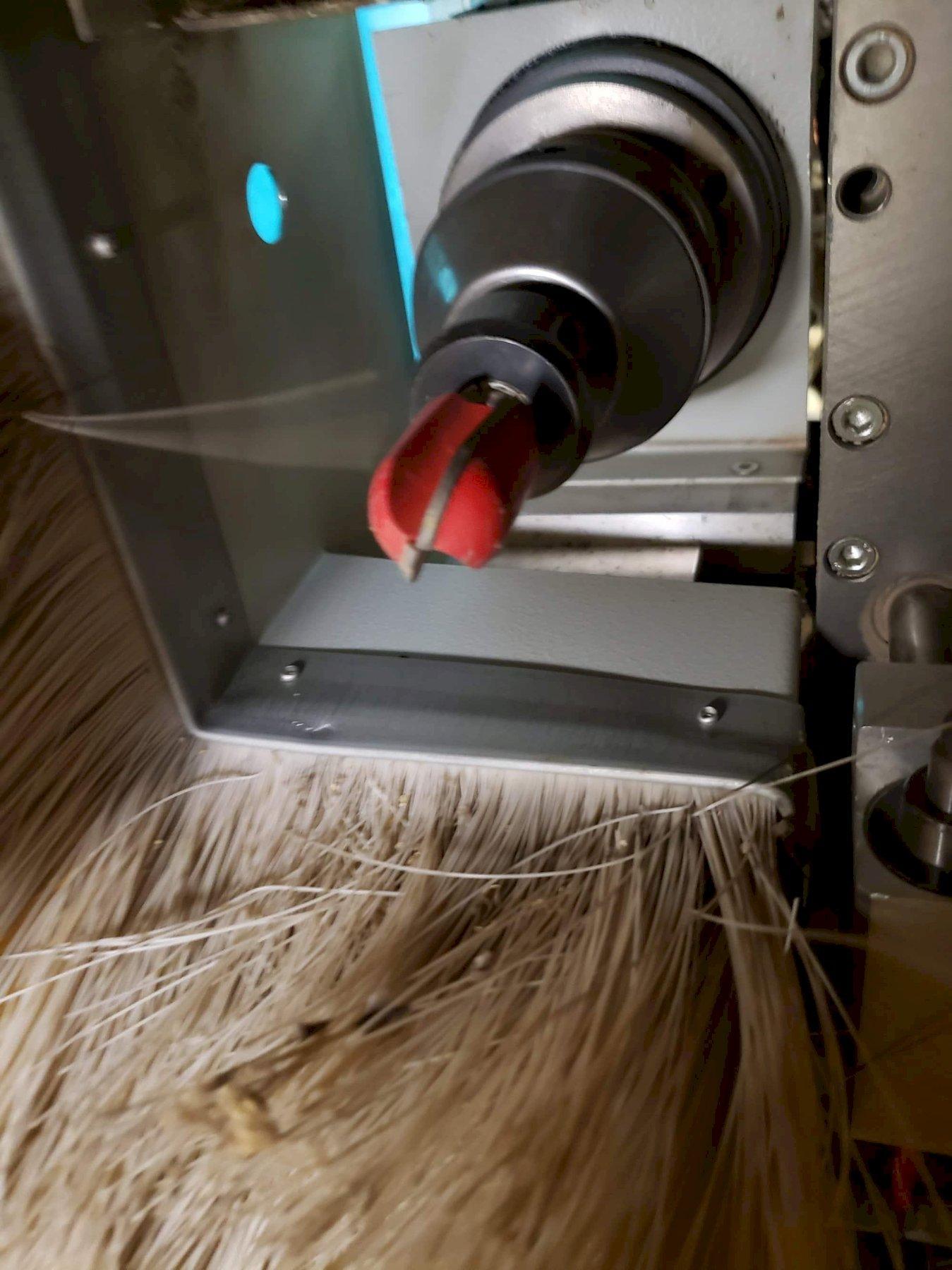

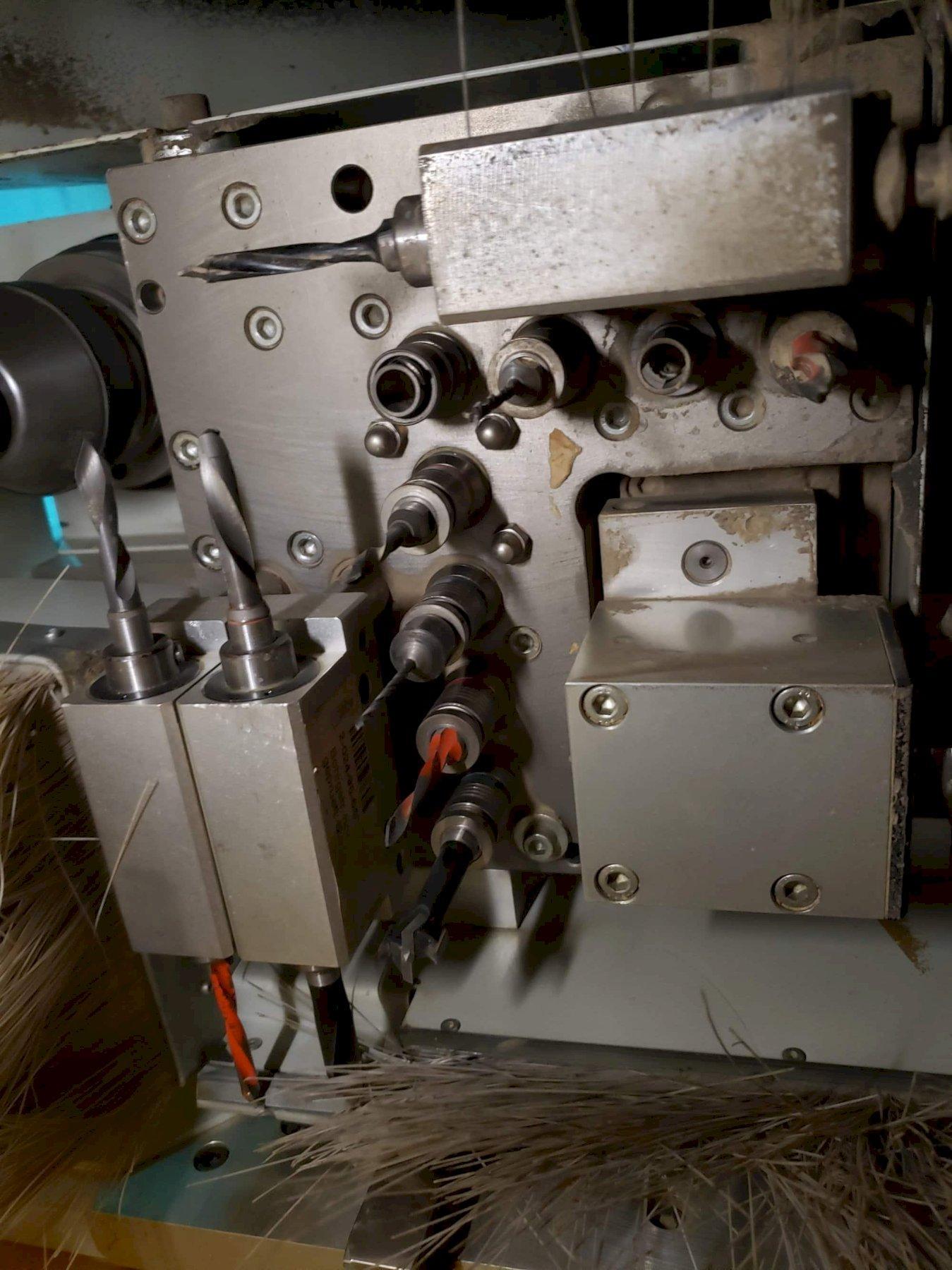

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Positioning Speed: “X” axis 262 FPM (80 MPM), “Y” axis 262 FPM (80 MPM), “Z” axis 66 FPM (20 MPM); head travels on THK linear motion guides on all axes. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Worktable: (6) Adjustable K-Table tube-less support rails with (2) vacuum pods per rail). All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(6) Pneumatic backstops, (6) pneumatic front stops, (2) pneumatic side stops, (2) working zones. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Boring unit: 3.6 HP (2.7 KW) motor; programmable variable speed 1,500 – 7,500 RPM; (8) independent Vertical drill spindles, (4) spindles in “X” axis & (4) in “Y” axis; All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(6) Horizontal spindles with (2+2) in “X” axis & (1+1) in “Y” axis; (1) “X” axis grooving saw with a 100 mm dia. saw blade. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machining:(1) 8 HP (6 kW) Electro-spindle router with ETP 25 “Hydro-chuck” QC adaptor, powered by a frequency inverter w/programmable 1,250 – 18,000 RPM, RH/LH rotation. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operator & Machine Control: Weeke PC 85T “POWER CONTROL” + Windows “XP” + WoodWOP 5.0 operating system; Beckhoff PLC for (3) axes with linear, circular & helical interpolation. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,15″ TFT monitor, industrial keyboard for data entry, CD R/W & floppy drive, 40 GB hard drive, modem, USB slot, RS-232 serial interface for possible simple PC connection; all mounted in separate free-standing control panel. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Complete with: (1) 100 m³/Hr Vacuum Pump, Scrap Conveyor, Hand-held Pendant & Safety Fences. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Actual Model is WEEKE VENTURE 05S All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 150″ L x 70″ W x 75″ H Weight: 9,000 lbs. All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All specifications are assumed to be correct but must be confirmed by purchasing entity All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
