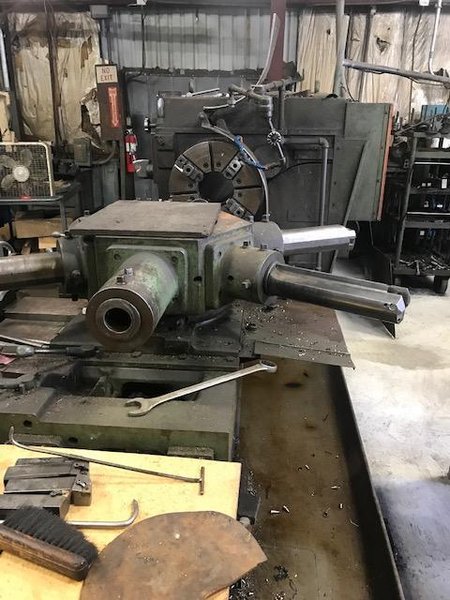

Warner & Swasey 4A M-3550 Turret Lathe
Brand
Category
Type
Model
4A M-3550
Stock #
53667
Year
1935
Condition
Not specified
Location
Not specified
|
Swing Over Bed Ways: 28-1/4″
Swing Over Cross Slide: 22-7/16″
Center Distance: 59-7/8″
Spindle Hole: 9-1/4″
Spindle Speeds: 10 To 526Rpm
Spindle Nose: A2 American Standard
Chuck Size: 24″, 4- Jaw
Cross: 0035 To .167 I.P.R.
Feeds Long: 005 To .167 I.P.R.
Main Motor: 75 Hp.
Approximate Weight: 28,000Lbs.
Approximate Dims: 23′ X 84’x 80″h
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Cross Sliding Rear Turret Coolant Tool Post 4 Way On Front Rapid Traverse Front & Rear Carriages 24″ Chuck, Power Rapid Traverse, 15″ Type Spindle Nos All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
No files or videos to display
