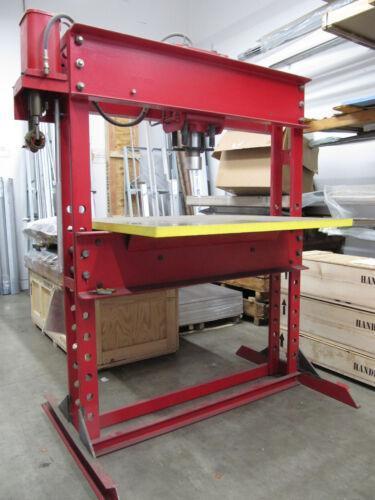

80 Ton Vive Nugier Model H80-14MD3 H Frame Hydraulic Press, 2007 – Added Steel Plate 2″ x 48″ x 52″
Brand
Category
Type
Model
H80-14MD3
Stock #
482869
Year
2007
Condition
Not specified
Location
Not specified
|
Tonnage 80
Stroke of Cylander: Adjustable thru 14″ By motor driven hydraulics pump Two speeds.
Cylander Head: Left to Right movement 34″
Distance between uprights: 48″
BED RAILS (two):
Width F-B 14½”
Opening between rails 8⅛”
Bed adjusts Up/Down by Hand winch With-in range.
Distance under Ram (up position), Bed down 41″ Maximum
Bed Travel 32″
Table Spacing (Increments) 4″

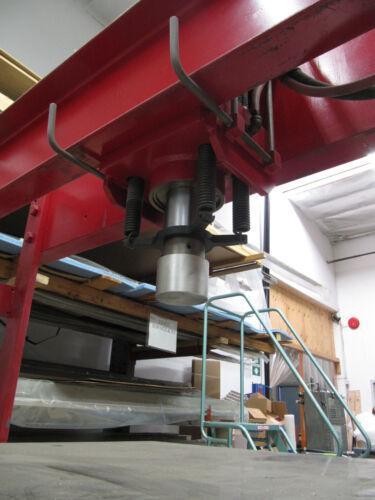

Diameter of Ram 3¼”

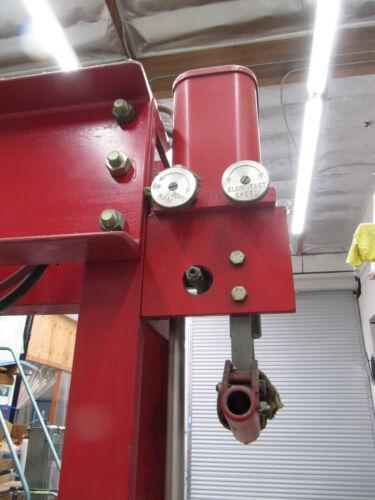

Hydrualic pump drive: 3 HP. 223/460 volts
Equipped with: (1) Steel Plate 12″ x 12″ x 2″ thick
COMPLETE FACTORY SAFETY GUARDS
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
