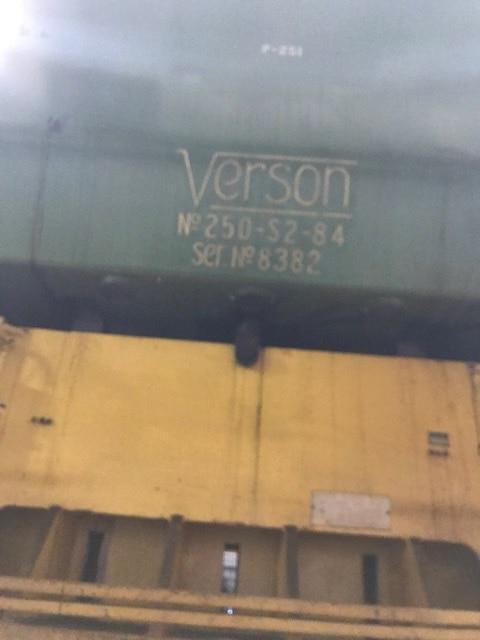

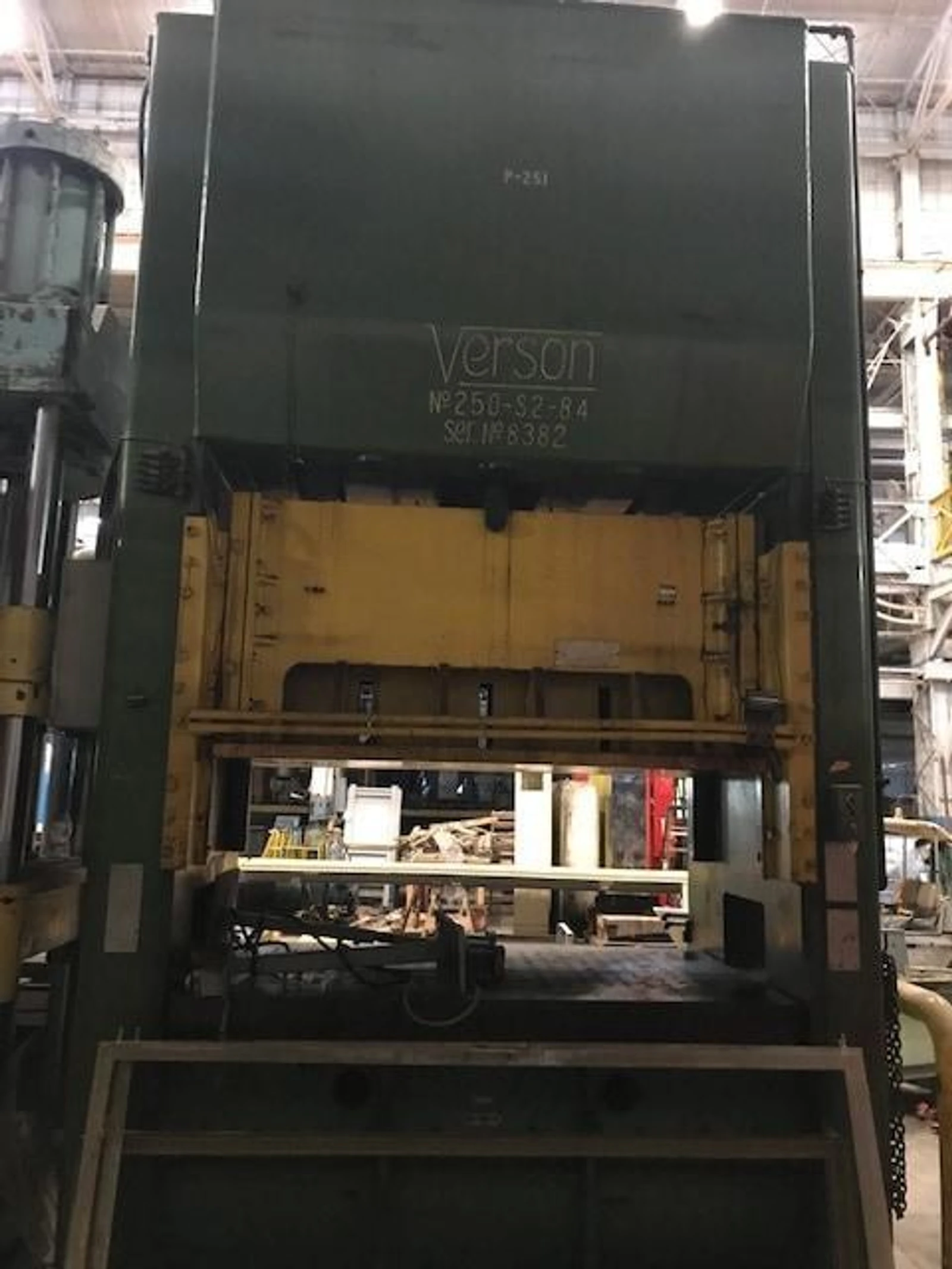

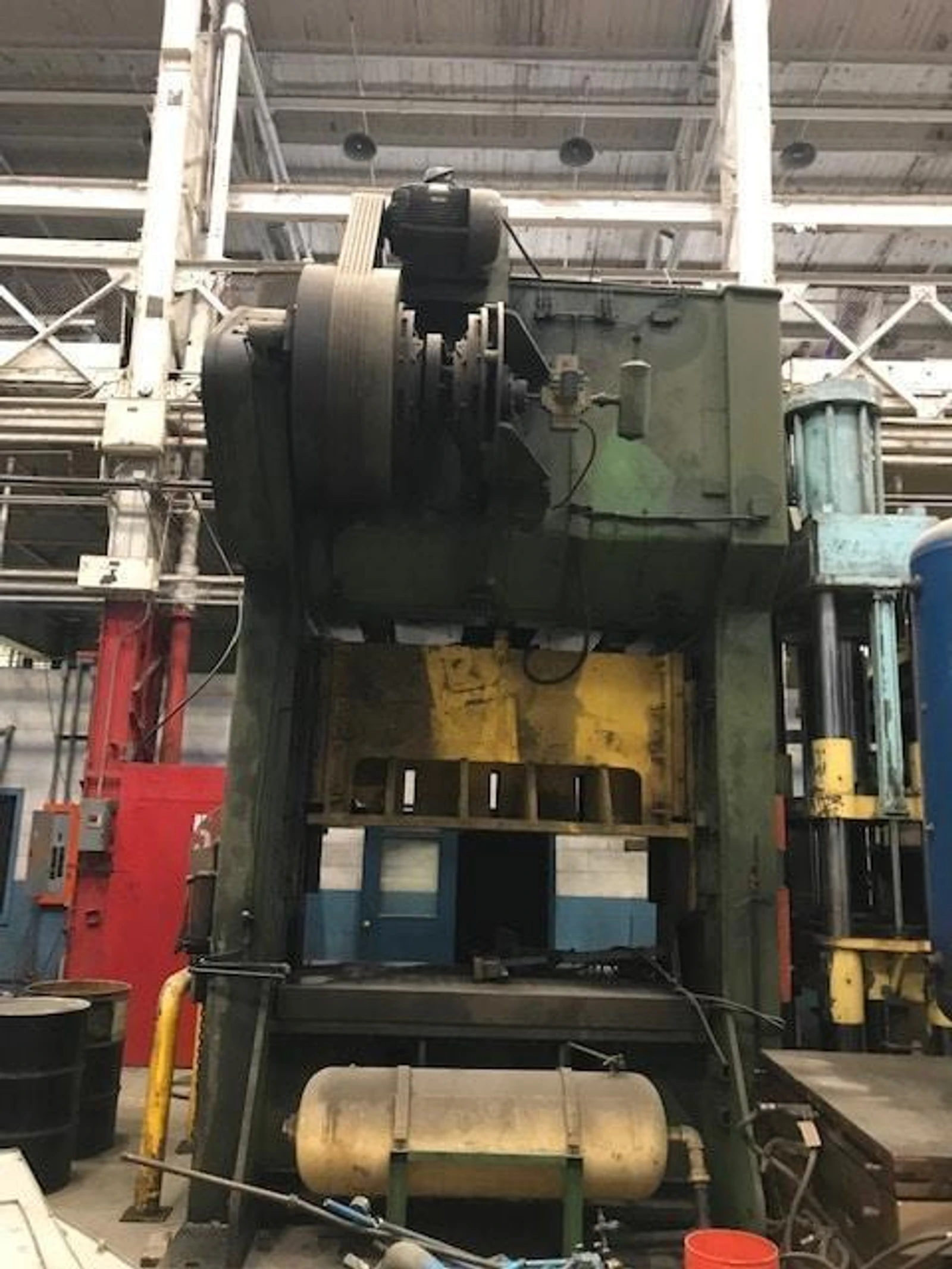

250 Ton Verson Press No. 250-S2-84 Straight Press, 1950

Verson Steel, Eccentri Type, Two Point Suspension, Single Action, Double Gear, Twin Drive Press

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity Near Bottom of Stroke: 250 Tons Type of Frame: Steel – Solid Distance Between Housings To Clear: 84″ Distance Between Gibs: 80″ Area Of Slide, FB XRL: 48″ x 78″ Adjustement of Slide (Power) : 8″ Area Of Bolster, FB X RL: 52″ x 84″ Opening In Bed, With Separate Ribs: 37″ FB x 72″ RL Stroke Of Slide: 14″ Shut Height, Stroke Down, Adjustment Up, Bed to Slide: 25″ – 19″ to top of Bolster

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bolster Thickness: 6″ Strokes Per Minute: 12 Size & Speed Of Motor Required – Not Furn. 30HP – 1800 RPM Punch Press Type to Suit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type of Clutch And Brake Unit: Verson Pneumatic Type Of Clutch Control: Elec. Push Button Type Of Drive: “V” Belt Floor Space Overall, FBxRL (Approx.) : 112″ x 115″ Height Overall (Approx.): 198″ Weight (Approx.): 62,000lbs Voltage: 550-3-60

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
