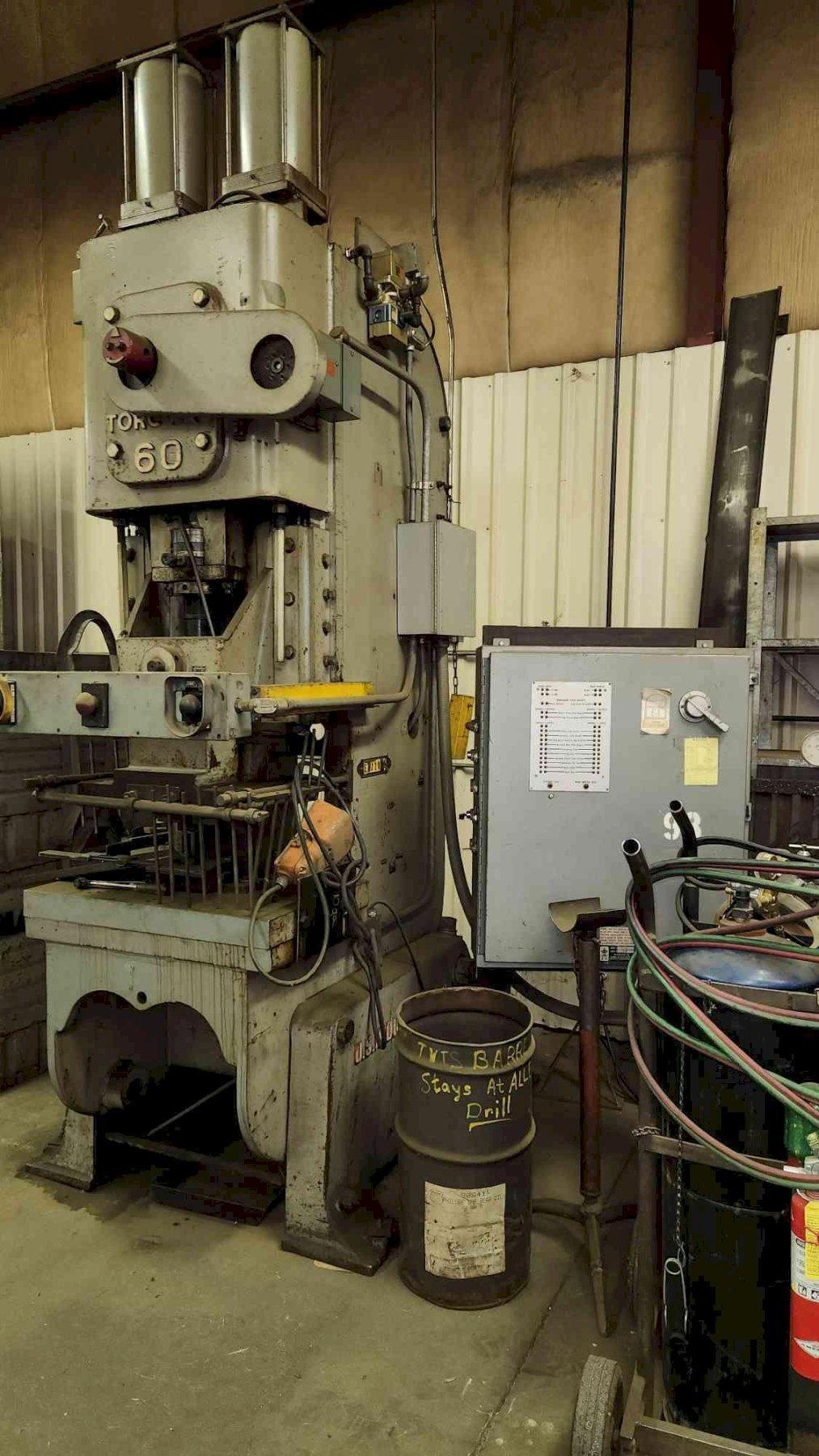

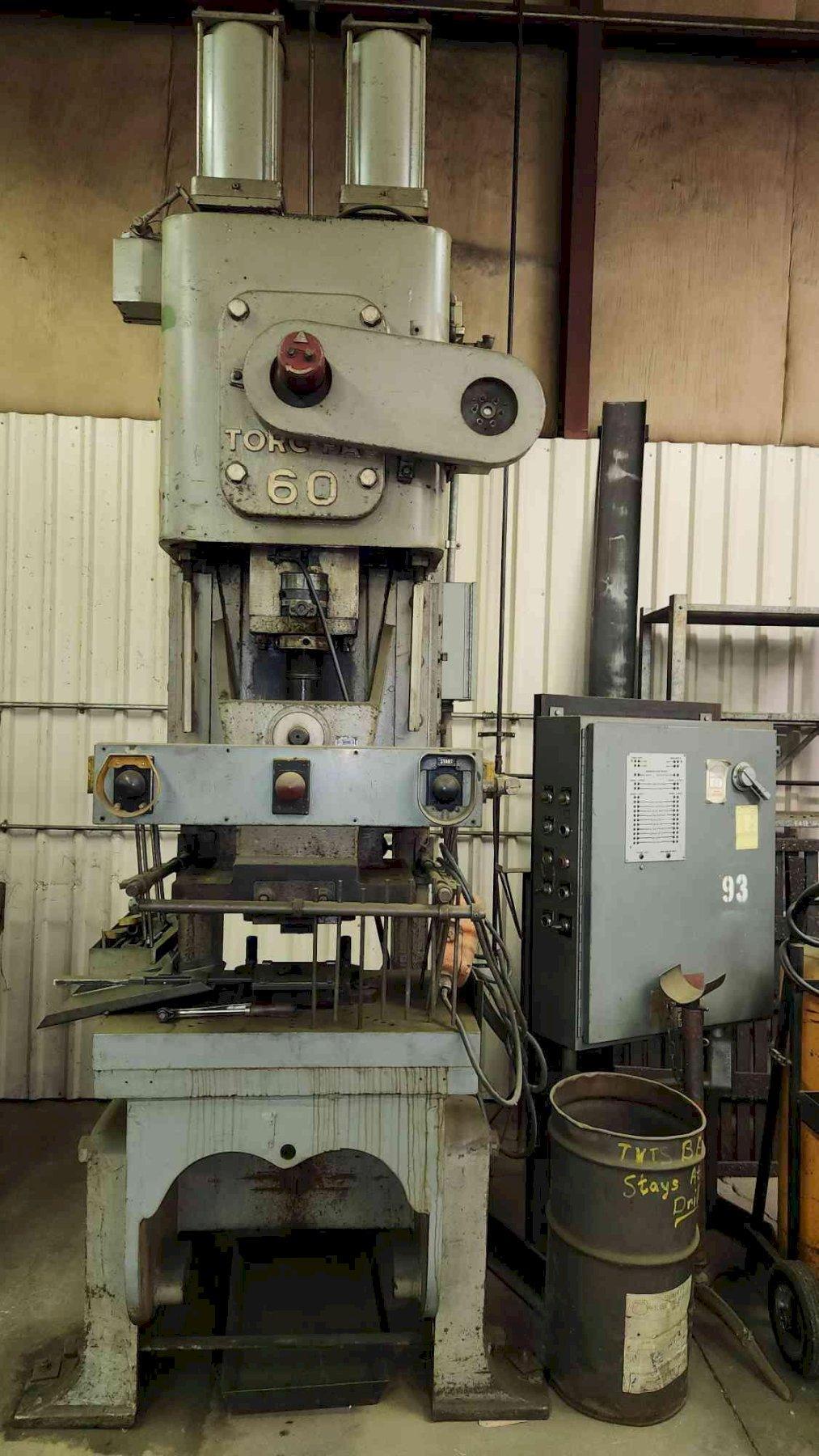

60 Ton USI Clearing Torc-Pac O.B.I Punch Press, 1967
Brand
Category
Type
Model
60 Ton Torc-Pac
Stock #
124659
Year
1967
Condition
Not specified
Location
Not specified
|
Capacity Near Bottom: 60 Ton
Stroke of Ram: 4″
Adjustment of Ram: 3″
Shut Height: 13.5″
Bed Area: 32″ x 21″
Ram Area ( Flanged with Cap): 18″ x 13″
Slide Cap Hole: 2″ x 3.25″ Deep
Bolster: 32″ x 21″ x 3″
Strokes per Minute: 90
Electrical: 440V, 3Ph
Weight: 9,800 Lbs.

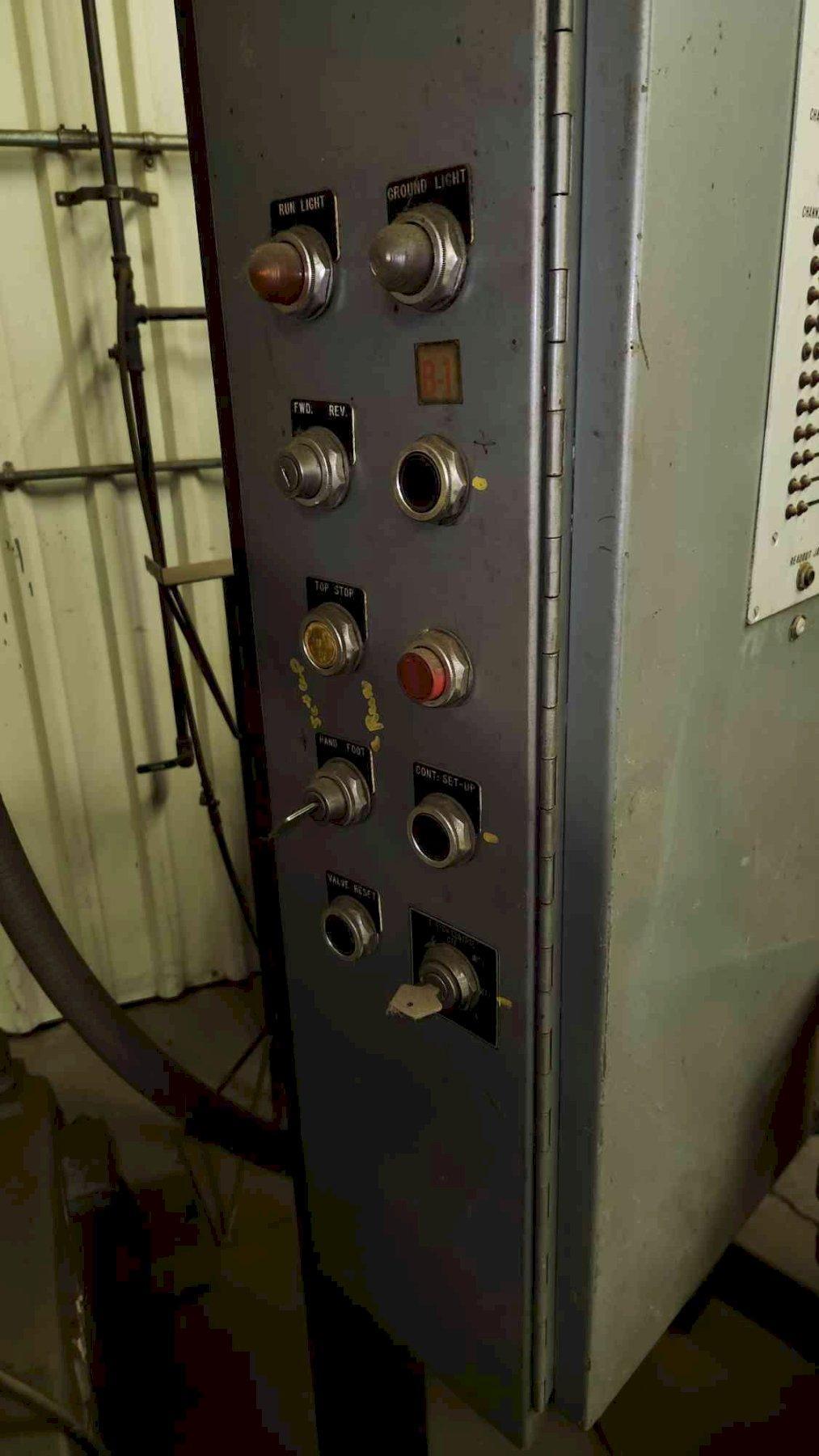

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Air C’Bal. for Slide, Air Clutch and Brake, Inch-Single-Continuous Stroke Control, Foot Switch and Palm Buttons, Automatic Lubrication System, Mag. Reversing Starter, Flywheel Guard, Full Electrical Controls, AB 4 Cam Rotary Cam Limit Switch All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
