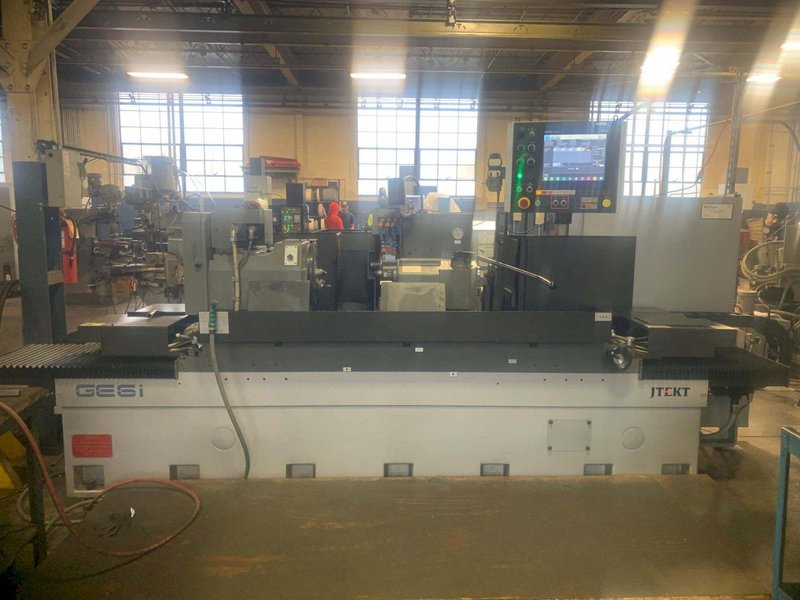

Machine Capacity: – **Swing:** Ø 22.0″ (560 mm) – **Distance Between Centers:** 39.4″ (1,000 mm) – **Maximum Grinding Diameter:** Ø 21.6″ (550 mm) – **Maximum Load Between Centers:** 1,100 lbs (500 kg) – **Centerline Height from Floor:** 46.45” (1,180 mm) – **Floor Space Required (approximate):** 197″ x 137″ (5,000 mm x 3,476 mm) – **Net Weight:** 17,636 lbs (8,000 kg)

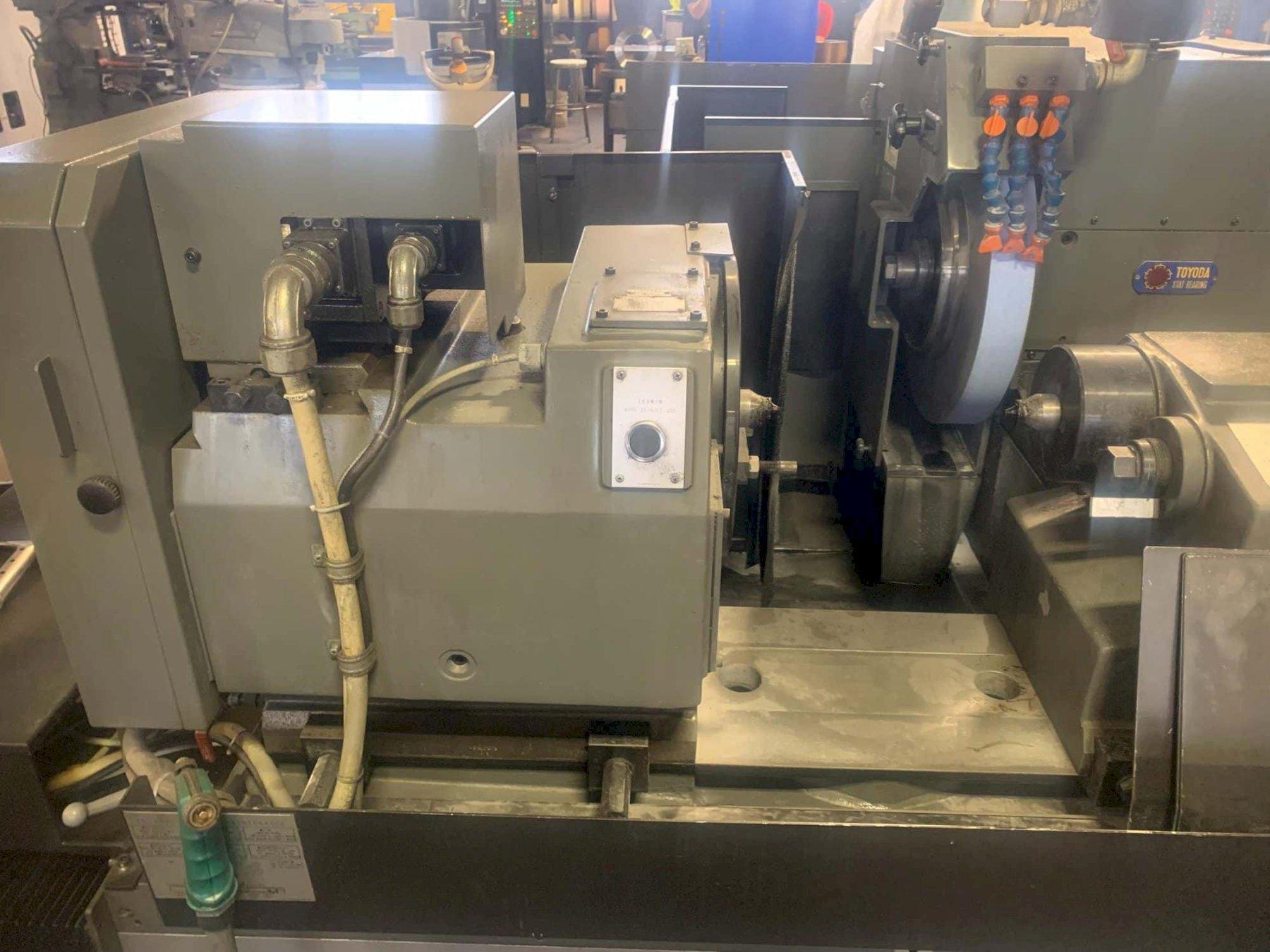

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wheelhead: – **Wheel Size (OD x ID):** Ø 24″ x 10″ (610 mm x 254 mm) – **Wheel Use Range:** Ø 24″ to 16.93″ (610 mm to 430 mm)* – **Maximum Standard Wheel Width:** 2.95″ (75 mm) – **Standard Wheel Surface Speed:** 6,500 SFPM (33 m/s) – **Spindle:** TOYODA STAT® Bearing – **Minimum Move Increment (on diameter):** 0.000010” (0.0001 mm) – **Wheelhead Rapid Feed (on diameter):** 590 IPM (15 m/min) – **Slide:** V and Flat Slide, 90° slide

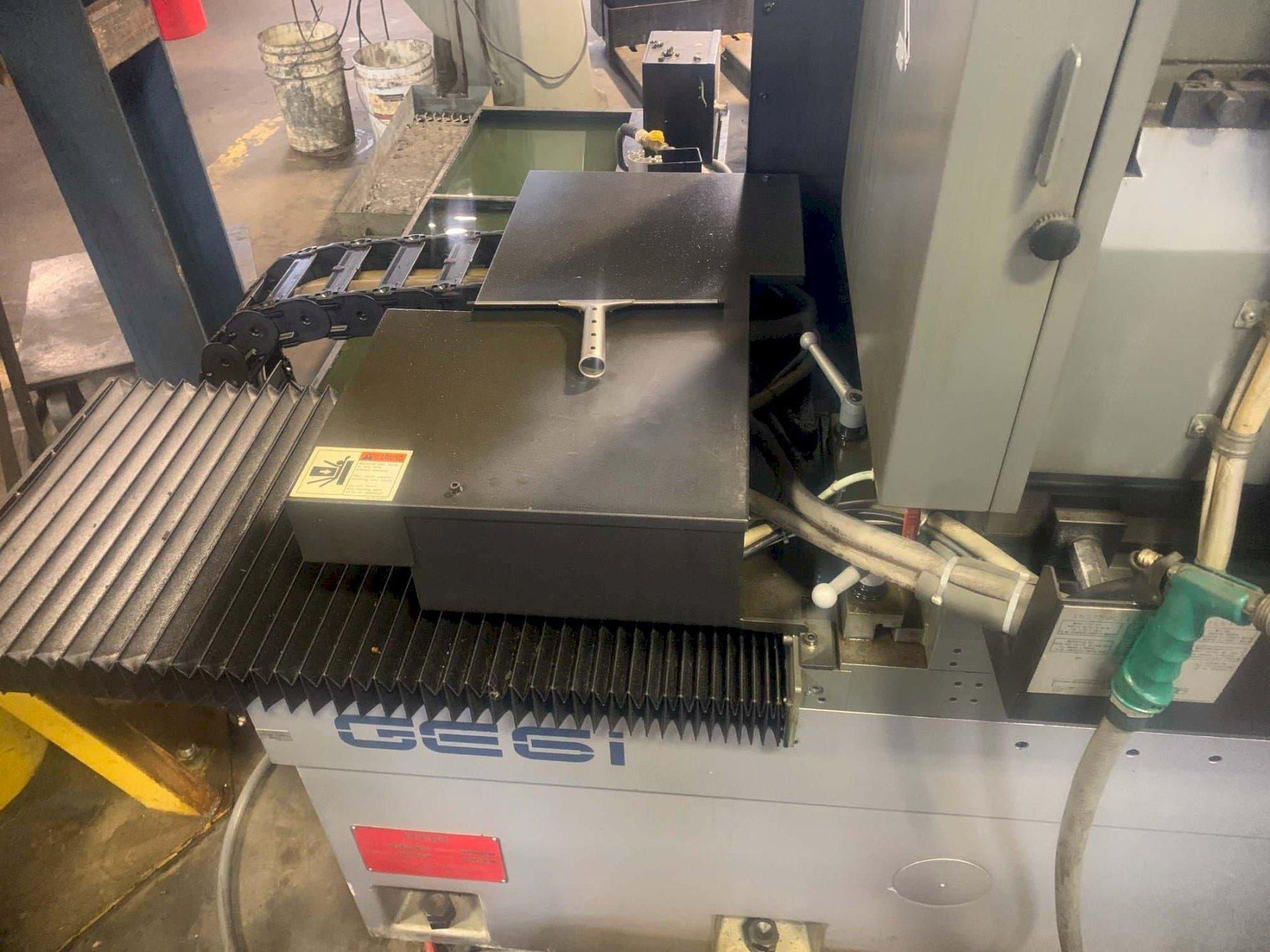

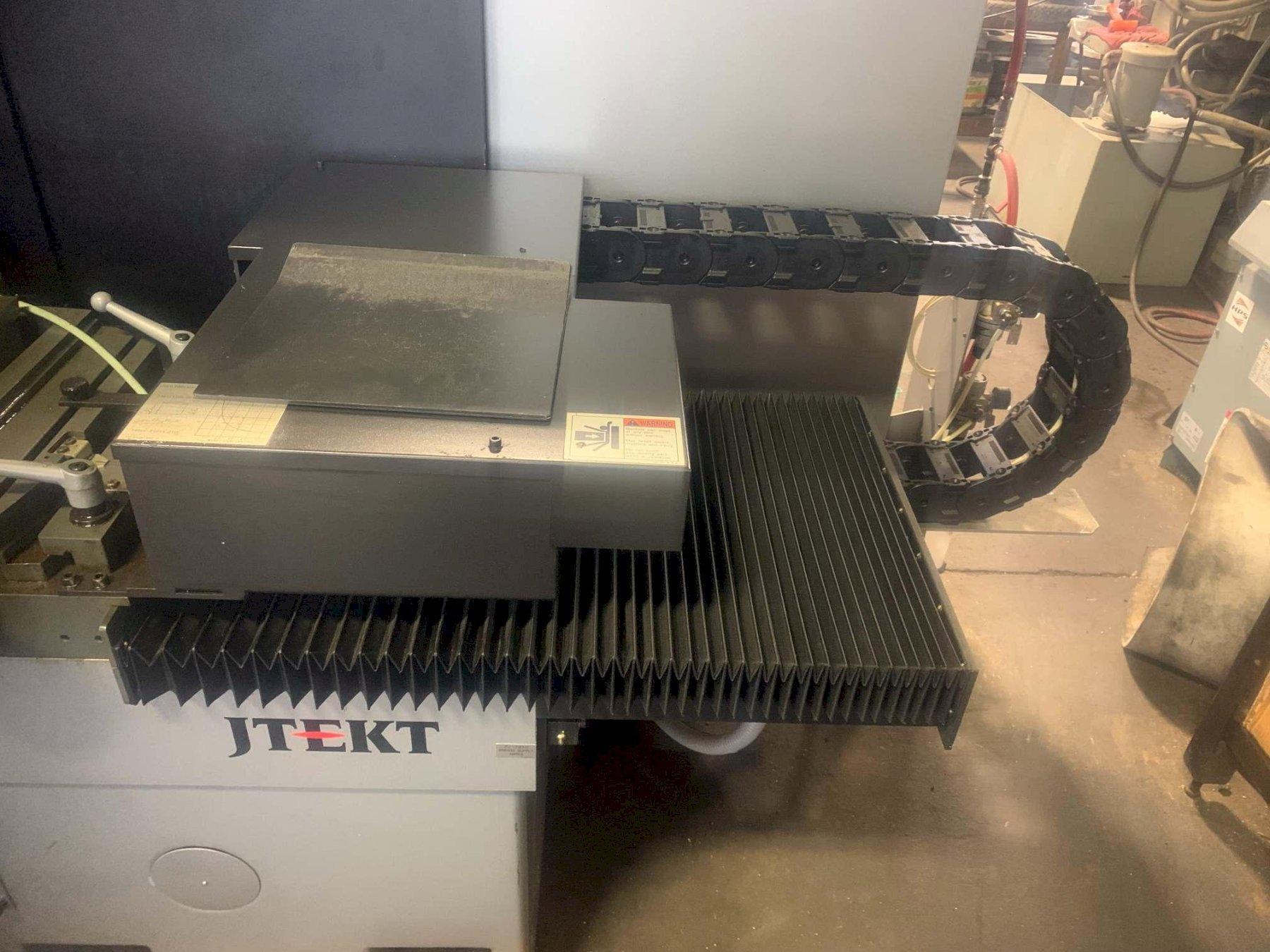

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table: – **Type**: Two (2) Piece Swiveling/Traversing – **Table Swivel (CCW to CW)**: 4° to 0° – **Table Stroke**: 48.6” (1,235 mm) – **Slide**: V and Flat Slide – **Minimum Move Increment**: 0.000010” (0.0001 mm) – **Table Rapid Feed**: 511 IPM (13 m/min)

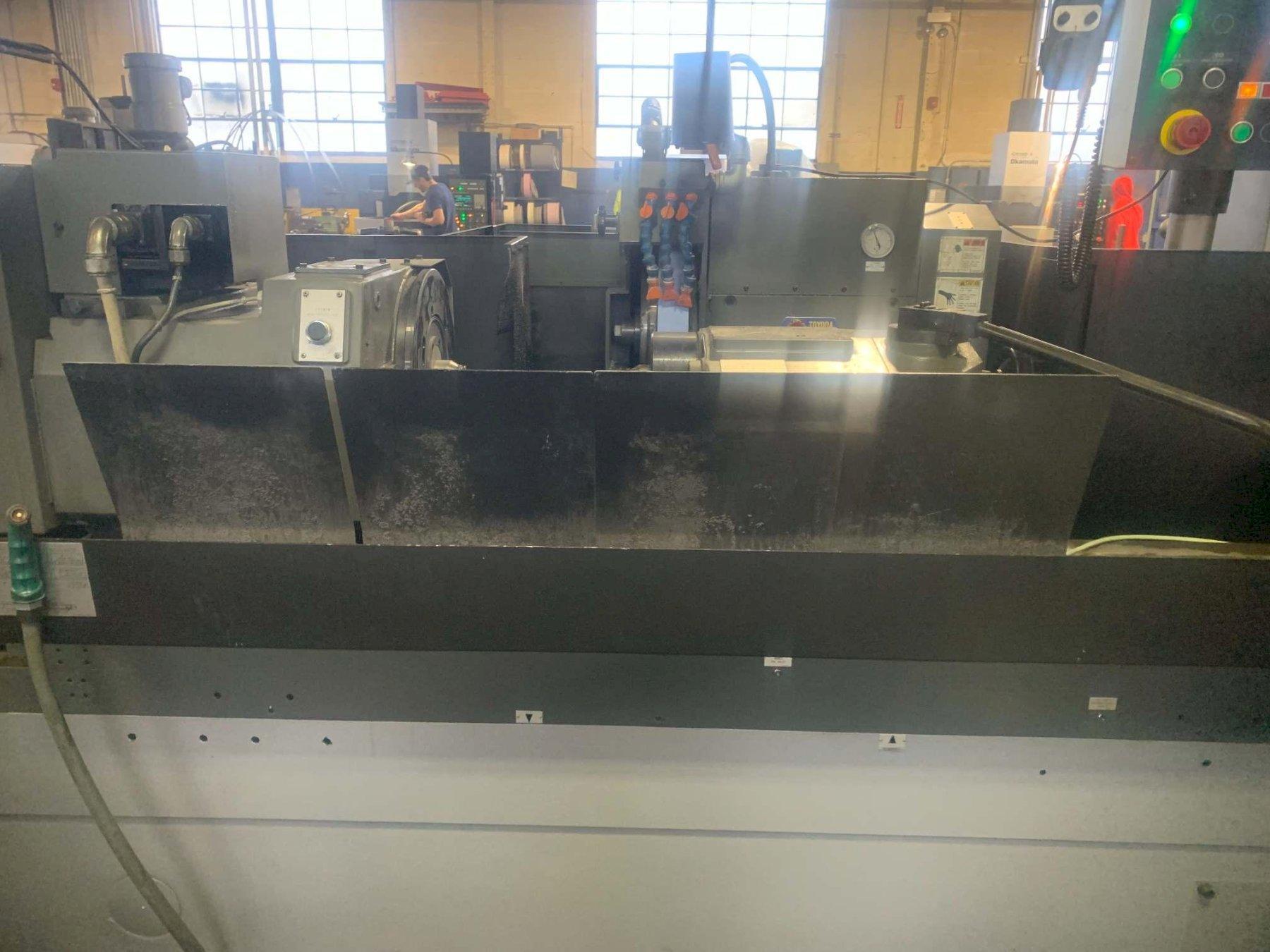

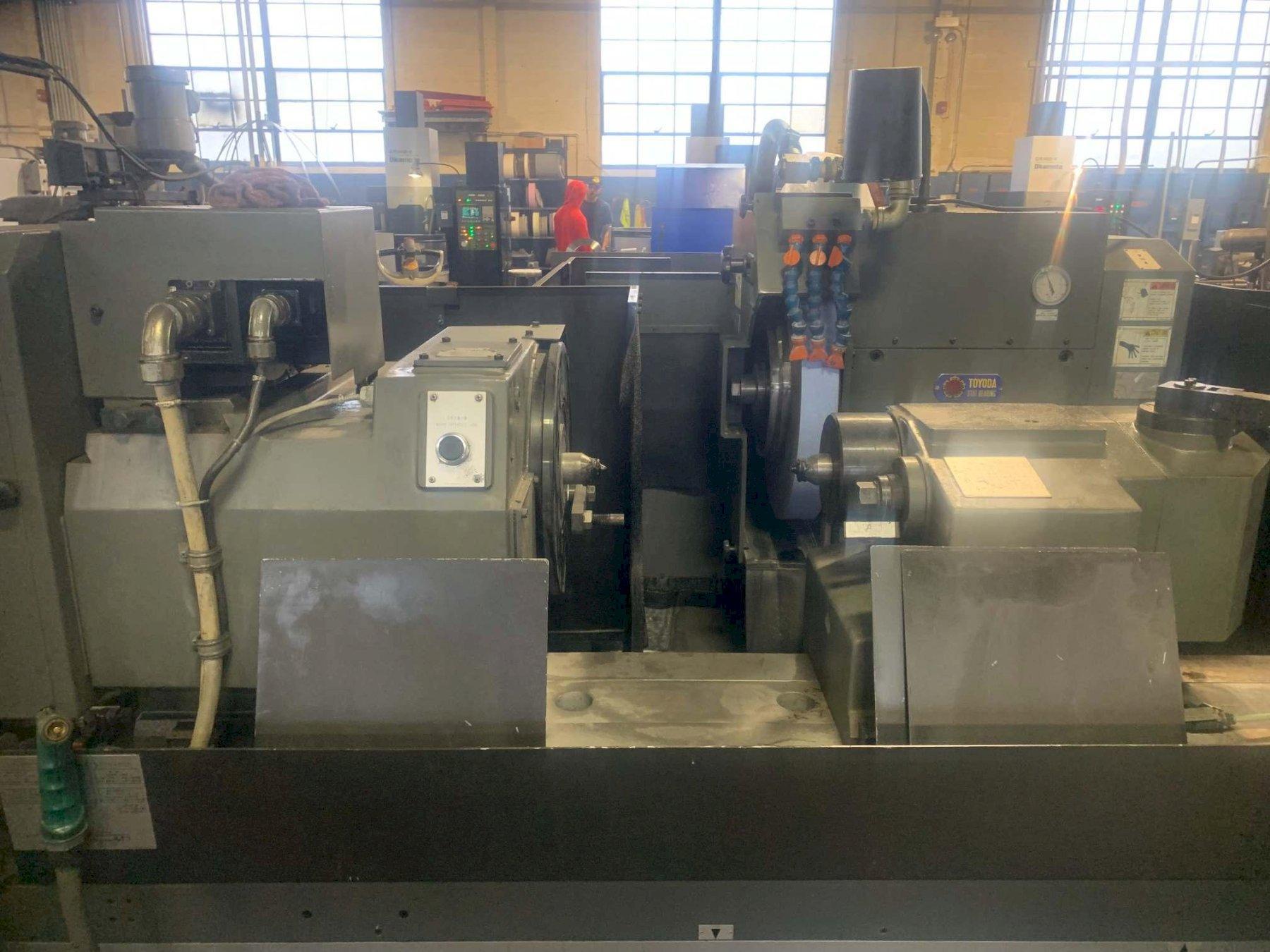

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Workhead: – **Type**: Dead Spindle – **Workhead Center Taper**: MT #5 – **Work Speed (Variable)**: 7 to 140 rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Footstock: – **Type**: Manual – **Footstock Center**: MT #5 – **Maximum Center Retraction**: 1.25″ (32 mm) by lever, 1.18″ (30 mm) by manual position adjust wheel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dresser: – **Type**: Stationary Diamond Holder – **Location**: Workhead Mount

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motors: – **Wheel Drive Motor (4P)**: 15 hp (11 kW) – **Work Drive Motor (Brushless AC Servomotor)**: 4.69 hp (3.5 kW) – **Wheelhead Feed Drive Motor (Brushless AC Servomotor)**: 4.15 hp (3.1 kW) – **Table Feed Drive Motor (Brushless AC Servomotor)**: 6.7 hp (5 kW) – **Lubricant Pump Motor (4P)**: .27 hp (.2 kW) – **Wheel Spindle Lubrication Motor (2P) Fan Cooler for Spindle Oil (4P)**: .67 hp (.5 kW), .1 hp (.08kW)

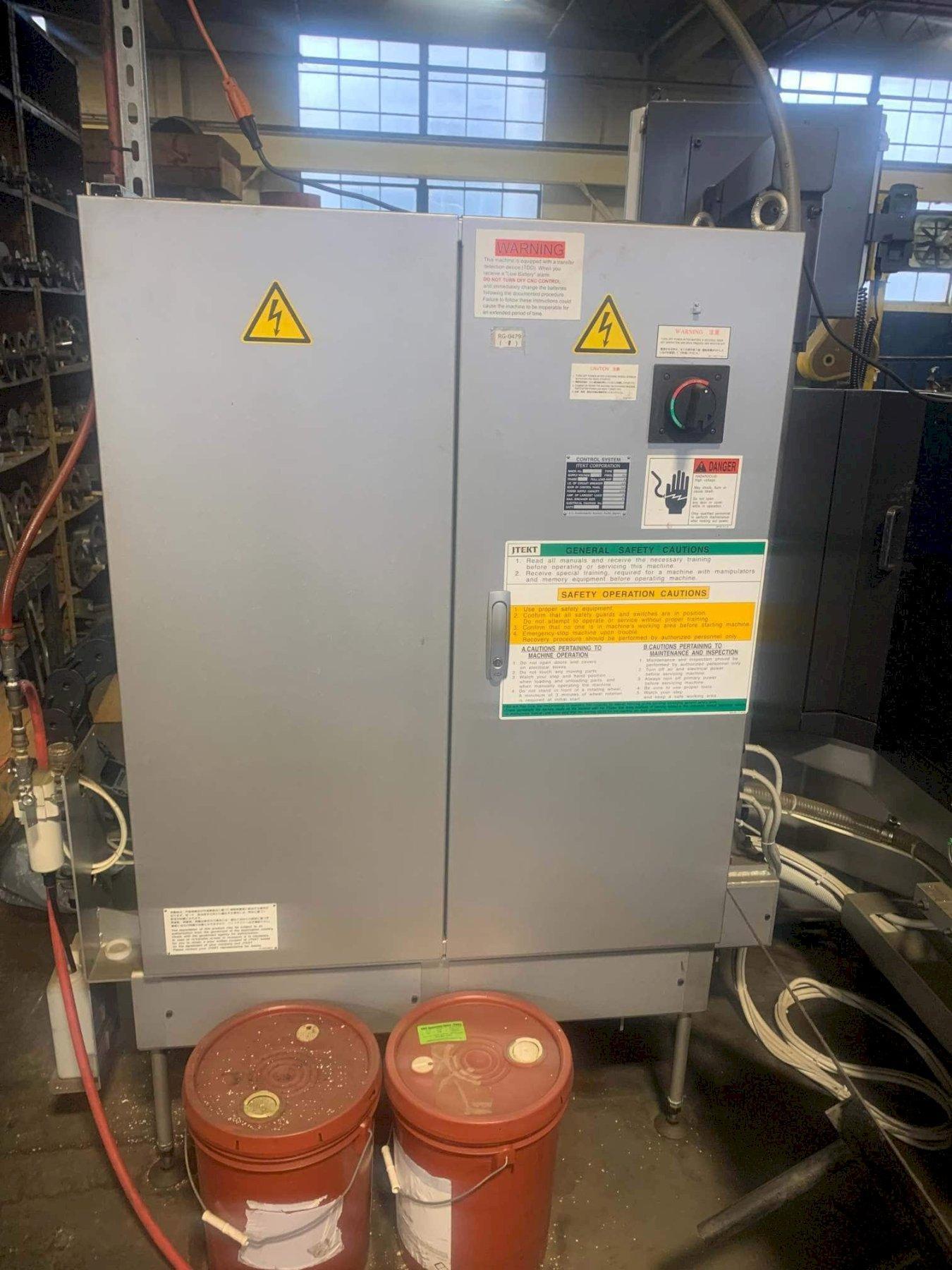

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Requirement: – 200Volt, 3-Phase, 60 Hz

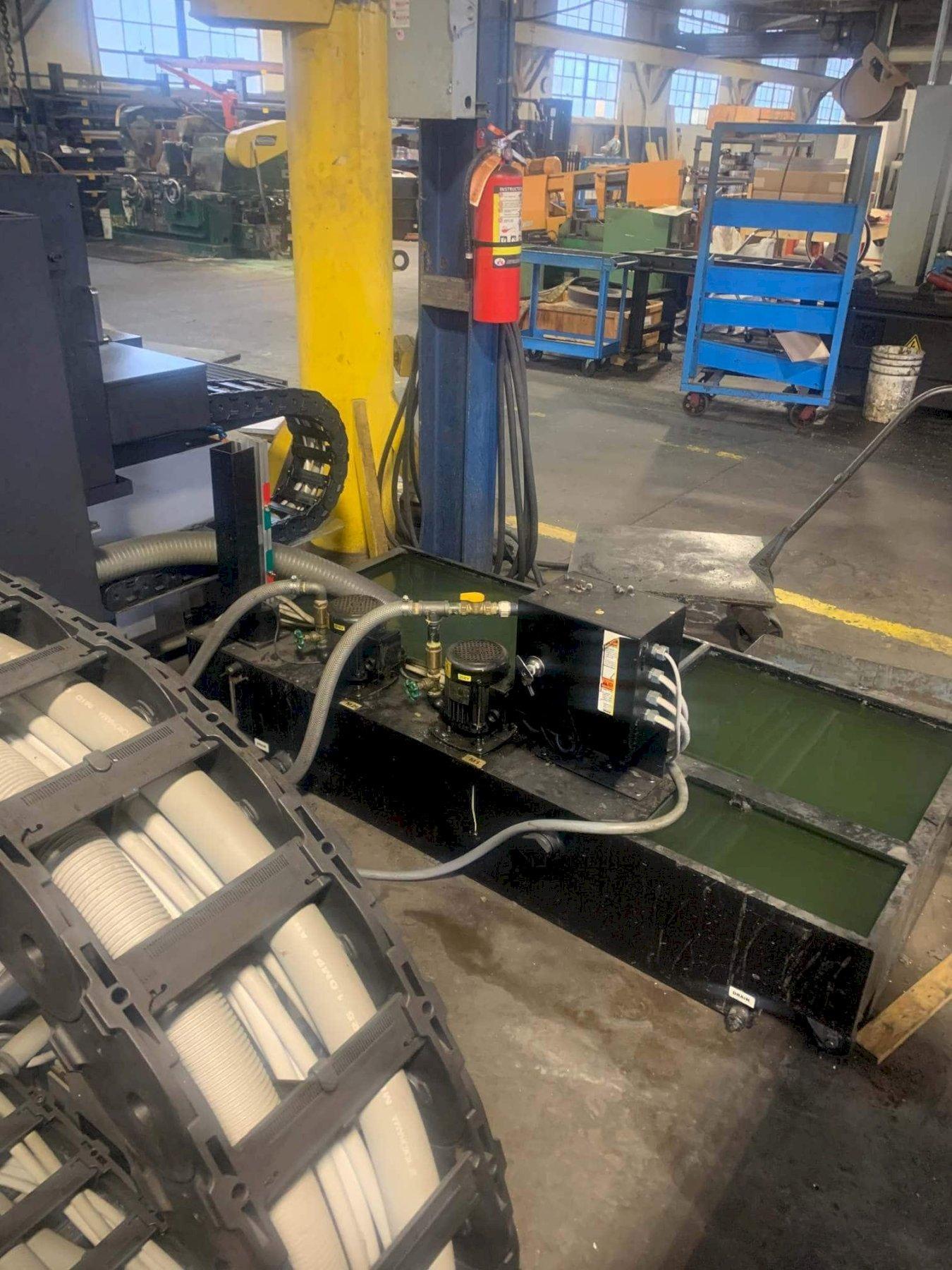

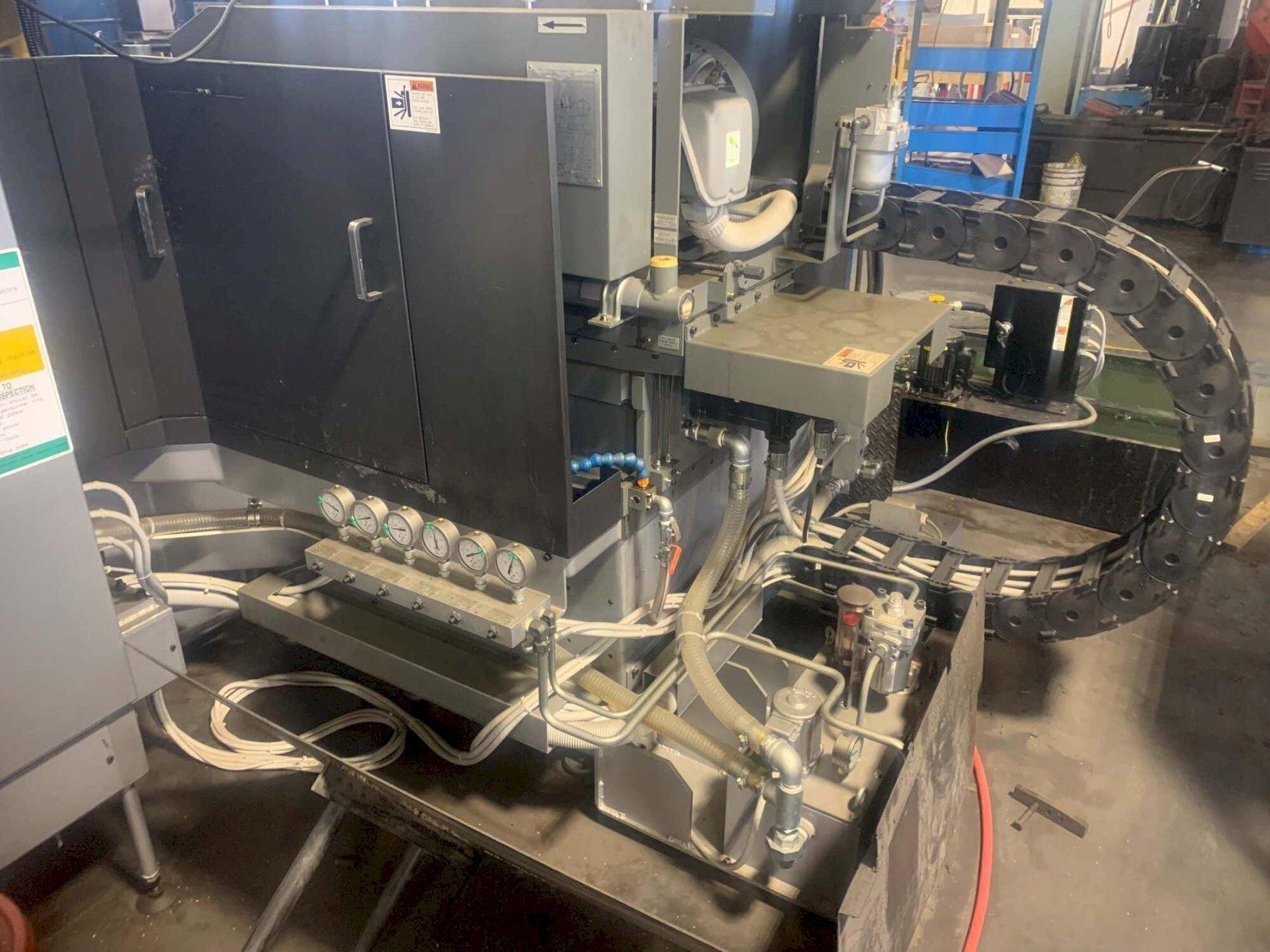

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fluid Capacities: – **Spindle Oil Lube Tank (Mobil Velocite #6)**: 3.7 gal (14 lt) – **Lubrication Tank (Mobil Vacuoline 1409)**: 5.2 gal (20 lt) – **Coolant Tank**: 92 gal (350 lt)

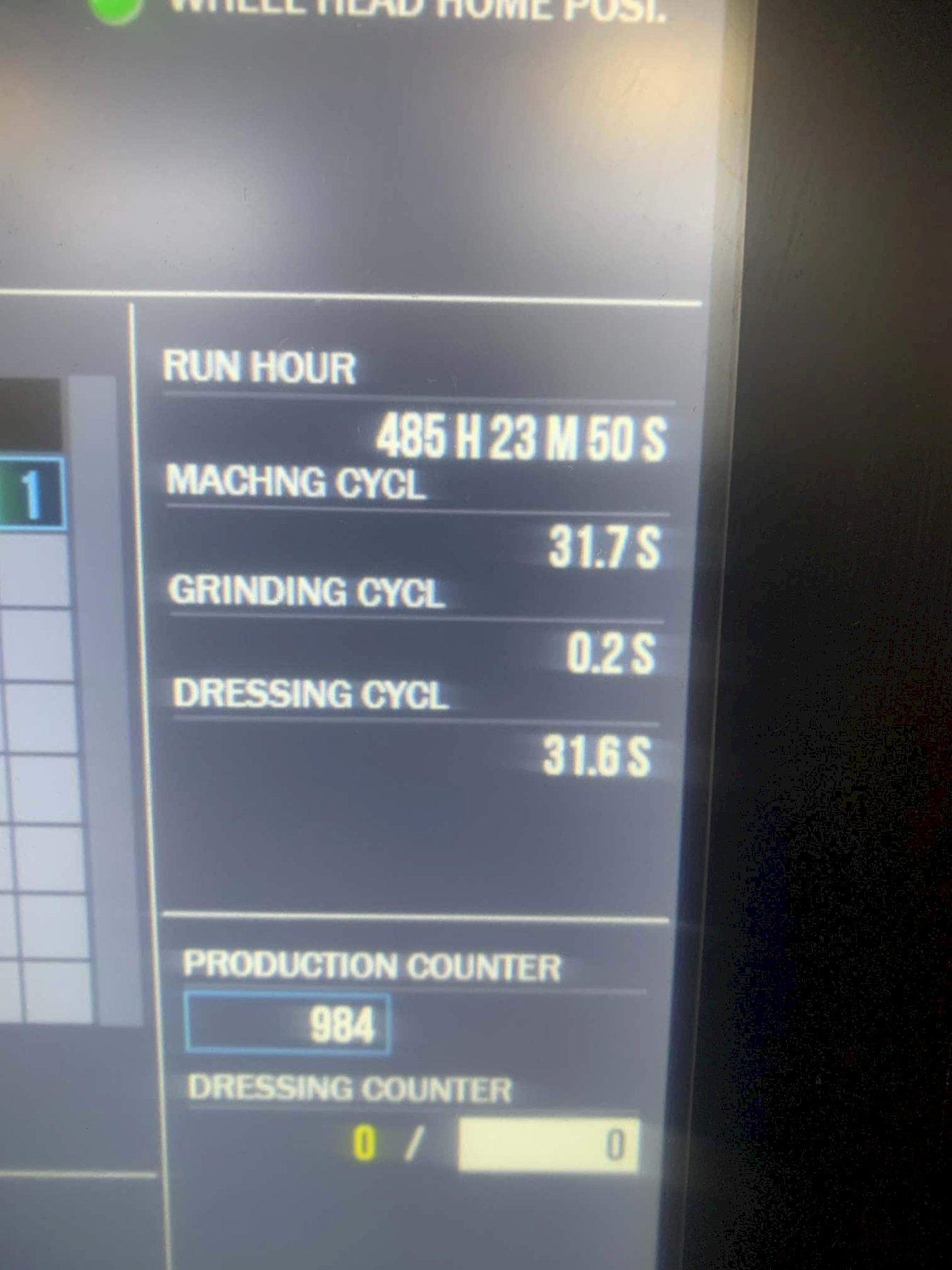

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: -Dead Workhead -Manual Footstock -105 Gallon Coolant Tank
