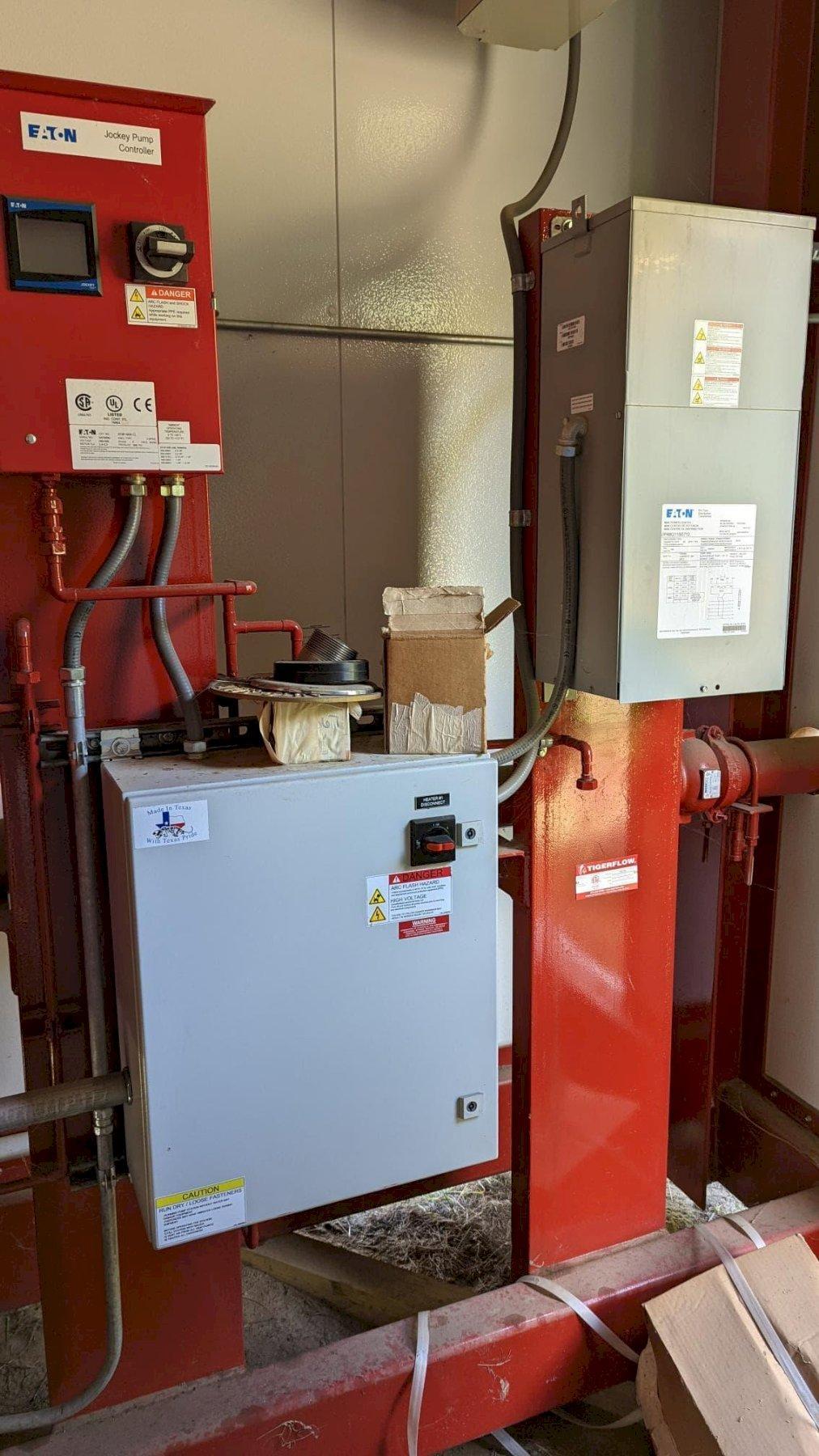

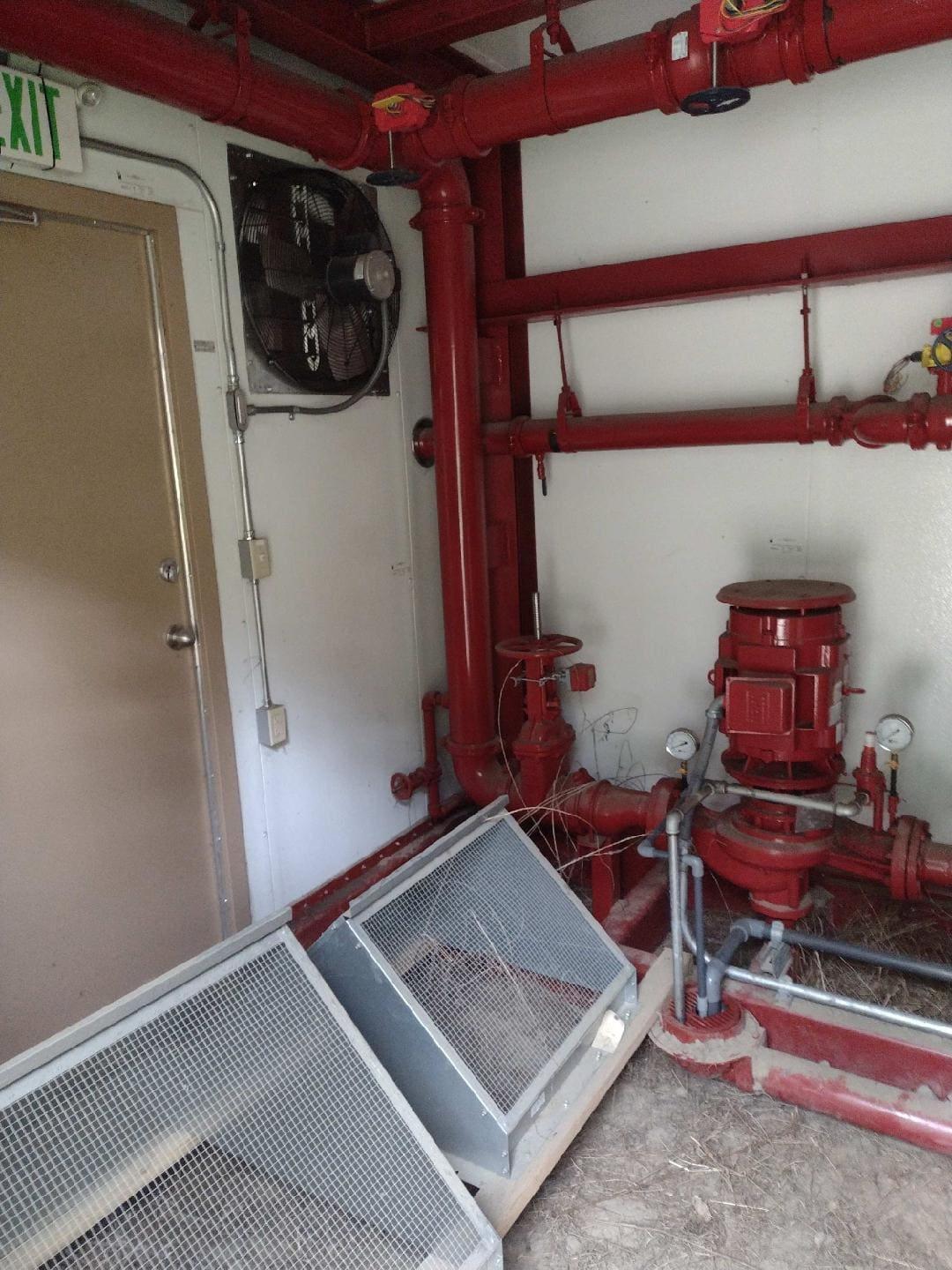

Tigerflow Vertical In-Line Fire Pump Series FPS-7000-PEC Fire Pump System, 2019 – **Never Used**

(1) Jockey Pump Piping: (2) Gate Valves and (1) Check Valve and Piping (1) 6” UL/FM OS & Y Grooved Suction Gate Valve with Tamper Switch, Suction Thru Floor (1) 6” UL/FM Discharge Groove Style Check Valve (1) 6” UL/FM Discharge Groove Style Butterfly Isolation Valve with Tamper Switch, Discharge Thru Floor (1) 4” HVH Connection with: Tee, Elbow, Manual Drain Valve, (Valves, Caps and Chains Shipped Loose) (1) 4“UL/FM Groove Style Butterfly Test Header Isolation Valve with Tamper Switch (1) 6” City Water By-pass Complete with: 6” UL/FM Swing Style Check Valve, (2) 6” UL/FM Groove Style Butterfly Isolation Valves with Tamper Switches and Necessary Piping (1) 4” Fire Department Connection w/ Potter Roemer 5710 Siamese FDC, Swing Check Valve and Piping (1) 11’-6” W x 14’ L x 10’-9” H +/-, Prefabricated Environmental Enclosure Complete with: NY P.E. Stamp on Building 120 MPH Wind Load 40 LB Live Load 8 Finished Ceiling Height Kysor Needham Building Moment Frame

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Condition Point: 500 GPM @ 75 PSI Working Pressure: 175 PSI Max Working pressure Voltage: 460/3/60 Suction Pressure: 80 PSI Max. Suction Source: City supply

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
