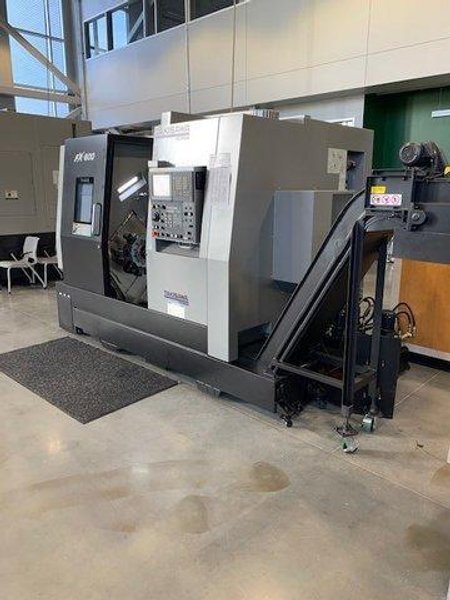

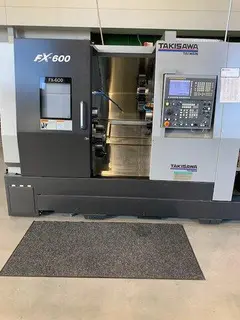

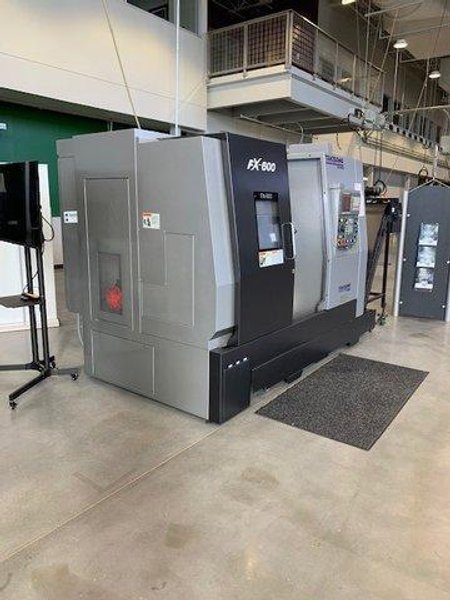

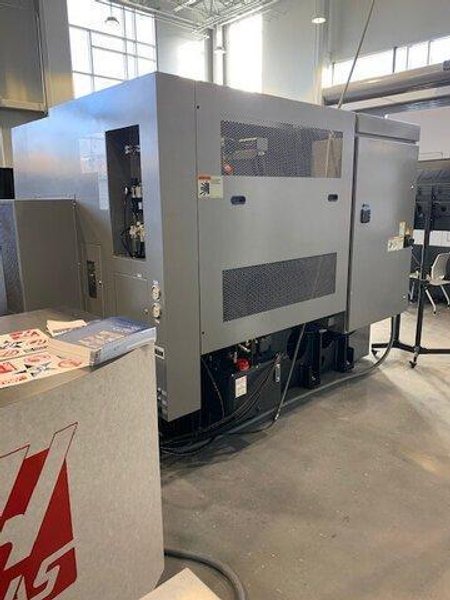

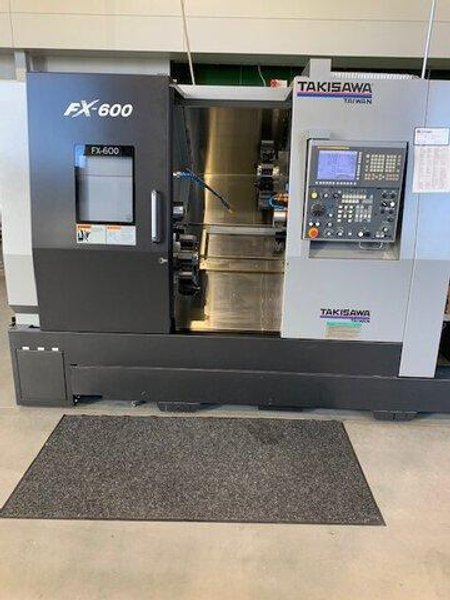

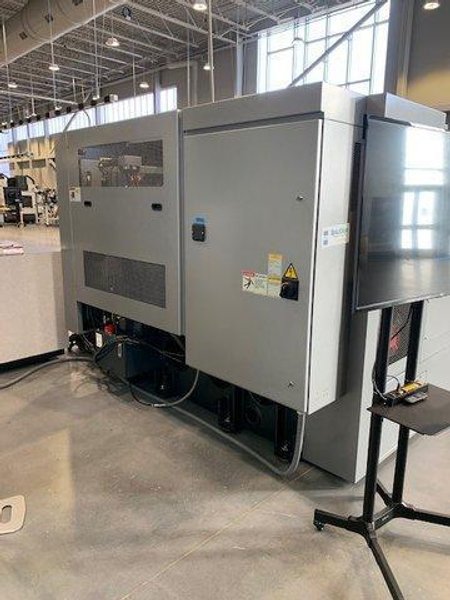

Takisawa FX-600 Multi-Axis CNC Lathe, 2017- Twin Turret, Twin Spindle, Y-Axis, 2 Year Fanuc Warranty, Low Hours

Turning Diameter – 8.6″ Max Turning Diameter 11.8″ Max Turning Length 20″ X1/X2 Axis Travel mm (in) 180/180 (7.1/7.1) Z1/Z2 Axis Travel mm (in) 540/540 (21.2/21.2) Y Axis Travel mm (in) ±35 (±1.4) B Axis Travel – 24.4″ Spindle Speed rpm 6000 Chuck Size in 6″ Spindle Nose Ø140 Flat Through Hole Dia. 2.2″ Max Bar Capacity — 1.65″ Spindle Speed rpm 6000 Chuck Size in 6″ Through Hole Dia. mm (in) 56 (2.2) Bearing Dia. mm (in) 80 (3.1) Max Bar Capacity mm (in) 42 (1.65) Number of Turrets 2 Number of Tool Stations 12+12 Boring Bar Shank Dia. mm (in) 20 (.75) Milling Speed rpm 6000 Milling Shank Dia. mm (in) Ø1~Ø13 (Ø0.39~Ø0.5)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Drive Motor (15/10) Sub Spindle Drive Motor (15/10) Milling Motor kW (HP) 2.2 (3) Turret Index Motor kW (HP) 1.2 (1.6) Height mm (in) 2200 (86.6) Length mm (in) 2740 (107.8) Width mm (in) 2022 (79.6) Weight kg (lb) 8000 (17636)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Chip Conveyor Barfeed Interface Renishaw Toolsetter Chuck Air Blow Extra live tool holder X axis Extra live tool holder z axis

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
