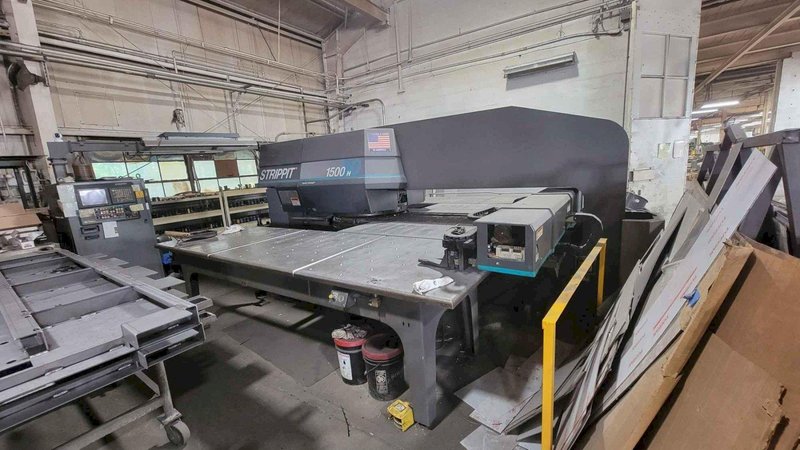

Strippit 1500H-30 30 Ton Turret Punch Press, 2000
Brand
Category
Type
Model
1500H-30
Stock #
946541
Year
2000
Condition
Not specified
Location
Not specified
|
Length overall: 188.5”
Height overall: 96”
Width: 187”
Maximum travel X-axis: 100.43”
Maximum travel Y-axis: 63.75”
Tonnage: 33 tons
Punching speeds:
Hits per minute on 1” centers: 350
Hits per minute on 0.062” centers: 900
3.5” diameter in 10 gauge mild steel
1.625” diameter in 0.250 mild steel
Accuracy: 0.004”

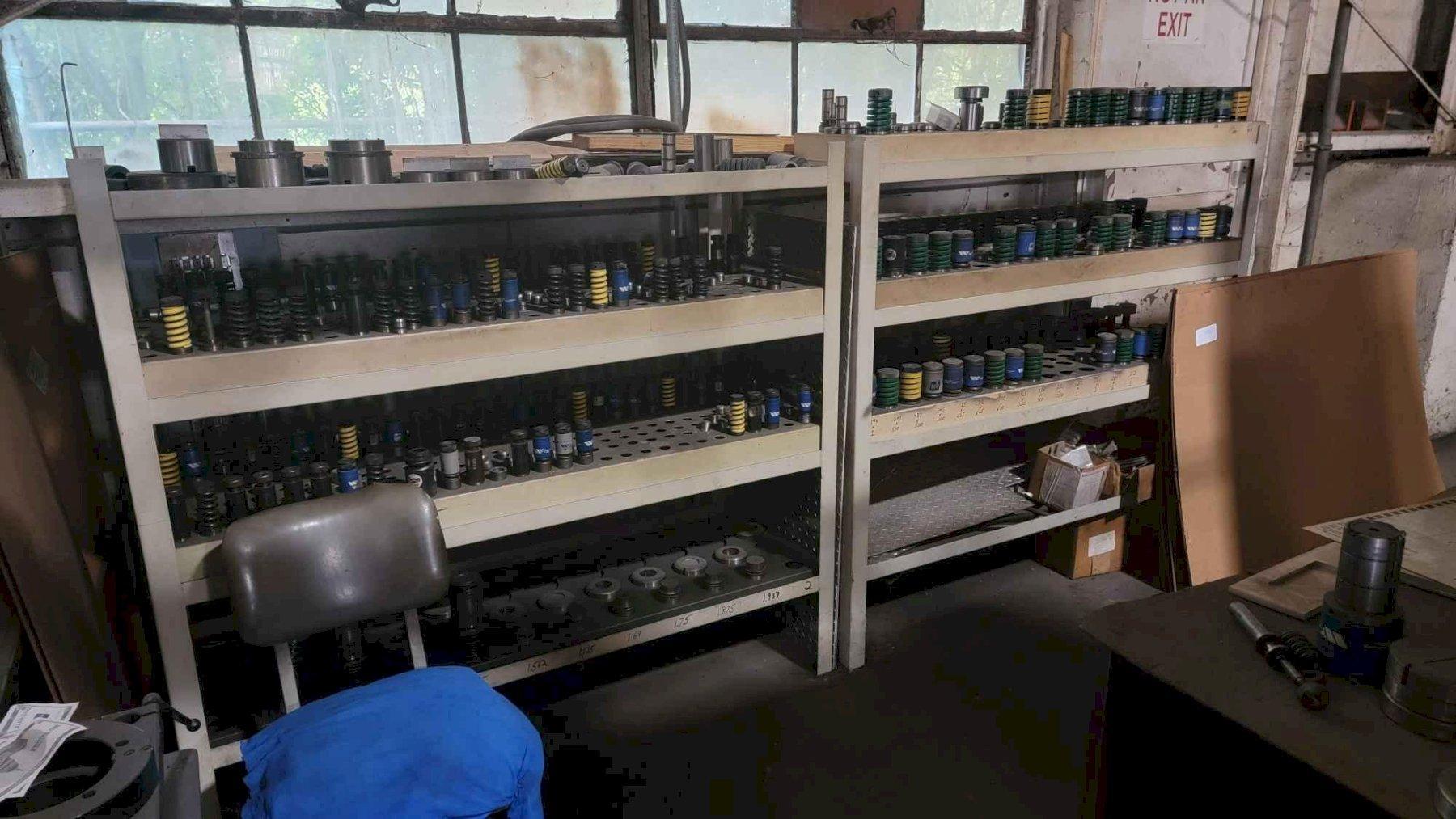

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,***INCLUDED*** Punch Tooling All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
