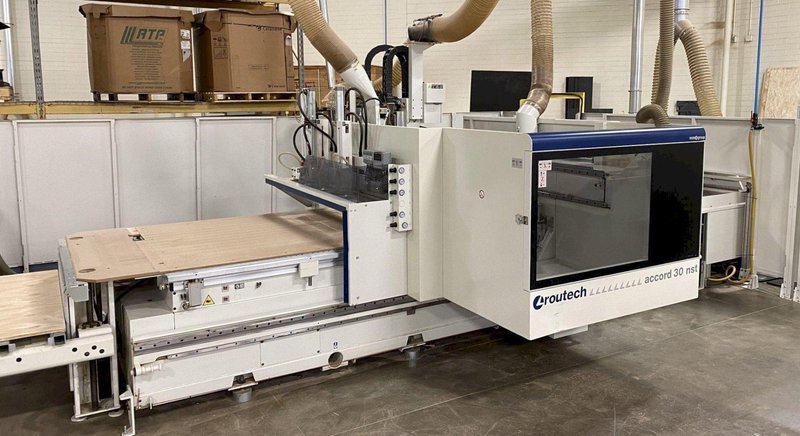

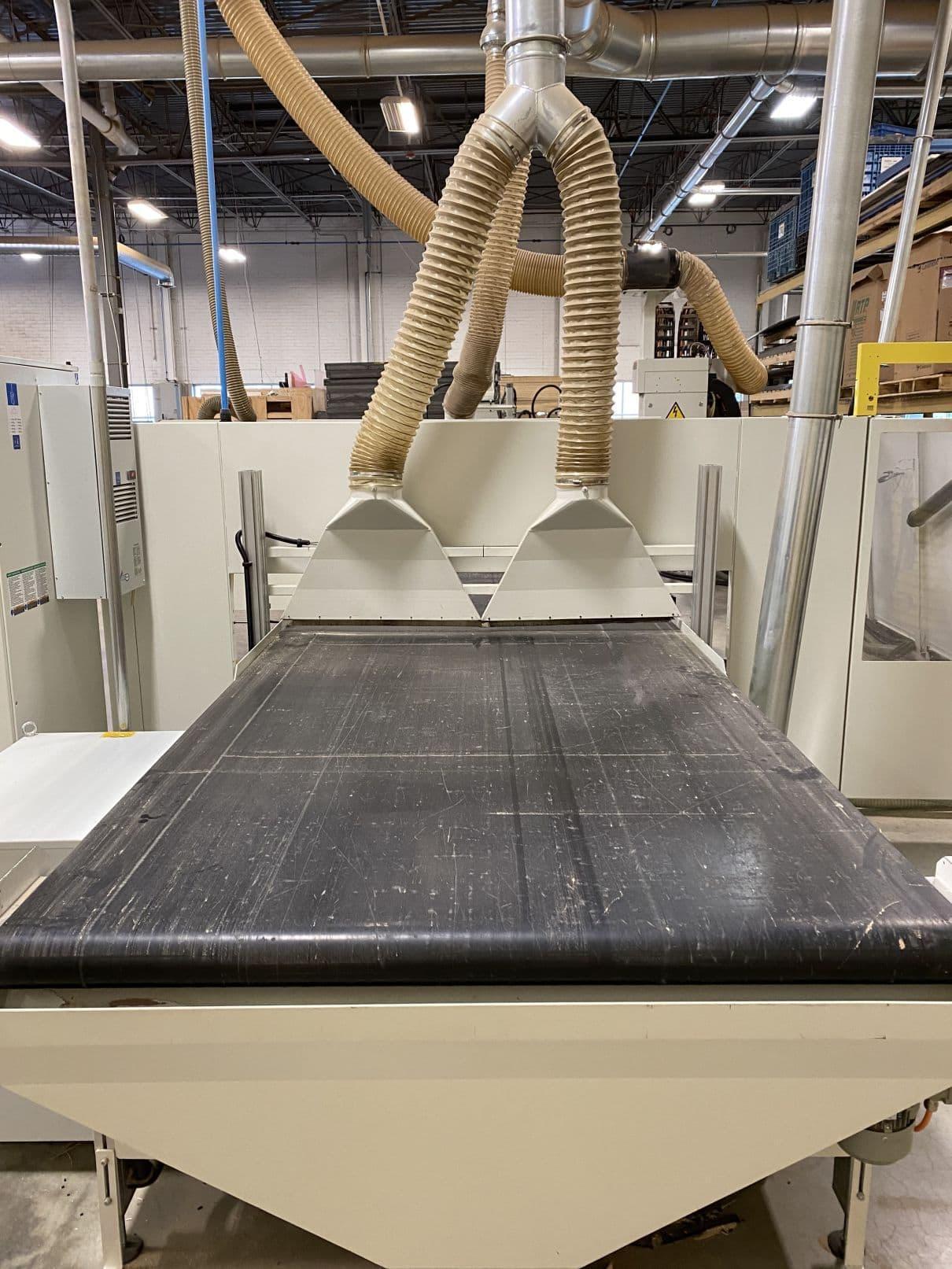

Routech Accord 30 FX-M CNC Router, 2016

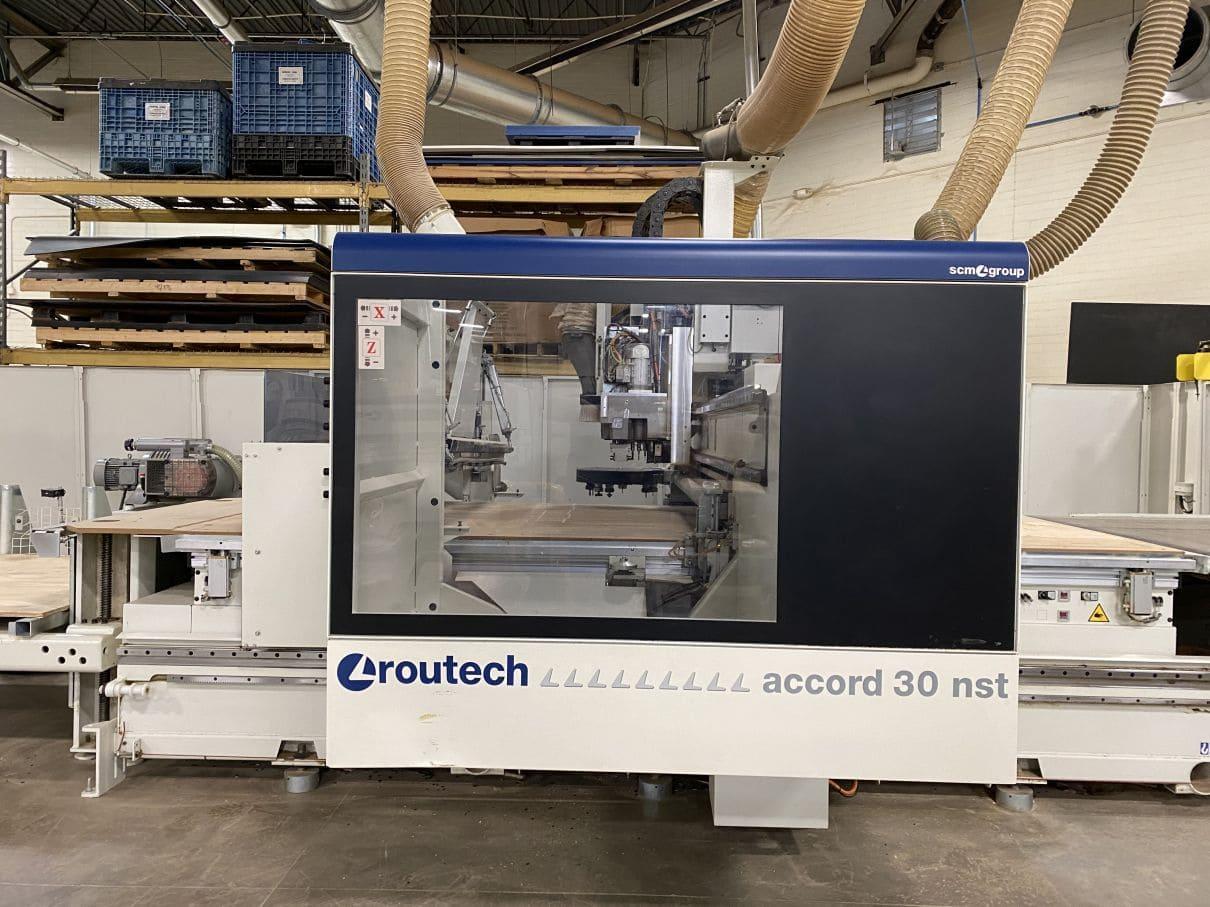

ACCORD 30 FX-M CNC Machining Center* New 2016 General Features • Component passage 250 mm (9.84”) while using 50mm cups Axes Traverse • X-Y-Z interpolating axes • Brushless motors • Rapid traverse of X-axis = 90 m/min (3,542”) • Rapid traverse of Y-axis = 90 m/min (3,542”) • Rapid traverse of Z-axis = 30 m/min (1,181”)

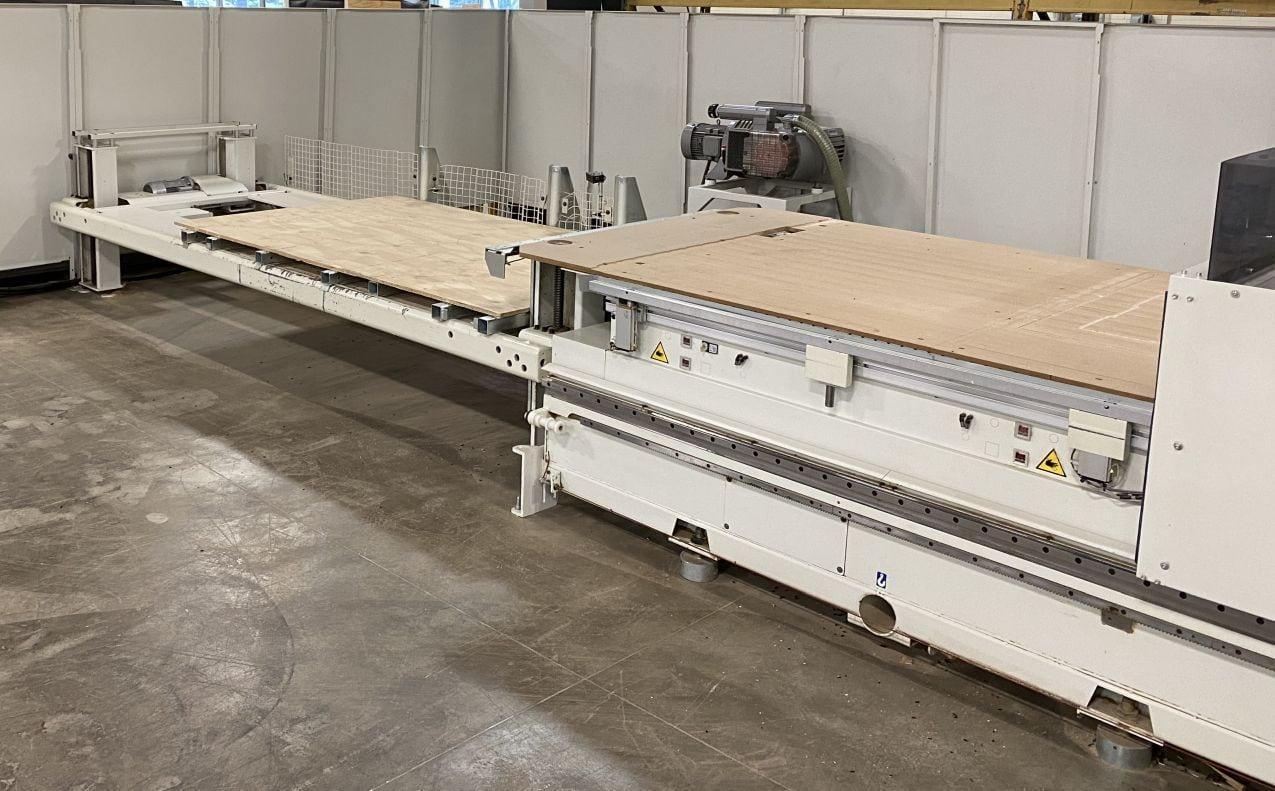

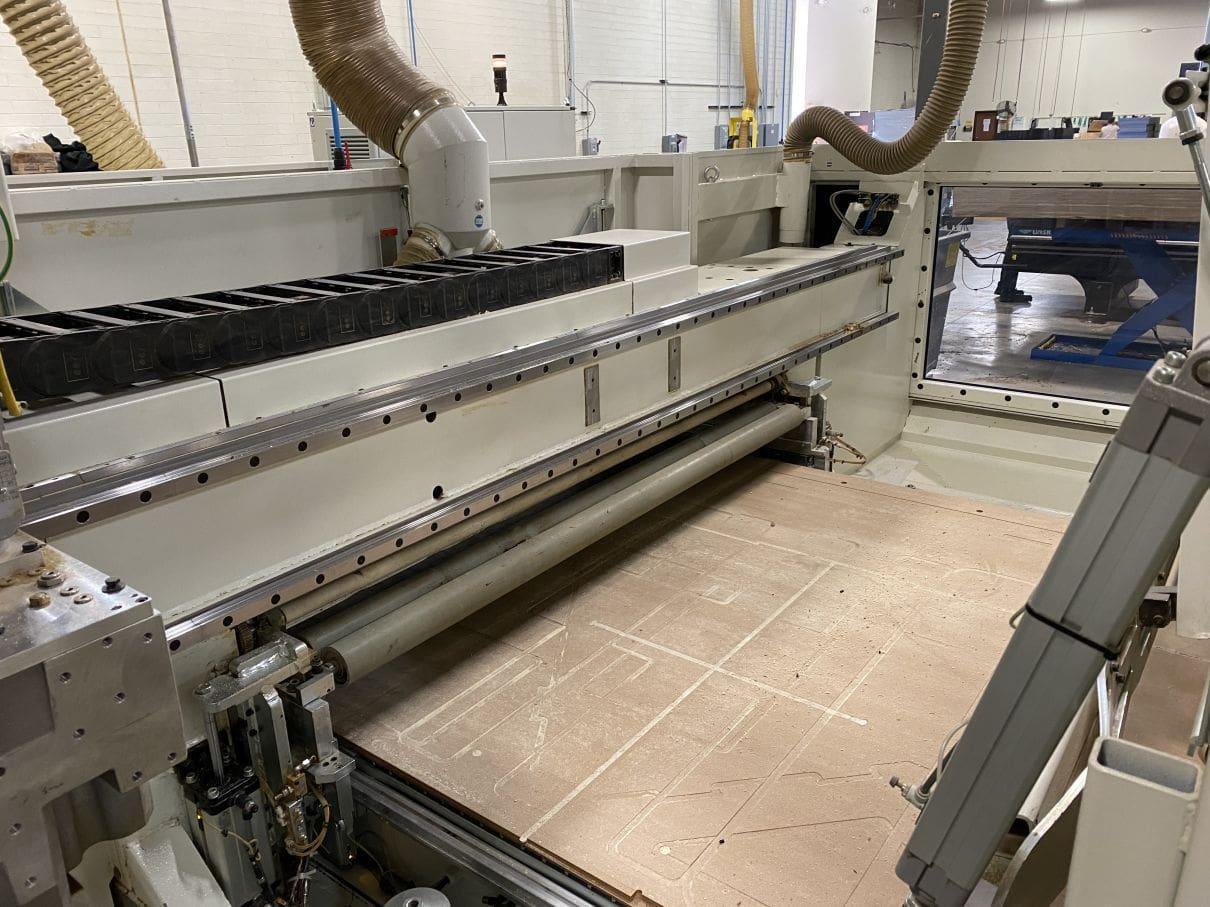

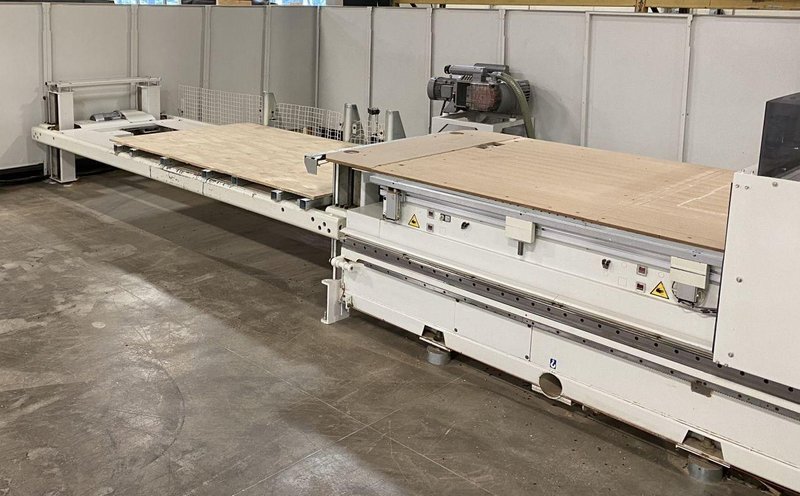

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Worktable 021324 ACCORD 30 FX-M Multi-function Worktable X-Y = 3650 x1600 (143” x 63”) • Drilled and tapped holes spaced 120×120 mm for vacuum connection and equipment anchorage • groove scheme spaced 40 mm for suction cups or rubber seals • 2 work areas • Max. dimension to work in Y direction = 1665 mm. (65.5”)

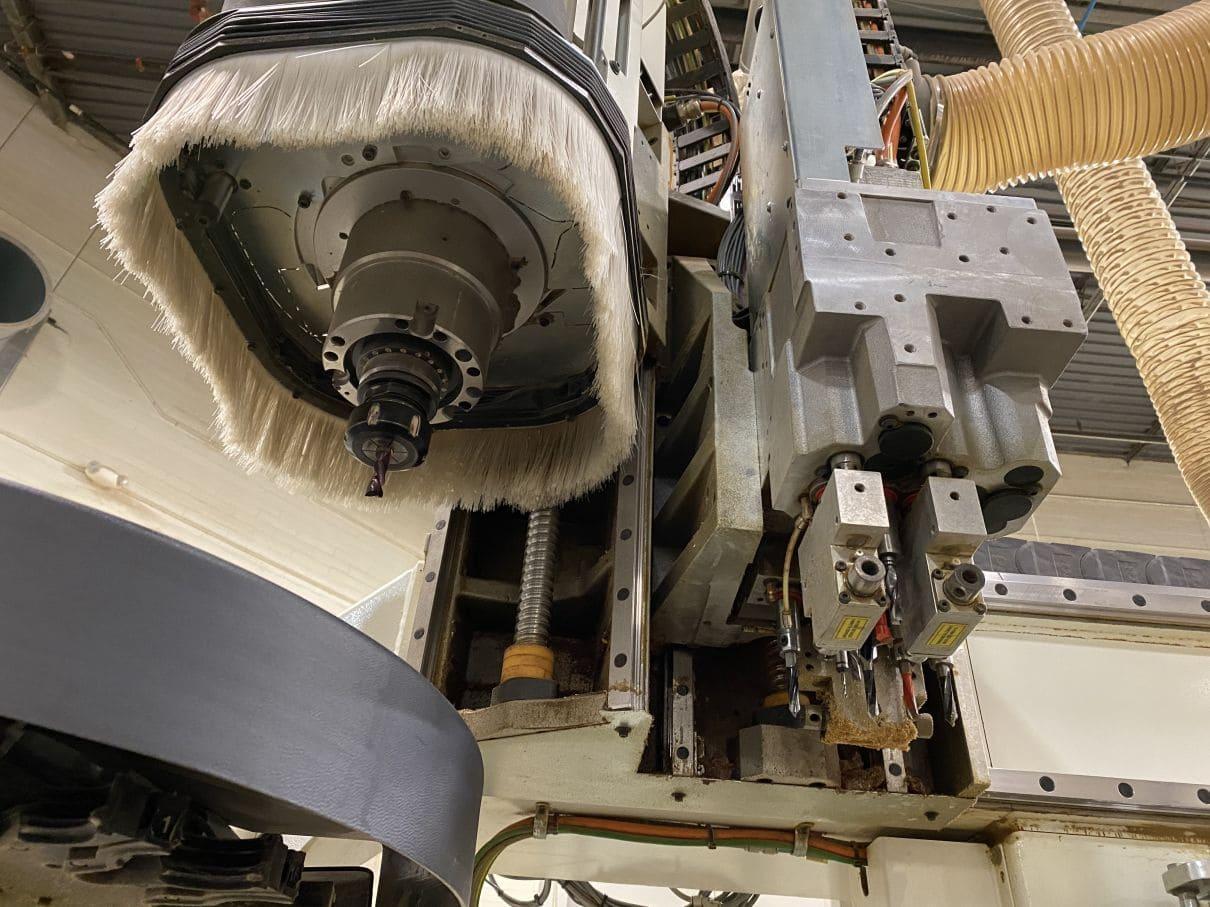

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working Units 230220 MAXI HS 8.5 Machining Head The machining head, fixed directly to the mobile gantry, guarantees maximum strength during routing operations and provides top finishing quality also with high stock removal. It is equipped with a 8,5 KW “High Speed” electrospindle that covers the entire machining area and has a centralized exhaust system with automatic air flow activation/deactivation on working units present.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Technical specifications: • Routing unit with 3 interpolating axes • electro-spindle with HSK 63F quick-release tool holder • rotation speed 600-24000 rpm • right and left rotation • max power 8.5 KW (12 HP) from 12000 to 18000 rpm (on S1 duty) • “for life” grease lubrication • 11 KW (15HP) inverter • servo-ventilated air cooling • automatic exhaust hood with several positions and ON-OFF by workpiece program

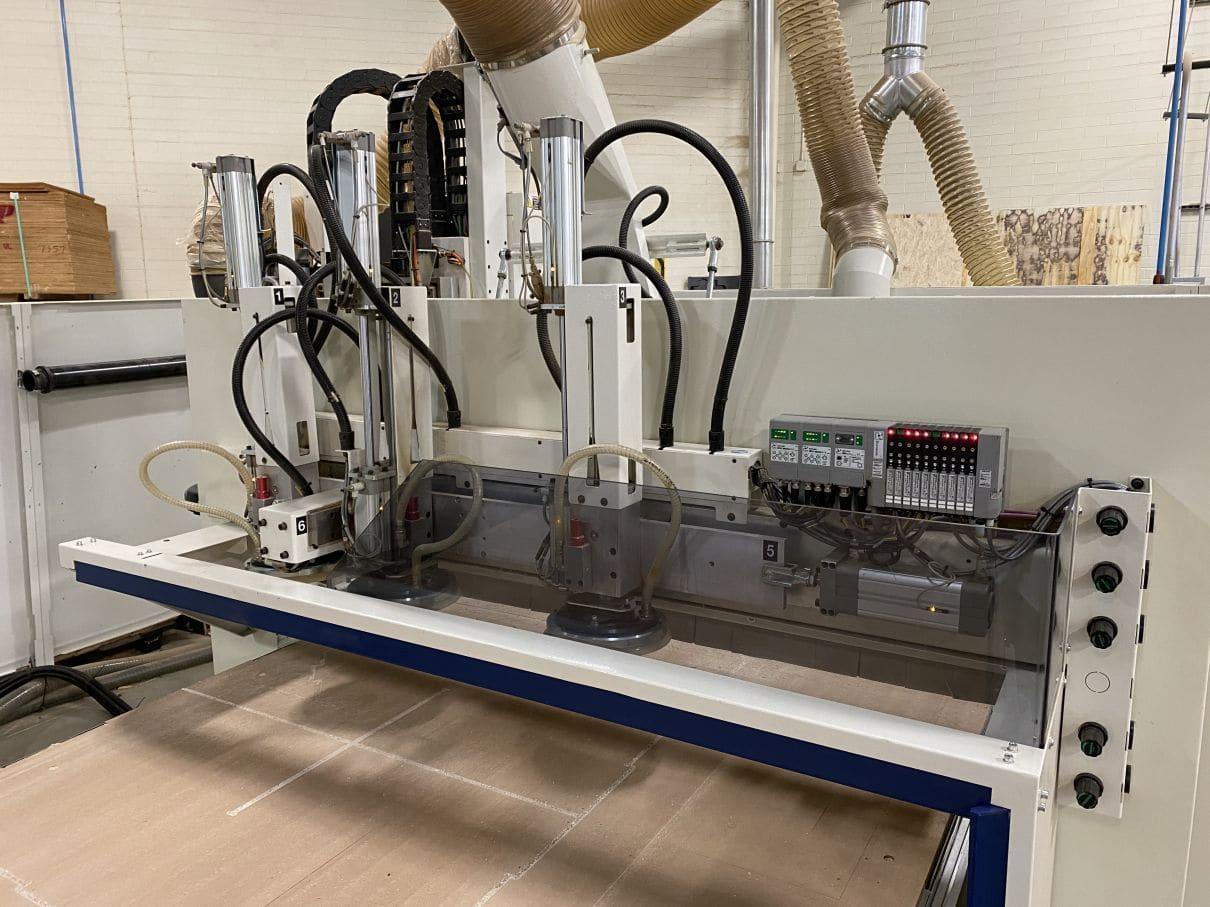

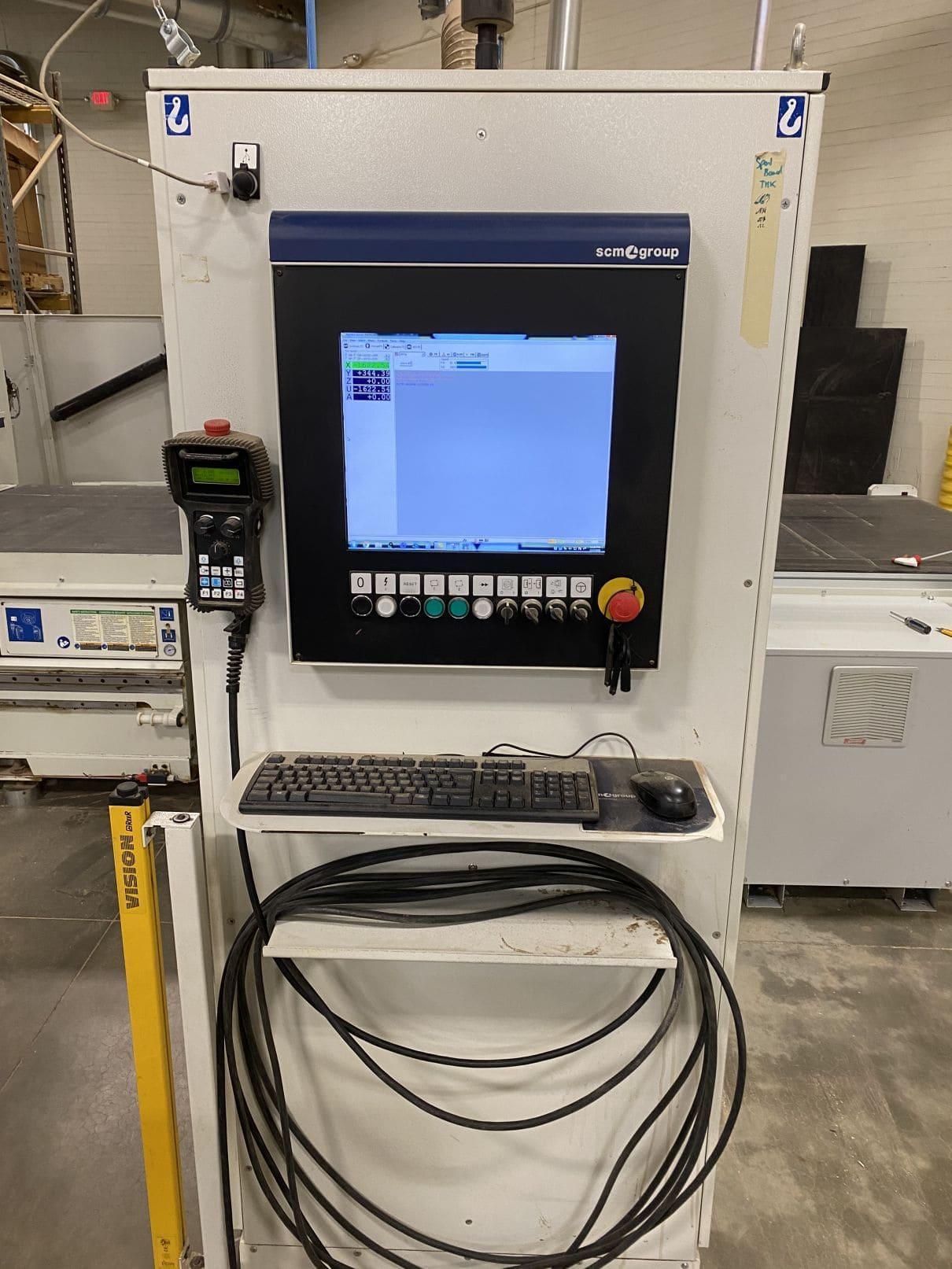

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with • Automatic lubrication Control Unit • CNC numeric control • OFFICE-PC- Operating system Microsoft Windows 7 – LCD display 17″ – Hard disk 500 Gb- RAM memory 2 Gb – Network card Operator Interface • Xilog Plus- Workpiece geometry programming by graphic editors or open editor – Automatic execution of a program or multi concatenated programs – Subprograms and user macro management – DXF files import- Machining optimiser – Multi-tool equipment management – Dynamic control of accelerations Safety Devices • The Accord 30 utilizes bumpers and photocells • Photocells are the main safety system. • When the photocell barrier is breached the machine uses bumpers to protect the operator. Options include: 870009 Drilling unit with independent vertical movement along the Z axes. Technical specifications: • 10 independent vertical spindles • 4 horizontal spindle along the X-axes • 2 horizontal spindle along the Y axes • on-off pneumatic vertical stroke for each spindle 60 mm • rotation speed from 2000 to 8000 rpm controlled by the inverter • motor power 3 KW 210055 Rapid 16 Rear Tool Magazine Circular tool magazine anchored to the mobile gantry. Technical specifications: • 16 positions (tool-holders not included) • Centre distance between positions 85 mm (3.24”) • Max. Weight per position 8 kg (17.6 lbs) • Max. Tool diameter 300 mm (11.81”) • Max. Tool weight on the magazine 48 kg (101.2 lbs) 870119 Measuring Device for Tool Length It ensures the detection of the tool mounted on the electro-spindle directly from the machine. Roller Hold Down System • Maximum part thickness 90 mm (3.54”) • 4 each Heavy-duty rubber rollers 350022 High Flow Vacuum system (600M3/hr) – 2 each 300 CMH Pumps – Plumbing with 4 manifolds 110181 Multi-voltage 208/230/460V autotransformer up to 2 heads and 2 pump Nesting Cell Max Book Height 600mm (23.63”) Work cell with automatic loading/unloading system for the machining of panels with nesting technology.
