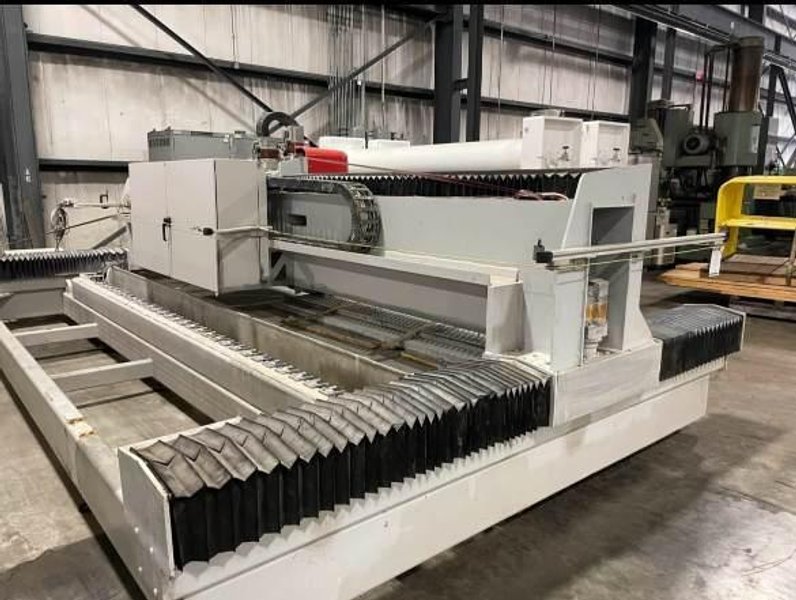

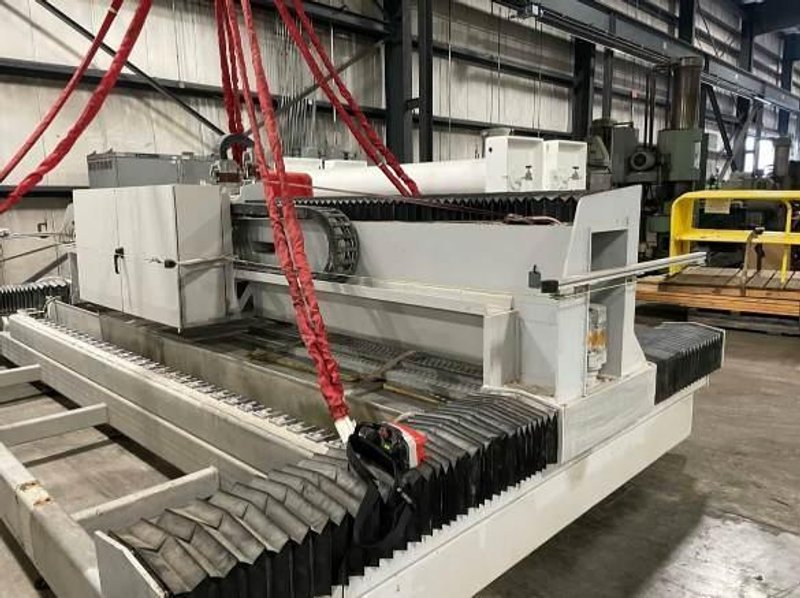

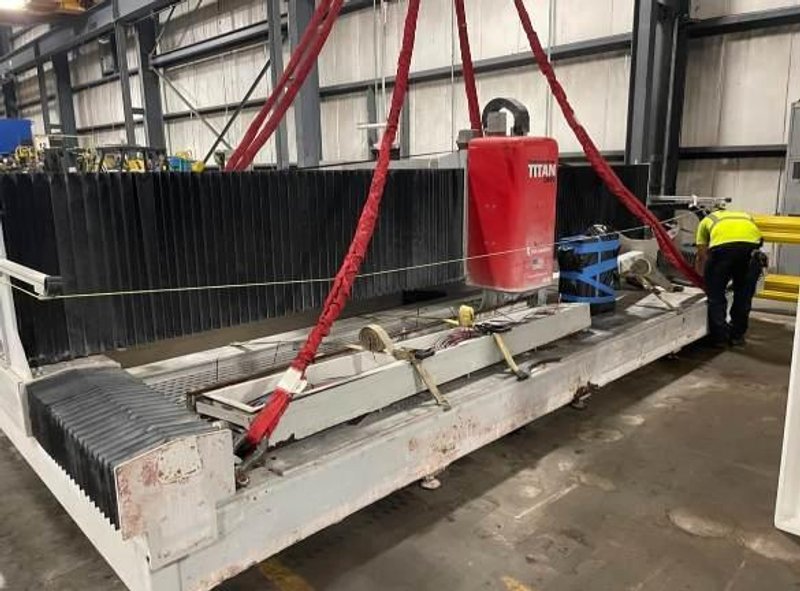

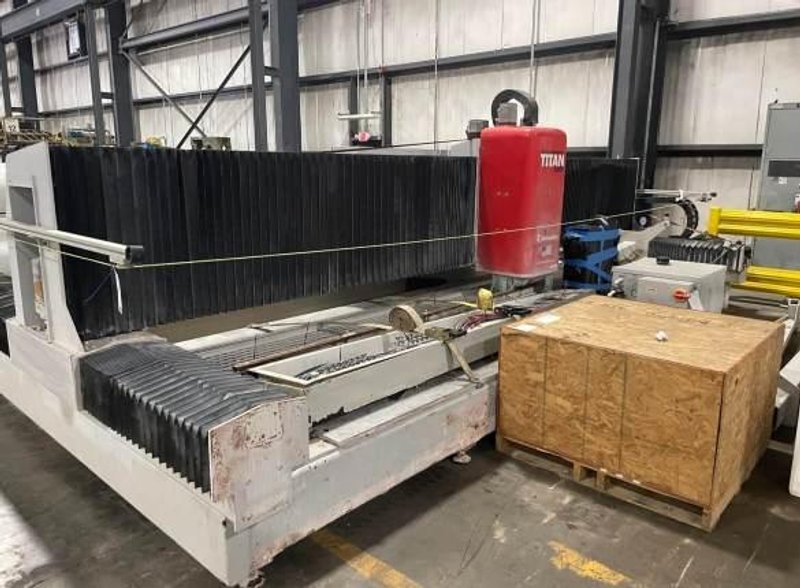

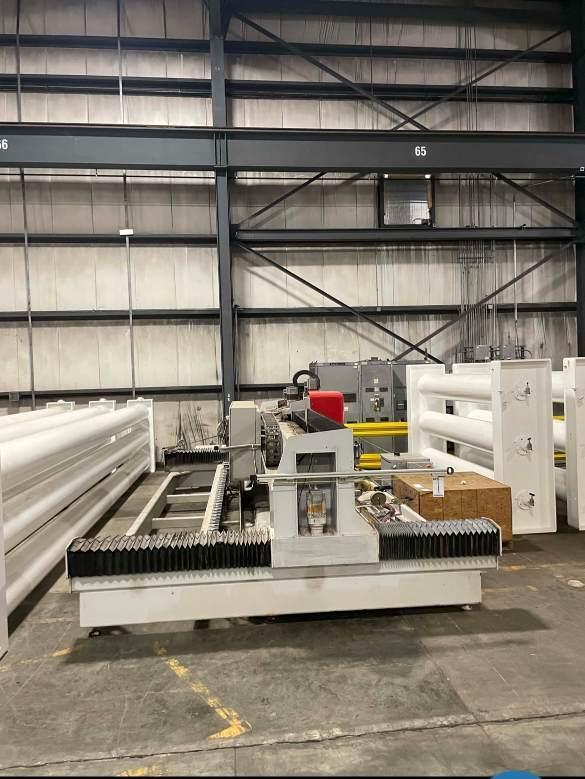

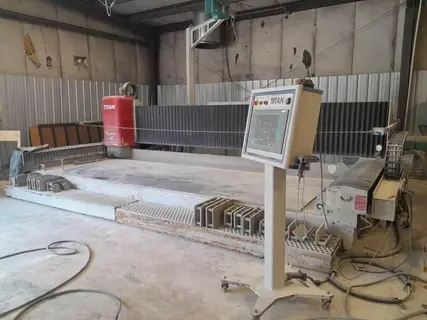

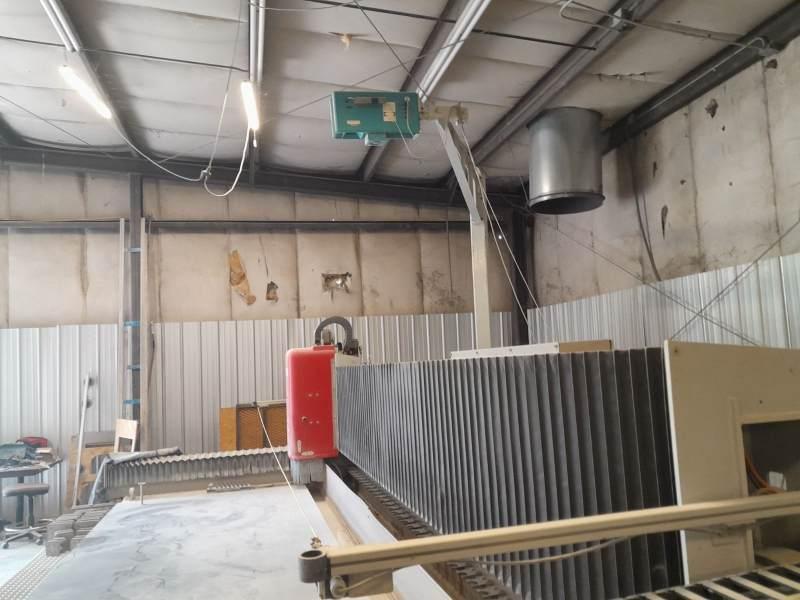

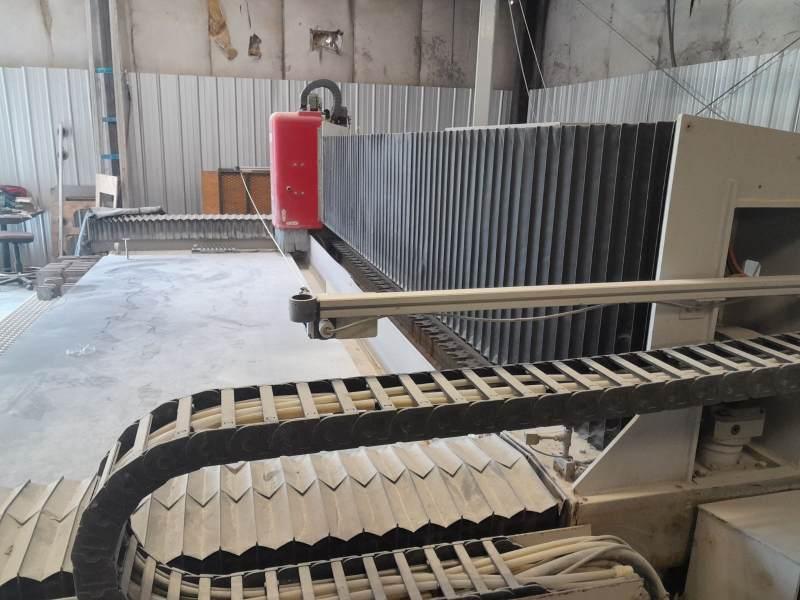

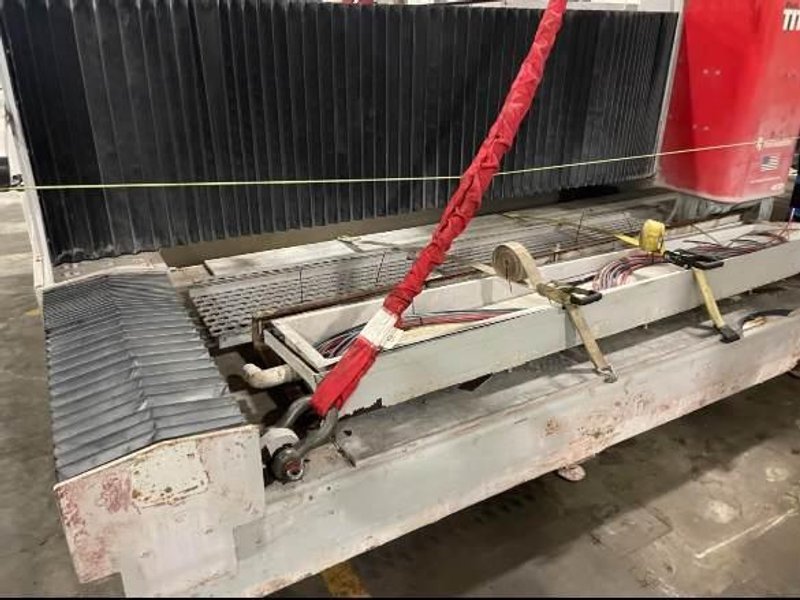

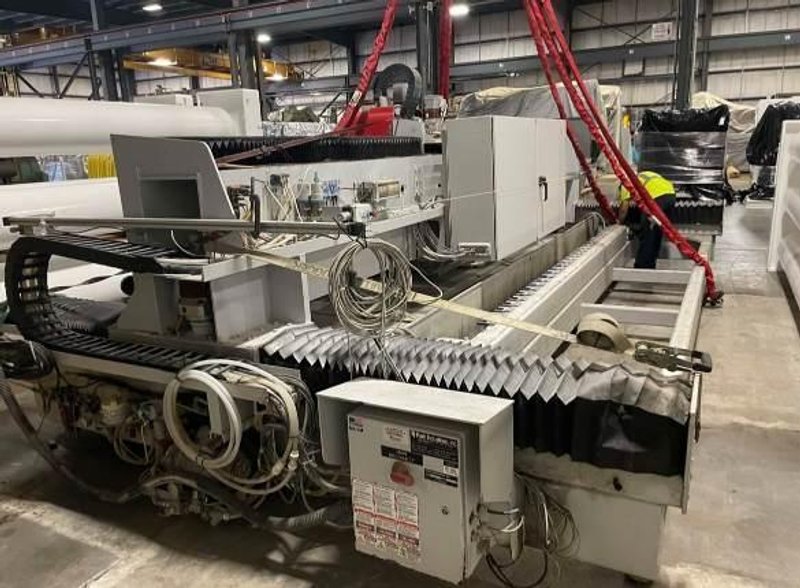

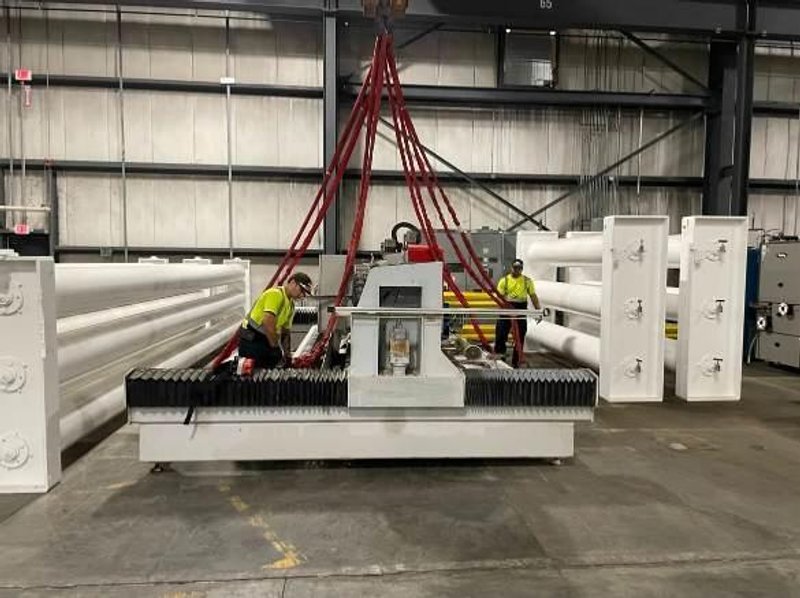

8′ x 15′ Park Industries Titan 1600 Stone Cutting CNC Router, 2011

Effective Work Area: 1800 – Router only spindle: 15′ 10″ x 8′ 21⁄2” 1800 – Router with saw blade option: 14′ 6″ x 8′ 21⁄2” 1600 Router-Only Spindle: 15′ 10″ x 6′ 5” 1600 – Router with saw blade option: 14′ 6″ x 6′ 5”

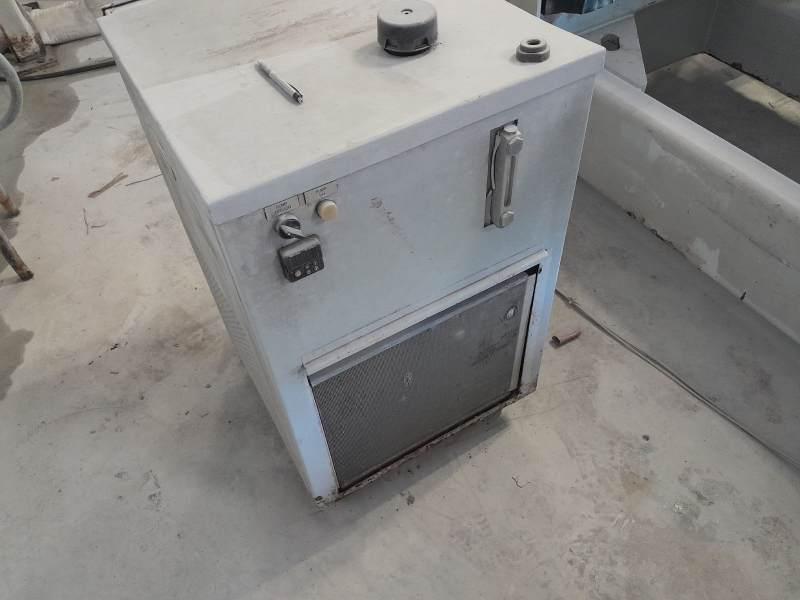

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Drive System: 24 HP stainless steel electrospindle (18Kw) Variable speed up to 10,000 RPM Liquid temperature controlled spindle with chiller to control temperature +/- 2oF Through-spindle water feed Pneumatic draw bar External water ring

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic Tool Changer: 1800 – 68 Station Dual Tool Rack (non-ITM); 1600 – 34 Station Tool Rack (non ITM) Tool Connection: BT40 Quick Change Tool Automatic Tool Cone Cleaning Between Tool Changes “Protection Zone” software minimizes the chance for machine crashes caused by operator error. “Quick Swap” feature allows pre-measured tools to be mounted in minutes, and makes the tool library virtually unlimited. “Tool Shield” protects tools from debris and damage during operation.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Worktable: Vacuum Part Holding System: 3 HP liquid ring vacuum pump, 5.1 SCFM @25 in Hg Individual vacuum control valves to each cup “Air float” slab positioning

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum Pods: 12 dual chamber vacuum cups: (2) 250mm x 500mm cups (4) 150mm X 150mm cups (6) 200mm X 200mm cups 2 manifolds, accommodates 8 vacuum cups each, total of 16 cups TN20102 1800 – 16’ x 8’; 1600 16’ x 6’ Patent-pending ArmorDeckTM precision machined work surface with 30% more holding power will not corrode or dent, and ensures parts can’t move during fabrication. The mono-block machine base is exceptionally rigid and provides easy access during set up. 18” from floor to table top; step-up clear access 8” high x 18” wide ergonomic full length front step for easy loading and unloading Page 1-41 © 2010, Park Industries TITAN CNC Stone Center – Issue 1 – April 2010 – Section 1

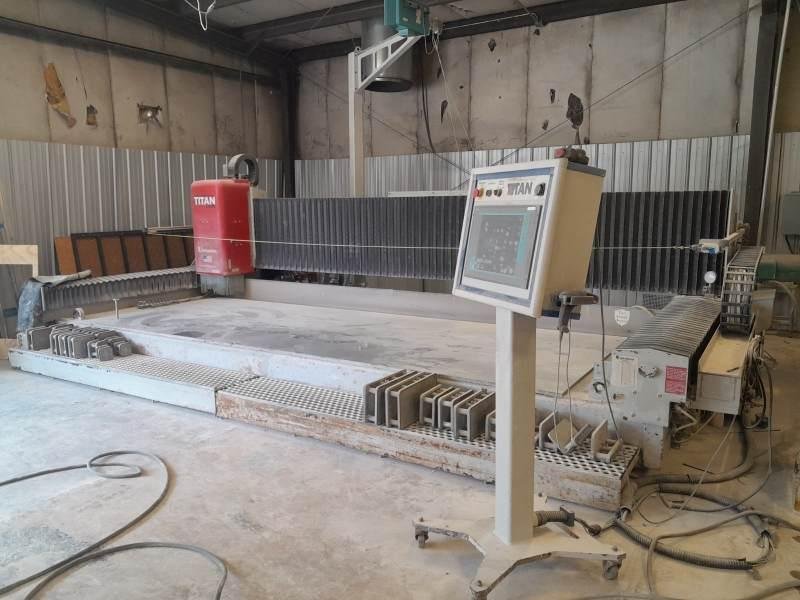

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Specifications Machine Control Control Type:Siemens 840D open-architecture CNC control 15” color touch-screen operator controls Windows XP Professional operating system Solid-state hard drive Video card with S-video and DVI ports Parallel port, front and rear USB ports Ethernet adapter Handheld pendant On-board Laser Digitizing System Line and arc digitizing Editing functions: rotate file, mirror file, zoom, tool compensation “Drip Feed” feature processes large program files directly from the hard drive Automatic tool compensation. Z-axis spindle oscillation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Software and Hardware Packages: Park Touchstone SFP (Shop Floor Programming) Software (included with machine): Easy to use “conversational” touch-screen programming; CAD knowledge not required to operate system Fully functional “on-machine” programming and digitizing CAM system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Includes one year of software updates; updates after one year require an annual mainte- nance fee. AlphaStone CAD/CAM software (optional) Fully functional advanced CAD-CAM office programming system with bar code scanner On-screen simulation of tool paths Automatic tool grouping and tool path generation using styles Includes one year of software updates; updates after one year require an annual mainte- nance fee. AlphaCAD software (optional) Fully functional advanced CAD programming system PC Workstation (optional) Computer tower, 17” LCD monitor, mouse and keypad Intel Core2 Duo 3Ghz processor Windows version 7 64bit 500 GB 7200 rpm hard drive 4 GB memory

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Movements X-Axis (Cross Travel Movement): Length of movement: 15′ – 10″ spindle only Length of movement: 14′ – 6″ spindle with saw option Maximum speed: 2,360 inches per minute Siemens AC servo motor with low backlash gearing, absolute encoder position feedback, and automatic lubricator THK precision linear bearing system with seals, scrapers, lubricator, and zerk Precision ground helical rack & pinion drive with automatic lubrication Bellows protect positioning system from moisture, debris and grit Y-Axis (Gantry Movement): Length of movement: 1800 – 11′ 6″; 1600 – 7’ 6” Maximum speed: 2,360 inches per minute Dual Siemens AC servo motors with low backlash gearing, absolute encoder position feed- back, automatic lubricator, and electronic synchronization THK precision linear bearing system with seals, scrapers, lubricator, and zerk Precision ground helical rack & pinion drive with automatic lubrication Bellows protect positioning system from moisture, debris and grit Z1-Axis (Spindle Rise and Lower Movement): Length of movement: 12″ Maximum speed: 500 inches per minute Siemens AC servo motor with absolute encoder position feedback Precision ground helical rack & pinion drive with automatic lubrication Bellows protect positioning system from moisture, debris and grit Safety Features Siemens Safety Rated Integrated Control Full perimeter, safety-stop pull-cord assembly Lockable 100 amp fused disconnect with Lock-out Tag-out procedure Machine Construction Base Frame

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Specifications Electrical, Air and Water Requirements Electrical Service Supply 480 volt (+/-10%), 3 phase, 60 Hz, 60 amps standard 60 amp fused disconnect between 480 volt power source and TITAN (disconnect supplied by customer) Machine Internet Connection DSL or high-speed internet connection hard-wired (not wireless) to machine. Water Service Supply

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,pH: 8.0 to 8.5 range Free Chlorine: 3 ppm maximum (If chlorine is used in your facility to manage bacte- ria, it is always important to use the proper amount.) Hardness: 50 to 300 ppm range Total Alkalinity: 100 ppm minimum Suspended Particle Size ◊ Spindle Center Water Feed: 10 micron maximum ◊ Spindle Water Ring: 50 micron maximum Dual water feed (two 3⁄4″ I.D. water lines minimum): Spindle center water feed: 5 GPM, 45-65 PSI, filtered to 10 micron, and to above specification. Optional blade, water ring, and vacuum pump: 7 GPM, 45-65 PSI, filtered to 50 mi- cron, and to the above specification. Single water feed (one 3⁄4″ I.D. water line minimum): 12 GPM, 45-65 PSI, filtered to 10 micron and to the above specification. Air (Pneumatic) Service Supply Air specifications: Line size: 1⁄2″ I.D Min. Pressure: 100 psi Required volume: 20 SCFM Air Quality: Particulate: 15 micron Moisture: +37.4 deg. F Pressure Dewpoint @ 100psi Oil: .01 mg/m3 Max. Page 1-44 © 2010, Park Industries TN20102

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Specifications Space & Weight Machine Weight: 1800 – 31,000 lbs; 1600 – 25,000 lbs. Overall dimensions: 1800 Floor Space Requirements: 20′ long x 26′ wide x 7′ 8″ high (12′ 2″ high with optional overhead laser) 1600 Floor Space Requirements: 16′ long x 26′ wide x 7′ 8″ high (12′ 2″ high with optional overhead laser)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Options: Machine: Sawing drive and pivot system – 3 HP, 360 degree rotation, 8″ maximum blade 480 volt (+/-10%), 3 phase, 60 Hz, 100 amps (standard) 208/240 volt, 45 KVA Transformer 575 volt, 45 KVA Transformer Retractable water curtain for spindle and blade Retractable water curtain for spindle only Water containment assembly, tank on front of table ArmorDeck Tabletop Planing Kit Tool Setter CNC Tool Kit Projection laser assembly for part positioning (with mounting bracket) Software and Hardware: AlphaStone Standard Software AlphaStone – Additional Seat AlphaStone – Network License AlphaCAD Software PC Workstation Vacuum Pods Options: Additional 150mm X 250mm vacuum fence Additional 40mm X 150mm X 300mm support Additional 120mm X 120mm square vacuum cup Additional 150mm X 150mm square vacuum cup Additional 200mm X 200mm square vacuum cup Additional 250mm X 500mm square vacuum cup Additional pin stop with laser target, 50mm vacuum base Additional portable manifold accommodates 8 vacuum cups each

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,TITAN CNC Stone Center – Issue 1 – April 2010 – Section 1 Machine Specifications Machine Options: (cont’d) Other Options: Water & air filters(24 month supply) Water & air filters with tool clamping set and rotary water union (24 month supply) Basic tooling package Laser Measurement System Hardware Consumable Parts Kit Spare Parts Kit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 22,500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
