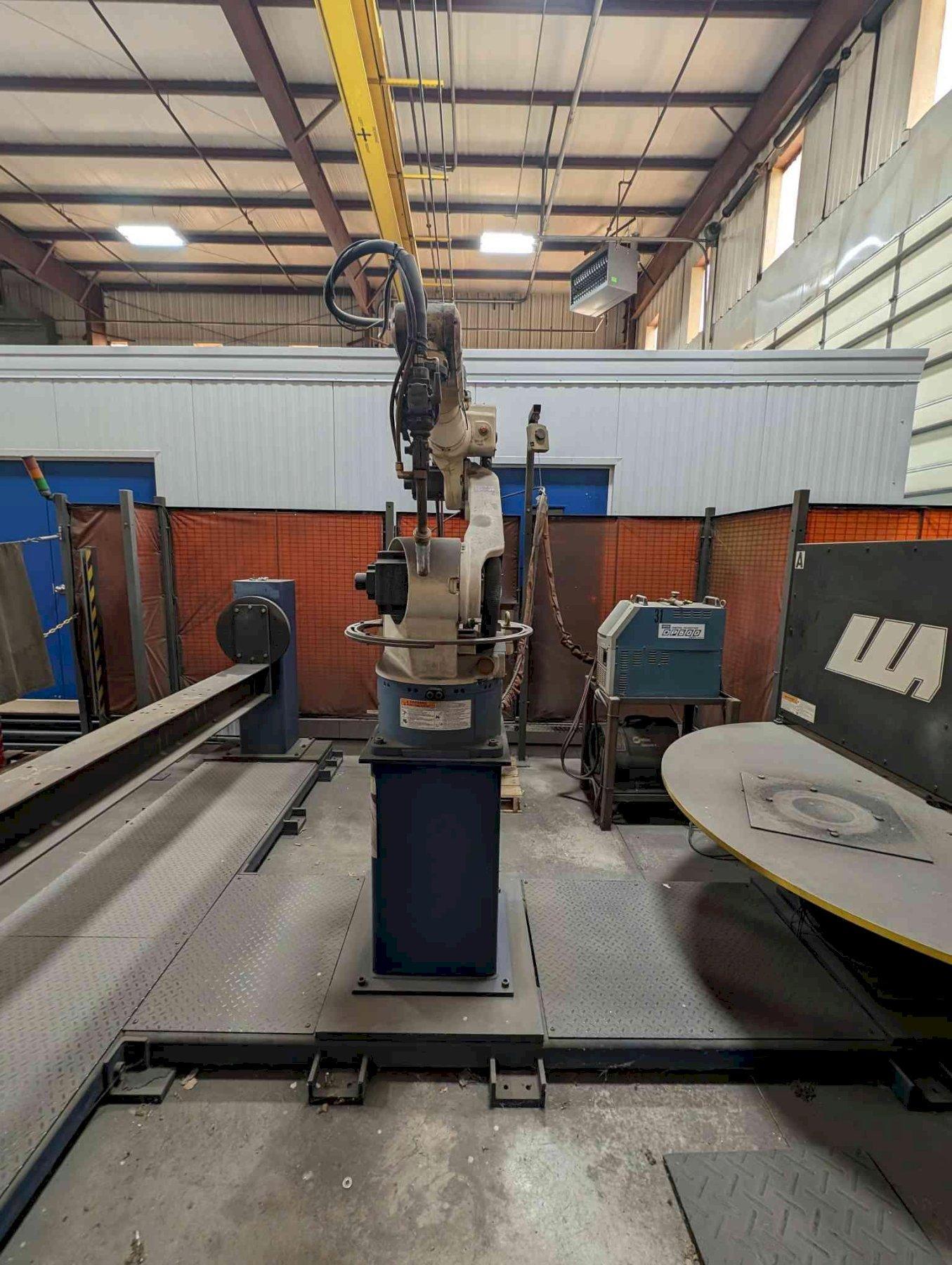

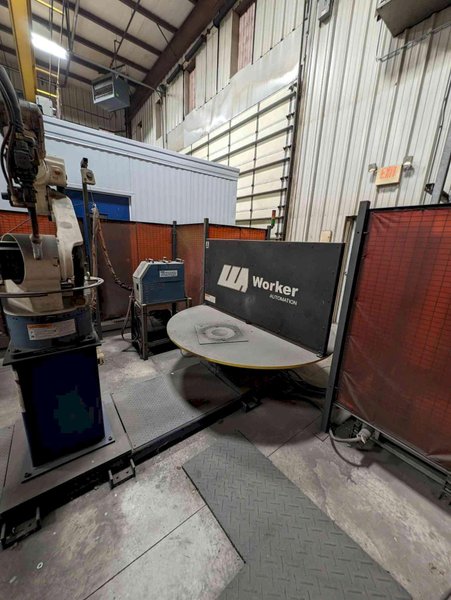

OTC Almega AX Robotic Weld Cell

Wire Feeder: AF 4001

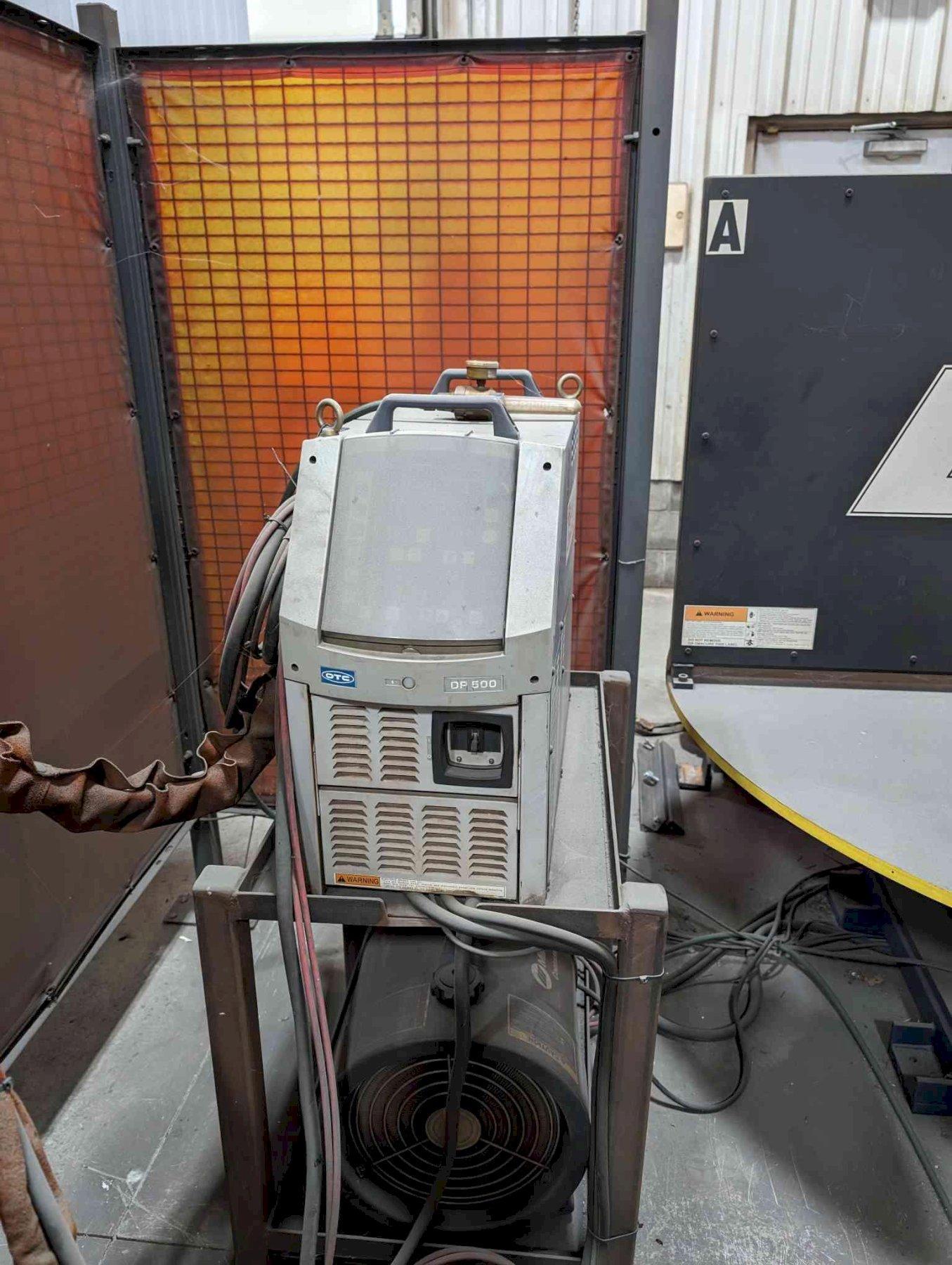

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding Power Source Model: DP-400

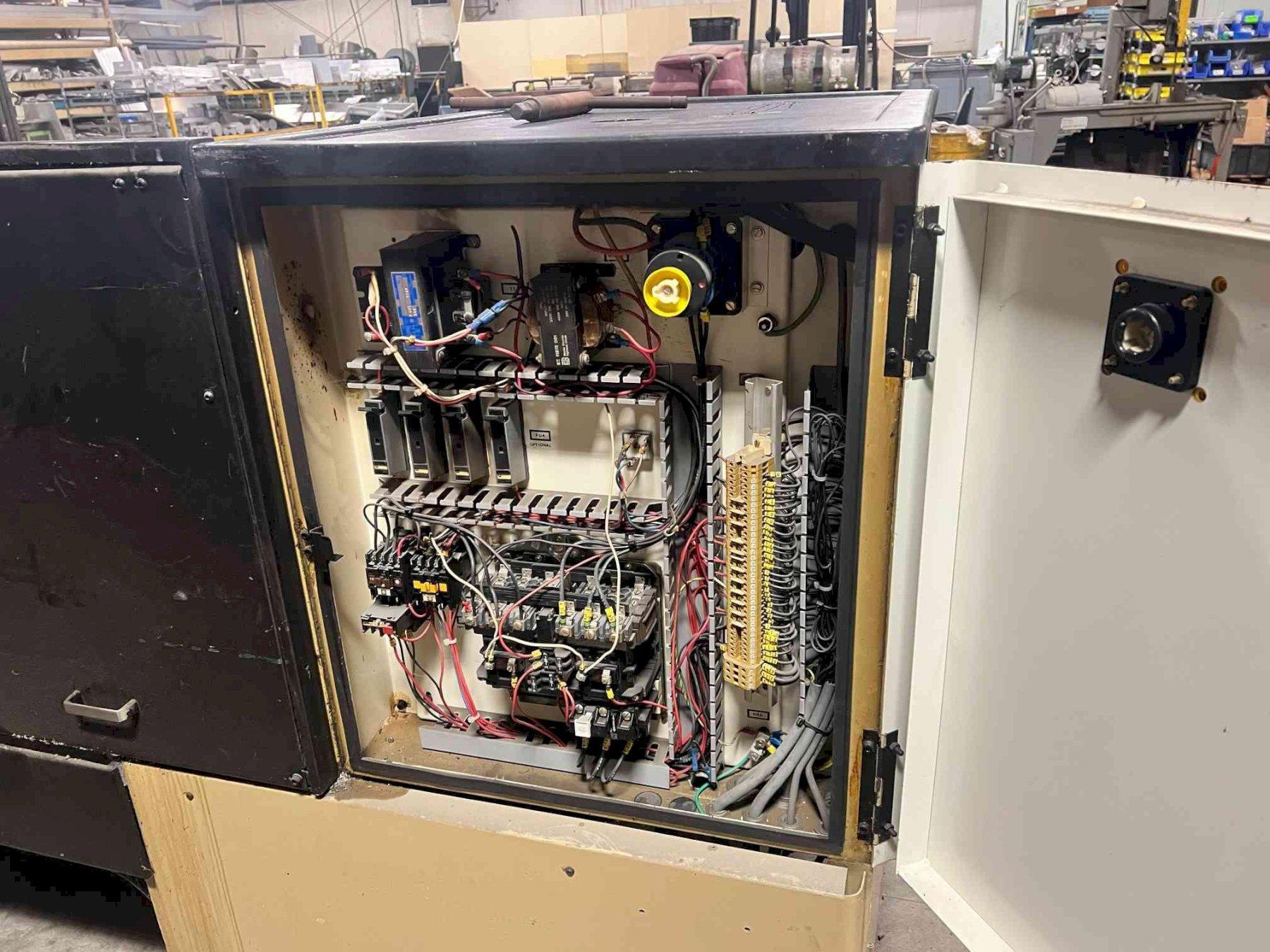

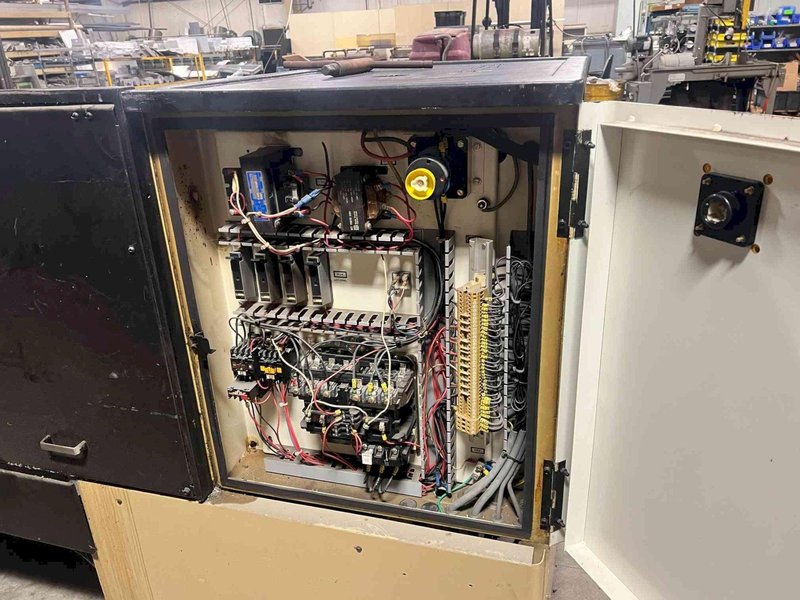

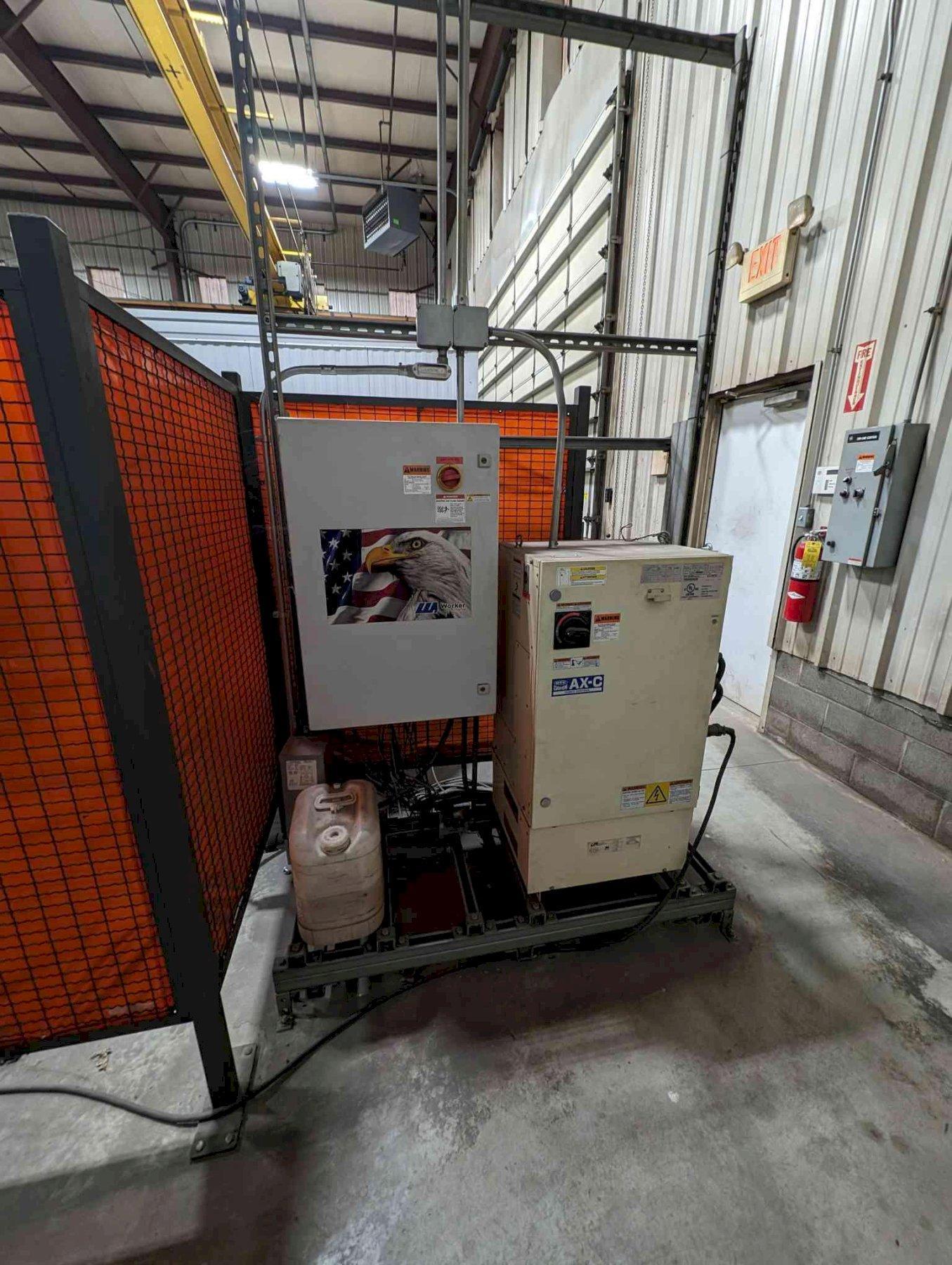

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding Mode: DC pulse Input Voltage: 3-phase, 380V±10%, 50/60Hz Dimensions (W×D×H): mm 250×640×544 Weight: kg 41.5 Control: AX-C

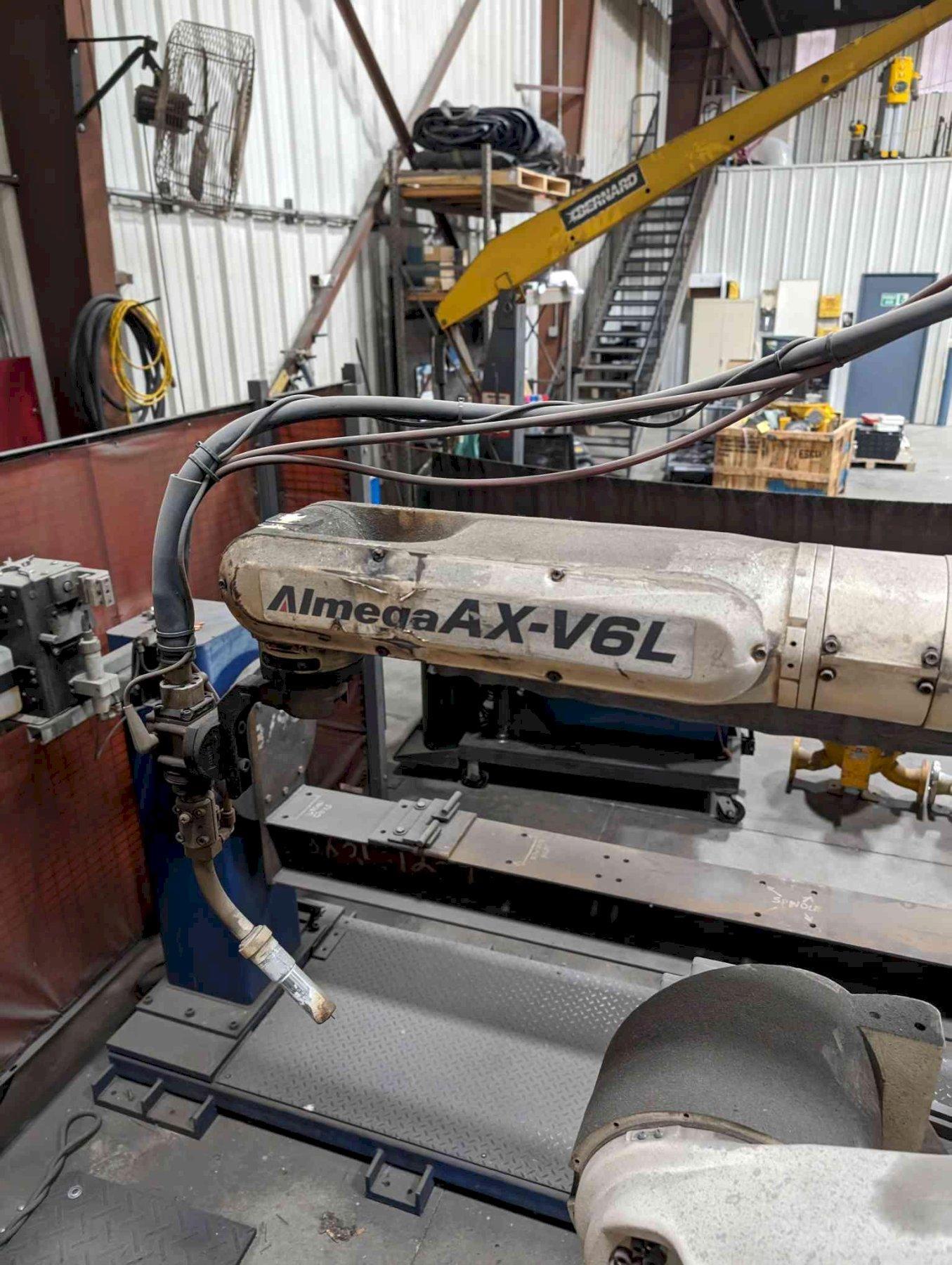

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Robot: AX V6 L General specifications: Number of axis: : 6 Payload: 6 kg Horizontal arm reach: 1402 mm Accuracy / repeatability: ±0.08 mm Axis data – motion range Axis 1 ±170° Axis 2 +155°, -90° Axis 3 +190°, -170° Axis 4 ±180° Axis 5 +230°, -50° Axis 6 ±360° Robot axis Speed Axis 1: 150 °/s Axis 2 :150 °/s Axis 3: 150 °/s Axis 4: 340 °/s Axis 5: 340 °/s Axis 6: 520 °/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Source: DP 400

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
