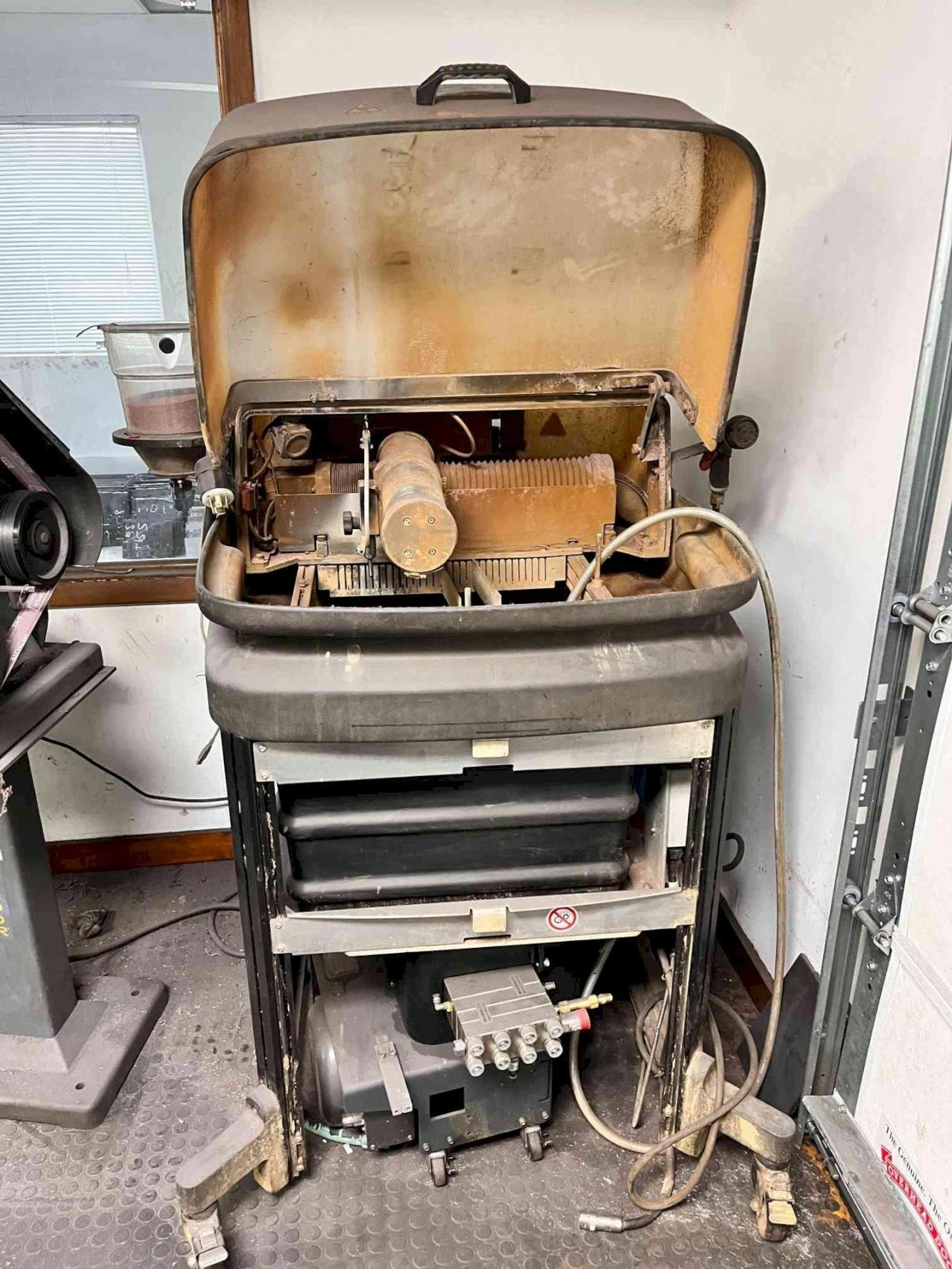

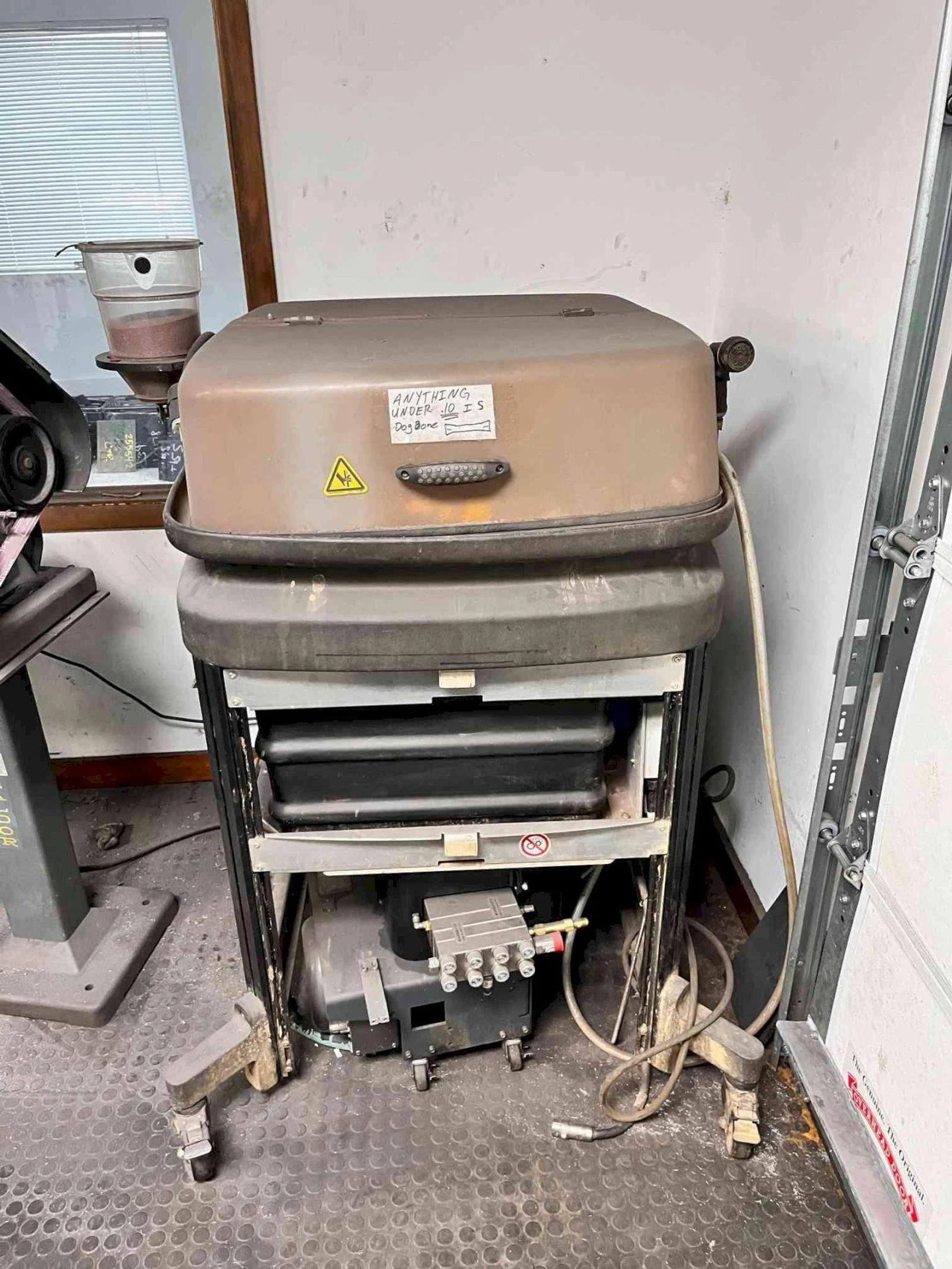

12″ x 12″ Omax Protomax Waterjet, 2019

Cutting Area: 12″ x 12″ Max Material Thickness: 1.00″ Linear Positional Accuracy: ±0.005″ Repeatability: ±0.003″ Traverse Speed:100 inches per minute (IPM) Pump Type: 5 HP (3.7 kW), Direct Drive Cutting Pressure: 30,000 psi High Pressure Water Flow Rate: 0.2 mm (0.95 lpm) Orifice Internal Diameter: 0.008” Mixing Tube: 2.25″long; 0.030″ internal diameter Electrical: 240VAC / 60 Hz Receptacle, 10′ cord Environment: 50 to 90 °F (10-32 °C) ambient temperature with 95% or less humidity Minimum Input Water Pressure: 45-85 PSI Minimum Flow Rate: 0.75 GPM Temperature Required: 45-80 °F Flow rate: 0.25 lbs. per minute Recommended size: 80 mesh Hopper Capacity: 14 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
