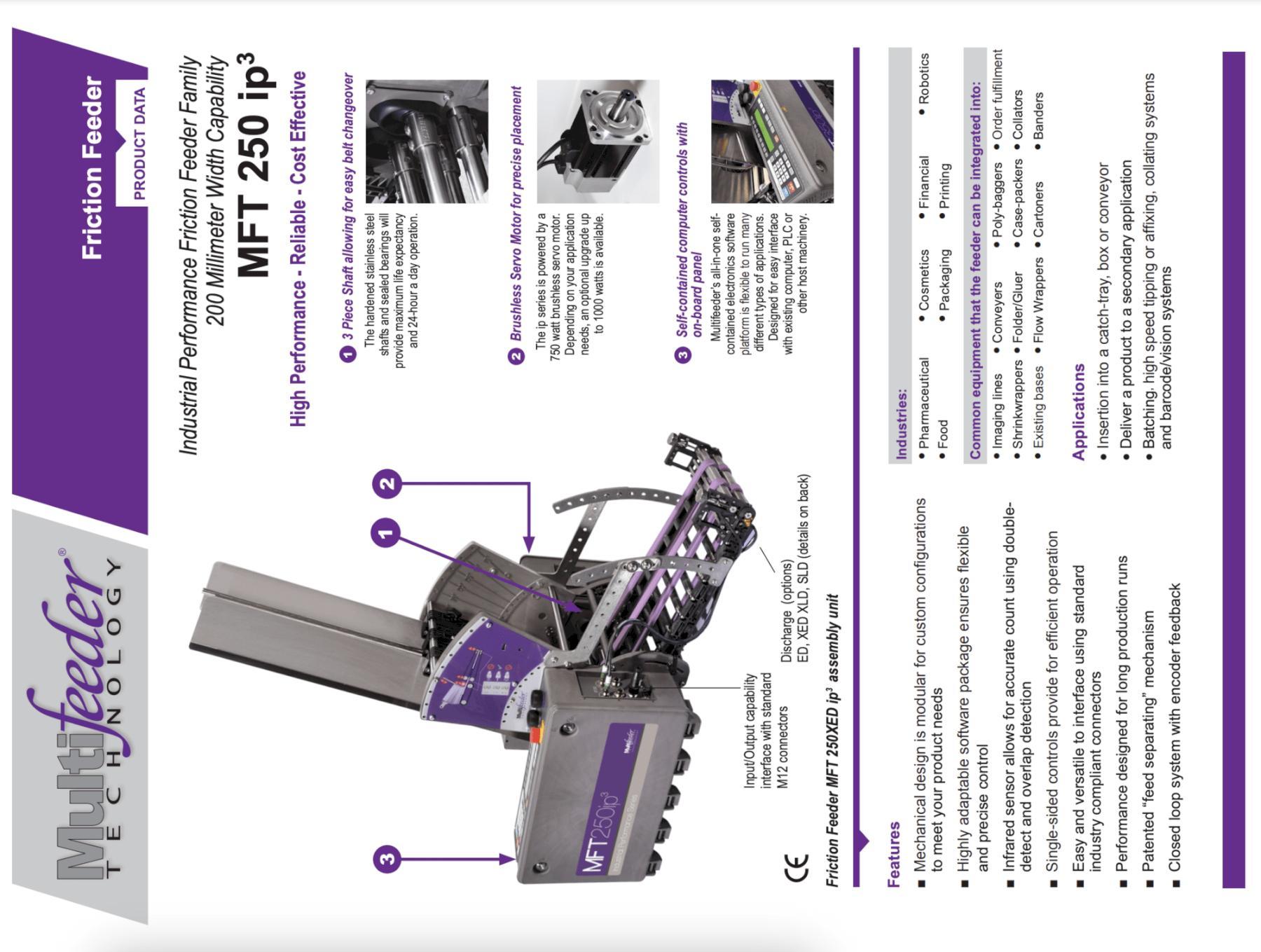

MFT 250 ip3, Industrial Performance Friction Feeder

Features ■ Mechanical design is modular for custom configurations to meet your product needs ■ Highly adaptable software package ensures flexible and precise control ■ Infrared sensor allows for accurate count using double- detect and overlap detection ■ Single-sided controls provide for efficient operation ■ Easy and versatile to interface using standard industry compliant connectors ■ Performance designed for long production runs ■ Patented “feed separating” mechanism ■ Closed loop system with encoder feedback Applications • Insertion into a catch-tray, box or conveyor • Deliver a product to a secondary application • Batching, high speed tipping or affixing, collating systems and barcode/vision systems Common equipment that the feeder can be integrated into:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,● Imaging lines ● Conveyers ● Poly-baggers ● Order fulfillment ● Shrinkwrappers ● Folder/Gluer ● Case-packers ● Collators ● Existing bases ● Flow Wrap

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height 856mm (31.7″) Length 645mm (25.4″) Width 538mm (21.2″) 200 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
