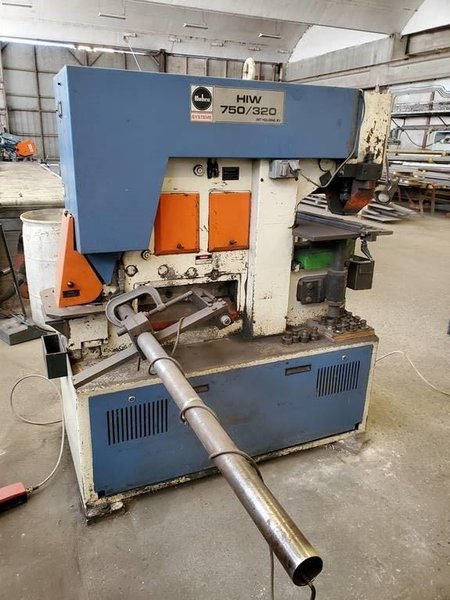

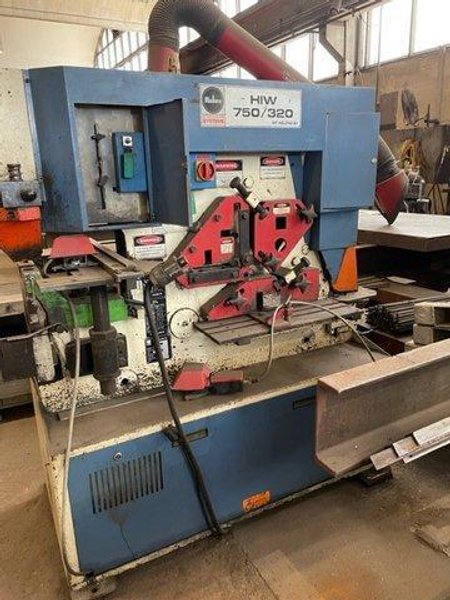

82 Ton Mubea HIW 750/320 Hydraulic Ironworker, 1999 – Punches and Dies

PUNCH: Pressure: 82 Tons Diameter Thru Thickness: 1-1/4″ thru 13/16″ Channels in Flange: 4-15 Beams in Flange: 4-15 Channels in Web: 3-15 Beams in Web: 3-15 Angle Shear: Angle 90 deg: 6″x6″x1/2″ Angle 45 deg: 3″x3″x5/16″ Working Height: 39-3/4″ Bar Shear: Round Bar: 2″ Square Bar: 1-3/4″ Plate Shear: Flat Bars: 18-5/8″ Or: 12-3/4″ Date: 3/21/2024 Manufacturer: www.dynamicmtusa.com Coper/Notcher:

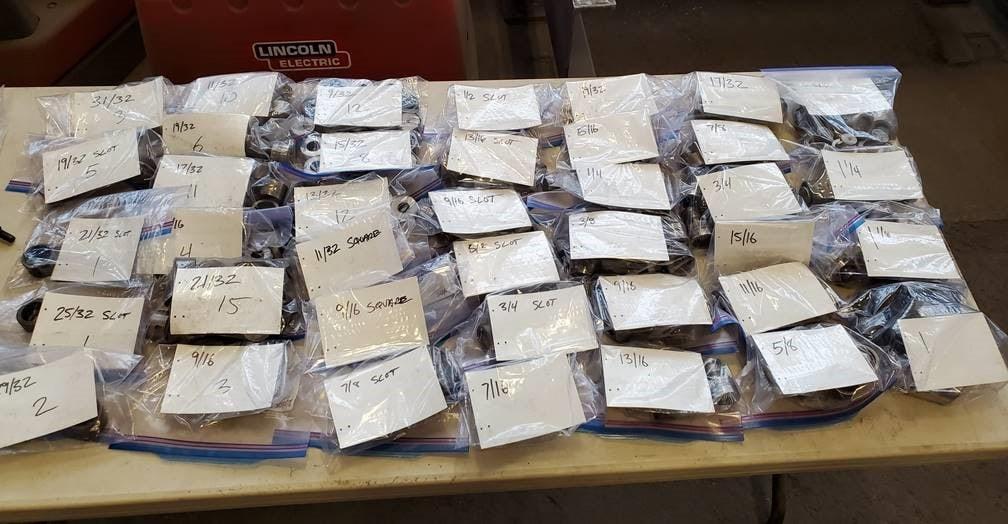

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With Rectangular Notching Tool Plates: 15/32″ Angles in Flange: 3×7/16″ Notching Depth: 2-3/4″ Stroke(Punch) infinitely variable: 0-2-3/4″ Number of Strokes(punch) at full stroke: 11 per min Number of Strokes(punch) at ¾”: 40 per min Motor: Voltage 208-240/440-480, 60 Hz, 10 HP Oil Capacity: 24 gallons Machine Dimensions: 60-1/2″ x 29-1/2″ x 65″ Weight: 4,035 lbs Includes: Electric Length Gauge Punches & Dies

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
