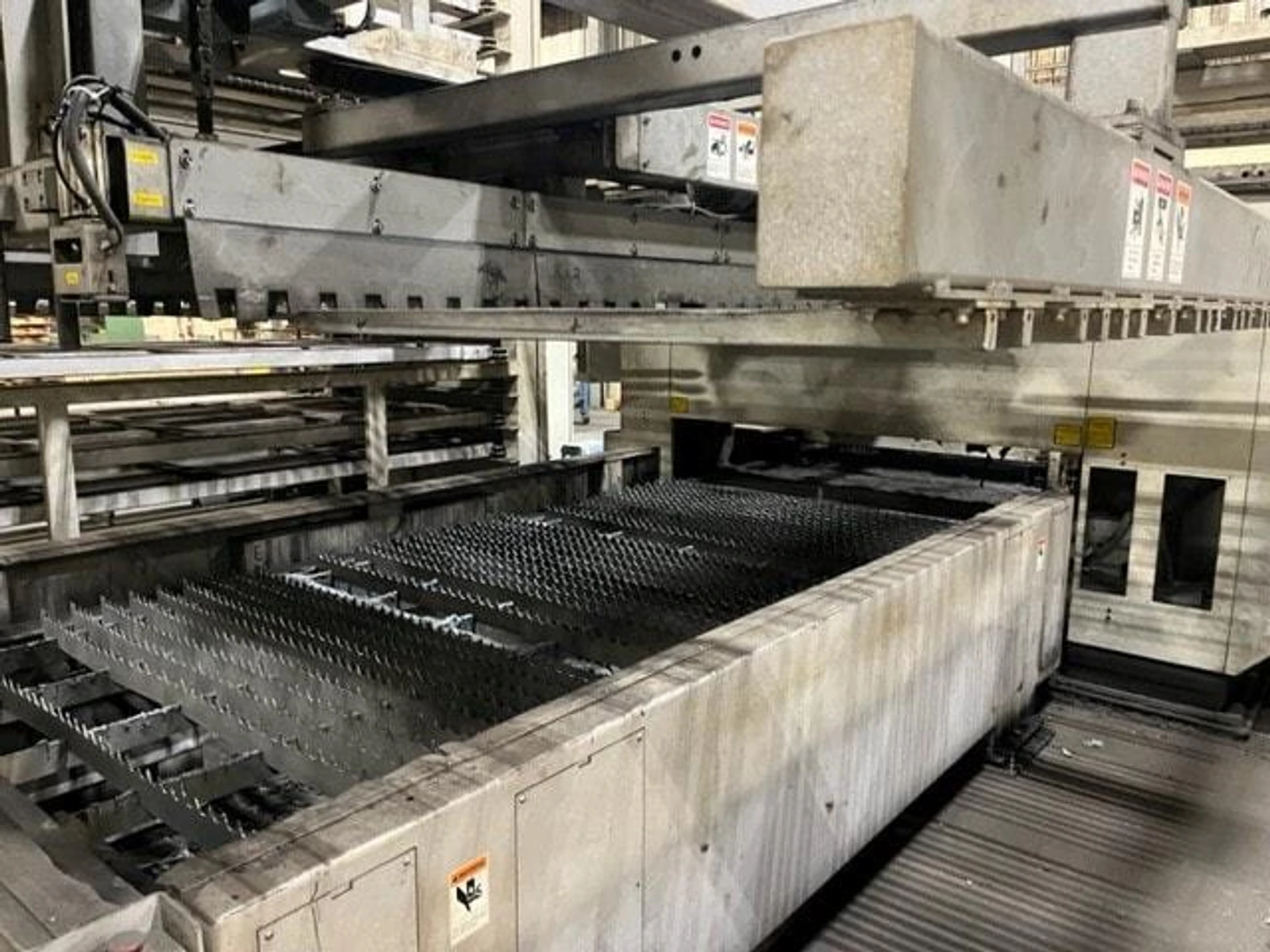

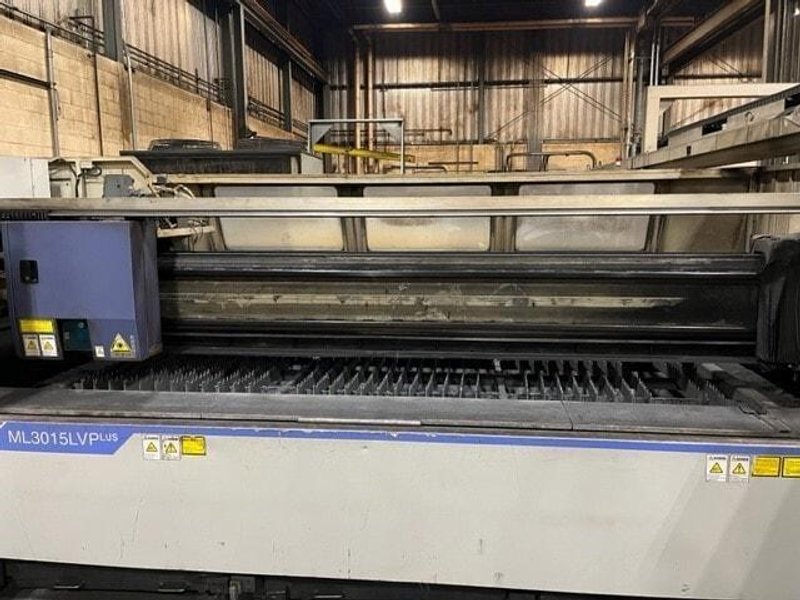

4000 Watt Mitsubishi ML3015 LVPlus, CO2 Laser, 2004- 5′ x 10′ Dual Shuttle Tables

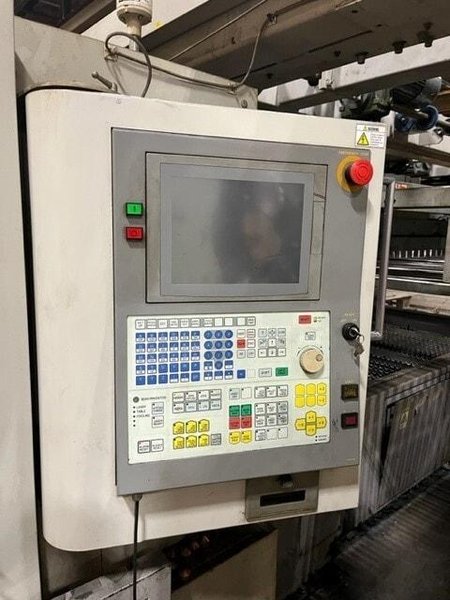

Machine Structure: Precision Rack and Pinion, Direct Drive Travel Drive Method: X,Y, Z Simultaneous 3 Axes Control Method: X,Y, Z Simultaneous 3 Axis Control X-Axis Stoke: 122.05” Y-Axis Stroke: 61.02” Z-Axis Stroke: 3.54” Maximum Work Piece Size: 120.08” X 60.04” Maximum Processing Feed Rate: 1180 Inches per Minute Maximum Workpiece Weight: 2050 Lbs. Table Pass Height: 33.5” Rapid Travel Speed Single Axis: 3345 Inches Per Minute Simultaneous: 4730 Inches Per Minute Minimum Command Input: 0.001mm/.0001” Drive Motor Type: Intelligent Ac Servo Machine Unit Dimensions: 418.5” L X 90.6” H X 183” W Total System Weight: 26,325 Lbs. Floor Space Requirement: 750 Sq. Ft. Electrical Requirements: 208 Vac +/- 5%, 3 Phase, 60 Hz Motion System, Cnc Control: 71 Kva (Total Machine Usage) Laser Resonator: 202 (Full Load Amps)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
