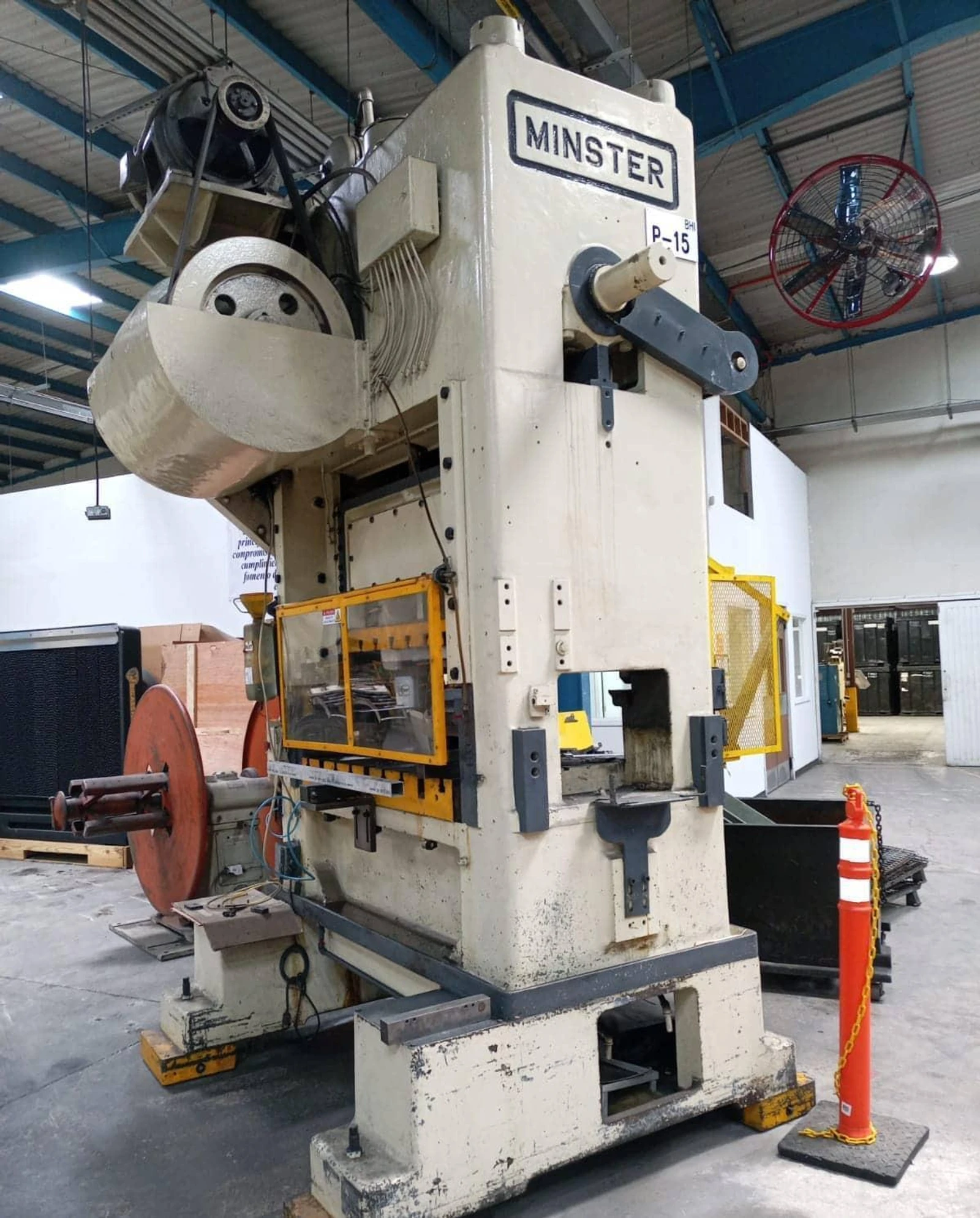

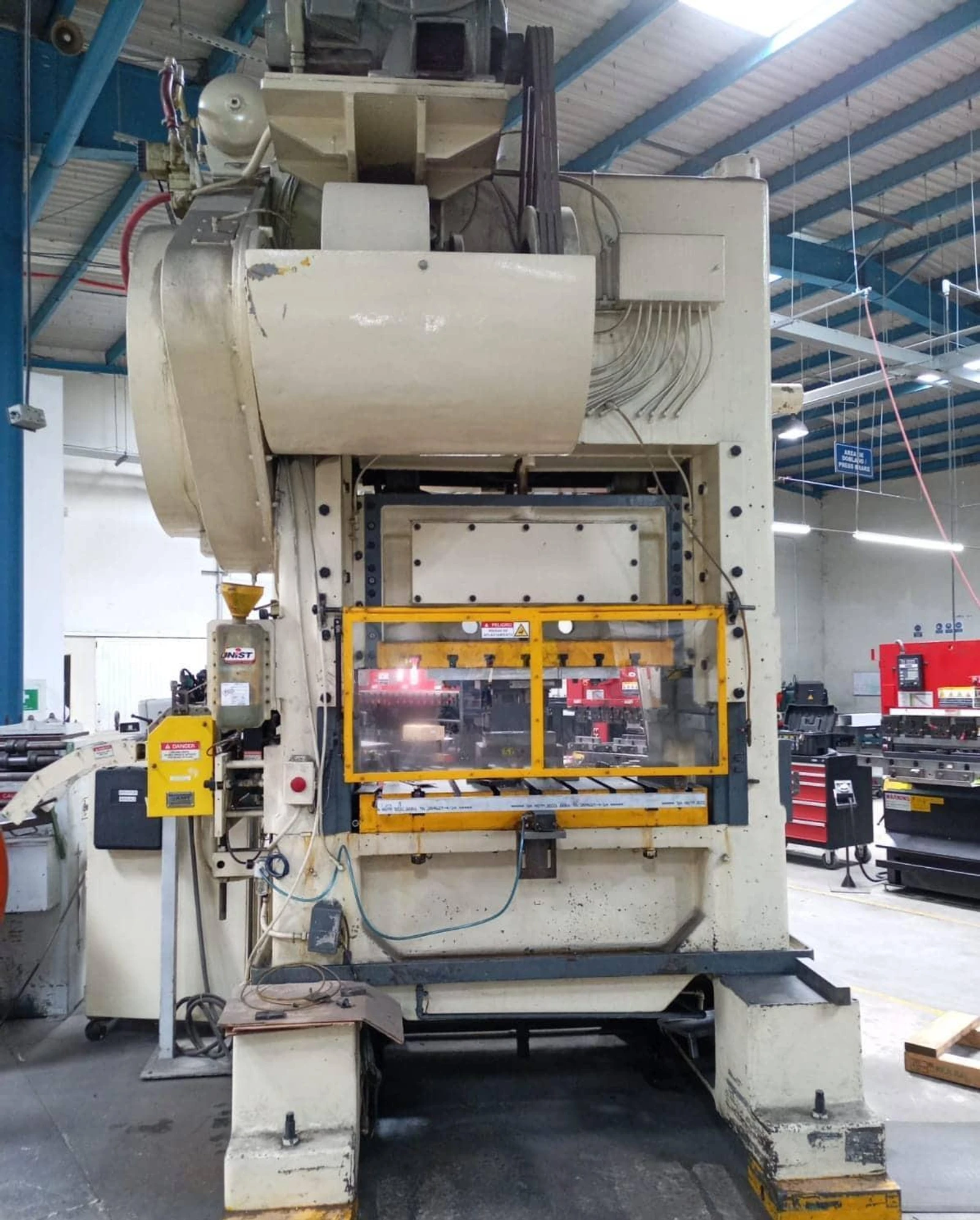

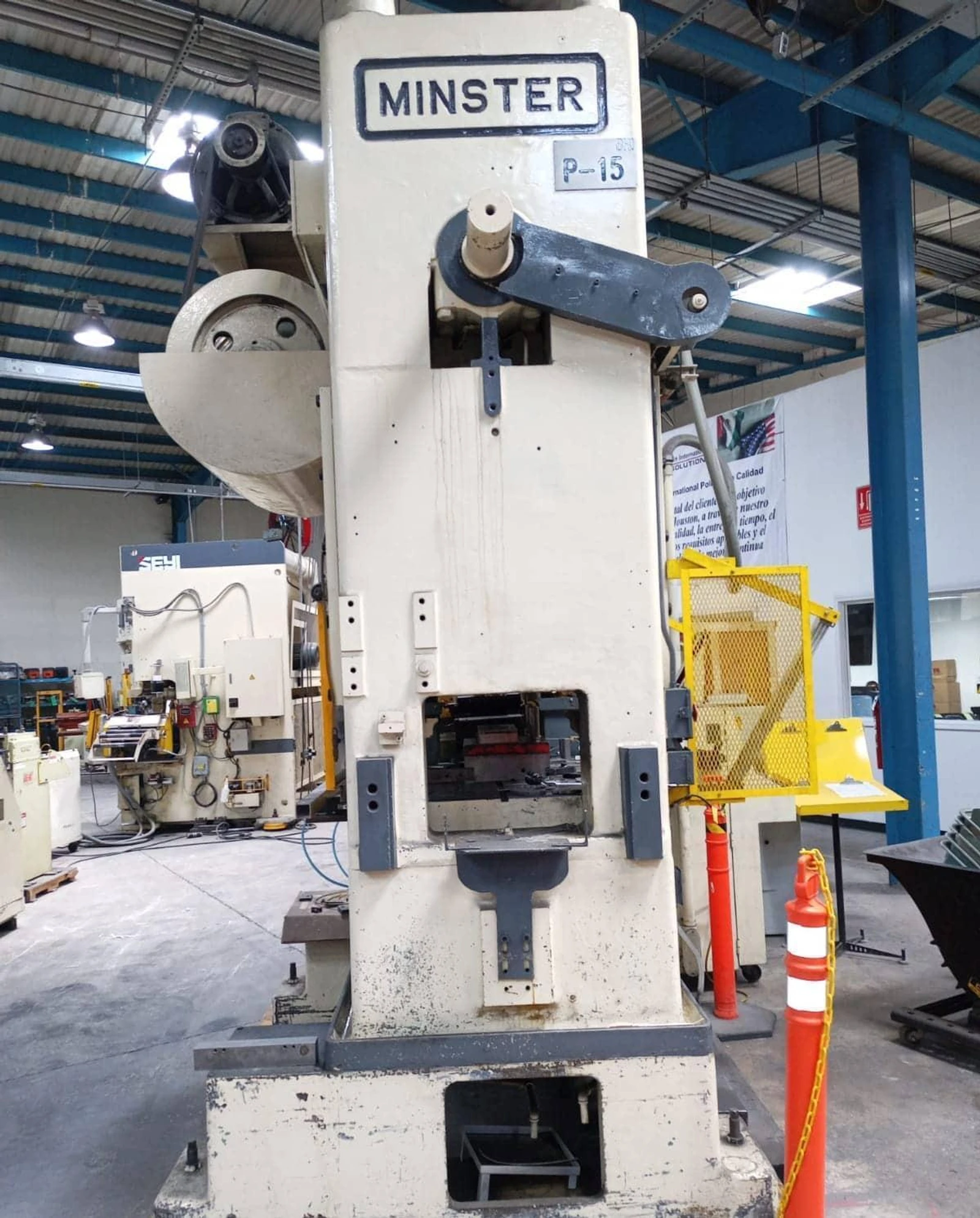

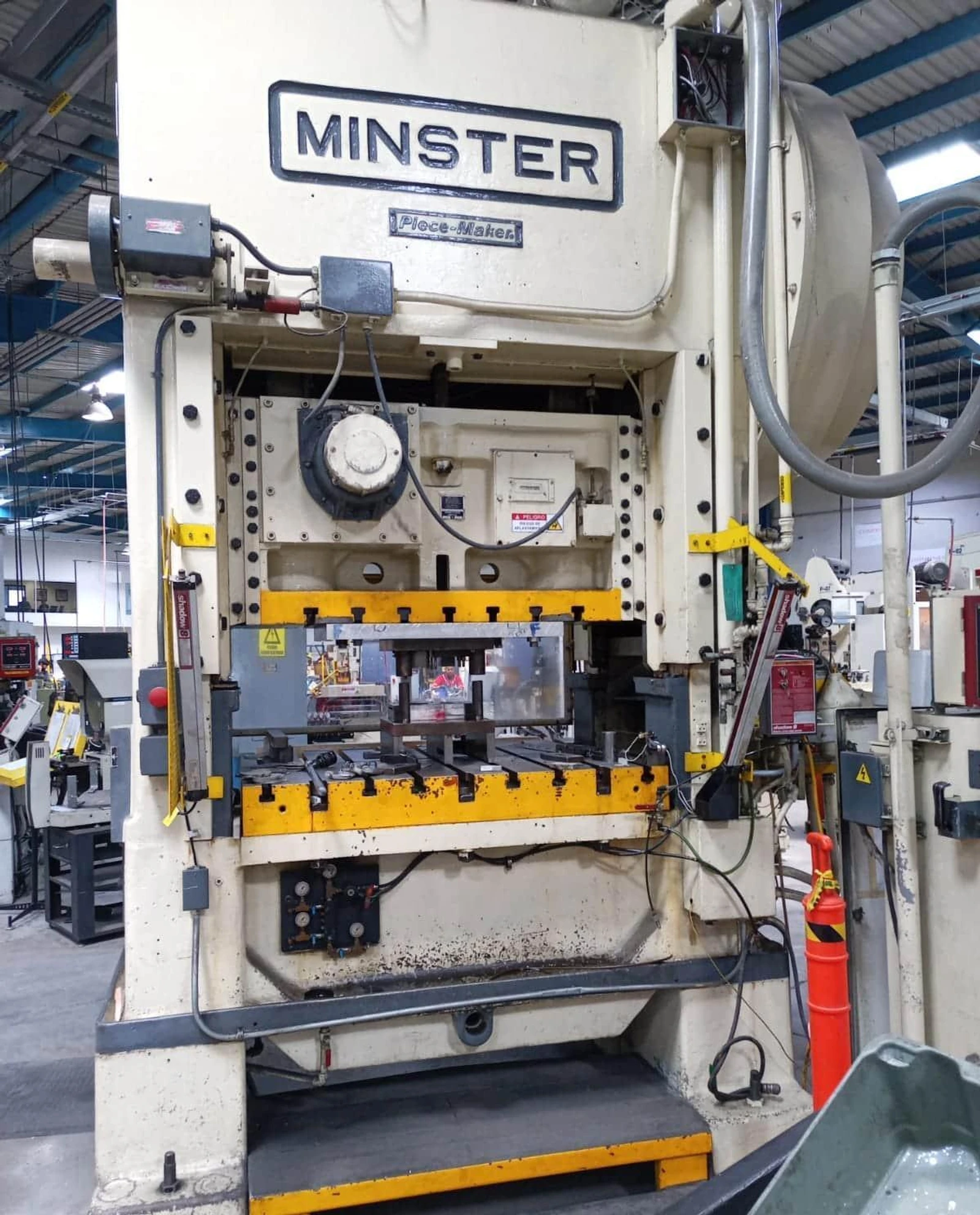

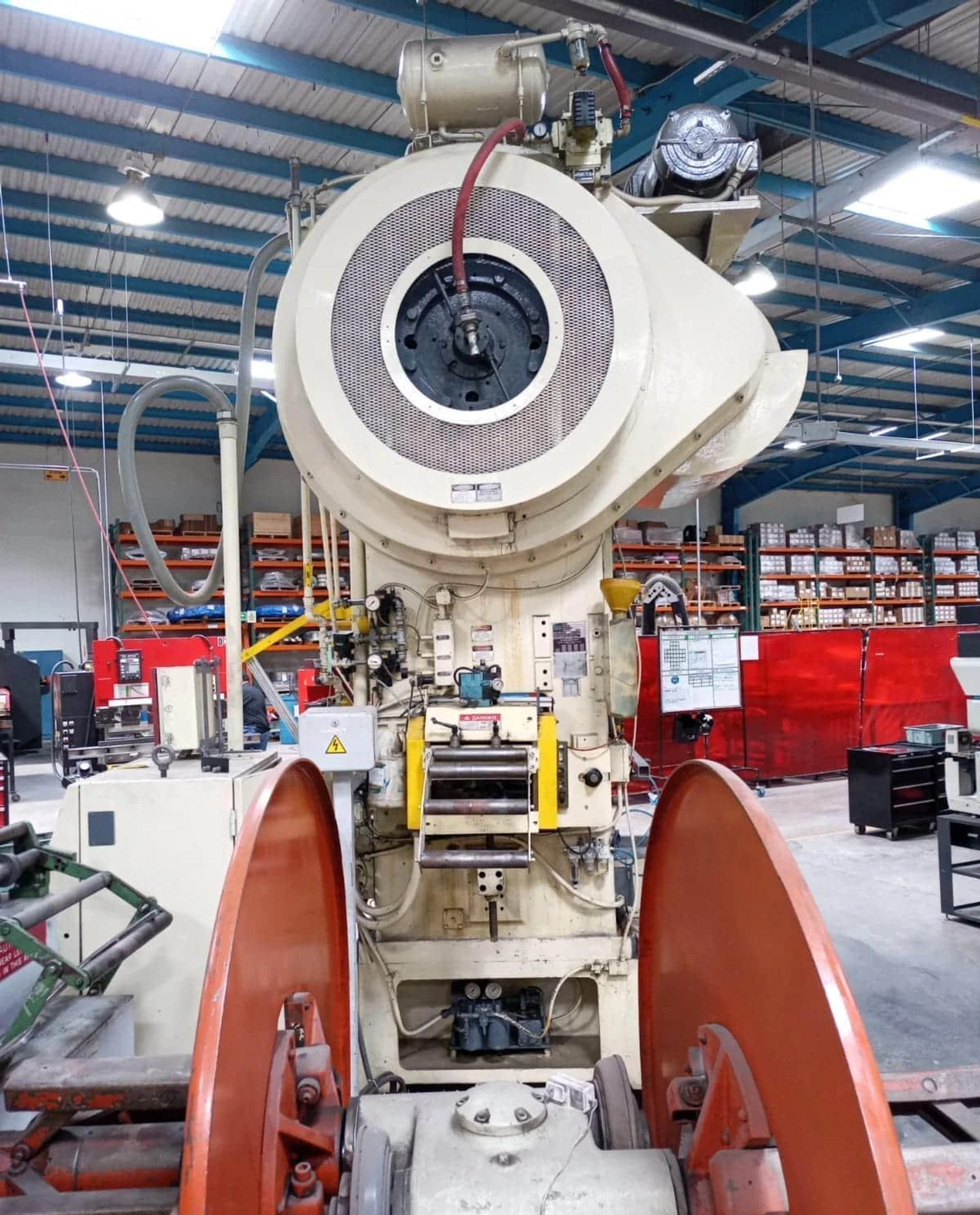

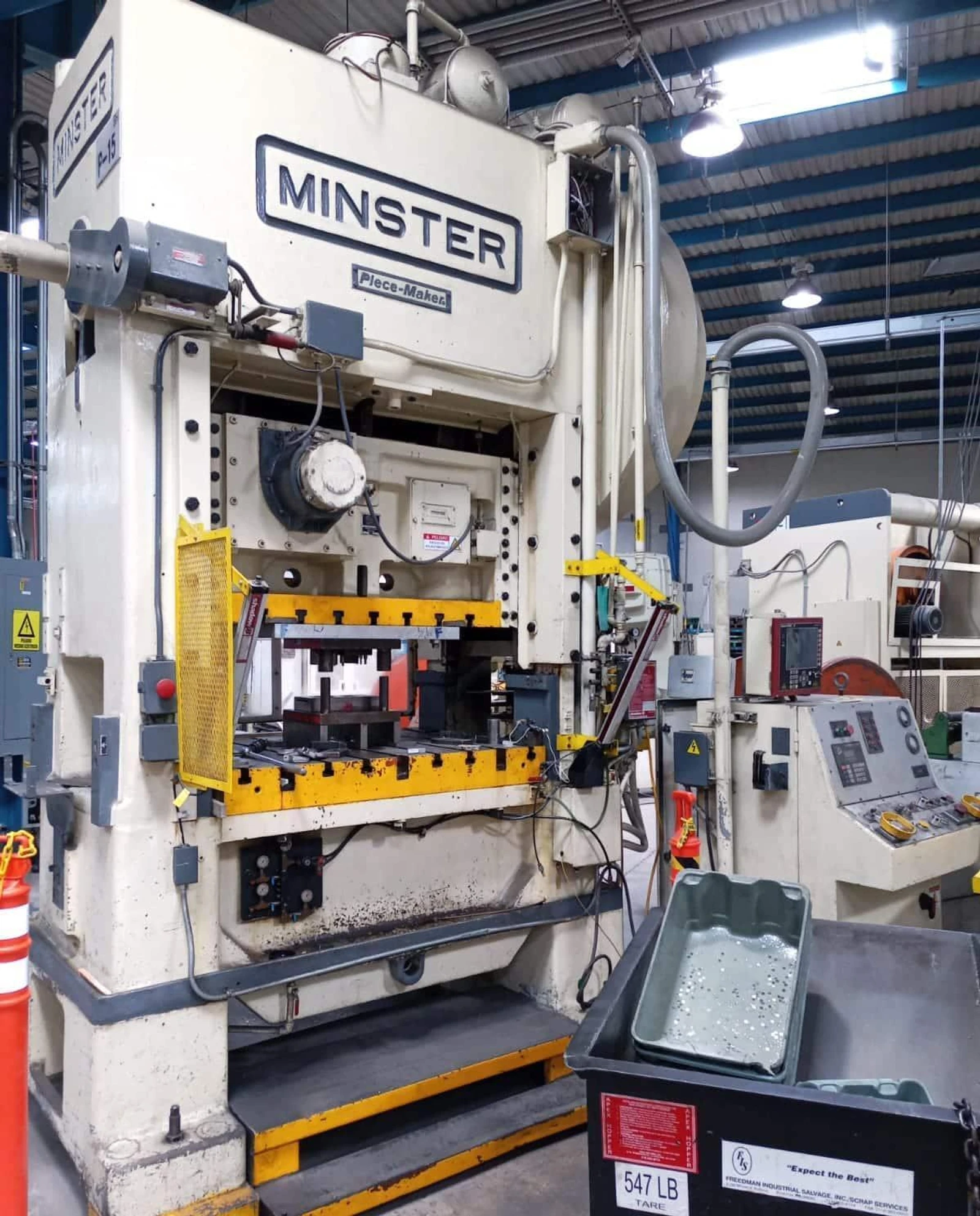

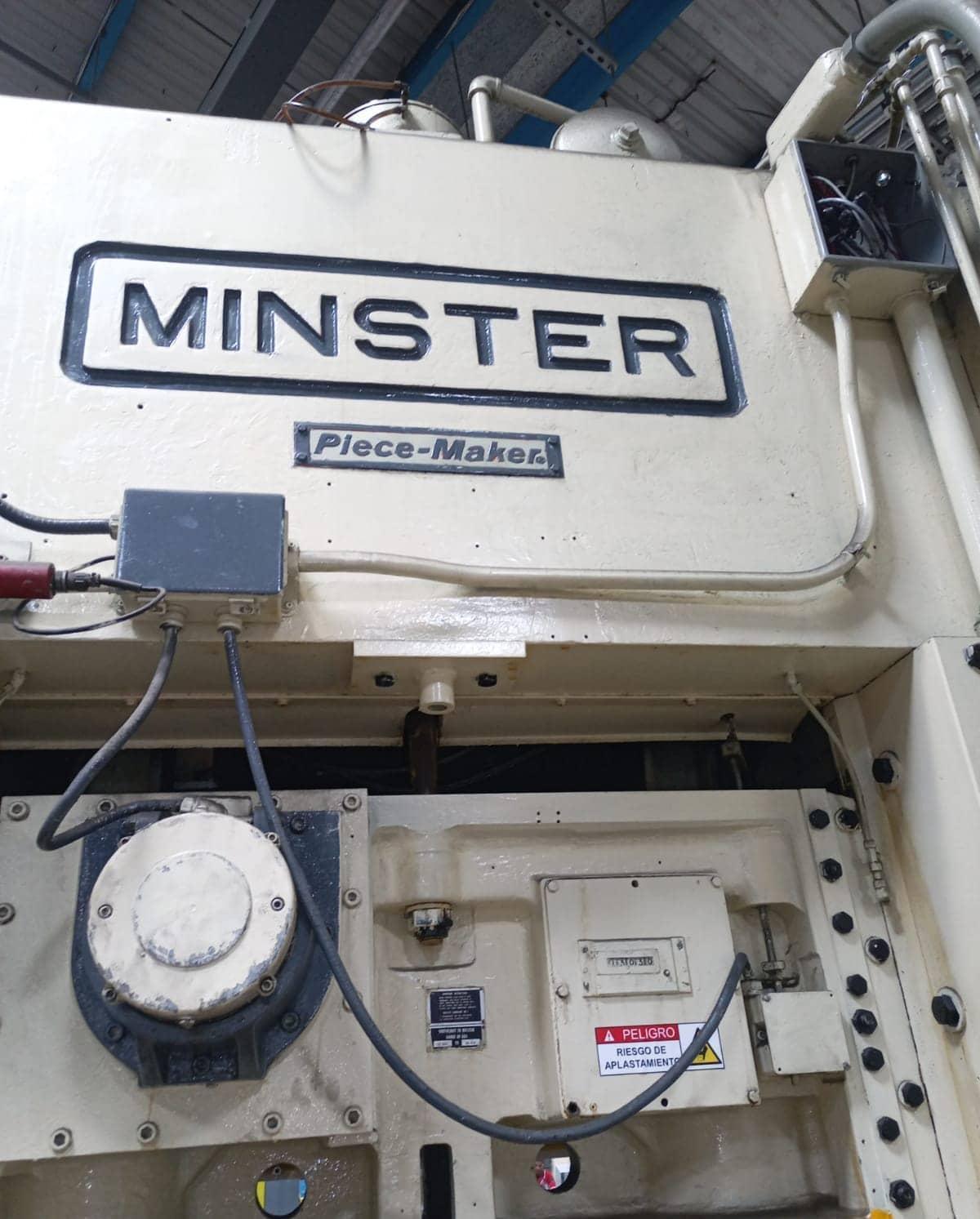

150 Ton Minster P2 150-54 Punch Press, 1971
Brand
Category
Type
Model
P2-150
Stock #
266945
Year
1971
Condition
Not specified
Location
Not specified
|
CAPACITY: 150 TONS
STROKE: 6″
MAX. SHUT HEIGHT TO BED: 23″
BED AREA: 54″ X 40″ (RL X FB)
SPEED: 45-90 STROKES PER MINUTE
RAM ADJUSTMENT: 4
RAM AREA: 54″ X 23″ (RL X FB)
BOLSTER PLATE: 54″ X 40″ (RL X FB)
DISTANCE BETWEEN UPRIGHTS APPROX: 56″
FLOOR TO BED: 40.5
WINDOW SIZE: 20″ WIDE
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION
PRESS CONTROLS UPDATED ROCKFORD SSC-1500 CONTROLLER
ELECTRICS: 480V-3-60
APPROX. DIMENSIONS: 132″ X 84″ (RL X FB) X 168″ HIGH
APPROX. WEIGHT: 50,000 LBS.
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
No files or videos to display
