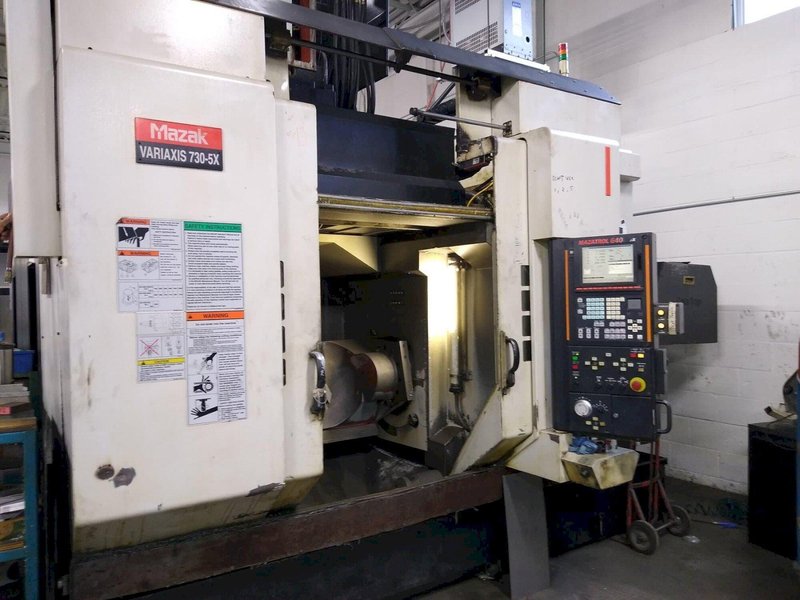

Mazak Variaxis 730-5X CNC UMC, 2004 – 5-Axis, Mazatrol Fusion 640M Control
Brand
Category
Type
Model
Variaxis 730-5X
Stock #
281530
Year
2004
Condition
Not specified
Location
Not specified
|
Table Size: 24.8″ x 19.66″
X-Axis Travels: 28.7″
Y-Axis Travels: 33.4″
Z-Axis Travels: 22.0″
A-Axis Travels
(.001 Degree Positioning Only): 120 ~ + 30 Deg
C-Axis Travels: +/- 360 Deg
Distance Spindle Nose/Table Top: 9.0″ ~ 31.1″
Maximum Table Load: 1,102 LBS
Maximum Workpiece Size: 39.37″ x 13.38″
Maximum Workpiece Heigh: 19.6″
Spindle Nose: #50
Spindle Horsepower (Cont/30 Min): 40
Spindle RPM: 10,000 RPM
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mazatrol Fusion 640M Control Chip Conveyor 5-Axis All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
