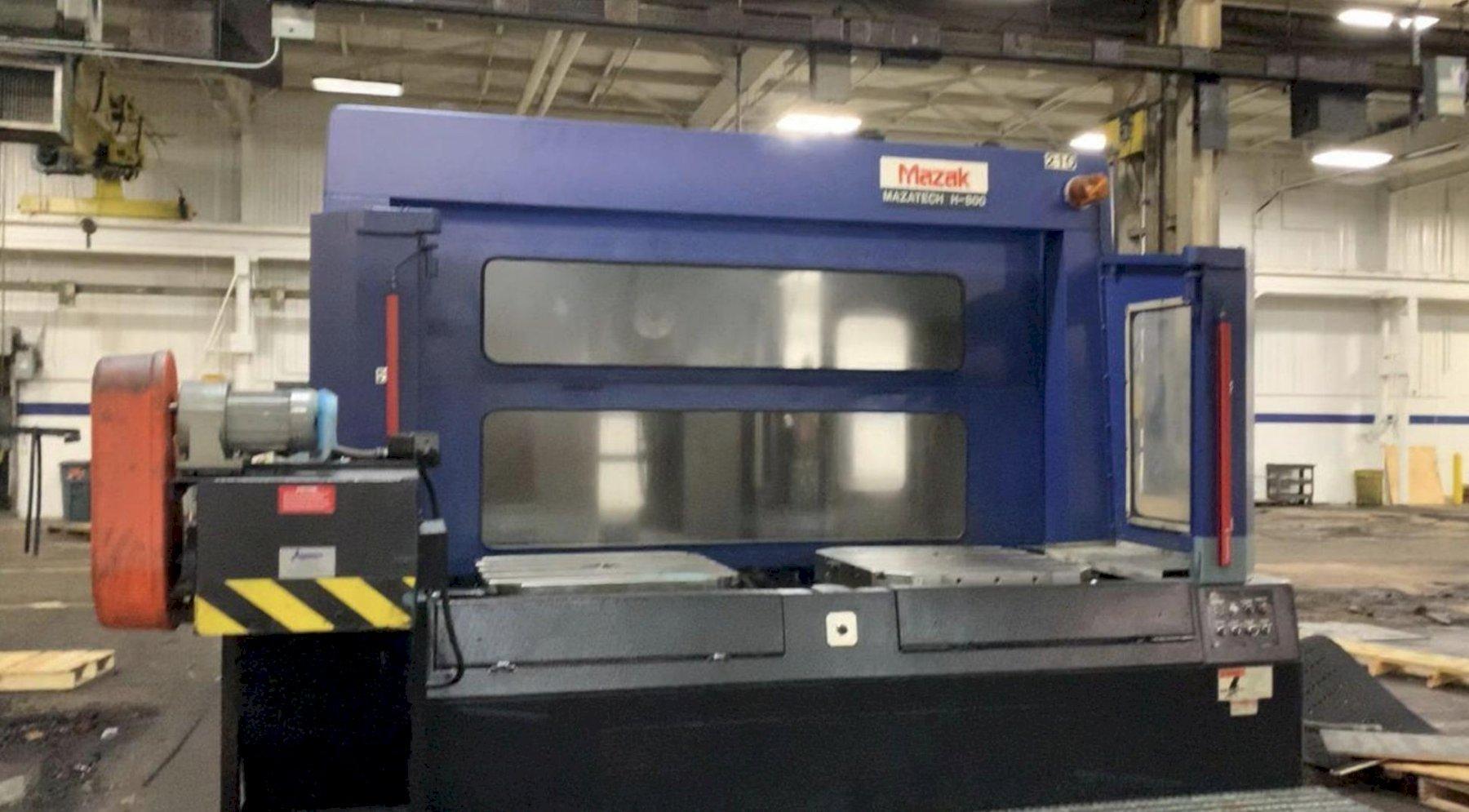

Mazak MH800 800MM HMC, 1994 – Chip Conveyor

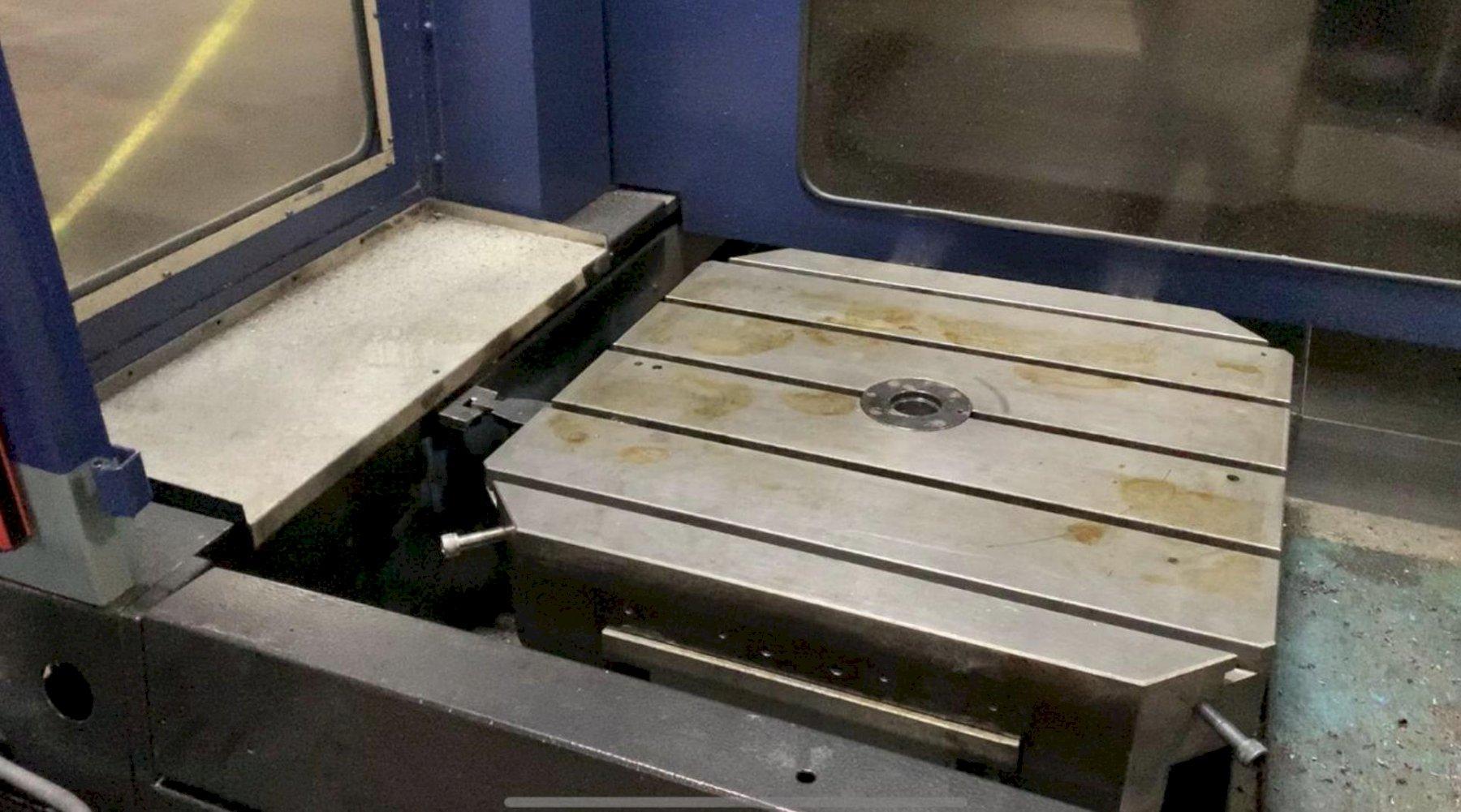

Pallet Size / Number of Pallets: 31.5″ x 31.5″/2 plts Table Load Capacity: 4,840 lbs Table Indexing: 1 Degree Index X-Axis Travel: 49.21″ Y-Axis Travel: 39.37″ Z-Axis Travel: 33.46″ Spindle Nose: CAT # 50 Spindle Speed: 22 – 15,000 RPM Spindle Motor: 35 HP Spindle Center to Table Top: 1.97″ – 41.34″” Tool Magazine Capacity: 80 Position ATC Max. Tool Diameter: 10.24″ Rapid Traverse Rates: 708 IPM Machine Dimensions : 217″ x 129″ x 126″ Machine Weight: 44,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mazatrol M-32 CNC Control Geared Head Spindle Spindle Orientation Chip Conveyor Work Light Hydraulic Clamping

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
