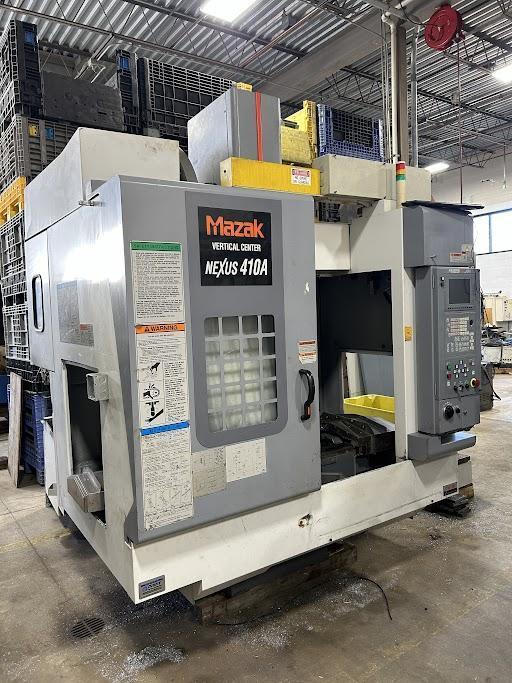

Mazak VCN-410A VMC, 2012 – Chip Conveyor, Fusion 640 Control

TABLE SIZE 35.4” X 16.1” X-AXIS STROKE 22” Y-AXIS STROKE 16” Z-AXIS STROKE 20” COLUMN FACE TO SPINDLE CENTER 17” MAXIMUM TABLE WEIGHT CAPACITY 1,102 LBS SPINDLE SPEED 12,000 RPM SPINDLE MOTOR 25HP SPINDLE TAPER CAT40 RAPID TRAVERSE (X,Y,Z) 1417.3 IPM NUMBER OF TOOLS 30 MAXIMUM TOOL DIAMETER 3.15” MAXIMUM TOOL DIAMETER (ADJACENT POCKETS) 4.92” MAXIMUM TOOL LENGTH 13.78” MAXIMUM TOOL WEIGHT 17.64 LBS. TOOL SELECT METHOD RANDOM TOOL CHANGE TIME (CHIP TO CHIP) 5.8 SEC POWER SUPPLY (15MIN/CONT) 27.8 / 22.82 kVA MACHINE HEIGHT 110.5” FLOOR SPACE 78.7” X 102.3” MACHINE WEIGHT 10,824 LBS

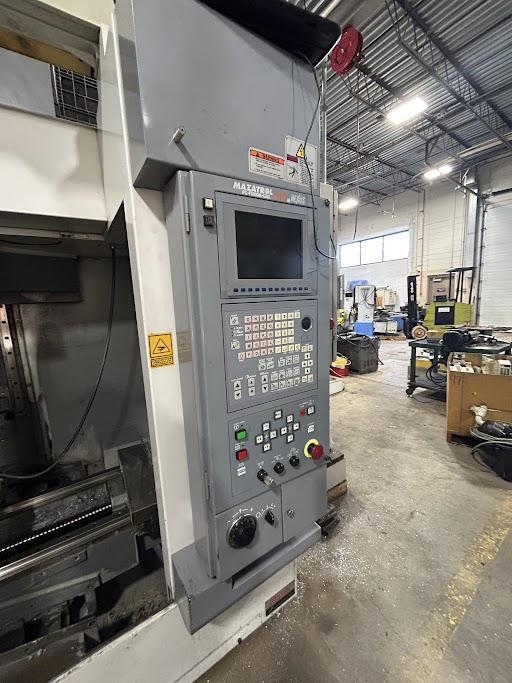

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With (subject to buyer verification): MAZATROL FUSION 640M NEXUS CONTROL ATLM Chip Conveyor
