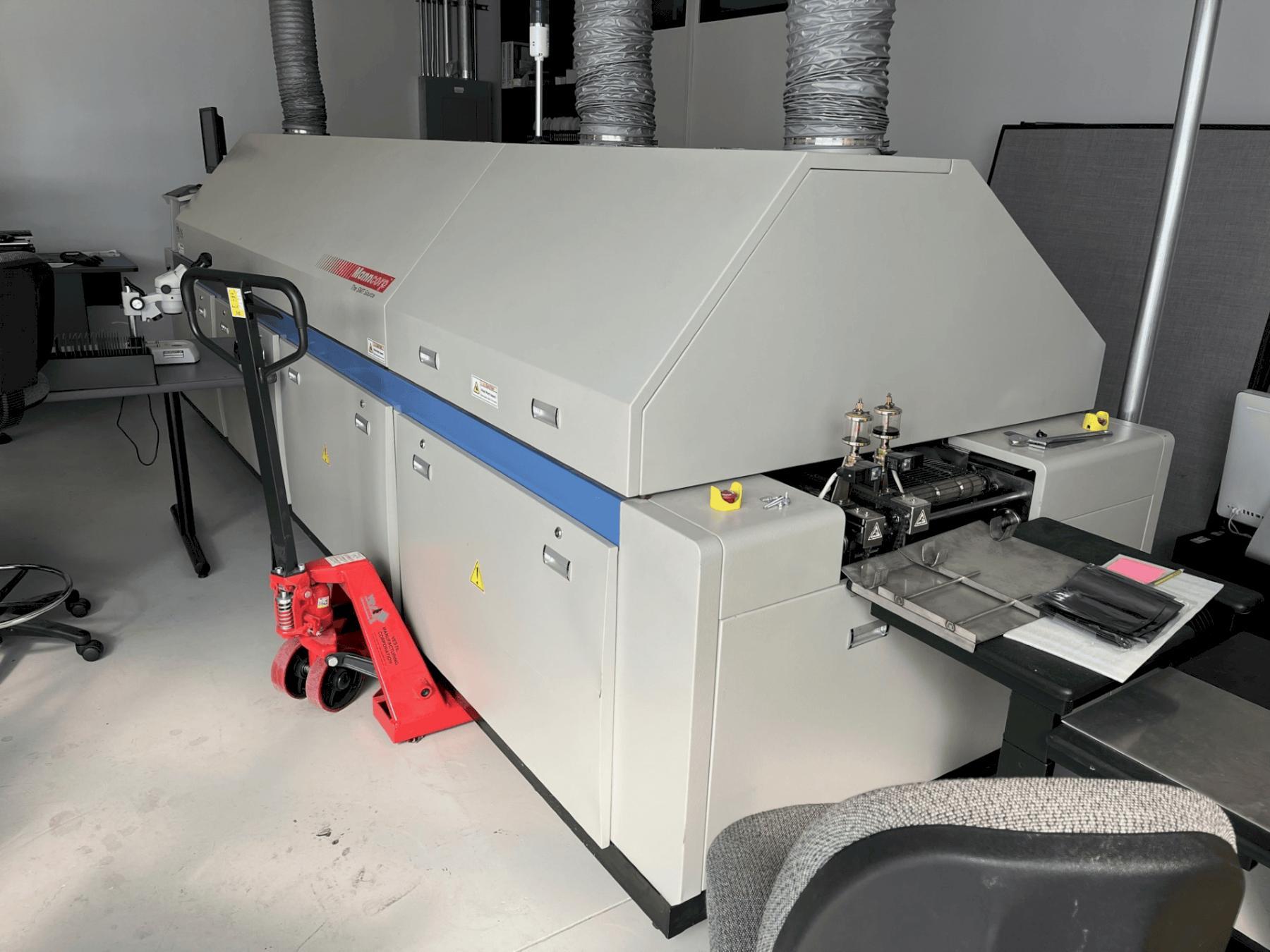

Manncorp CR-8000 Reflow Oven, 2015

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Full convection reflow oven – 8 independently controlled upper heating zones – 8 independently controlled lower heating zones – PID temperature controls in each zone with ±1?C accuracy – Motorized and hand-crank adjustable pin conveyor with max width 450 mm (17.7″) – 570 mm (22.4″) wide mesh belt conveyor – Windows 10-based computer controller – CR series oven management software – KIC Auto Focus profile prediction software – Timed automatic startup and shutdown modes – UPS battery backup – Dimensions: 5300mm L x 2000mm W x 2180mm H (209″ L x 79″ W x 86″ H) – Gross Weight: 2330 kgs (5,137 lbs.) – Cubic Meter: 23.11 CBM – 220V / 3 ph / 160 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
