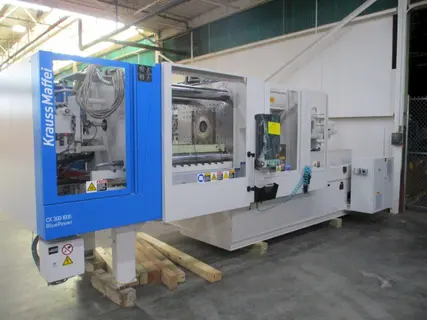

330 Ton Krauss Maffei 300-1000CX Injection Molding Machine – 2016 – 13.6 oz, Robot Ready

Capacity: 330 Ton Shot Size: 13.6 oz. Mold Opening Force: 19 Ton Travel Opening Force (Movable Platen): 9.7 Ton Travel Closing Force (Movable Platen): 7.6 Ton Platen Size: 39.20″ x 41.37″ Platen Size (Extended Horizontal): 42.36″ x 41.37″ Platen Size (Wide Platen Option): 46.30″ x 44.92″ Tie Bar Spacing: 24.82″ x 24.82″ Tie Bar Spacing (Extended Horizontal): 27.97″ x 24.82″ Tie Bar Spacing (Wide Platen Option): 31.91″ x 28.37″ Mold Opening Stroke: 32.31″ Min Mold Height: 13″ Min. Mold Height (Extended): 18.91″ Max Daylight: 45.31″ Max. Daylight (Extended): 51.22″ Ejector Stroke: 7.88″ Ejector Force (Forward/Backward): 6.5 / 3.2 Ton Control: MC6 Hours: 7,581 Machine Dimensions: 256″ x 87″ x 91″ Machine Weight: 31,967 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: Air Core Pull on Fixed Platen Blue Power EURO67 Robot Interface EURO73 Robot Interface for Side Entry Pneumatic Hot Runner Control Low Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
