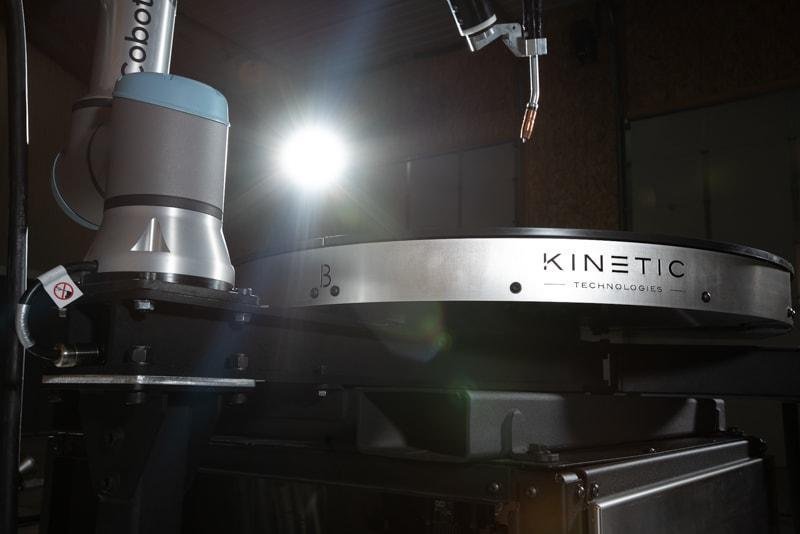

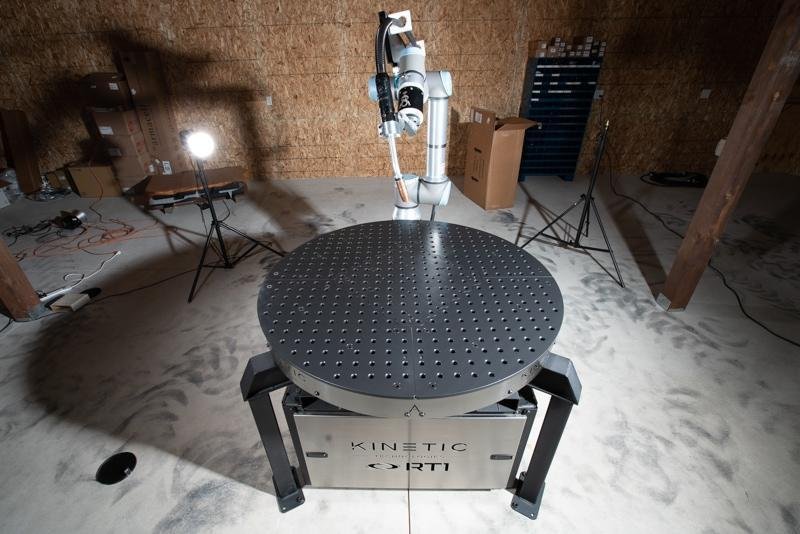

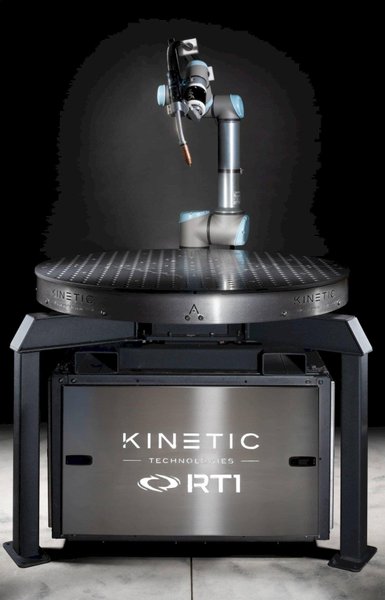

Kinetic Technologies RT1 Robotic Welding Table (1)

Introducing the New Kinetic Technologies Rt1, a Robot-Controlled Rotary Table Designed to Maximize Your Welding Capacity. Dramatically Increase Your Uptime by Loading and Welding Parts Simultaneously. Weld Larger Parts That are Typically Out of the Robot’s Reach. Our Modular System is Versatile and Flexible to Meet Your Needs. Centrally loaded allowable load: 2,000lbs Maximum Speed: 10rpm Central Height: 37″ Torque: 350 ft-lb Voltage requirements: 230V 3 phase -Size: 64” long without chassis extension, 76” long with extension 37.5” height 52.25” wide (at base) -Weight: 1100 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Precision Machined Components Allow You to Transfer Robotic -Programs From One Table to Another. -Durable Table with Fnc Finish Protects Against Weld Spatter. -Simple Control Through Robotic Input/Output. -Extendable Spine to Customize the Robot Location for Most Effective Use. -Fixture Table Available in 5/8-Inch X 2-Inch Sae Grid or 16mm X 50mm Metric Grid Fixturing Holes. -Modular Table Design Features Replaceable Parts if Damaged or Worn. -2,000-Pound Table Capacity Allows Large Fixtures And Weldments. -Easy To Move Unit with Fixed Fork Pockets. -Small Footprint to Fit Your Facility. -Rugged Powder Coat Finish and Stainless-Steel Panels. -Anchorable feet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
