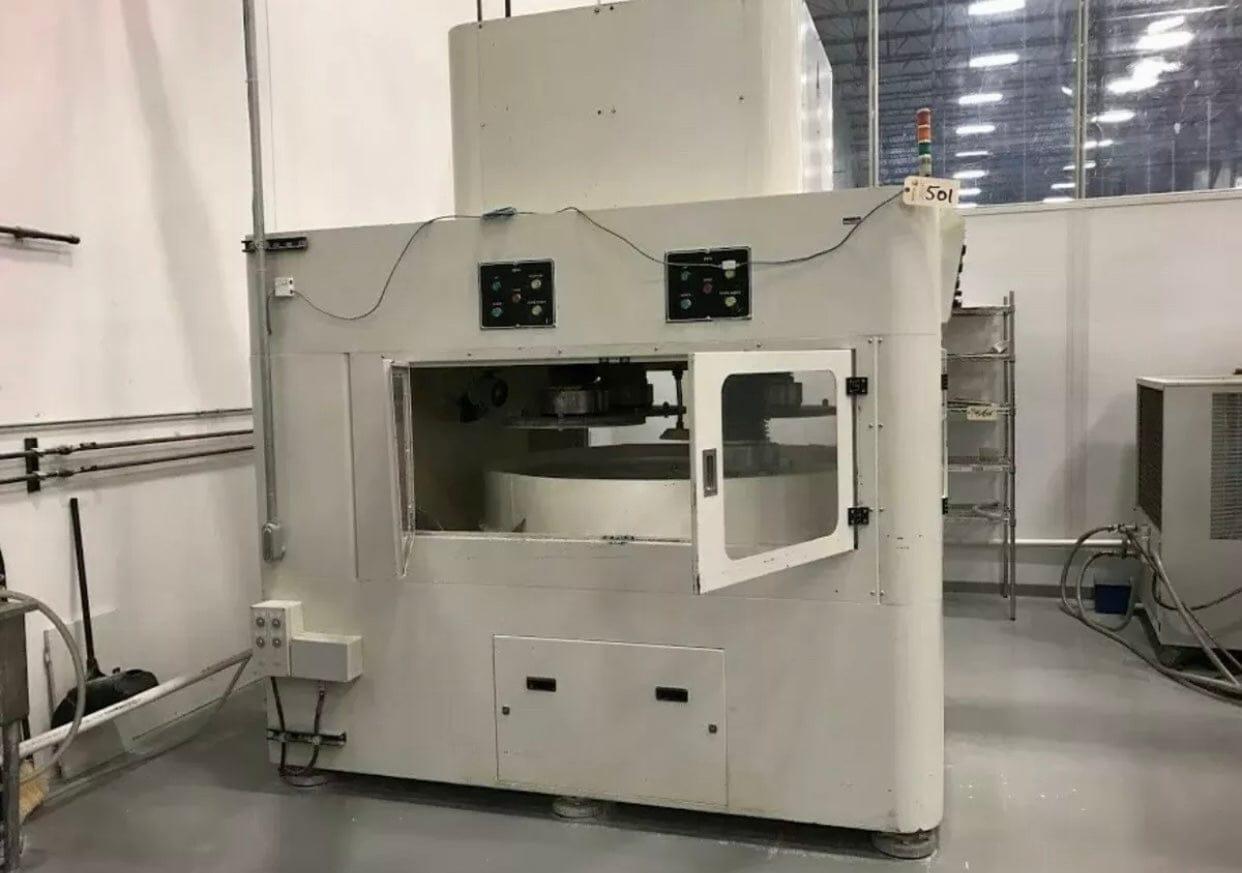

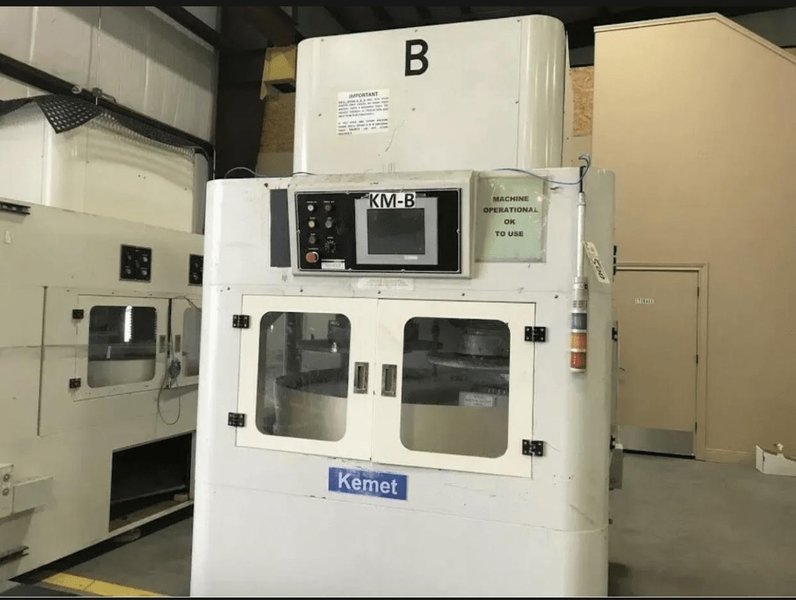

Kemet XJ-56 Precision Lapping & Polishing Machine, 2011

-Power Supply: 3 Phase, 480 V, Ac 50hz, 1 Phase, 24/220 v -Required Floor Space: 1800 (w) X 2500 (l) X 2900 (h) Mm -Weight: 6500kgs -Protective Cover of Upper Part: Yes -Platen: Diameter- 1420mm, Material- Stainless Steel 304, Drive Motor Horsepower- 40 Hp, Gearbox- 25:1, Motor Rpm- 0-70 Rpm, Temperature Control- Temperature Probe on Platen, Inverter for Speed Control- Variable, Chiller Routing for Platen- 30 L/ Min with Dia 25 Mm, Platen Floating During Run- Yes, Thickness of The Platen- 45mm -Way of Loading Carrier: 2 Steps Carrier Alignment with Retainer -Pressure Center (distribution)- Direct Pressure -Usable Diameter of Work Piece Holding Plates- 546mm -Possible Contact Pressure of Work Piece Holding Plates- 0 to 400 Kgs -Pressure Range: 0 to 300 Kgs, with Individual Pressure Controls (4 Axis by 4 Regulators) -Cylinder Bore- Diameter 130 Mm -Cylinder Stroke Length- 220 Mm- 230 Mm -Carrier Size: 5546mm -Carrier Maintenance- N.A -Material: Ceramics -Rotation Mechanism: Positive Drive with Cw/ Ccw Functions, Individual Positive Driver in Each Pressure Head

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
