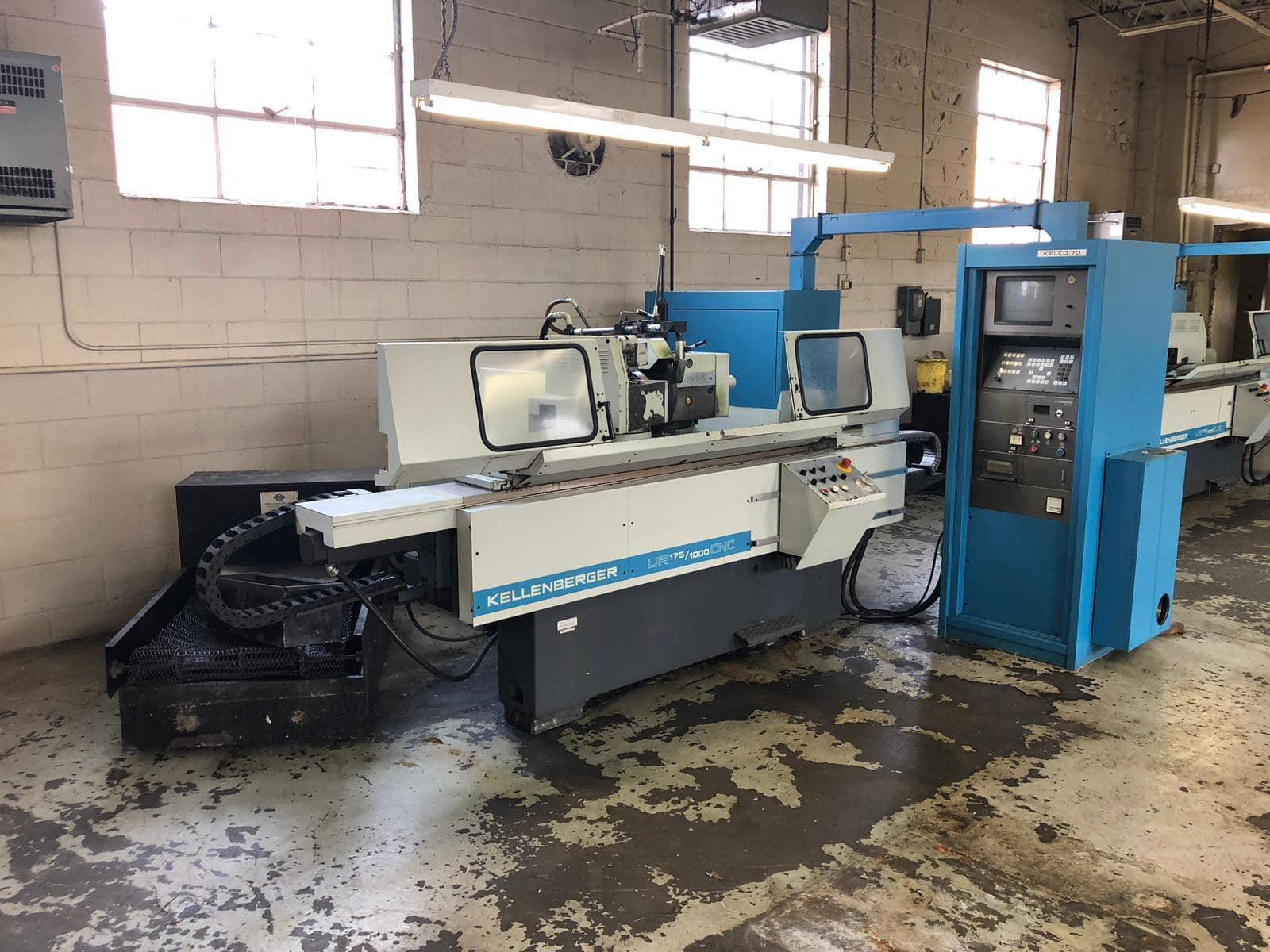

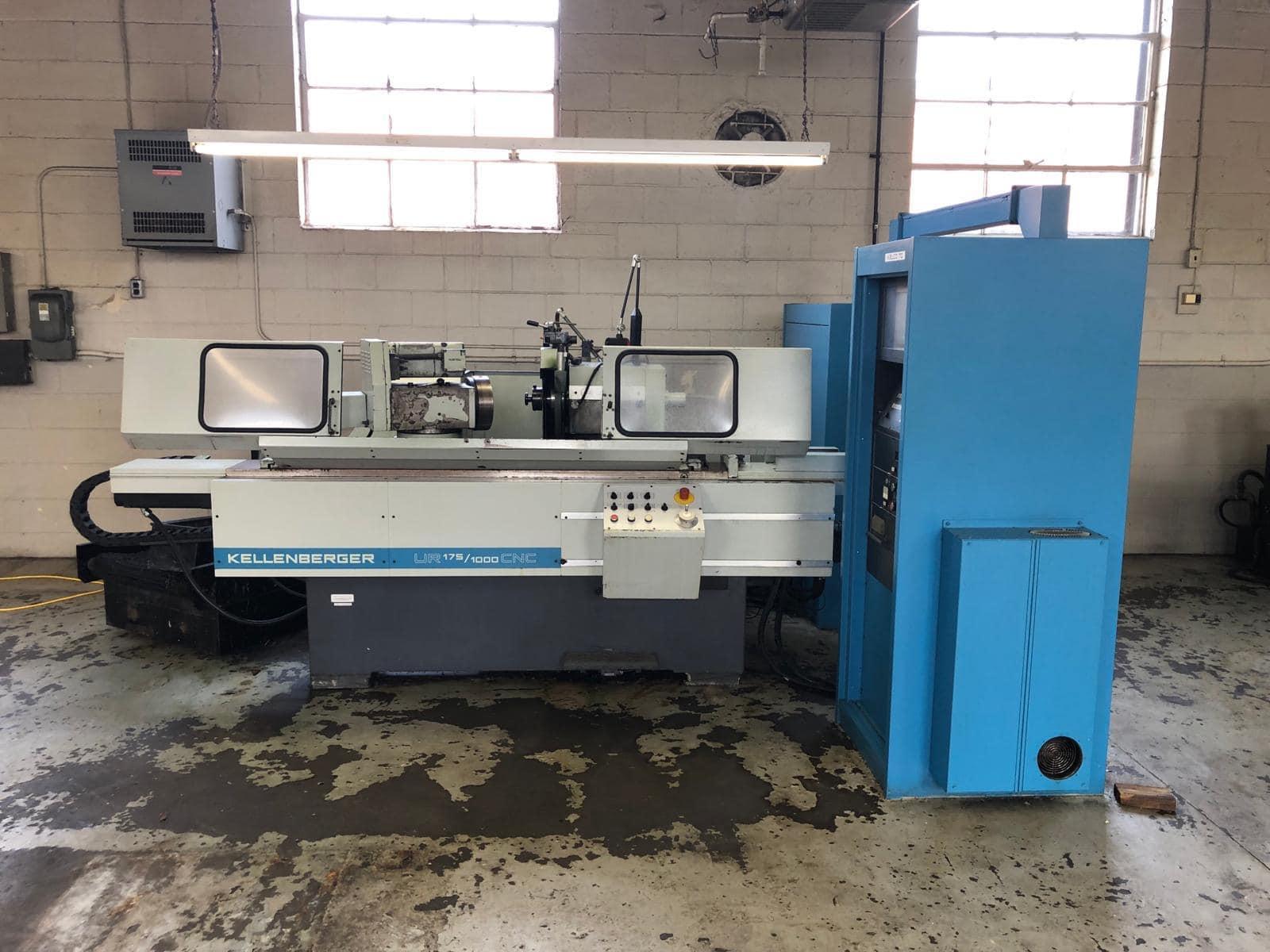

Kellenberger UR 175/1000 Cylindrical Grinder, 1992
Brand
Category
Model
UR 175
Stock #
738719
Year
1992
Condition
Not specified
Location
Not specified
|
Maximum Swing: 13.74″
Maximum Distance Between Centers: 39.37″
Maximum Grinding Capacity: 13.74″
Height of Centers: 6.89″
Power Requirements: 13.4HP
Z-Axis Travel: 43.9″
Table Swivel: 9°
X-Axis Travel: 10.24″
Max Grinding Wheel (Left): 15.75″ x2.48″ x5.00″
Max Grinding Wheel (Right): 8.86″ x0.79″ x3.00″
Wheelhead Motor Output: 5.9HP
Wheelhead Swivel: 200°
Internal Spindle Carrier: 3.15″

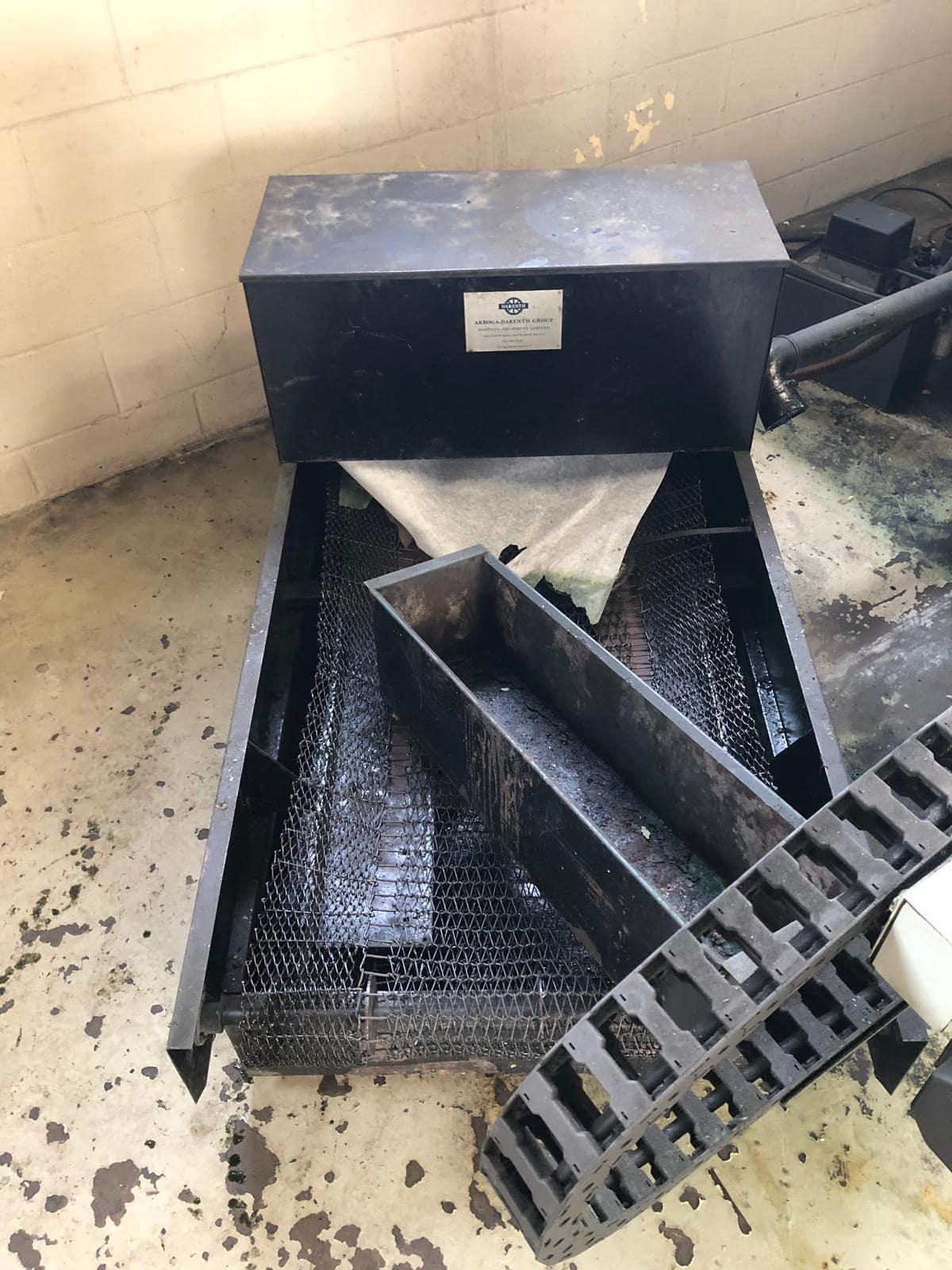

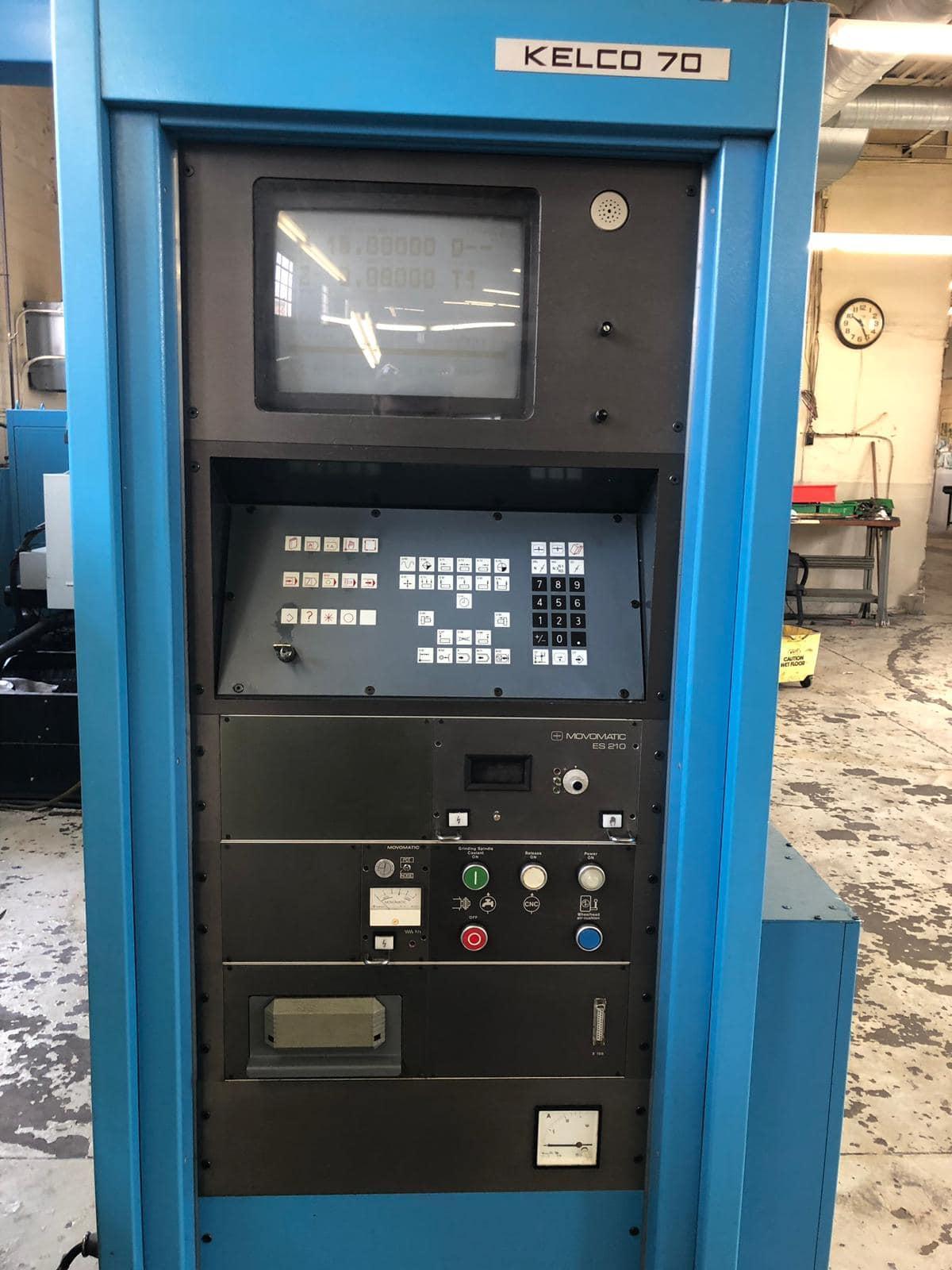

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with the Following Features Equipped With: Kelco 70 Control Coolant system CSA Electrical All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
