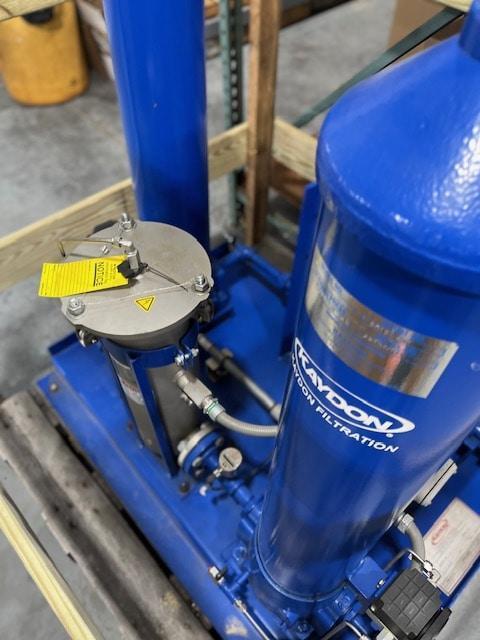

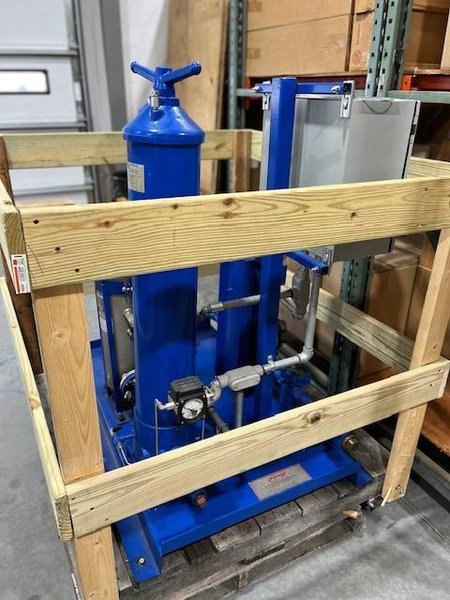

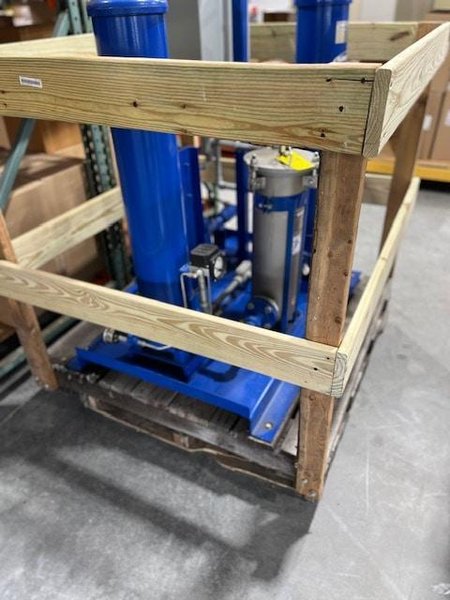

Kaydon VRS Model KPV-10 Varnish Removal System

System Flow: 10 GPM Max System Pressure: 100 PSIG Max Environmental Parameters: NEMA 4 Rated Control Panel Minimum Ambient Temperature: 32° F / 0° C Maximum Ambient Temperature: 200° F / 93° C Designed For Indoor or Outdoor Use

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction Materials: Carbon Steel, Bronze

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Inlet & Outlet Connections: Type: NPT Inlet: 2 inch / 50.8 mm Outlet: 1 inch / 25.4 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pump/Motor Assembly Flow Rate: 10 GPM / 38 LPM Pump Type: Gear – Positive Displacement Motor: 1.5 HP / 1.1 KW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,460 VAC / 3 PH / 60 HZ / 10 AMPS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight (approximate): 715 lbs / 324 kg Dimensions: 48” L x 35” W x 64” H / 1220 mm L x 890 mm W x 1625 mm H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
