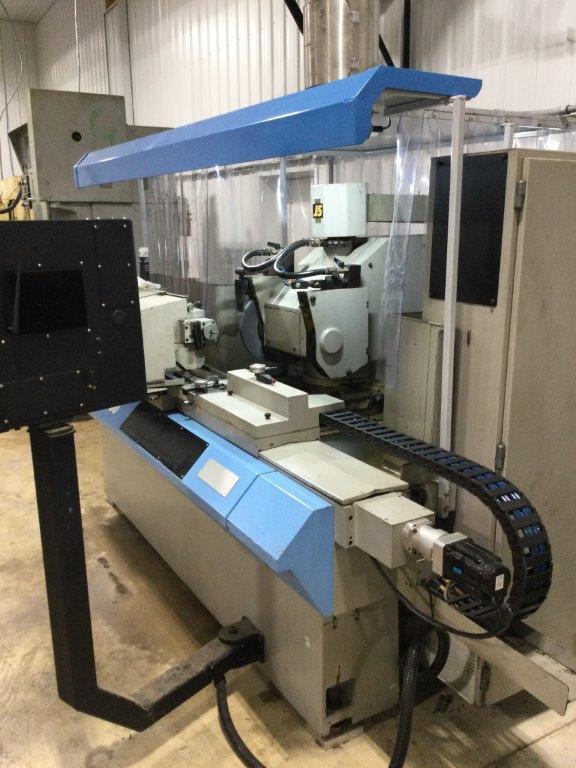

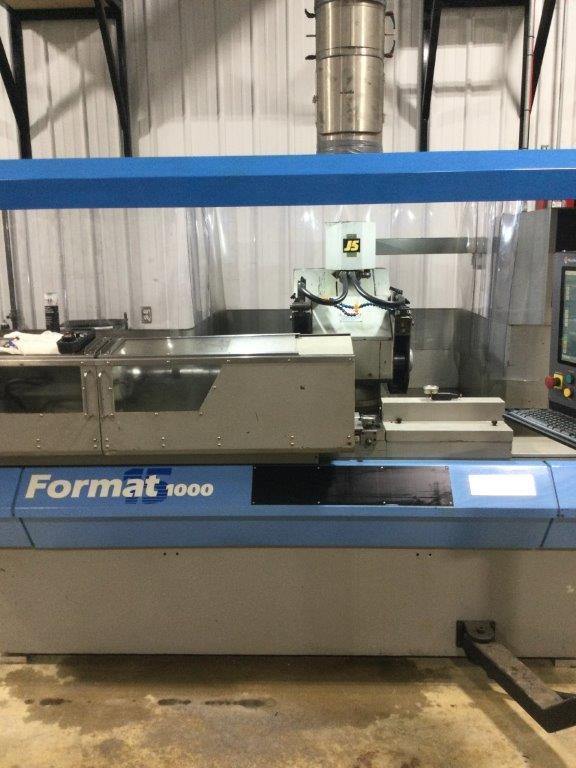

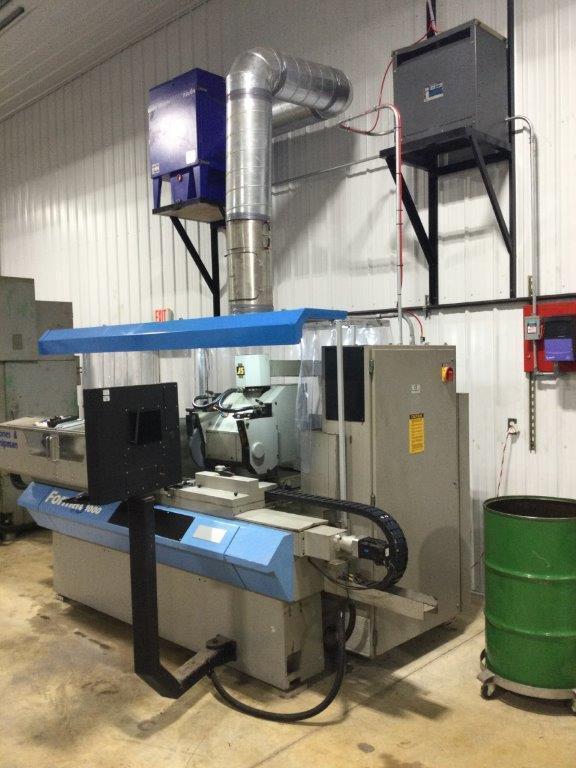

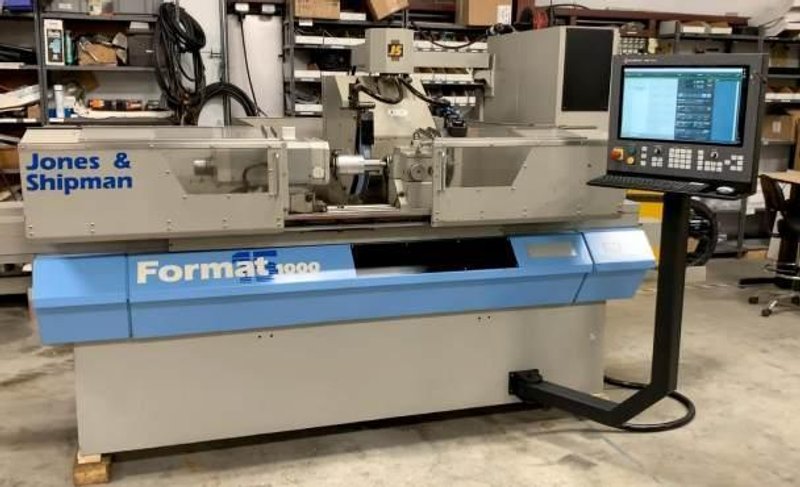

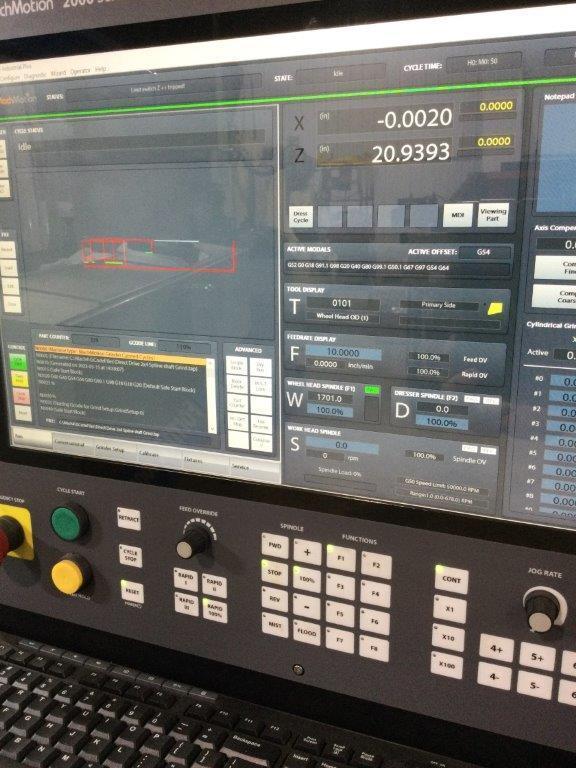

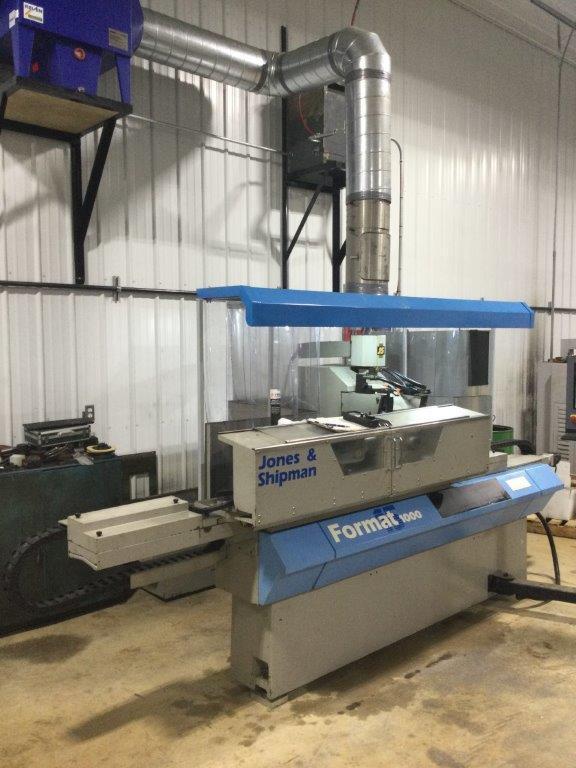

Jones & Shipman Format 15/1000 Universal Grinder, 1995 – w/ upgraded control system

Capacity: 14 X 40″ Table Travel 39″ Distance between Centers 1000mm / 40″ Swing 356mm / 14″ Center Height 178mm / 7″ Maximum Weight Between Centers 100kgs / 220 LBS Grind Wheel Diameter 250mm / 10″ Workhead Speed range 30 to 450rpm (continuously variable) Center 5MT 1.1kW Swivel angle + & – 15 Swivel encoder resolution (option) 0.001 Table (Z Axis) Traverse Speed 0.06 to 12000mm/min 472 IPM Min programmable increment 0.00001″ Table swivel + & – 16 & 18 degrees Swivel encoder resolution (option) 0.0001 Wheelheads (X axis) Universal wheelhead swivelling 190 degrees clockwise, 35 degrees counter-clockwise with air cushion and manual clamping

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total in feed 205mm / 8″ Infeed speed 0.006 to 6000mm/min Min programmable increment 0.00001″ Wheel speeds (2) 1400 & 1689rpm Motor 5.5kW Wheel size (left) 350 x25 x 127mm bore Wheel size (right) 300 x25 x 127mm bore Motor 4kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wheel size 12-38mm Wheelspindle capacity (bores,min to max) 19-50mm Wheelspindle speeds 16 – 500rpm Motor 1.1kW Swivel wheelhead Swivel workhead Tailstock with manually adjusting taper control ID – Internal Spindle Comes with 2 spindles High Speed spindle 24,000 RPM Large Long reach spindle 16,000 RPM

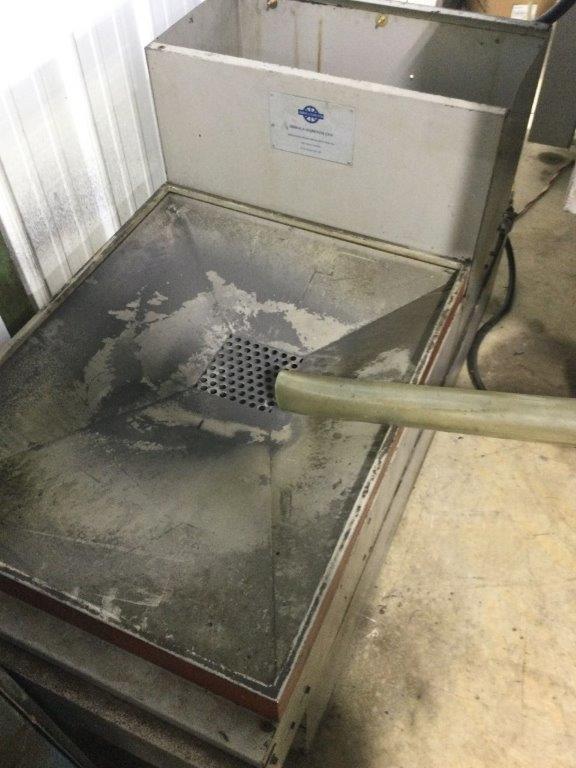

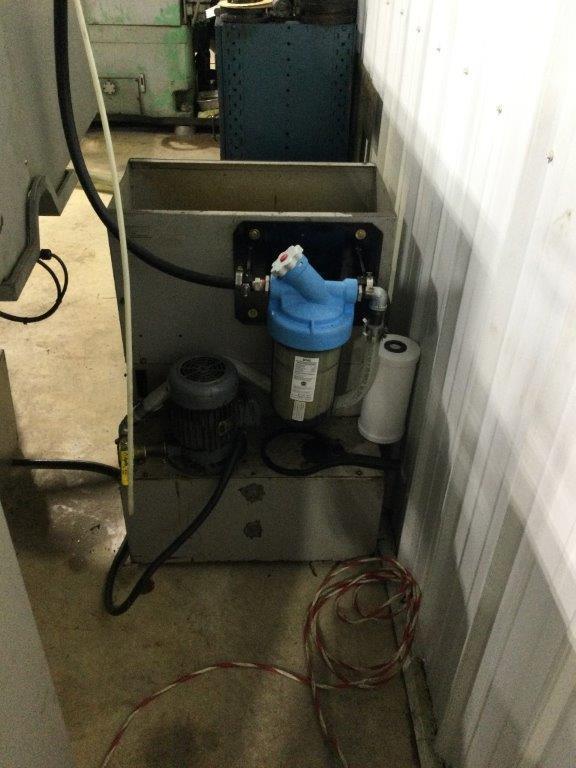

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Other: Dresser mounted on tailstock Coolant tank and pump
