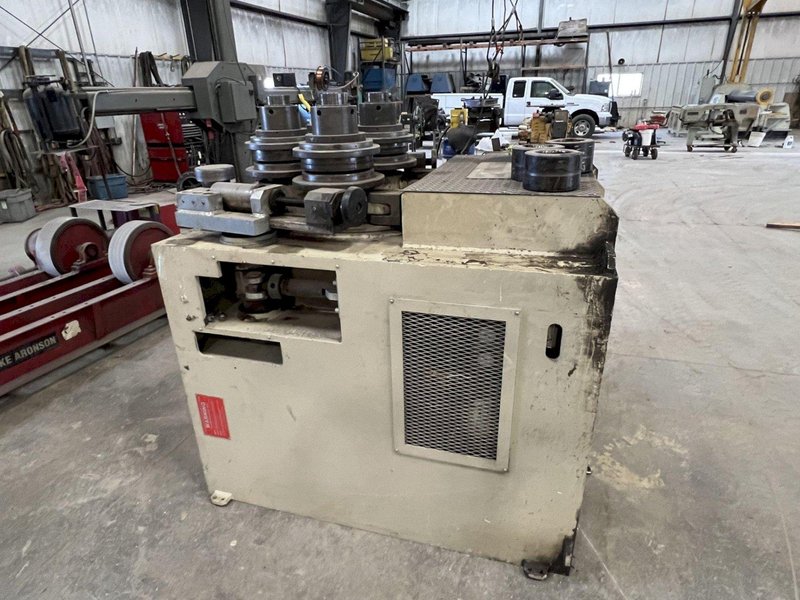

4″ X 4″ X 1/2″ IMCAR CPHV 100 Hydraulic Angle Roller, 2005
Brand
Category
Type
Model
CPHV100
Stock #
134750
Year
2005
Condition
Not specified
Location
Not specified
|
Angle Leg Out: 4″ x 4″ x 1/2″ @ 48″ Dia
Angle Leg In: 4″ x 4″ x 3/8″ @ 45″ Dia
Solid Square: 2-3/8″ x 2-3/8″ @ 32″ Dia
Square Tube: 3″ x 1/4″ Wall
Flat: 7″ x 1-3/8″ @ 32″ Dia
Round Solid: 3″ @ 30″ Dia
Schedule 40 Pipe: 3-1/2″ @ 48″ Dia
Round Tube: 5″ x 12 ga.
C-Section Leg Out: 7″ x 2 5/8″ @ 33″ Dia
Shaft Diameter: 3.95″ (100mm)
Roll Diameter: 12.5″
Rolling Speed: 0 to 22 fpm
Turning Speed: 26.2 FPM
Motor: 15 H.P.
Dimensions: 53″ x 69″ x 65″
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
