Hanwha XD32H CNC 7-Axis Swiss Lathe, 2008 – Low Hours, MTA Bar Feeder

Machining Capacity: Maximum Bar Capacity Round: 1.250” Maximum Bar Capacity Hex: 1.062” Maximum Bar Capacity Sub-Spindle: 1.250” Tapping Capacity Main Spindle: 0.312” Front Ejection from the Sub-Spindle: 3.000” Rear Ejection from the Sub-Spindle: 11.000” Drilling Capacity on the Sub-Spindle: 0.393” Tapping Capacity on the Sub-Spindle: 0.312” Drilling Capacity on the Cross Drill: 0.275” / 0.393” Tapping Capacity on the Cross Tap: 0.250”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle: Spindle Speed: 300 to 8,000 RPM AC Spindle Drive Core Motor (Chilled): 7.5 HP C-Axis Control Minimum Programmable Angle: 0.001 Deg. C-Axis Locking Gear: Every 1.0 Deg. Z1-Axis Horsepower: 2.0 HP Z1-Axis Stroke: 12.500” Z1-Axis Rapid Traverse: 1,200 IPM

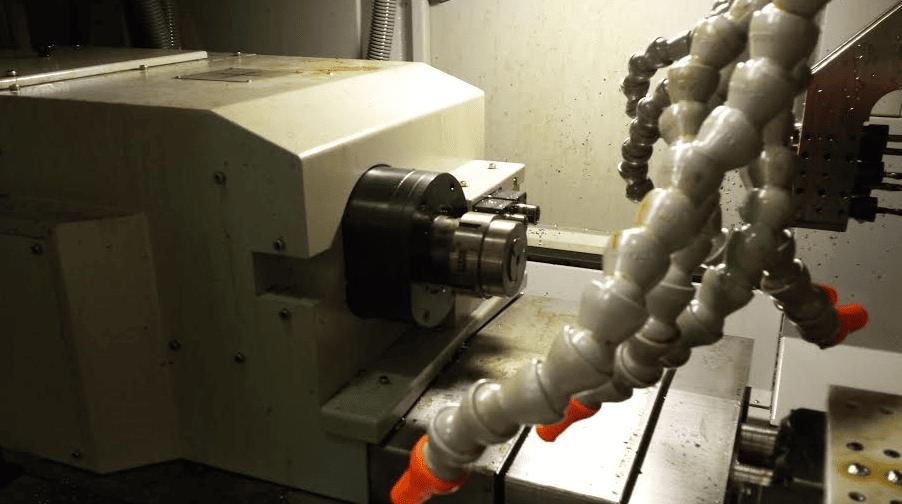

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub-Spindle: Spindle Speed: 300 to 7,000 RPM AC Spindle Drive Core Motor: 3 HP C-Axis Control Minimum Programmable Angle: 0.001 Deg. C-Axis Locking Gear: Every 1.0 Deg. Z2-Axis Stroke: 12.500” Z2-Axis Rapid Traverse: 1,200 IPM Z2-Axis Horsepower: 2.0 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cross Working Spindles: Spindle Speed: 200 to 6,000 RPM AC Spindle Drive Geared: 1.7 HP

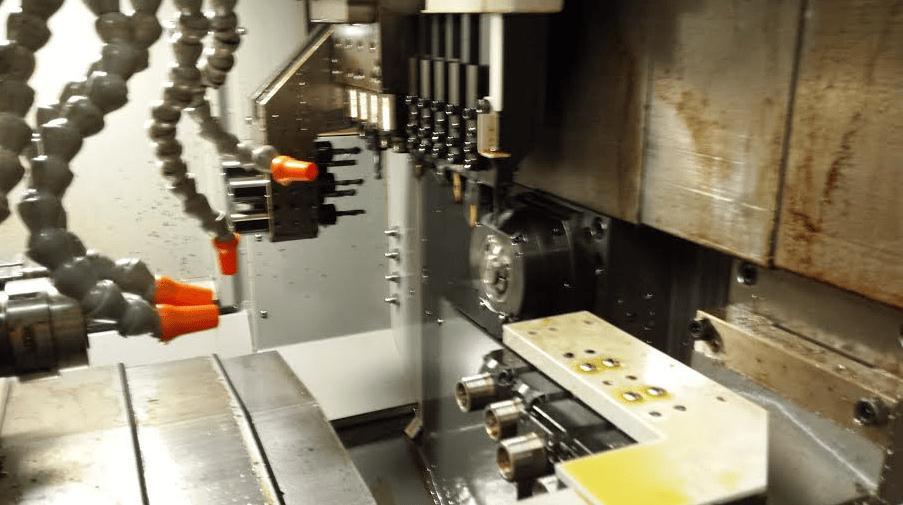

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Position: O.D. Tool Positions:5 O.D. Tool Shank: 0.625” Sq Cross Mill / Drill Stations: 4 Main Spindle I.D. Tool Positions Total (ER-16 Type): 7 -5 Stationary from the Main Tool Stand -2 Powered Face Mill / Drill stations independent from the Main Tools Sub-Spindle I.D. Tool Positions Total (ER-16 Type): 9 -5 Stationary from the Main Tool Stand -2 Stationary Independent from the Main Tools -2 Gear Driven Independent from the Main Tools to 6,000 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Coolant / Lubrication Systems: Coolant Pump Motor: 0.6 HP Coolant Tank Capacity: 45 Gallons Way Lube Tank Capacity: 0.48 Gallons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dimensions: 65″W x 94″L x 69″H Weight 9,500 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General Specifications: Voltage: 3 Phase 200V-220V Power Required: 30 KVA Compressed Air: 80 PSI

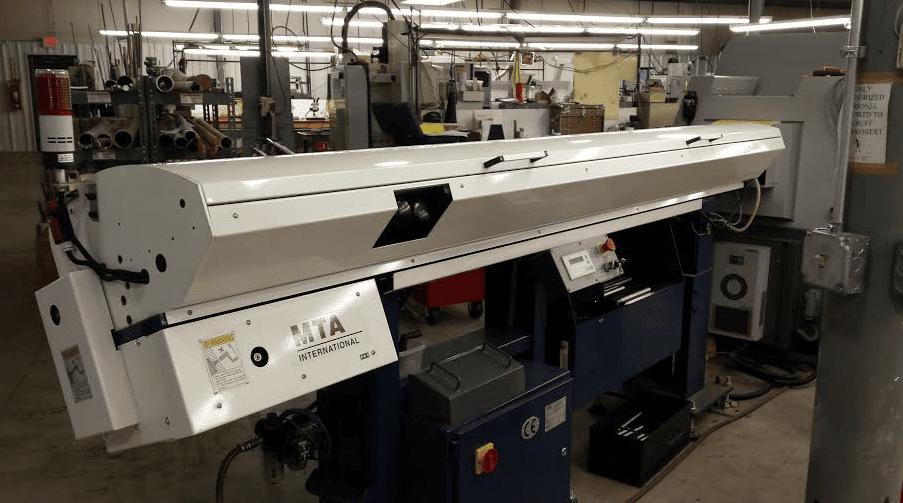

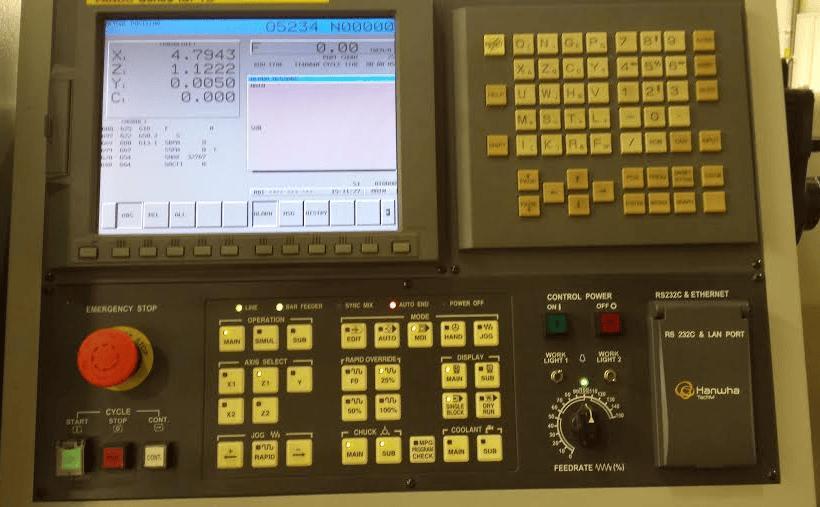

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – MTA Eagle Bar Feeder – Fanuc 18iTB System 2 Path – Full C-Axis, Both Main and Sub Spindles – Rigid Tapping – Cross Drilling Unit – Part Conveyor – Part Separator – Air Blow Unit – Assorted Collets and Tooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
