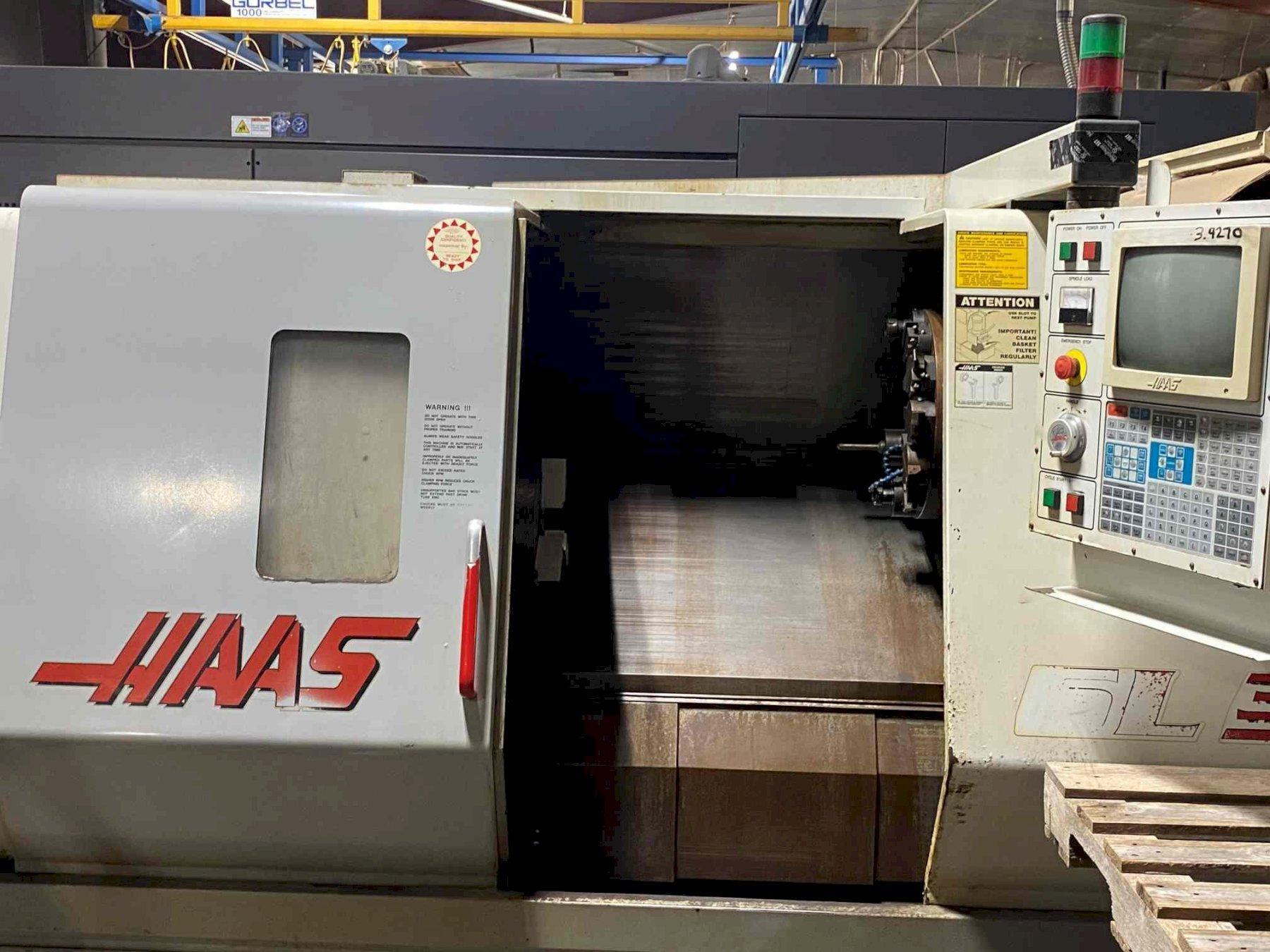

Haas SL-30T CNC Lathe, 1999 – Tool Presetter, Chip Conveyor
Brand
Category
Type
Model
SL-30T
Stock #
918715
Year
1999
Condition
Not specified
Location
Not specified
|
X-Axis: 12.5″
Z-Axis: 26″
X & Z Axis Rapid Traverse Rates: 710 IPM
Swing over Bed: 30″
Swing over Cross-Slide: 20″
Max. Cutting Diameter: 17″
Max. Cutting Length: 39″
Spindle Speeds: 100-3,400 RPM
Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6
Spindle Bore: 3″
Turret Tool Capacity: 12
Dimensions: 162″ x 77″ x 74″
Weight: 16,000 lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Tool Presetter Chip Conveyor All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
