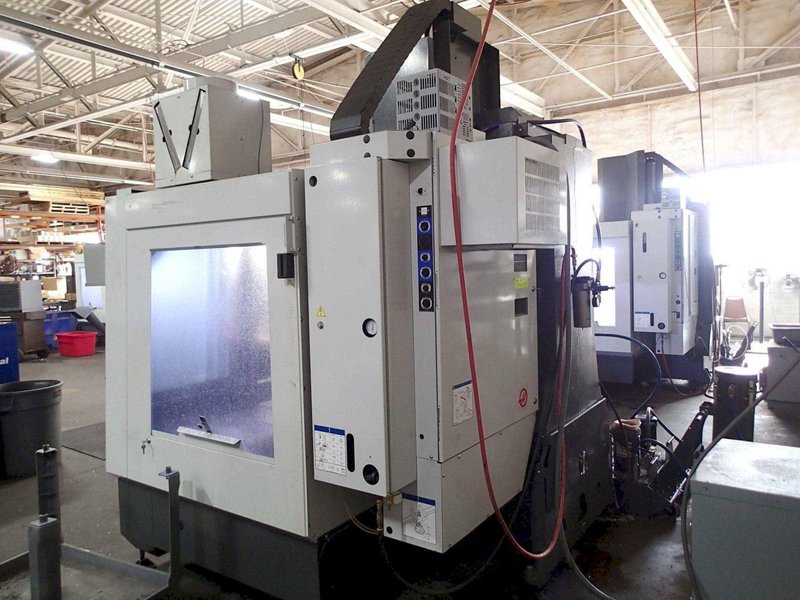

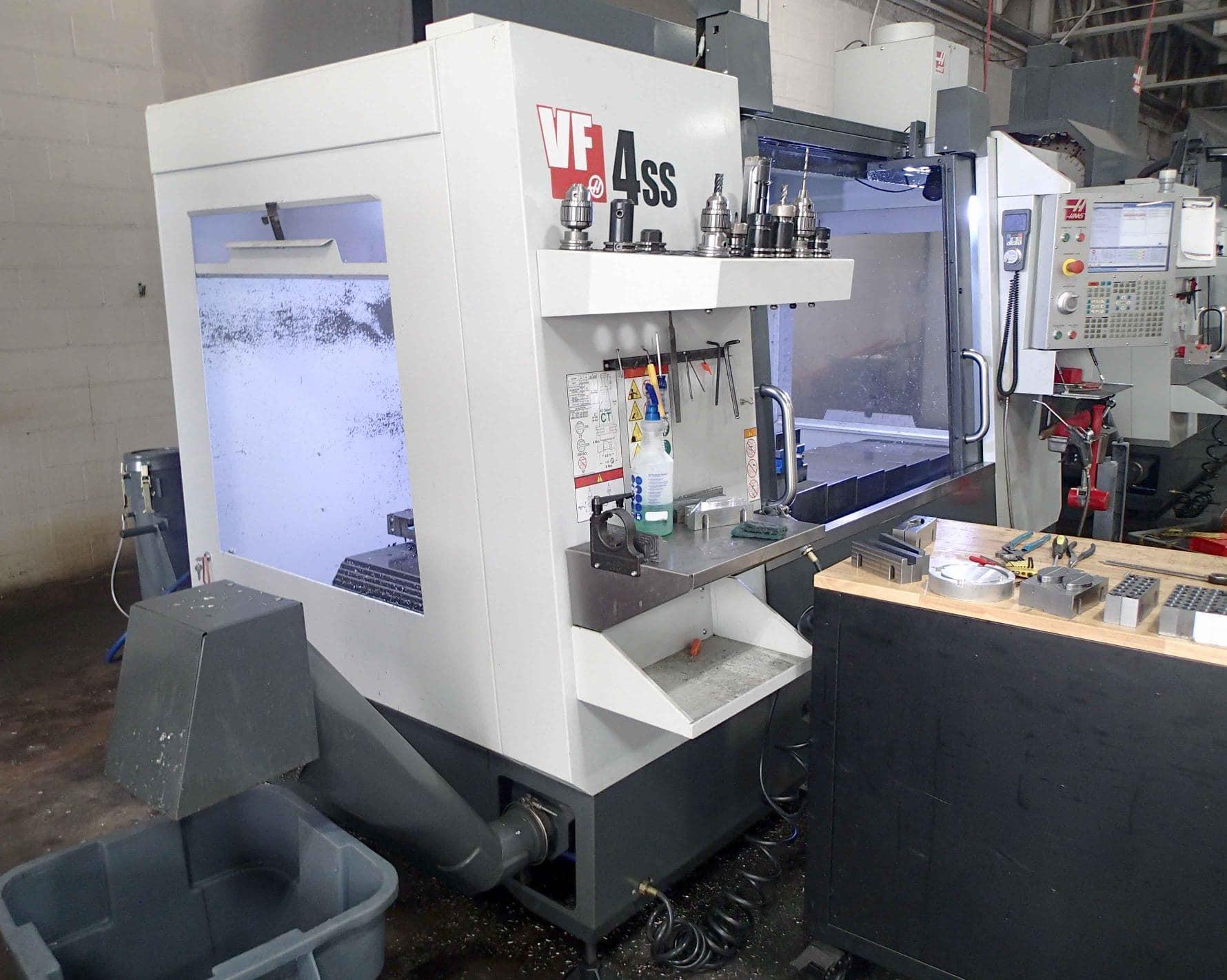

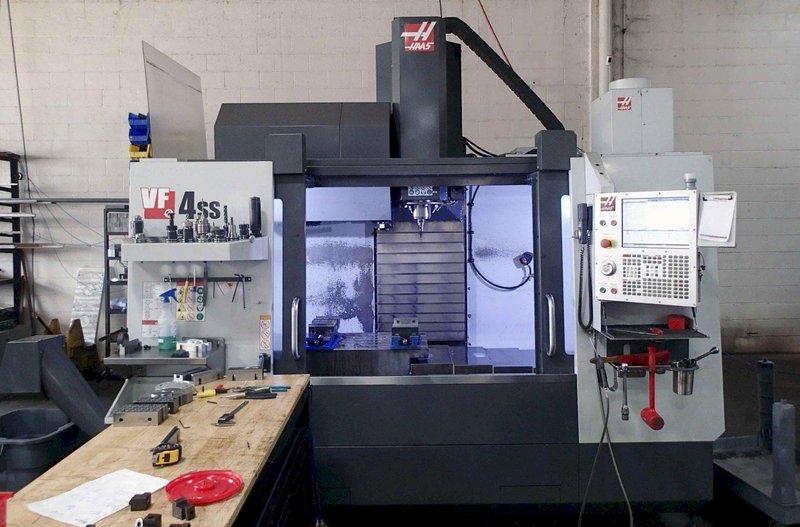

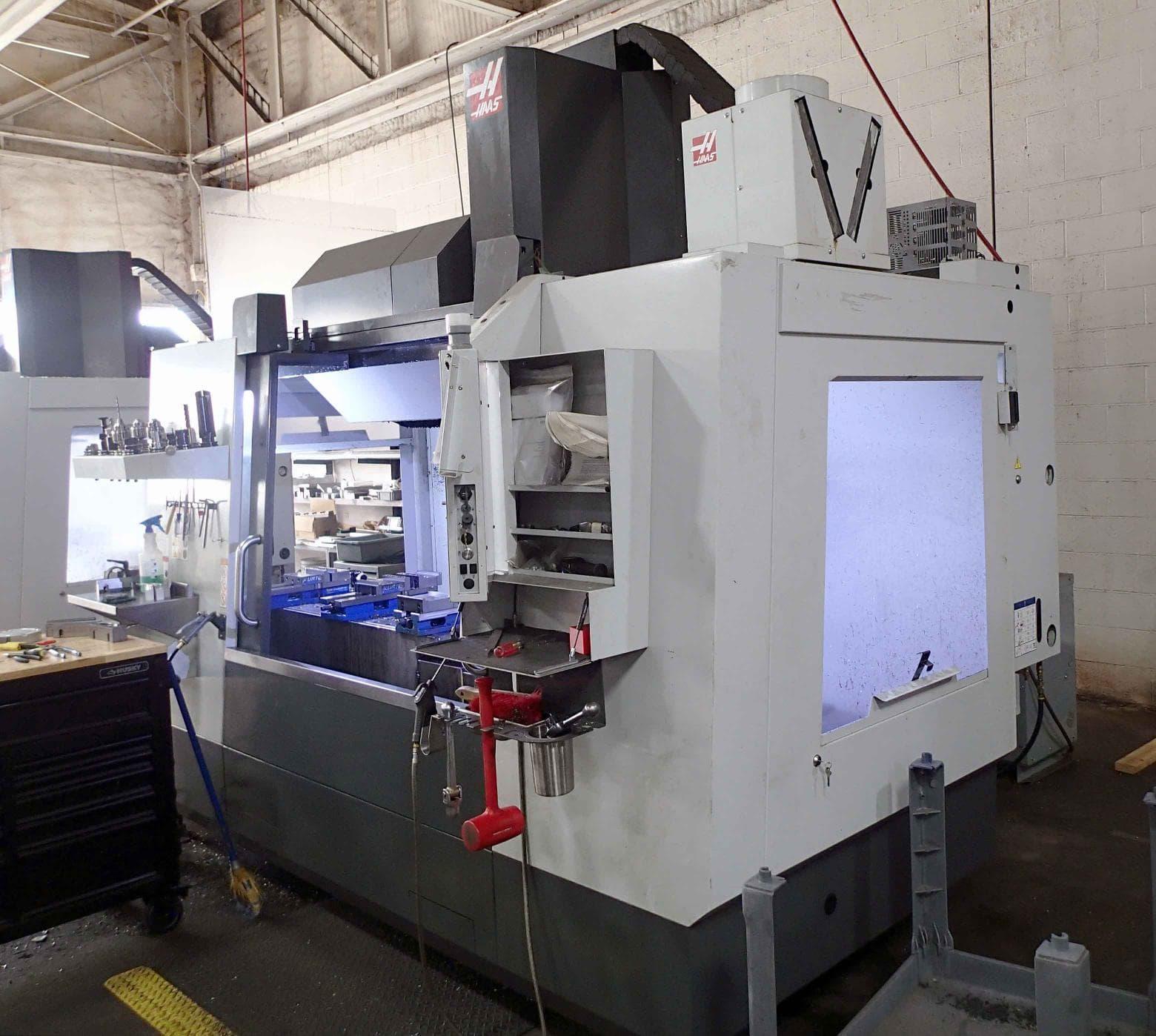

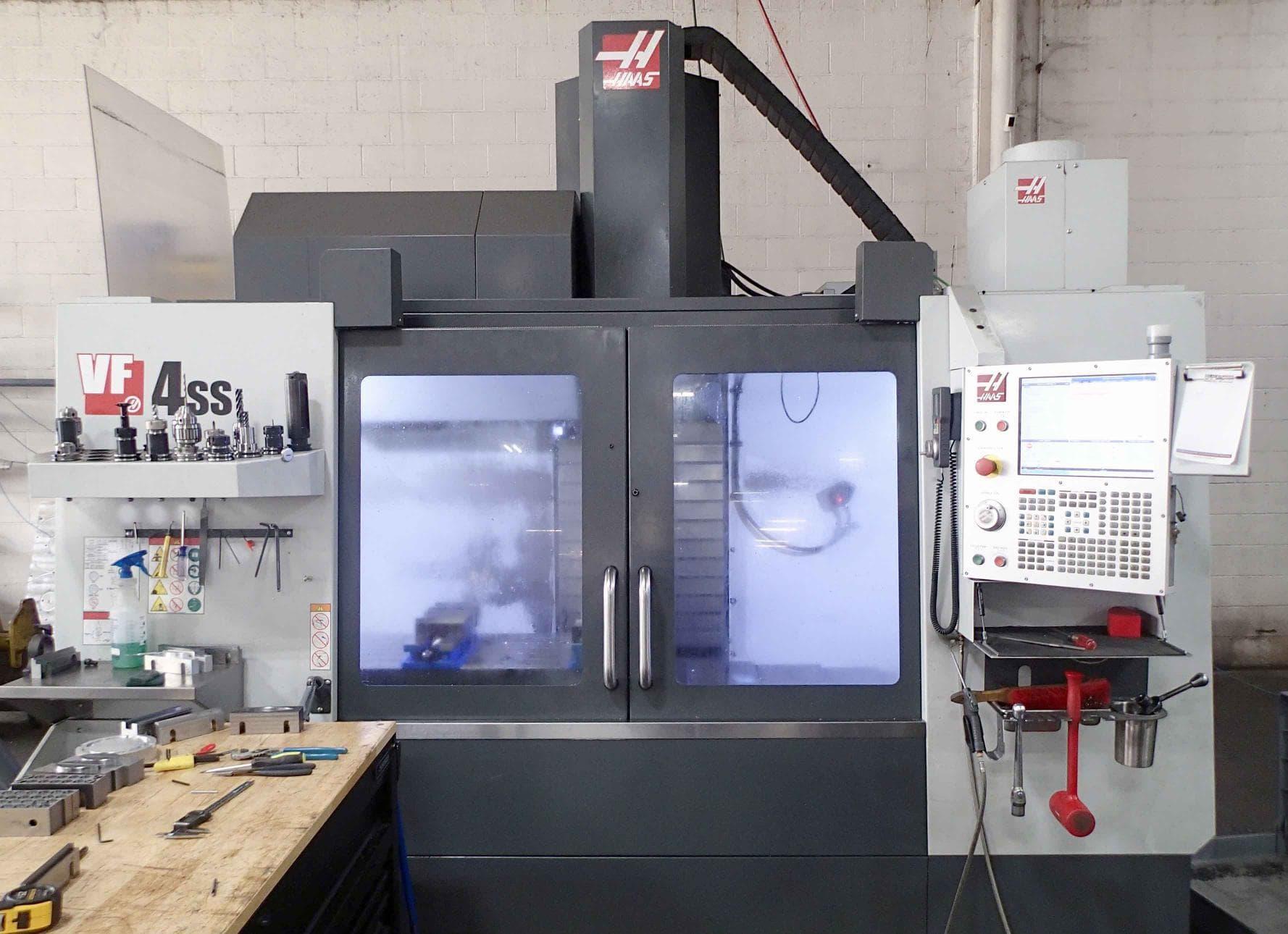

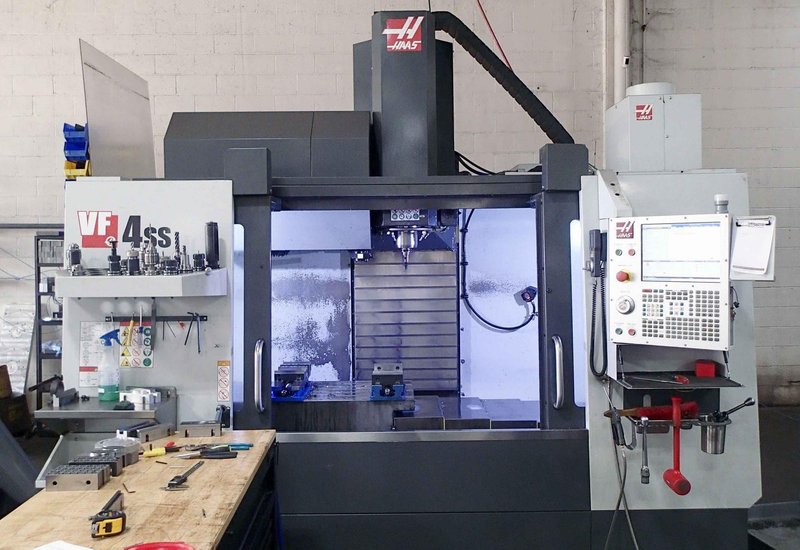

Haas VF-4SS 5-Axis VMC, 2020- TR200Y Trunnion Rotary Table, TSC, Probing, HSM, TCPC & DWO

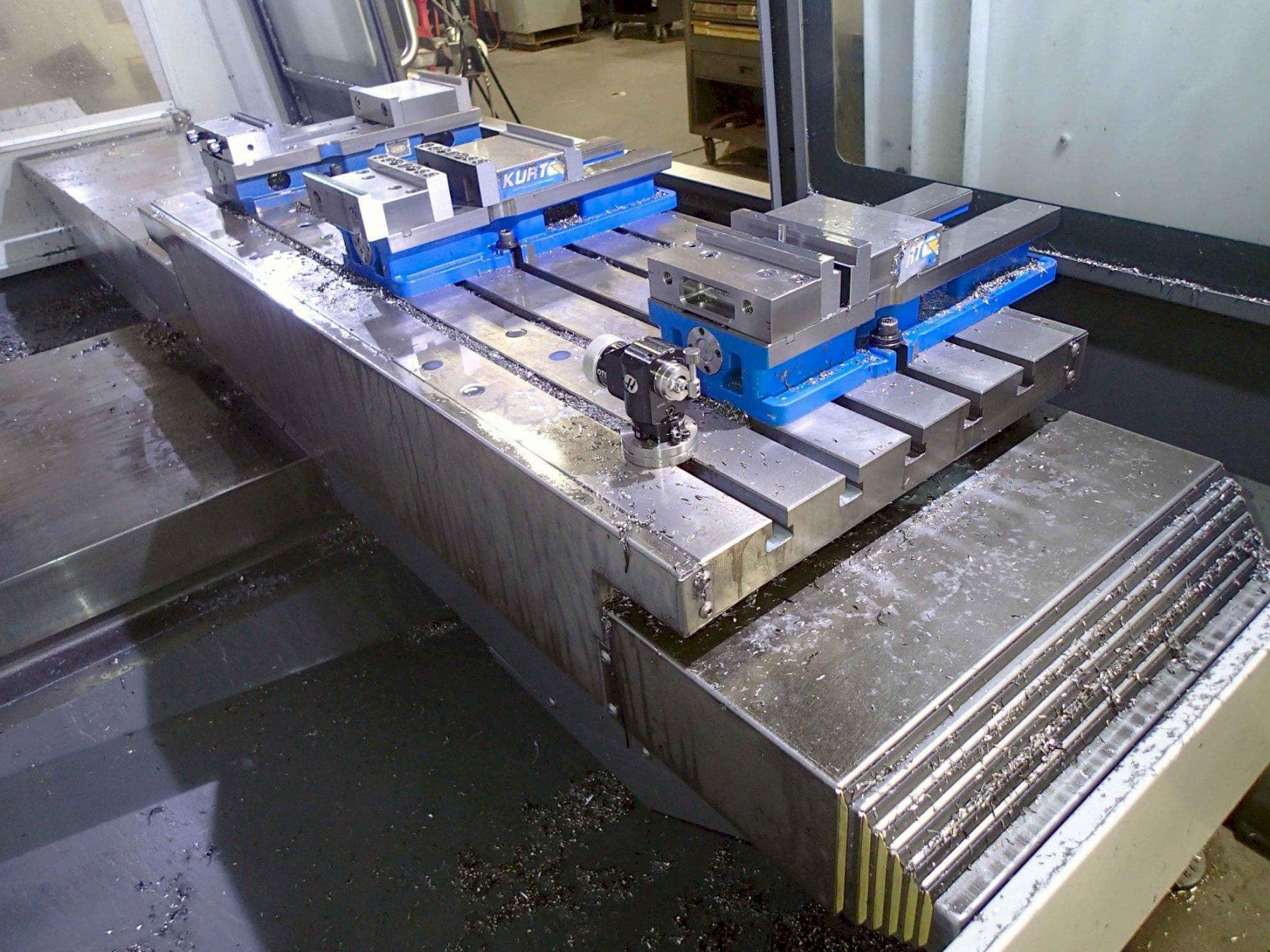

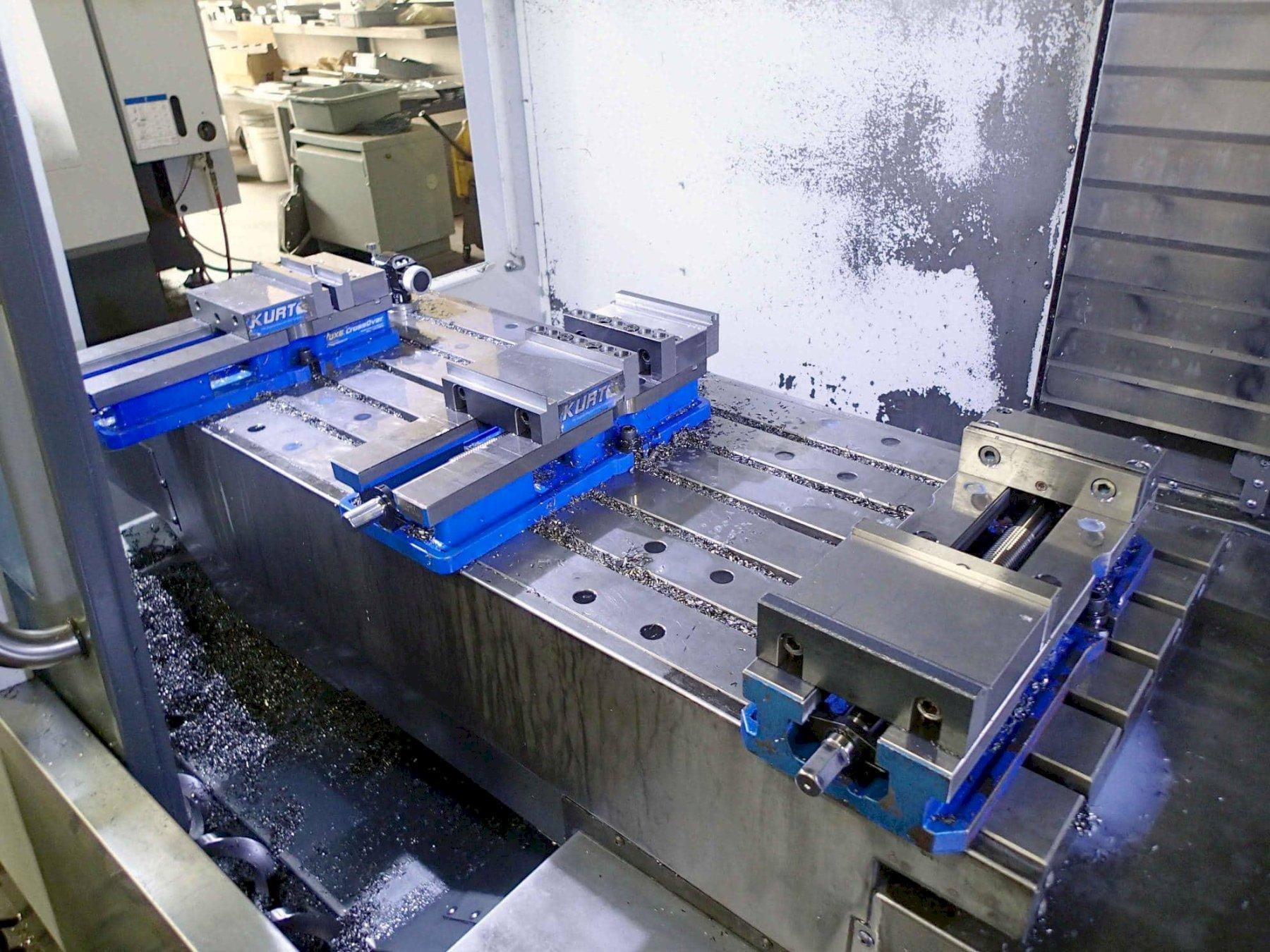

X-Axis Travel: 50″ Y-Axis Travel: 20″ Z-Axis Travel: 25″ Table Size: 52″ x 18″ A-Axis Tilt: +/- 120 degrees B-Axis Indexing: 360 degrees Rotary Platter Size: 7.87″ (200mm)

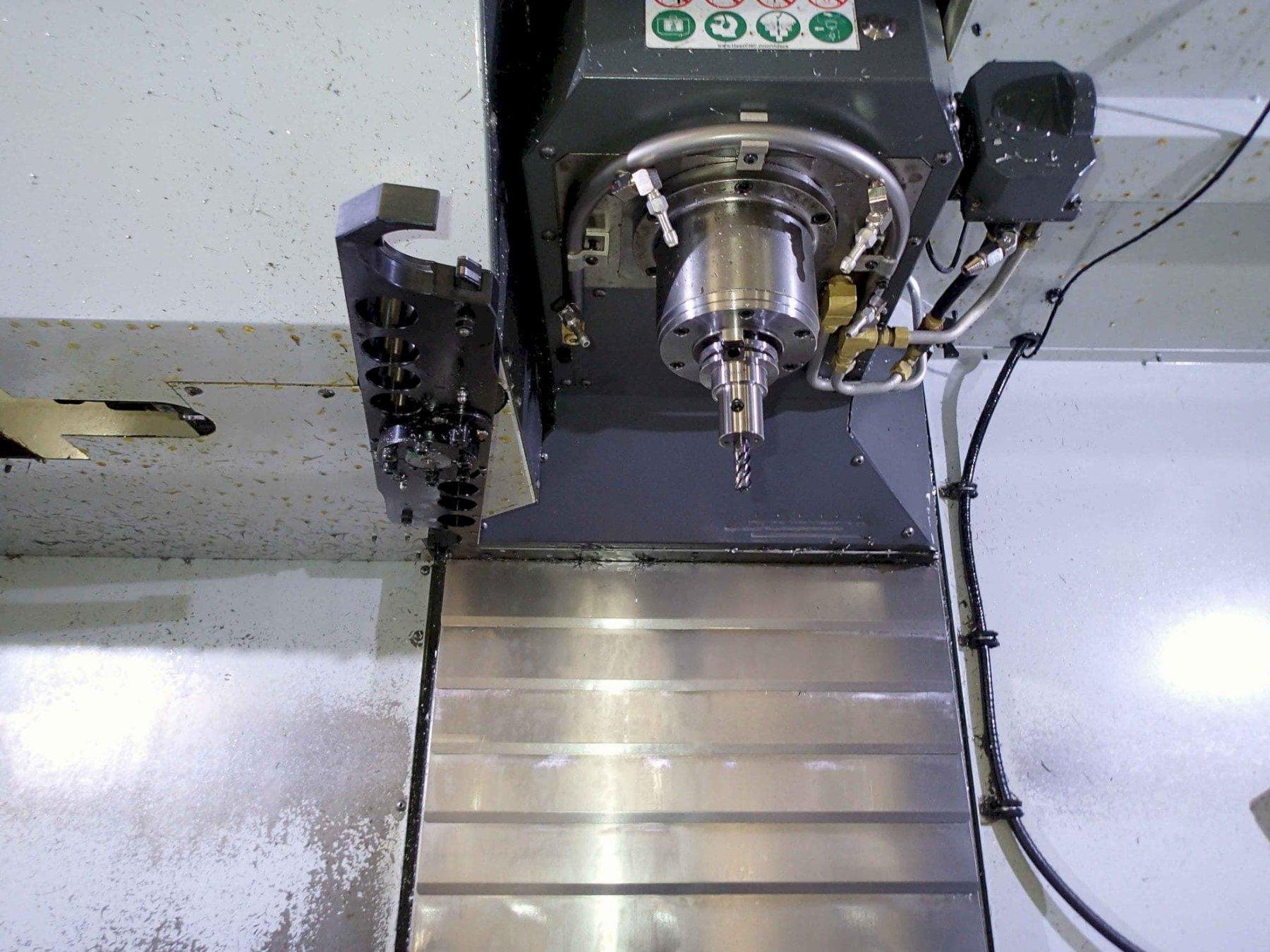

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 12,000 RPM Spindle Power: 30 HP Auto Tool Changer: 30 + 1 Positions Spindle Taper: CAT 40 Max Table Load: 1750 pounds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Requirements: 220 V; 3 Ph; 50/60 Hz Approx Dimensions: 152″ x 99″ x 106″ Approx Weight: 11,720 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Trunnion Rotary Table- Haas TR-200Y Platter Size: 7.87″ (200mm) Max Weight: 80 lbs Max Part Swing: 8.1″ Max Table Tilt (A-Axis): +/- 120 degrees Max Tilt Speed: 100 degrees/second Rotary Indexing (B-Axis): 360 degrees Max Index Speed: 130 degrees/second A/B-Axis Rotation Resolution: 0.001 degrees

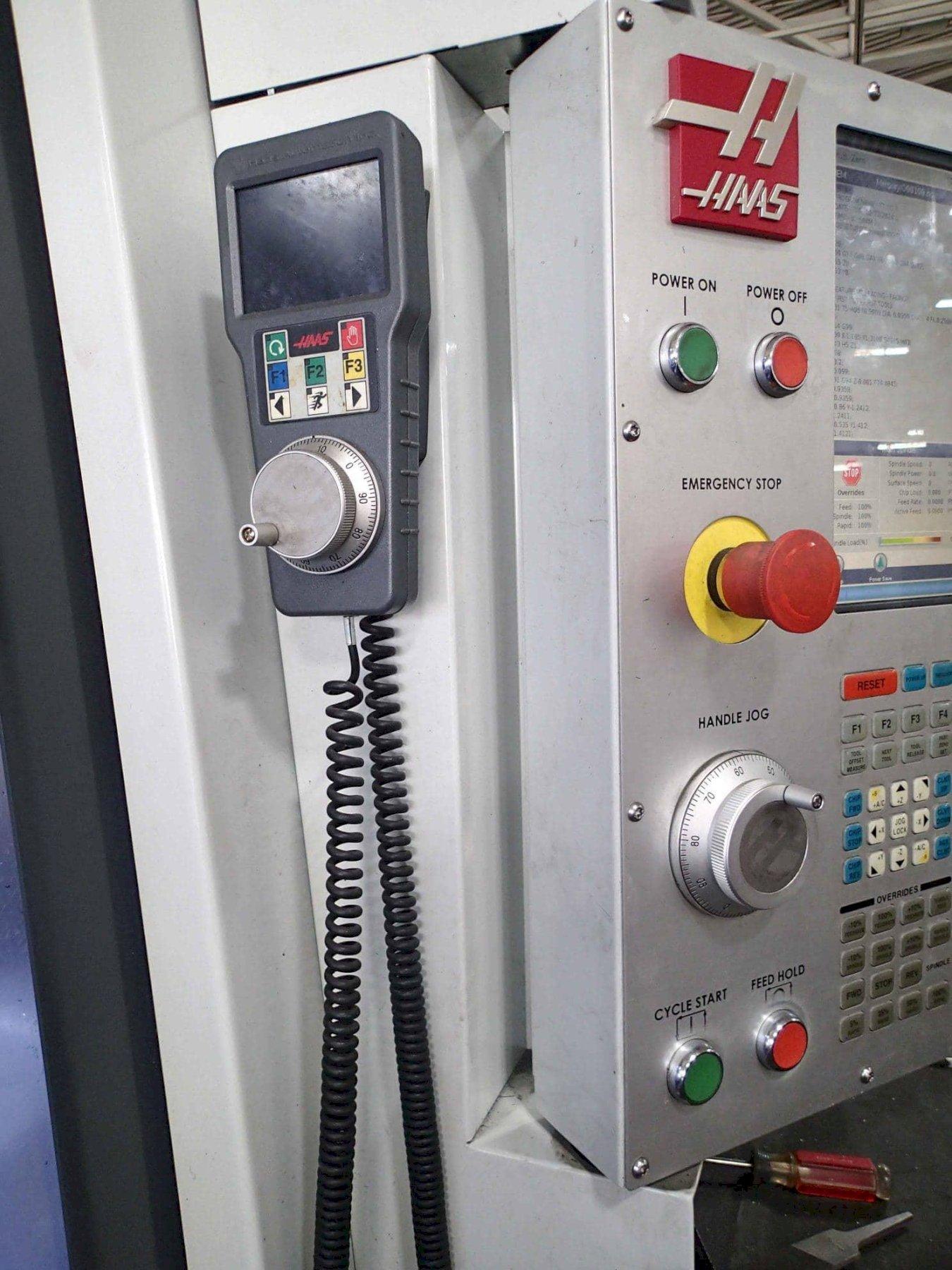

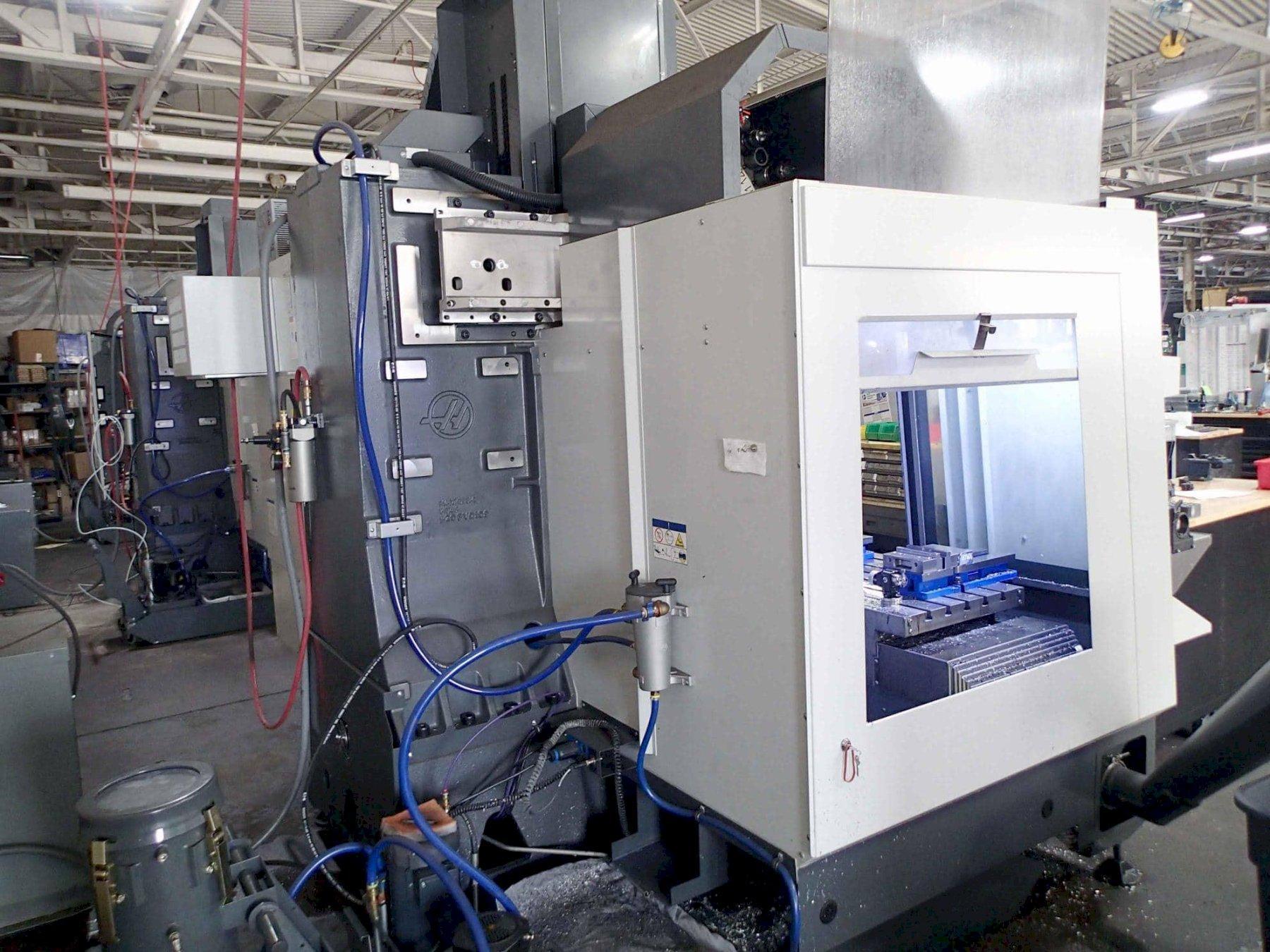

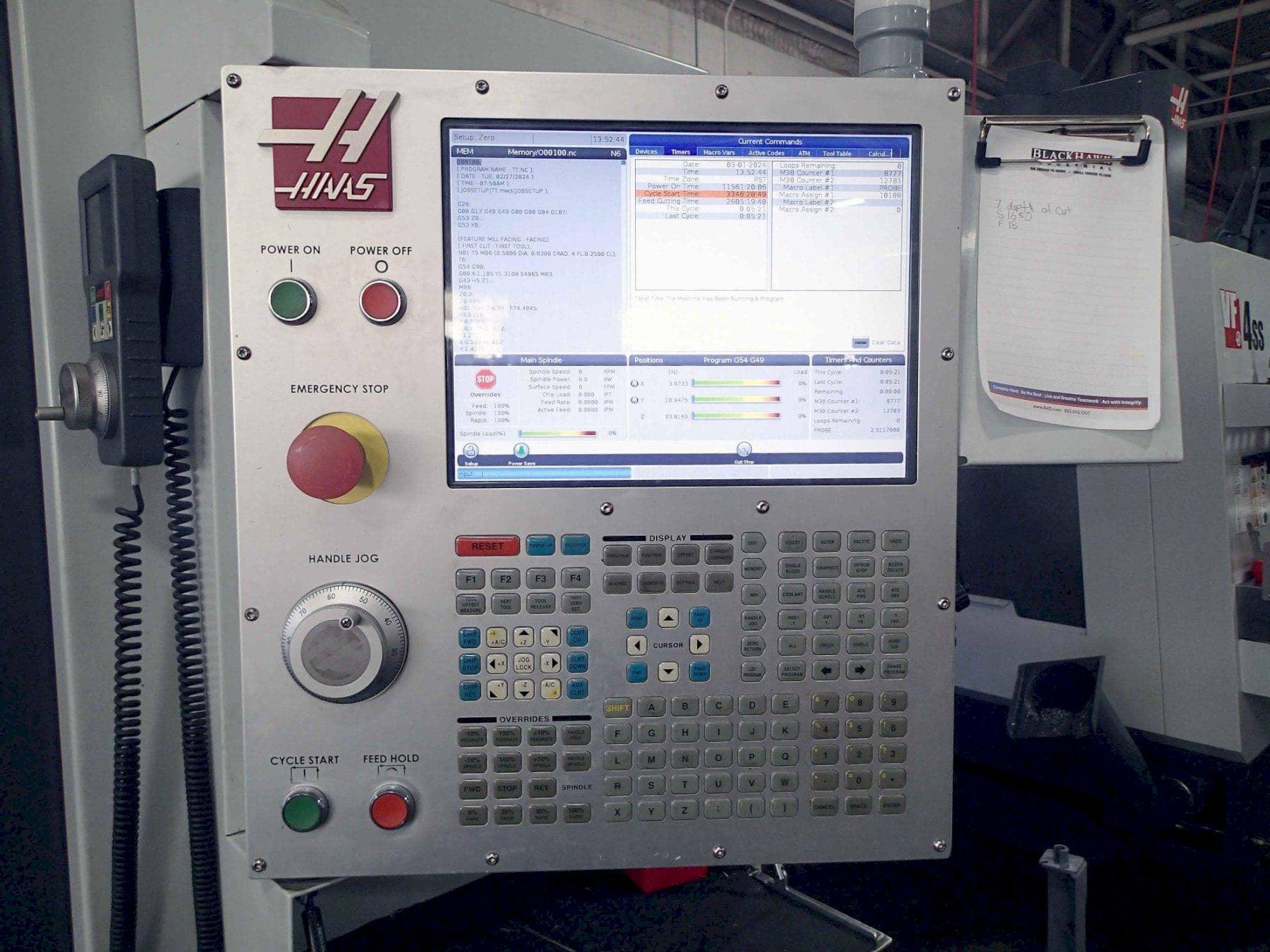

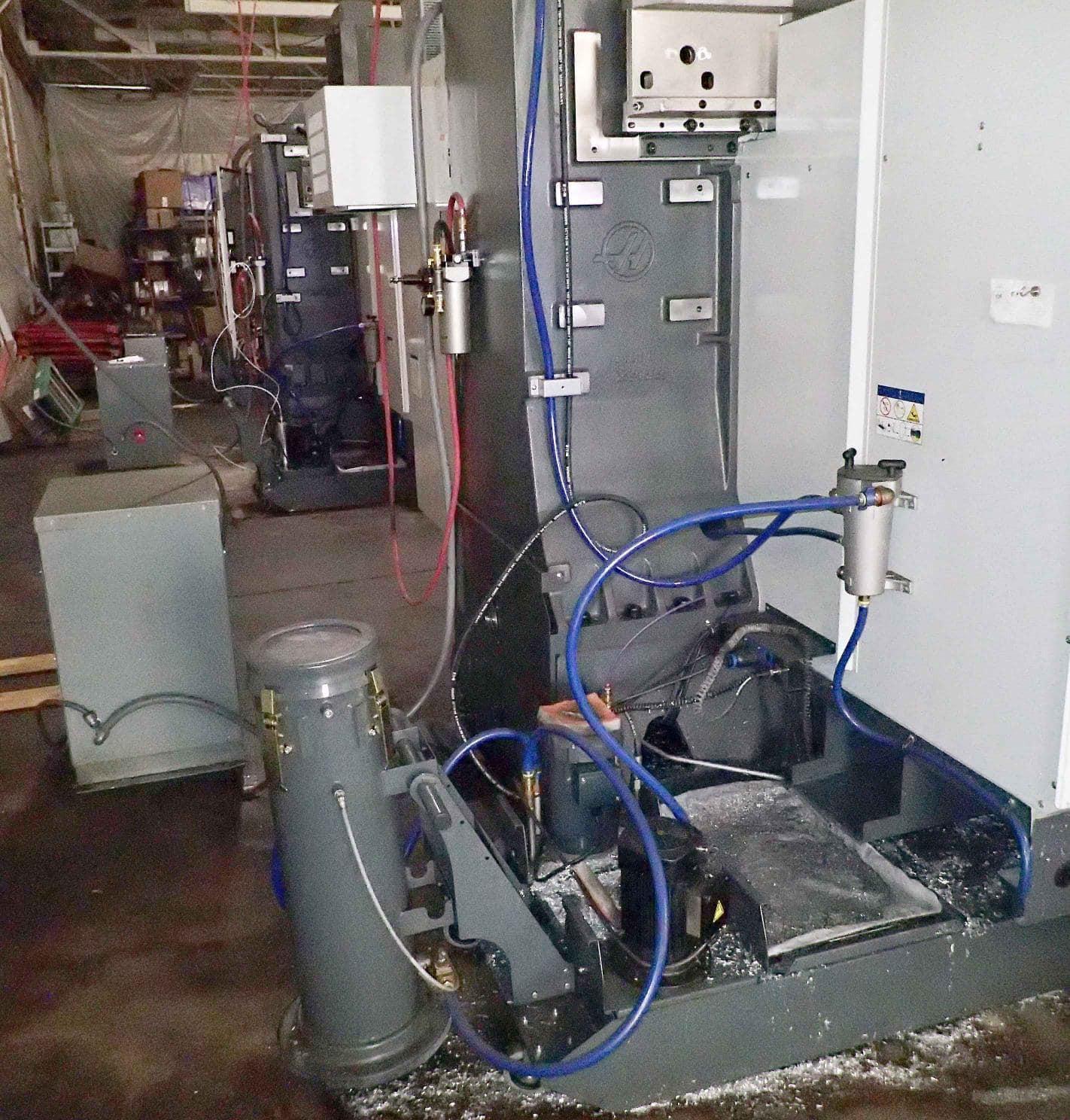

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Haas CNC Control 4th Axis Drive & Wiring 5th Axis Drive & Wiring Haas TR-200Y Trunnion Rotary 5th Axis Table Through Spindle Coolant Programmable Coolant Nozzle & Coolant Maintenance Package WIPS- Wireless Intuitive Probing System TCPC & DWO- Tool Center Point Control & Dynamic Work Offsets High Speed Machining 12,000 RPM Spindle 30 + 1 Automatic Side Mount Tool Changer Chip Auger Mist Collector Automatic Doors Wi-Fi Camera Remote Jog Handle Coolant Tank

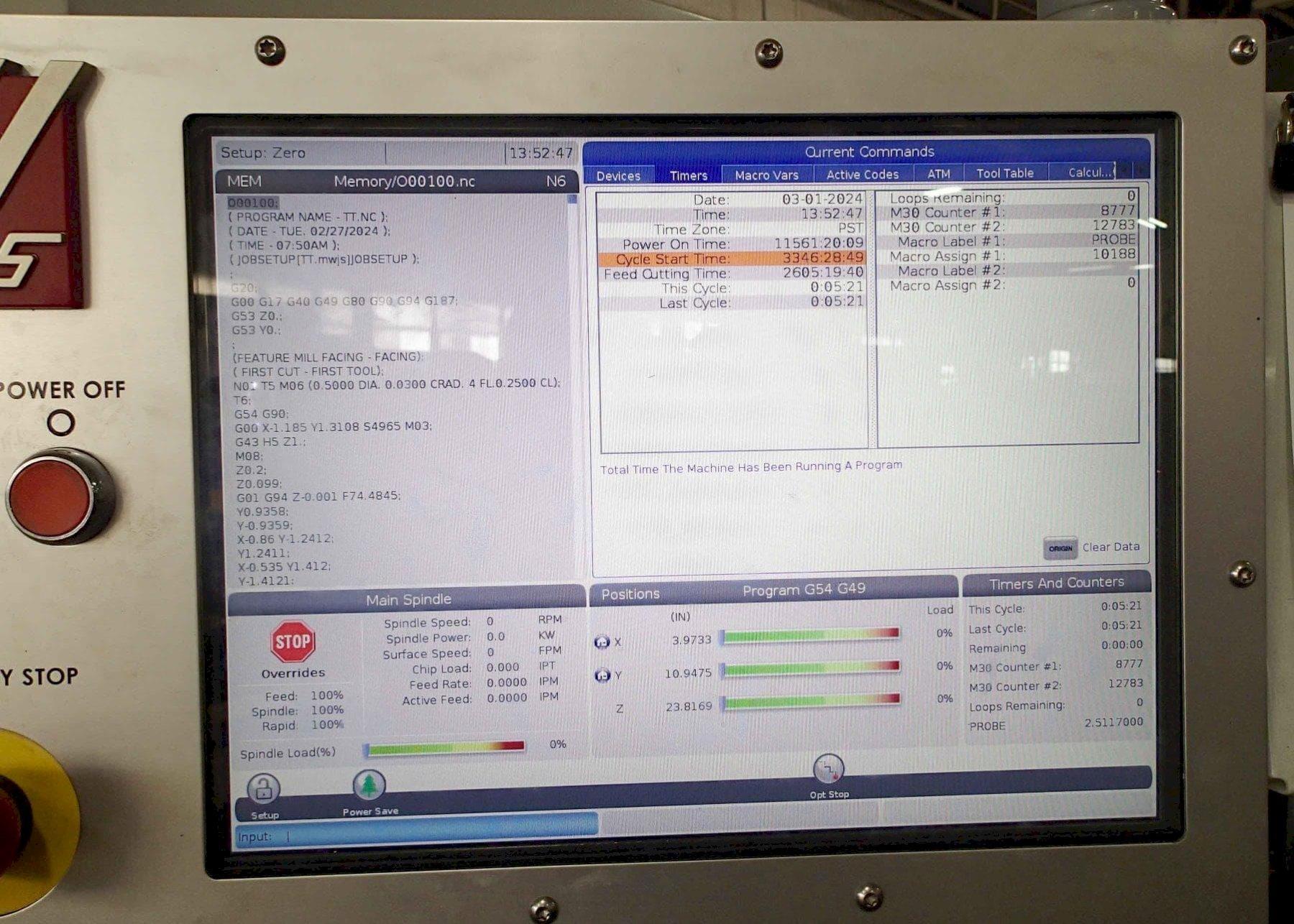

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Transformer Additionally Available Feed Cutting Time: Approx 2,605 Hours
